Ideal Standard A954360NU11 On/​Off 1/​2" Flow Cartridge for Taps and Shower Valves (Clockwise Close)

SUMMARY

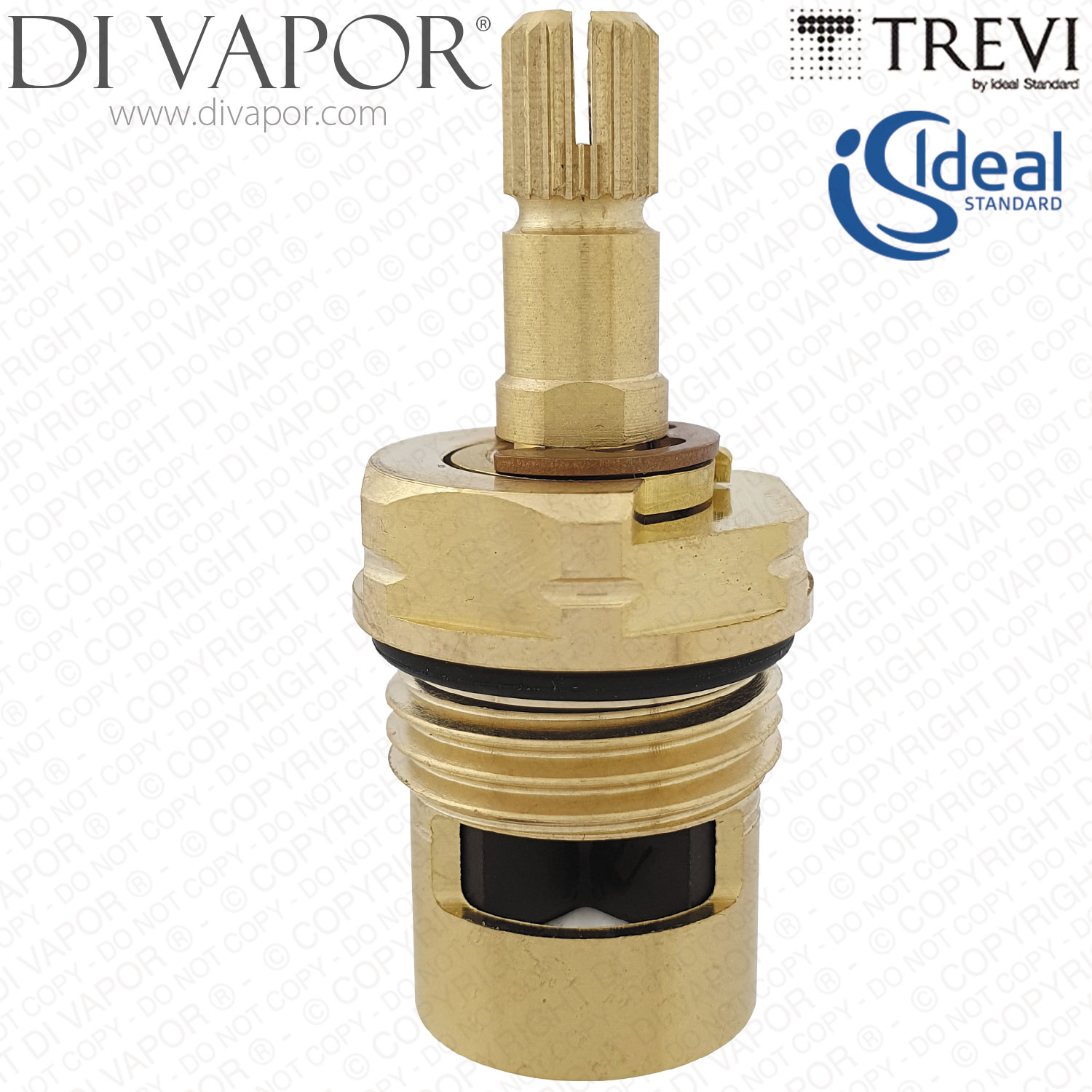

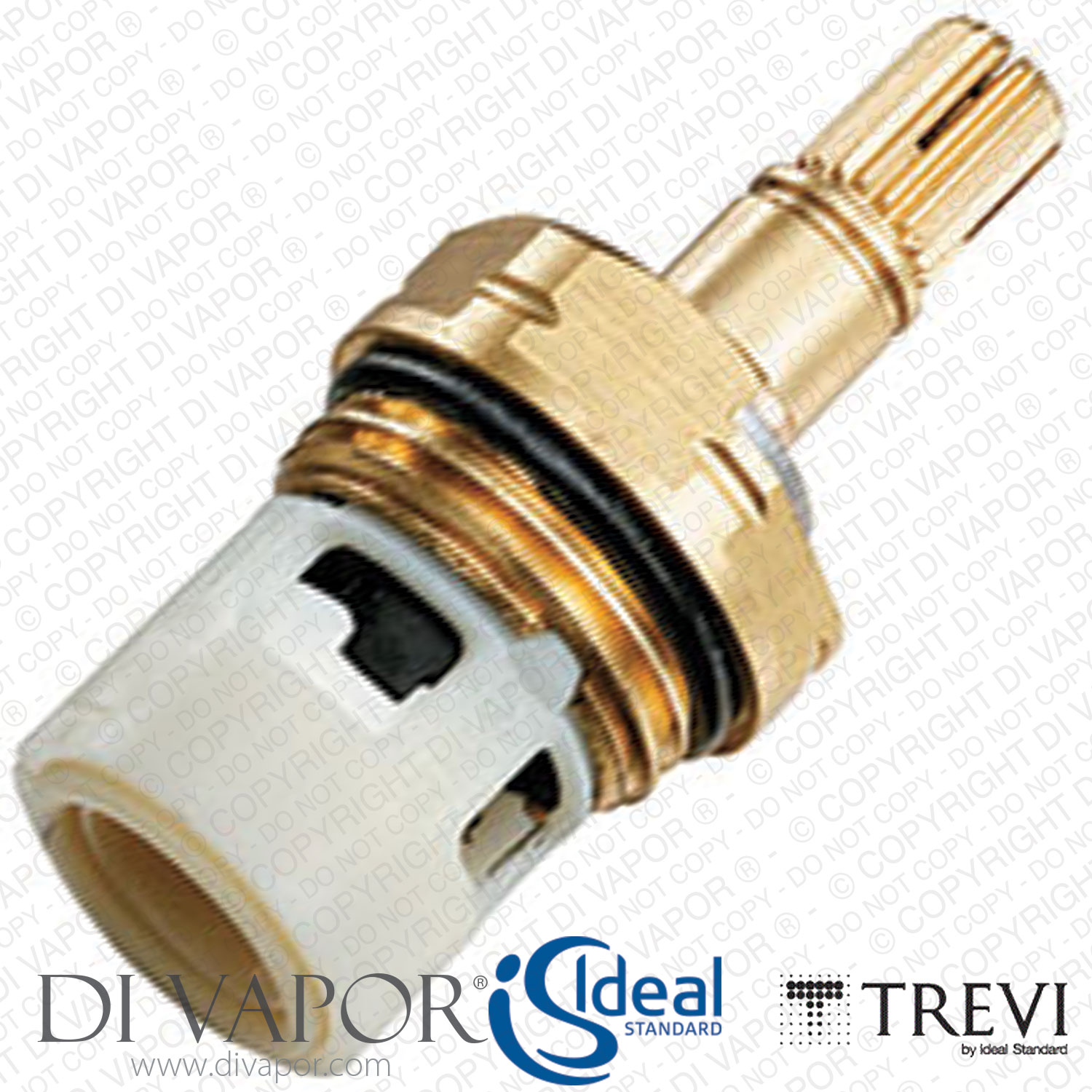

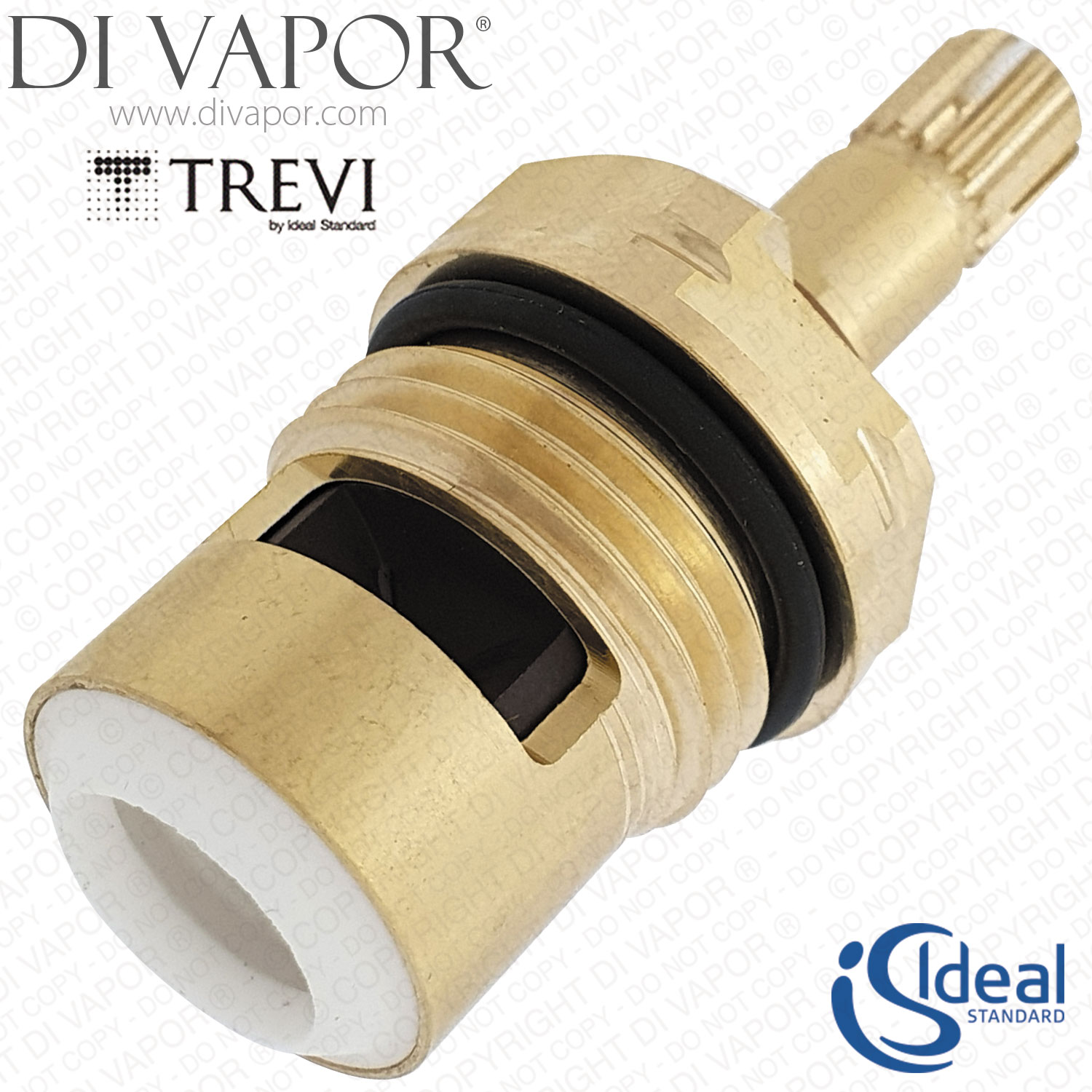

A954360NU11 Ideal Standard / Trevi On / Off 1/2 Inch Flow Cartridge for Taps and Shower Valves (Clockwise Close)

NOTE: The total height of this cartridge is 52mm to 53mm depending upon how compressed the bottom seal is. If the cartridge you require is between 56mm and 57mm, then you will need the E960583NU.

The Ideal Standard A954360NU11 is a pre-2001 1/2 inch TX ceramic disc flow cartridge used as an on/off control in selected Ideal Standard and Trevi taps and shower valves. It has a clockwise-close action and operates with a quarter turn.

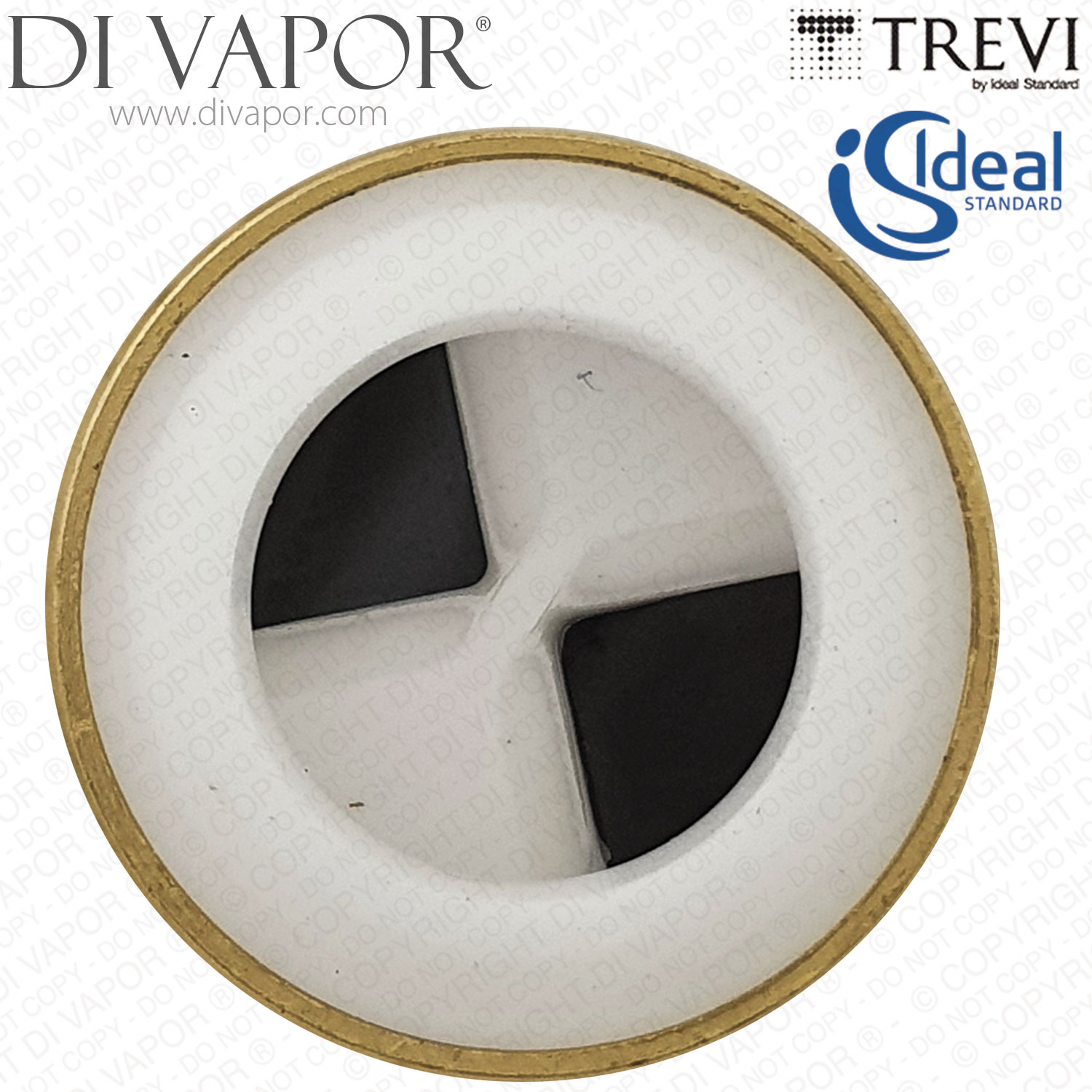

The ceramic discs inside the cartridge open and close the waterway as the control is turned. A common sign of a worn flow cartridge is water continuing to drip from the tap spout or shower outlet when the control is fully turned off.

Technical Details

- - Part code: A954360NU11

- - Manufacturer's alternative code format: A 954 360 NU11

- - Manufacturer description: 1/2 inch TX ceramic disc clockwise close pre 2001

- - Part type: ceramic disc on/off flow cartridge

- - Operation: quarter turn

- - Closing direction: clockwise close

- - Installation: screw-in

- - Approximate total height: 52mm to 53mm depending on compression of the bottom seal

- - Diameter at base: 17mm

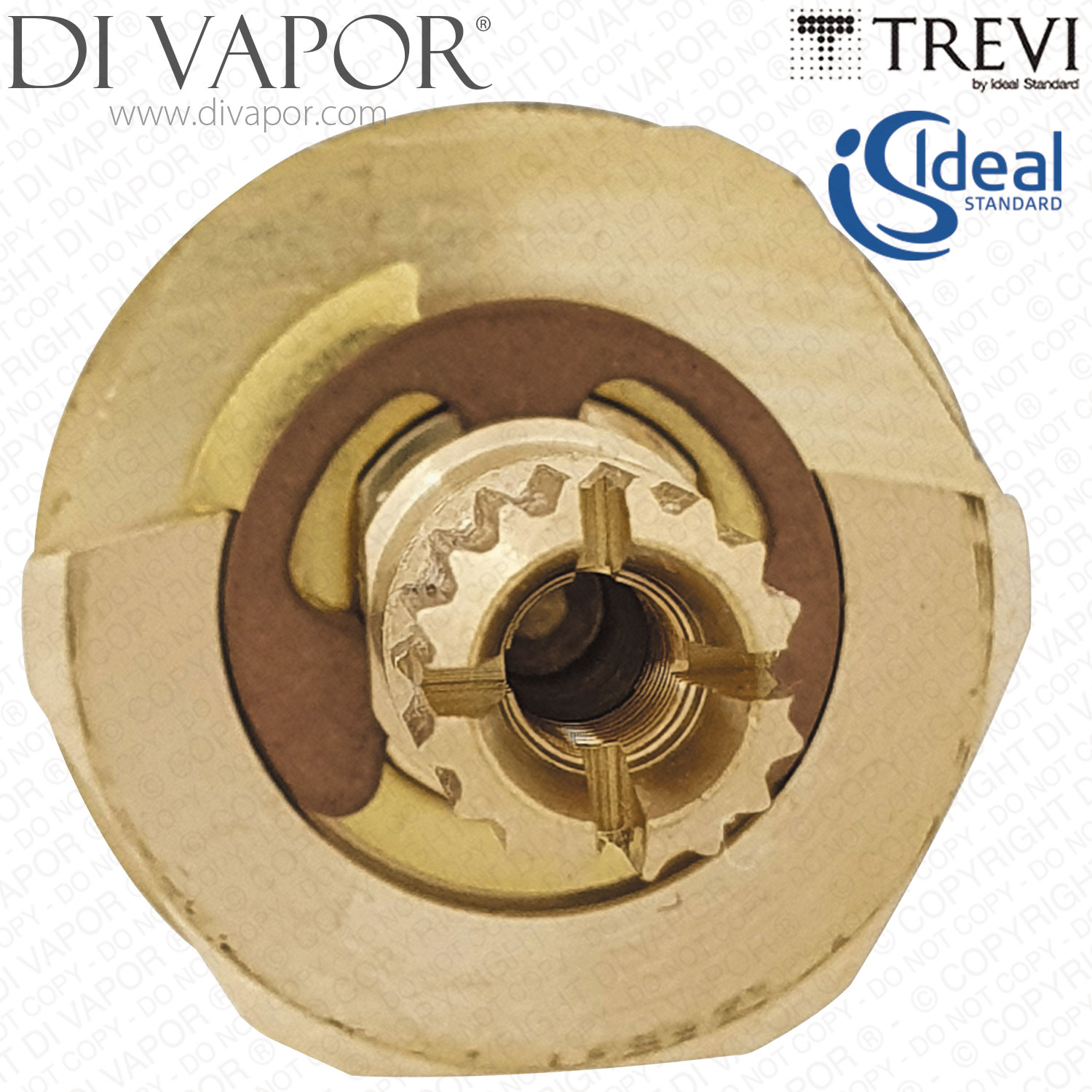

- - Spline length: 20mm

- - External O-rings: 1

- - Pair code: E002467 contains A954360NU11 clockwise close and A954361NU11 anti-clockwise close cartridges

The hot or cold position should not be assumed from the cartridge code alone because documented Ideal Standard installations use the clockwise and anti-clockwise cartridges in different orientations. Match the closing direction and the original cartridge before ordering.

Check Before You Order

The A954360NU11 is approximately 52mm to 53mm high. If the cartridge removed from your tap is approximately 56mm to 57mm high, check the Ideal Standard E960583NU 56.7mm clockwise-close flow cartridge instead. The E960583NU is a different later cartridge type and should not be treated as a universal replacement for A954360NU11.

Some longstanding Ideal Standard model codes can span different service-part generations, so compare the removed cartridge dimensions and closing direction as well as the tap model before ordering.

Confirmed Models

- - Tantofex E1515AA Tantadisc Basin Pillar Taps

- - Tantofex E1735AA Tantadisc Basin Mixer

- - Tantofex E6816AA Tantadisc Dual Control One Taphole Sink Mixer

- - Tantofex E6817AA Tantadisc Sink Mixer Rim Mounted

- - Tantofex E7811AA Tantadisc Dual Control Two Taphole Sink Mixer

- - Tantofex E9092AA Provence Dual Control Two Taphole Bridge Sink Mixer

- - Tantofex E0362 Lyon Sink Mixer 1H SS DF

- - E7154 Tantofex Alpina Franke Sink Mixer 1H SS DF

Ideal Standard manufacturer literature also associates the pre-2001 TX cartridge family with the Ardenne, Elixir, Fairline Kitchen, Lyon, Tantadisc and Tonbridge ranges. Individual fitment should still be checked against the original cartridge rather than assumed from the range name alone.

Related Spares You May Need

- - Ideal Standard E002467 Pair of 1/2 Inch On/Off Ceramic Disc Flow Cartridges - contains A954360NU11 and the matching anti-clockwise-close cartridge

- - Ideal Standard A954361NU11 1/2 Inch TX Ceramic Disc Flow Cartridge Anti-Clockwise Close - matching pre-2001 TX cartridge with the opposite closing direction

- - TACSIL TAC86 3g Premium Cartridge Silicone Grease - for lubricating the cartridge O-ring and bottom seal during installation

- - Ideal Standard A922539NU11 Dekora Cartridge to Handle Adapter - for applicable Dekora handle arrangements

- - Ideal Standard E960583NU 56.7mm Clockwise-Close Ceramic Disc Flow Cartridge - check only where the removed cartridge measures approximately 56mm to 57mm

- - Ideal Standard E960582NU 56.7mm Anti-Clockwise-Close Ceramic Disc Flow Cartridge - opposite-closing cartridge from the later 56.7mm family

- - Ideal Standard S960025NU 56.7mm Ceramic Disc Flow Cartridge Pair - later-generation pair for installations using the 56.7mm cartridges

Not sure this is the right cartridge? Use the Di Vapor part identification service.
