Ideal Standard A954361NU 1/2" TX Ceramic Disc Flow Cartridge (On/Off) - Anti Clockwise Close
Send a photo of your item and we'll help confirm it.
Summary
A954361NU Ideal Standard / Trevi11 1/2 Inch Tx Ceramic Disc Flow Cartridge (On/Off) - Anti Clockwise Close

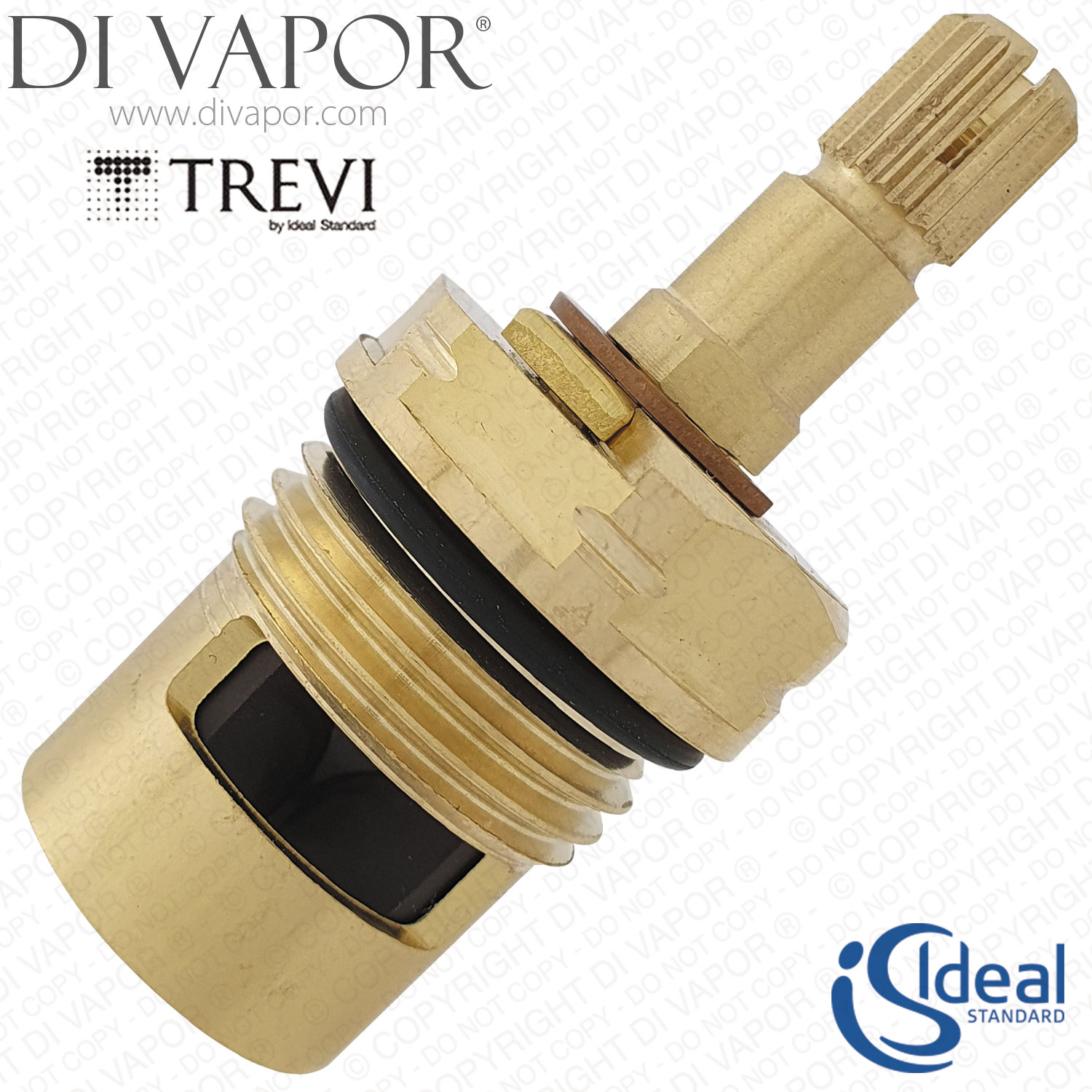

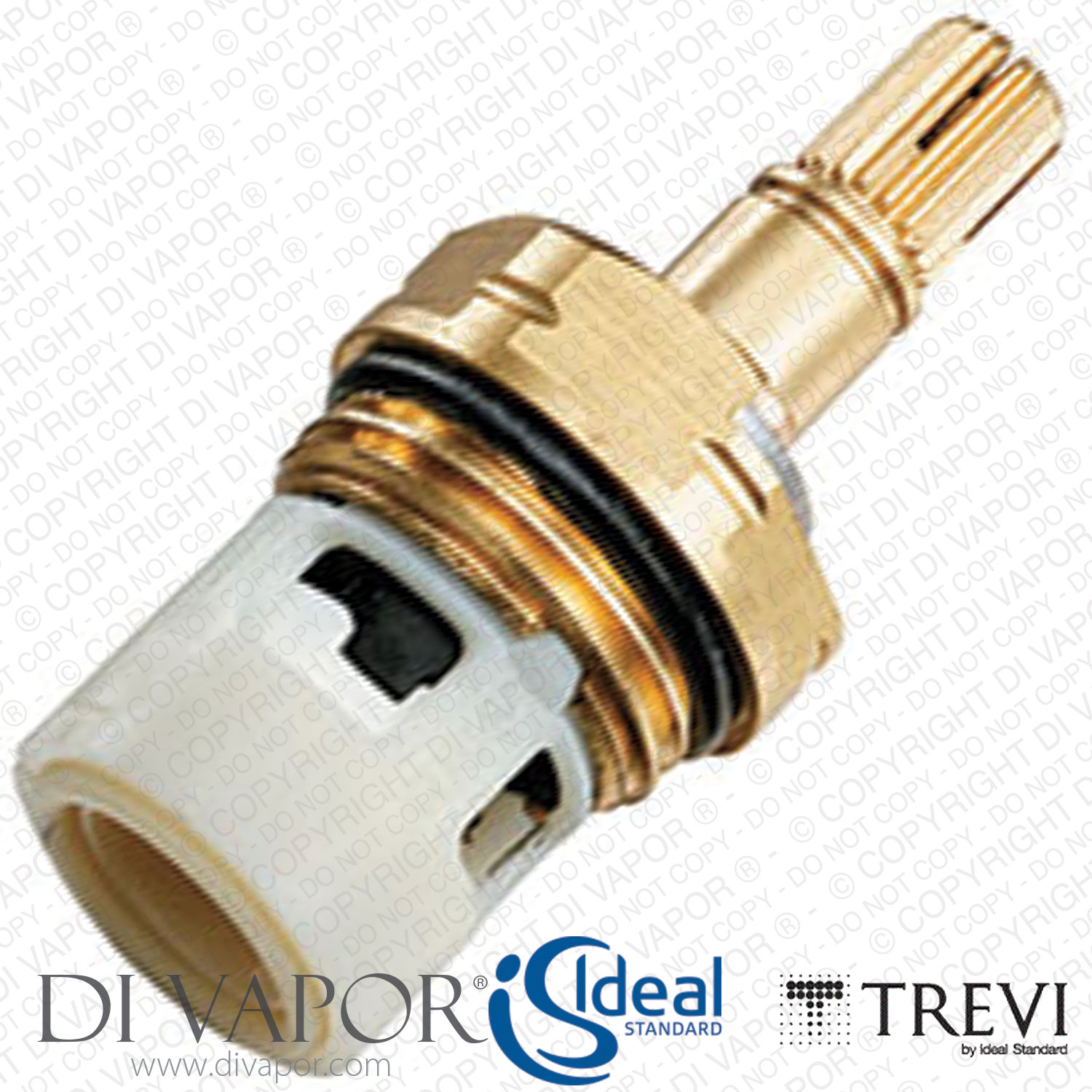

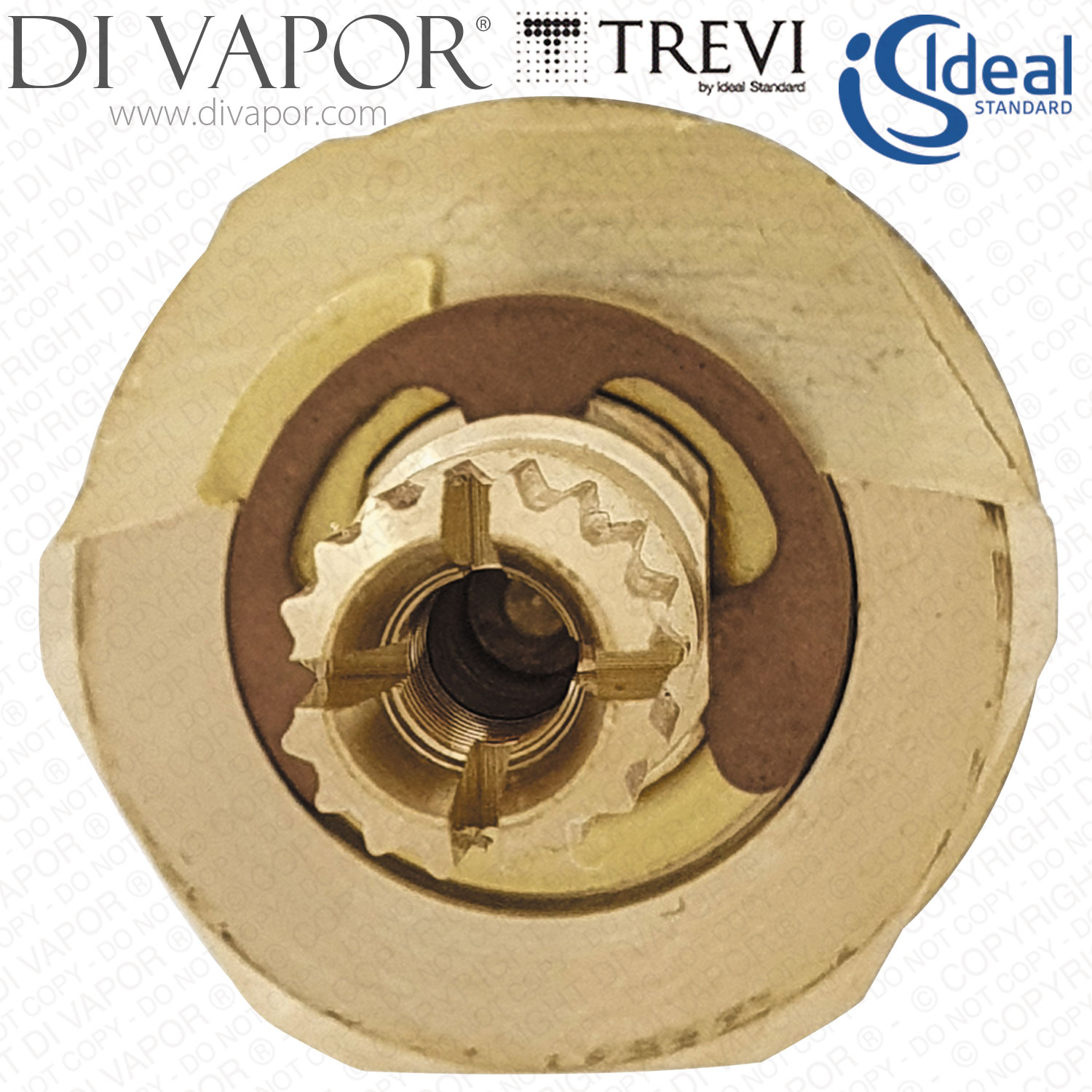

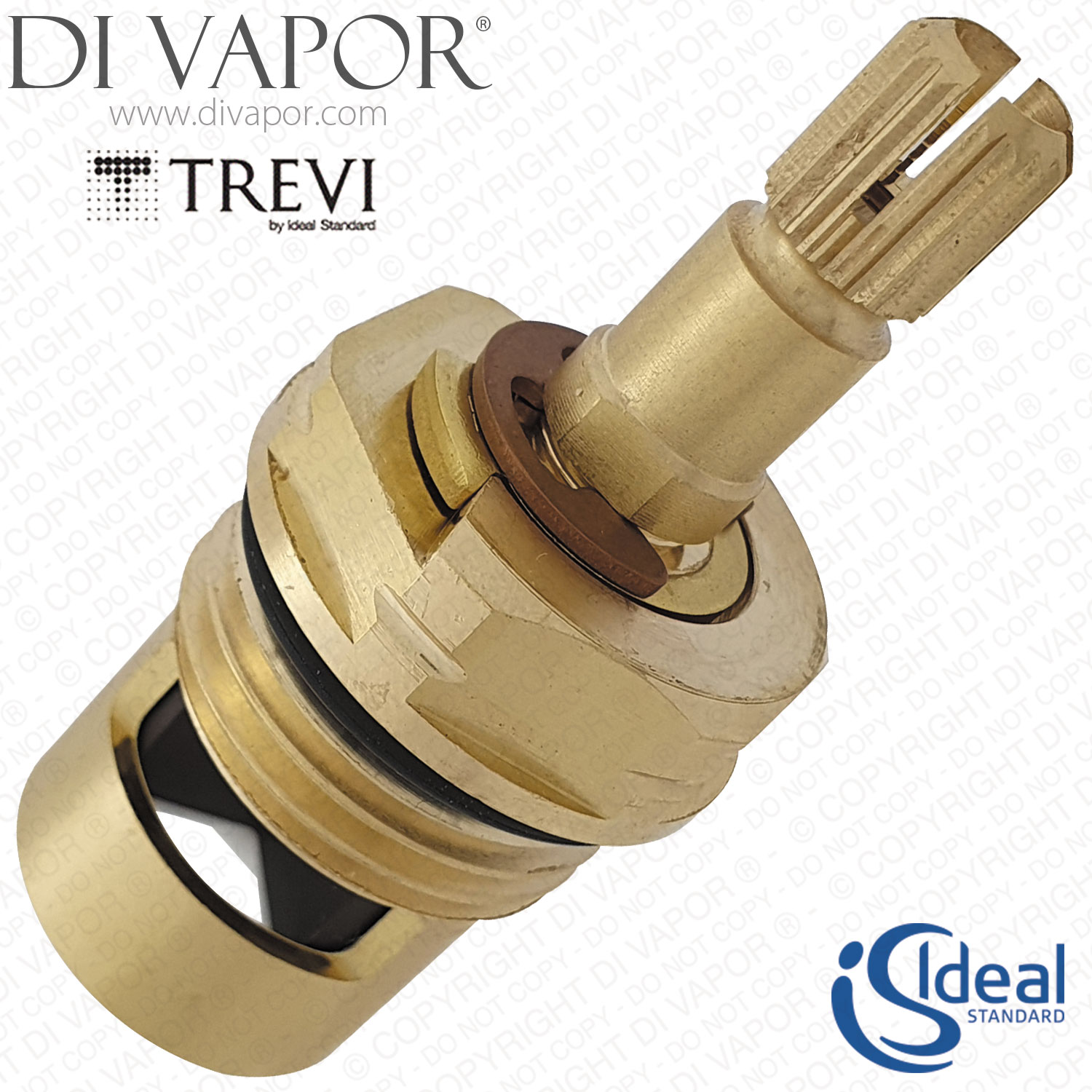

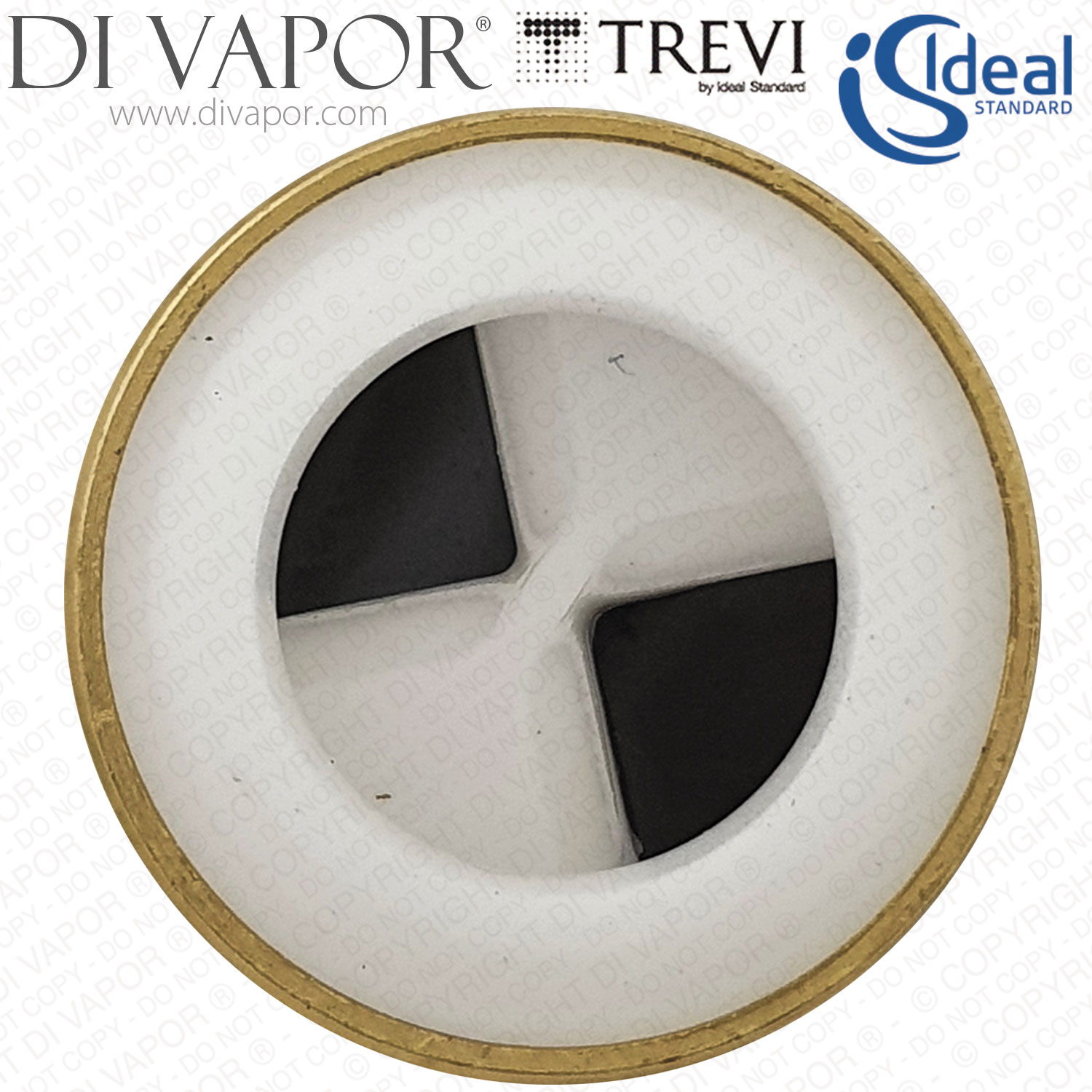

This Ideal Standard A954361NU is a 1/2 inch TX ceramic disc flow cartridge for selected Ideal Standard and Trevi taps. The Di Vapor part number is A954361NU11 and the cartridge operates as a quarter-turn on/off cartridge with anti-clockwise close action.
This cartridge controls water flow through the tap body by opening and closing ceramic discs. It is the anti-clockwise-close hot-side cartridge used in the Ideal Standard E002467 cartridge pair, paired with A954360NU11 clockwise-close for the cold side.
A common symptom of a worn flow cartridge is water continuing to drip from the tap spout when the tap is turned off. Check the removed cartridge height and closing direction before ordering because similar Ideal Standard cartridges are not interchangeable by size alone.
Technical Details
| Brand | Ideal Standard / Trevi |
|---|---|
| Part number | A954361NU11 |
| Product code in title | A954361NU |
| Cartridge type | 1/2 inch TX ceramic disc flow cartridge |
| Operation | quarter-turn on/off |
| Closing direction | anti-clockwise close |
| Total height | 52mm to 53mm depending on bottom seal compression |
| Position in E002467 pair | hot side |
- If the removed cartridge is 56mm to 57mm high check E960582NU Ideal Standard 1/2 Inch Flow Ceramic Disc Cartridge Anti-Clockwise Close instead
Confirmed Compatible Models
- Tantofex E1515AA Tantadisc Basin Pillar Taps Spare Parts
- Tantofex Tantadisc Basin Pillar Taps Spare Parts E1515AA GEN1
- Tantofex E1735AA Tantadisc Basin Mixer Tap Spares
- Tantofex E6816AA Tantadisc Dual Control One Taphole Sink Mixer Tap Spare Parts
- Tantofex E6817AA Tantadisc Sink Mixer Rim Mounted Kitchen Tap Spare Parts
- Tantofex E7811AA Tantadisc Sink Mixer Kitchen Tap Spare Parts
- Ideal Standard E9092AA Provence GEN 1
Installation And Ordering Notes
- Isolate the hot and cold supplies before removing the tap handle and cartridge
- Compare the removed cartridge with the replacement before fitting, especially height, closing direction and spline arrangement
- Clean the valve seat before installation and use a suitable silicone grease on seals where required
- Do not order by 1/2 inch size alone because other Ideal Standard ceramic disc cartridges use different dimensions
Related Spares You May Need
- TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
- Ideal Standard E002467 Pair of 1/2 Inch On/Off Ceramic Disc Flow Cartridges
- Ideal Standard A954360NU11 On/Off 1/2 Inch Flow Cartridge for Taps and Shower Valves Clockwise Close
- Ideal Standard A922539NU11 Dekora Cartridge to Handle Adapter - Handle Support Dekora
- E960582NU Ideal Standard 1/2 Inch Flow Ceramic Disc Cartridge Anti-Clockwise Close
