Ideal Standard A962480NU Diverter Cartridge for Easy Box Shower Valves
SUMMARY
Identification
Ideal Standard A962480NU is a concealed Easy-Box stop and diverter cartridge used in selected built-in thermostatic bath and shower valves. It is the function selector that routes water between two outlets and it is a separate part from the thermostatic temperature cartridge.
Function
This cartridge is used where the valve has a 2-outlet diverter arrangement. A worn diverter can cause stiff or loose outlet selection, failure to switch cleanly between outlets, or water passing to the wrong outlet.
Technical Details
- - Part Number: A962480NU
- - Total length including bottom seal: 66mm excluding locating pin
- - Diameter at widest point: 34.3mm
- - Brass spindle length including spline: 28mm
- - Top spline diameter: 7.6mm
- - Top spline teeth / notches: 18
- - Barrel diameter: 31mm
- - Number of function outlets: 2
Before You Order
- - Match the exact code A962480NU from your old part or valve spares list where possible
- - Check the 18-spline top, 7.6mm spline diameter and 2-outlet diverter layout
- - Do not order on diameter alone because other Easy-Box and concealed valve cartridges can look similar
Symptoms This Part Can Fix
- - Water will not switch correctly between shower functions
- - Selector feels worn, stiff or inconsistent in operation
- - Water continues to pass to the wrong outlet after selection
Confirmed Compatible Models
- - Ideal Standard A4888AA Ceratherm 100 Built-In Thermostatic Bath Shower Mixer
- - Ideal Standard A4891AA Melange Thermostat with Diverter
- - Ideal Standard A4891AA GEN1 Melange Thermostat with Diverter
- - Ideal Standard A6345AA Tonic II Thermostat with Diverter
- - Ideal Standard A6345AA GEN1 Tonic II Thermostat with Diverter
- - Ideal Standard A5880AA Easybox Slim Thermostatic Built-In Shower Valve with 2-Function Diverter
- - Ideal Standard A5619AA Ceratherm 100 Thermostatic Bath Shower Built-In Mixer
- - Ideal Standard A5620AA Ceratherm 200 Thermostatic Bath Shower Built-In Mixer
- - Ideal Standard A6869AA CeraPlus 2 Concealed Thermostatic Bath Shower Mixer
Related Spares You May Need
- - Trevi F960905NU Tonic II Easybox Thermostatic Cartridge

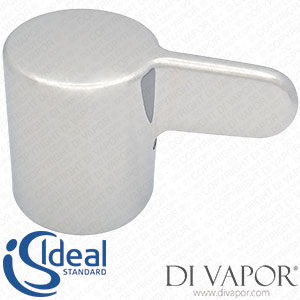

- - Ideal Standard A860949AA Themperature Control Handle - Chrome

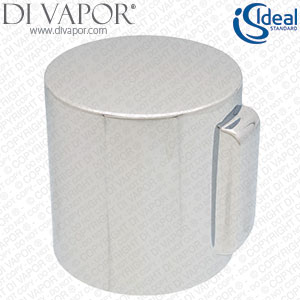

- - Ideal Standard F960914AA Volume Control Handle for Easy Box Shower Valve (A916896AA)
- - Ideal Standard F960952AA Thermostatic Handle without Printed Markings
- - Ideal Standard A962880AA TEMPERATURE/VOLUME HANDLE THERM CHROME
- - Ideal Standard F960906NU Check Valves for Easy Box Valve
- - Ideal Standard F960907NU HOLDER F. ESCUTCHEON TEMP. EASY-BOX UK
- - Ideal Standard F960908NU Easybox Temperature Adjustment Carrier
- - Ideal Standard F960909NU HOLDER F. ESCUTCHEON VOL. EASY-BOX UK
- - Ideal Standard F960910AA COVER / CAP TEMPERATURE EASY-BOX UK
- - Ideal Standard F960911AA COVER / CAP VOLUME EASY-BOX UK
- - Ideal Standard A963196NU Cartridge Spline Adaptor
- - Ideal Standard A962481NU CLAMP COVER W. ADJUSTMENT EASY-BOX
- - Ideal Standard A963131NU INSTALLATION DEPTH ADJUSTMENT COMPLETE
- - Ideal Standard A963132NU SIDE SEALING For BUILT-IN BOX A1000NU
- - Ideal Standard A960704NU EXTENSION KIT EASY-BOX
- - Ideal Standard F960903NU ADAPTER SCREW M5 EASY-BOX UK
- - TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
