A961010NU Ideal Standard /​ Trevi Cold On/​Off 3/​4" Flow Cartridge for Shower Valves

Summary

A961010NU Ideal Standard Trevi 3/4 Inch Cold Flow Cartridge for Bath Taps - Clockwise Open

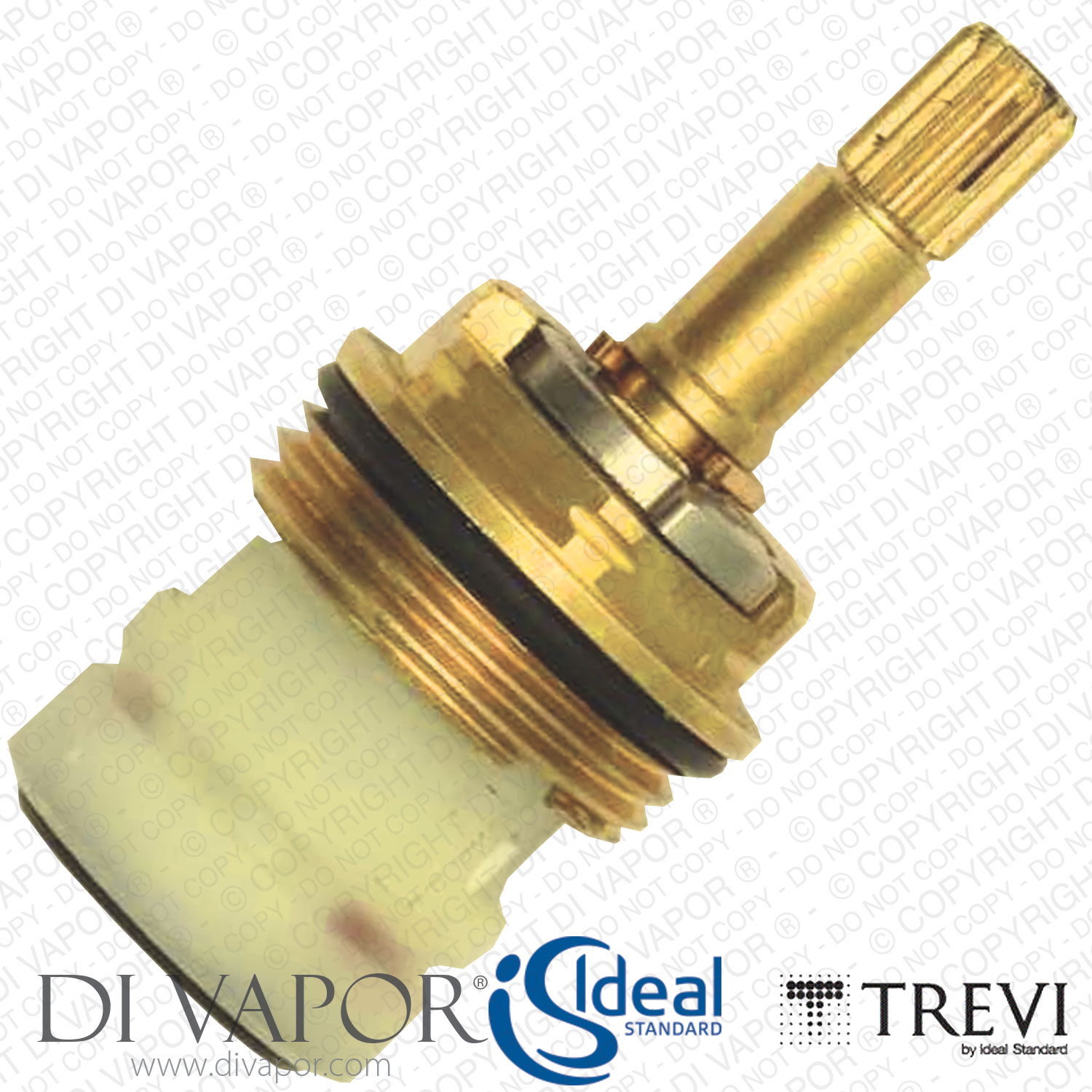

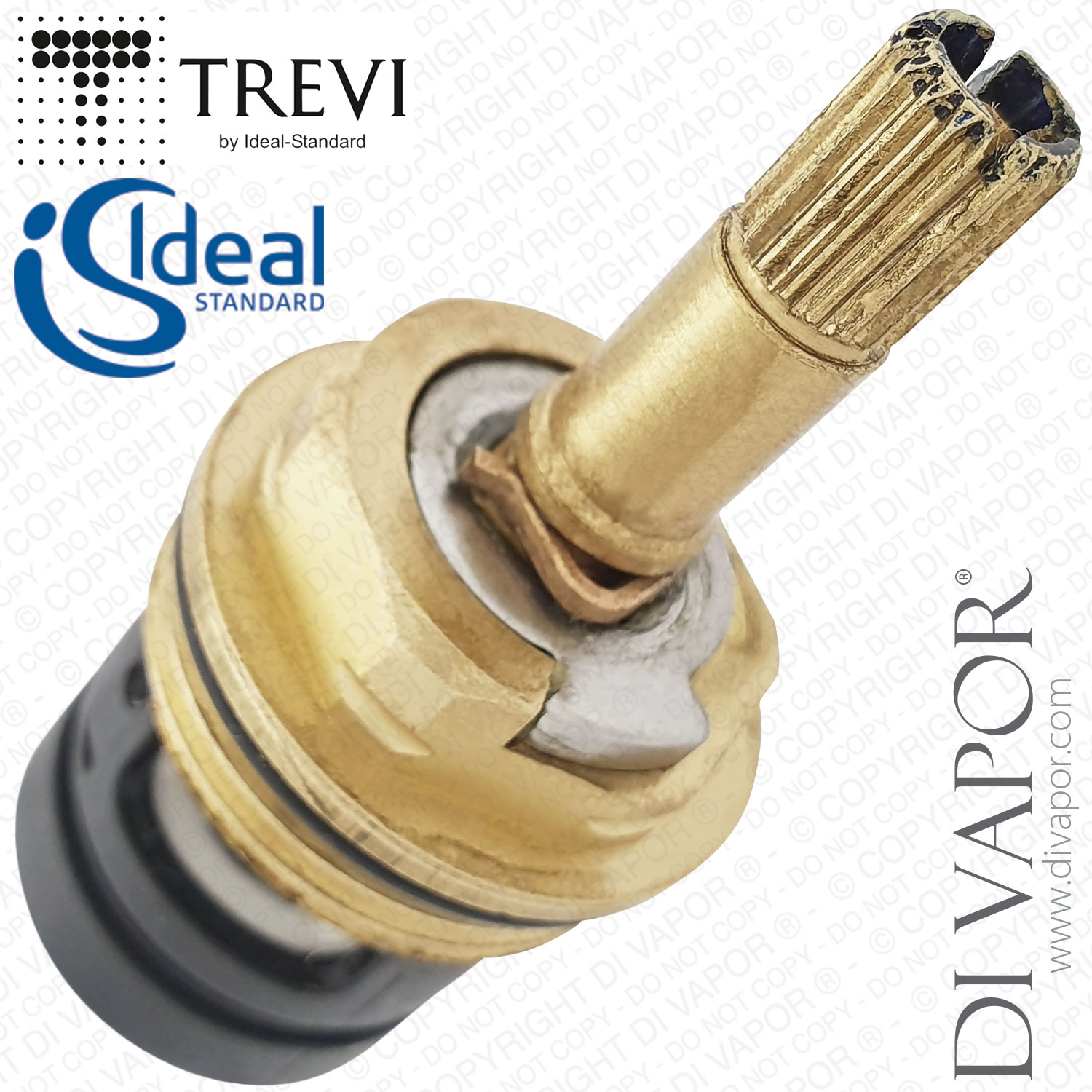

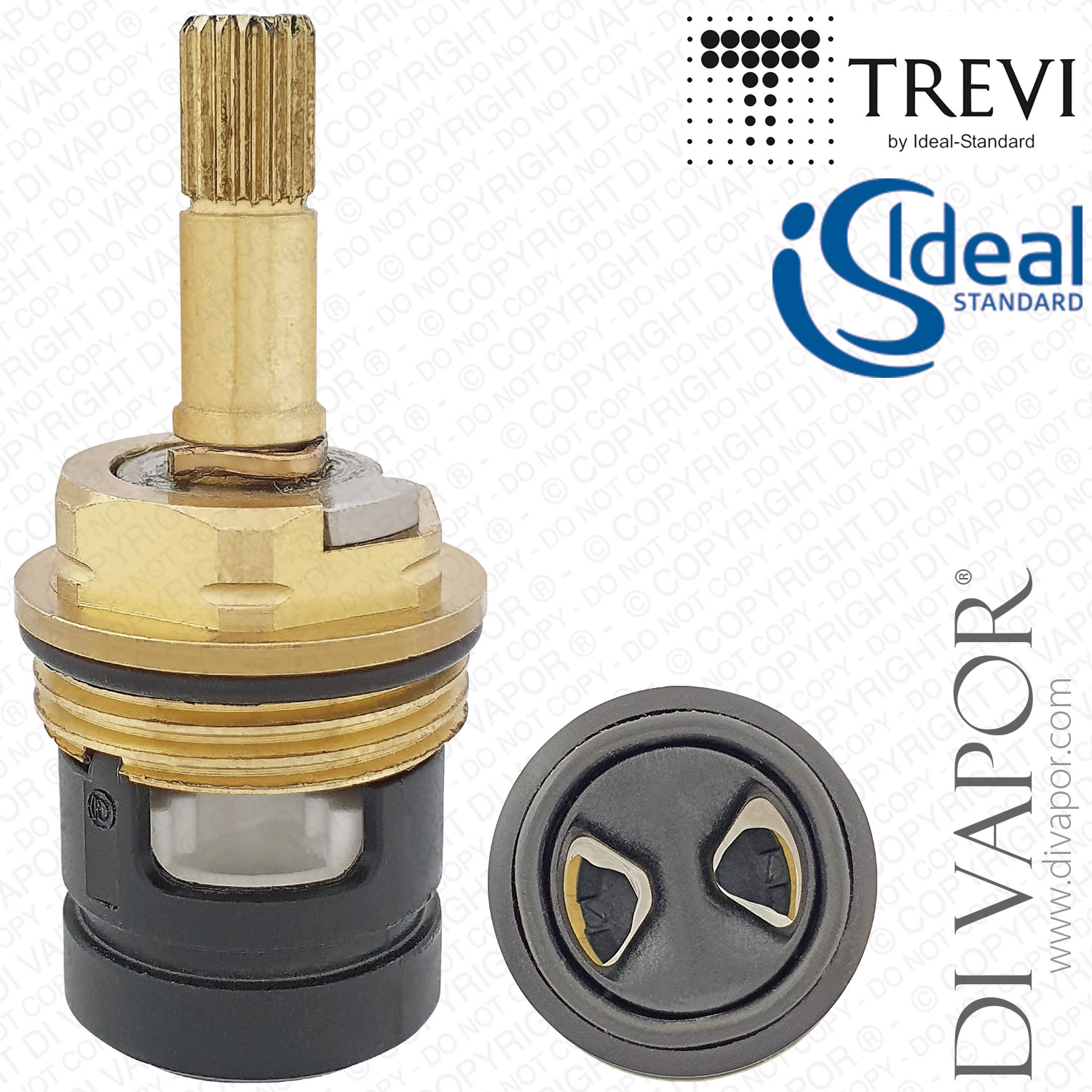

The Ideal Standard A961010NU is a genuine cold-side ceramic-disc on/off flow cartridge for selected bath taps, bath fillers, bath/shower mixers and bath-filling side valves. It has a G3/4 connection and opens clockwise, closing anti-clockwise.

This side-valve cartridge controls the water passing through the cold control. It is a flow-control component, not a thermostatic temperature cartridge or a bath/shower diverter. A worn flow cartridge can allow water to keep dripping from the spout or shower outlet when the control is turned off, although other faults can also cause dripping.

Technical Details

Before You Order

Check the exact tap or valve model, production version, opening direction and original cartridge before ordering. A 3/4 inch connection alone does not establish fit. The opposite-opening A960462NU cartridge opens anti-clockwise and must not be confused with this clockwise-opening part.

Waterways E0705AA fittings include different cartridge versions. Select A961010NU only for the version that specifies this cartridge, not solely from the Waterways model name.

Confirmed Models

• Ideal Standard A3997AA Alchemy Idealfill
• Ideal Standard A3998AA Silver Idealfill
• Ideal Standard A4335AA Melange four-hole bath/shower mixer
• Ideal Standard A6262AA Melange
• Ideal Standard A6264AA Melange
• Ideal Standard A6300AA Strada bath filler
• Ideal Standard A6353AA Tonic II
• Sottini A6500AA Paglia
• Sottini A6501AA Paglia bath-filling side bodies
• Sottini A6520AA Lambro two-hole bath filler
• Sottini A6521AA Lambro four-hole bath/shower mixer
• Sottini A6522AA Lambro bath side valves
• Ideal Standard A6590AA Tesi two-hole bath filler
• Ideal Standard A6591AA Tesi two-hole bath/shower mixer
• Sottini A6631AA Turano two-hole bath filler
• Ideal Standard B0247AA Active bath mixer
• Ideal Standard B0248AA Active bath/shower mixer
• Ideal Standard B9686AA Vectis bath pillar taps
• Ideal Standard B9687AA Vectis bath mixer
• Ideal Standard B9688AA Vectis bath/shower mixer
• Ideal Standard B9928AA Concept Blue bath pillar taps
• Ideal Standard B9929AA Concept Blue bath mixer
• Ideal Standard B9930AA Concept Blue two-taphole bath/shower mixer
• Ideal Standard B0167AA Senses Cube two-hole bath/shower mixer with kit
• Ideal Standard B0173AA Senses Sphere two-hole bath/shower mixer with kit
• Sottini B1053AA Tesino two-hole bath filler
• Sottini B1054AA GEN1 Tesino two-hole bath/shower mixer
• Ideal Standard B8244AA Ceraplan Disc one-taphole quarter-turn bath filler
• Ideal Standard B8253AA Ceraplan Disc quarter-turn bath taps
• Ideal Standard E0070AA Silver dual-control bath filler
• Ideal Standard E0072AA Silver bath filler
• Ideal Standard B5106AA Cone bath taps
• Armitage Shanks S7593AA Accolade quarter-turn two-taphole bath/shower mixer
• Ideal Standard E0705AA Waterways quarter-turn bath filler - versions specified with A961010NU only
• Ideal Standard Extra BD526XX - XX denotes the finish code
• Ideal Standard Extra BD527XX - XX denotes the finish code

Related Spares You May Need

These are separate service parts and accessories for the relevant fittings, not components supplied with A961010NU. Match each item to the exact model and component position; not every listed part is used in every installation.

• TACSIL 3g cartridge silicone grease - for suitable seals during servicing
• A960462NU opposite-opening 3/4 inch flow cartridge - opens anti-clockwise; check which control requires repair
• A963196NU cartridge spline adaptor - for the handle drive in fittings that specify this adaptor
• A91831914 M4 taper-shoulder slotted screw - sold individually
• B960522AA bath/shower diverter assembly - for the relevant bath/shower mixer version, including Vectis B9688AA
• B960308AA bath/shower diverter - for selected assemblies, including Senses Cube B0167AA and Senses Sphere B0173AA
• E960053NU 18-to-8-spline cartridge adaptor - for Ceraplan Disc B8244AA and B8253AA, and Silver E0070AA and E0072AA
• A960321AA tap aerator - for Senses Cube B0167AA and Cone B5106AA assemblies
• A963667NU lever-handle fixation screw - for the Senses Cube B0167AA assembly
• B9400AA Idealrain S1 80mm single-function handset - for Senses Cube B0167AA and Tesi A6591AA assemblies
• E4745AA 135cm Easyclean shower hose - for Senses Cube B0167AA, Senses Sphere B0173AA, Active B0248AA, Concept Blue B9930AA and Accolade S7593AA assemblies
• B960754AA 5 litre/min regulated aerator - for the Active B0248AA assembly
• A962594NU non-return valve set - for Tesi A6591AA and Melange A4335AA assemblies
• B964695NU M5x8 DIN914 A2 screw - for the Tesi A6591AA assembly
• A961640NU O-ring pair - for the Tesi A6591AA assembly; check the seal position before ordering
• A960191NU M21.5X1 stream regulator - for Silver E0070AA and E0072AA assemblies
• A960196NU stream-regulator key - for Silver E0070AA and E0072AA assemblies
• E960054NU indice - for Silver E0070AA and E0072AA assemblies
• A961810NU seal kit - for the Melange A4335AA assembly
• A962574NU 37.77mm x 2.62mm O-ring - for the Melange A4335AA assembly

Fitting Note

Isolate the water supplies before removing the existing cartridge. Follow the fitting's installation instructions and inspect the handle adaptor and seals while the control is dismantled.

Use our part identification service if you need help finding the right part.
