Vola VR5250 Adapter Kit
Send a photo of your item and we'll help confirm it.
Summary

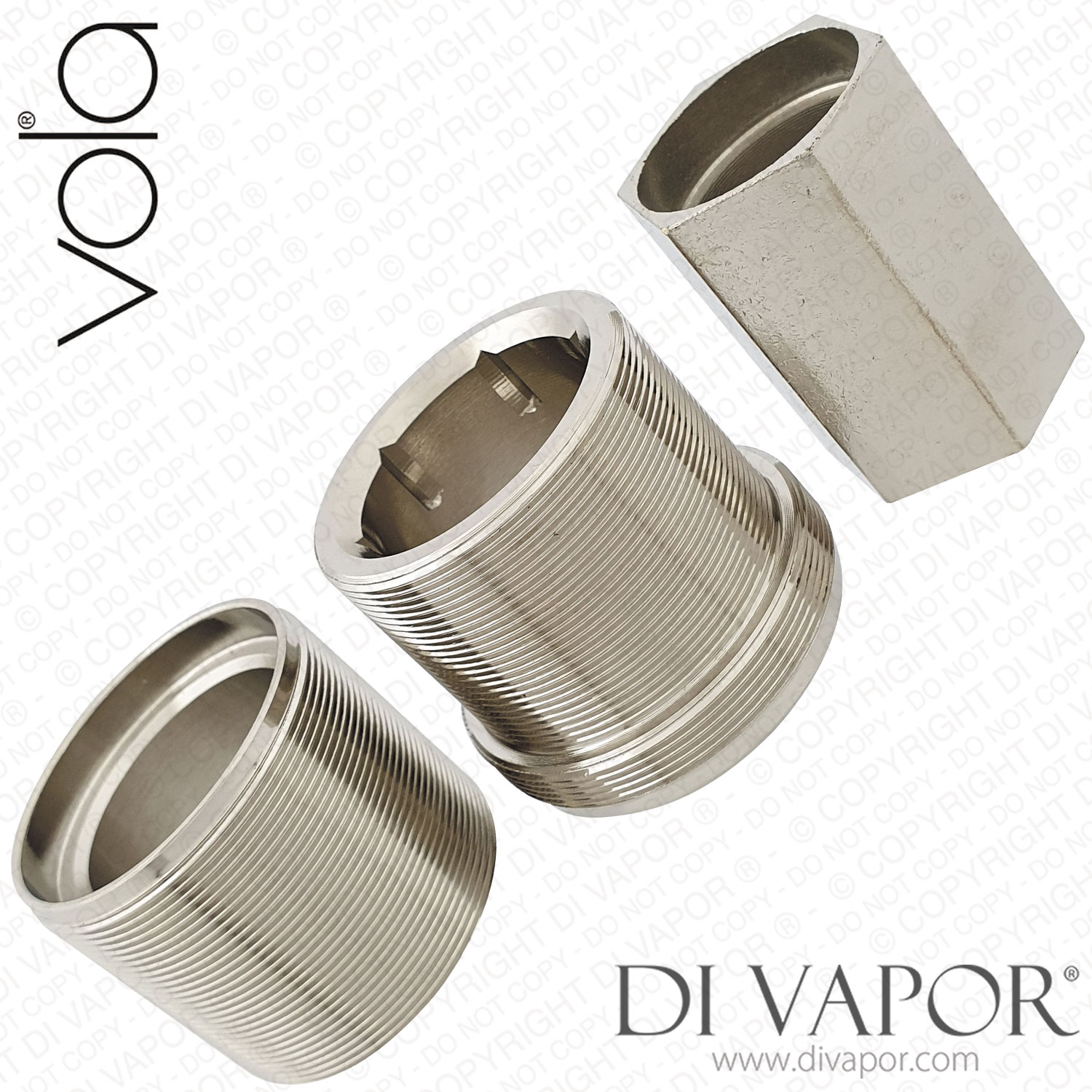

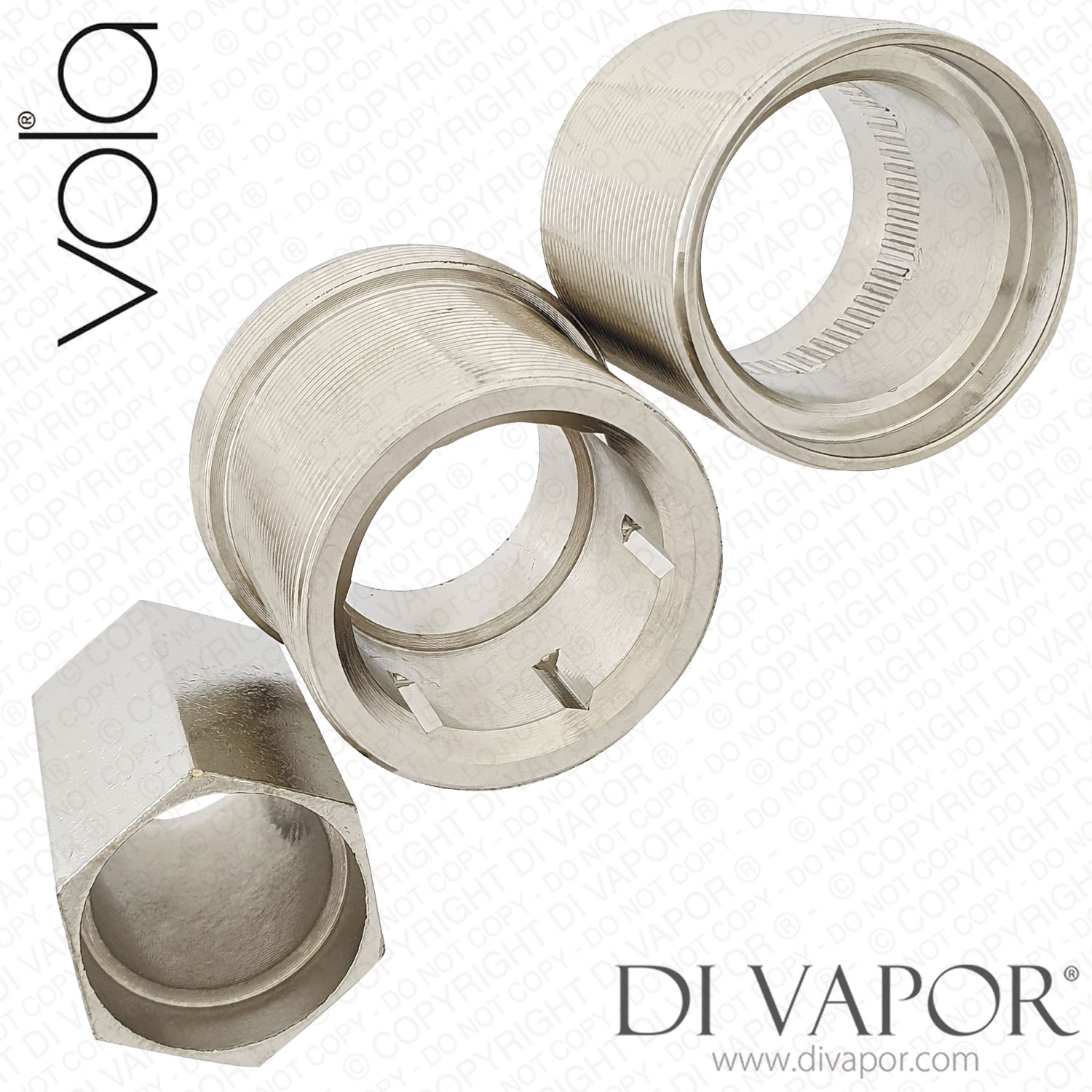

The Vola VR5250 is an extension adapter kit for Vola concealed thermostatic mixer handle assemblies. It is used where the finished wall depth or retrofit installation position requires the exposed handle assembly to be brought forward correctly after the concealed valve body has been installed behind the wall surface.
This part should not be ordered as a cartridge. It is an adapter and extension kit for the handle assembly area, used around Vola 5000-series thermostatic mixer controls and associated concealed mixer configurations.
Technical Details
| Part Number | VR5250 |
|---|---|
| Part type | extension adapter kit |
| Application | Vola concealed thermostatic mixer handle assemblies |
| Installation context | extension and retrofit handle assembly adjustment |
- Associated Vola grouped set references include VR5248+, VR5249+, VR5257, VR5258, VR5259 and VR5260
- Check the finished wall depth, existing handle position and required extension length before ordering
Extension Selection Guide
| 3 - 15mm | standard VR5250 arrangement |
|---|---|
| 15 - 25mm | +10 extension arrangement |
| 25 - 35mm | +20 extension arrangement |
| 35 - 45mm | +30 extension arrangement |
| 45 - 55mm | +40 extension arrangement |
| 55 - 65mm | +50 extension arrangement |
Confirmed Compatible Models
- Vola Thermostatic Mixer with Fixed Outlet Socket (5100) Spare Parts
- Vola Thermostatic Mixer with Fixed Outlet Socket Handles to the Right (5100X) Spare Parts
- Vola Thermostatic Mixer with a Separate Outlet Socket (5200) Spare Parts
- Vola Thermostatic Mixer without Outlet Socket (5200V) Spare Parts
- Vola Thermostatic Mixer with Fixed Outlet Socket for Vertical Mounting (5300) Spare Parts
- Vola Thermostatic Mixer with Diverter and Two Separate Outlet Sockets (5400) Spare Parts
- Vola Thermostatic Mixer with Diverter Without Outlet Sockets (5400V) Spare Parts
- Vola Separate Diverter (5400DV) Spare Parts
- Vola Thermostatic Mixer with Diverter Fixed Outlet Socket and One Separate Outlet Socket 200M (5400F) Spare Parts
- Vola Thermostatic Mixer with 3-Way Diverter Including Three Separate Outlet Sockets (5400A3) Spare Parts
- Vola Thermostatic Mixer with 3-Way Diverter One Premounted Outlet Socket and Two Separate Outlet Sockets 200M (5400FA3) Spare Parts
- Vola Thermostatic Mixer with 3-Way Diverter for Vertical Mounting (5600VA3) Spare Parts
Related Spares and Extension Variants You May Need

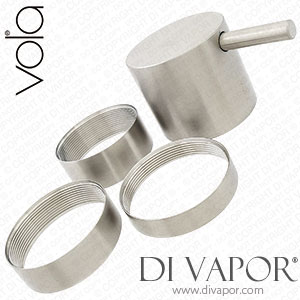

- Vola NR51-40 Brush Steel Control Handle
- Vola NR51-16 - 54 Chrome Control Handle
- Vola VR5257+10 Spline Extender
- Vola Extensions for Handles for Thermostatic Mixers (VR5250+10)
- Vola Extensions for Handles for Thermostatic Mixers (VR5250+20)
- Vola Extensions for Handles for Thermostatic Mixers (VR5250+30)
- Vola Extensions for Handles for Thermostatic Mixers (VR5250+40)
- Vola Extensions for Handles for Thermostatic Mixers (VR5250+50)
- Vola VR2279-16 Chrome Shroud
Before ordering, compare the existing Vola handle arrangement, exposed shroud, finished wall depth and required extension length with the measurements above. If the existing code is not visible, use the Di Vapor Find a Part service with clear photos of the valve, handle, shroud and exposed fitting position.
