ZSPSBARCA09 Ultra Thermostatic Shower Cartridge for A3559 Shower Mixer Valves (Hudson Reed)
Send a photo of your item and we'll help confirm it.
Summary

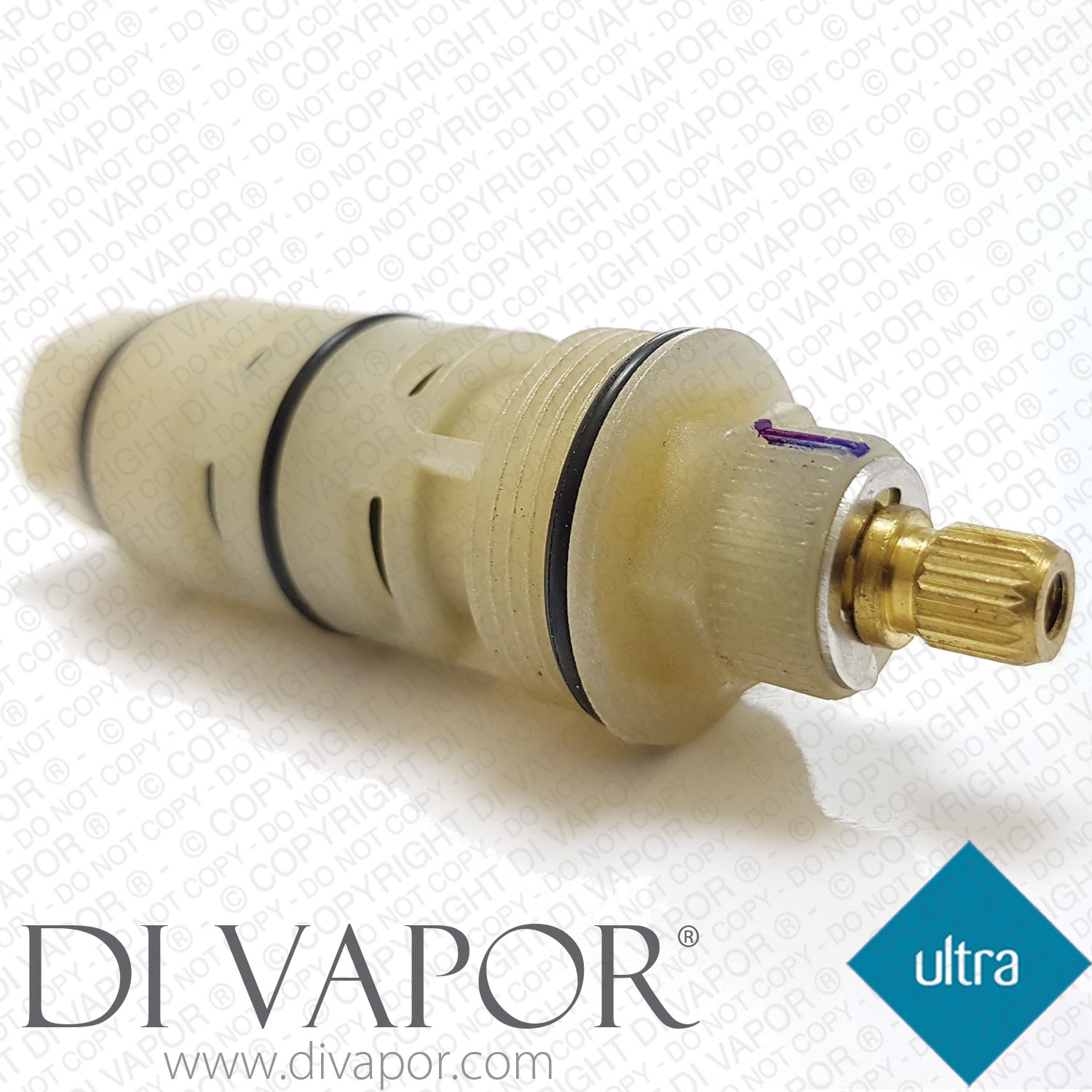

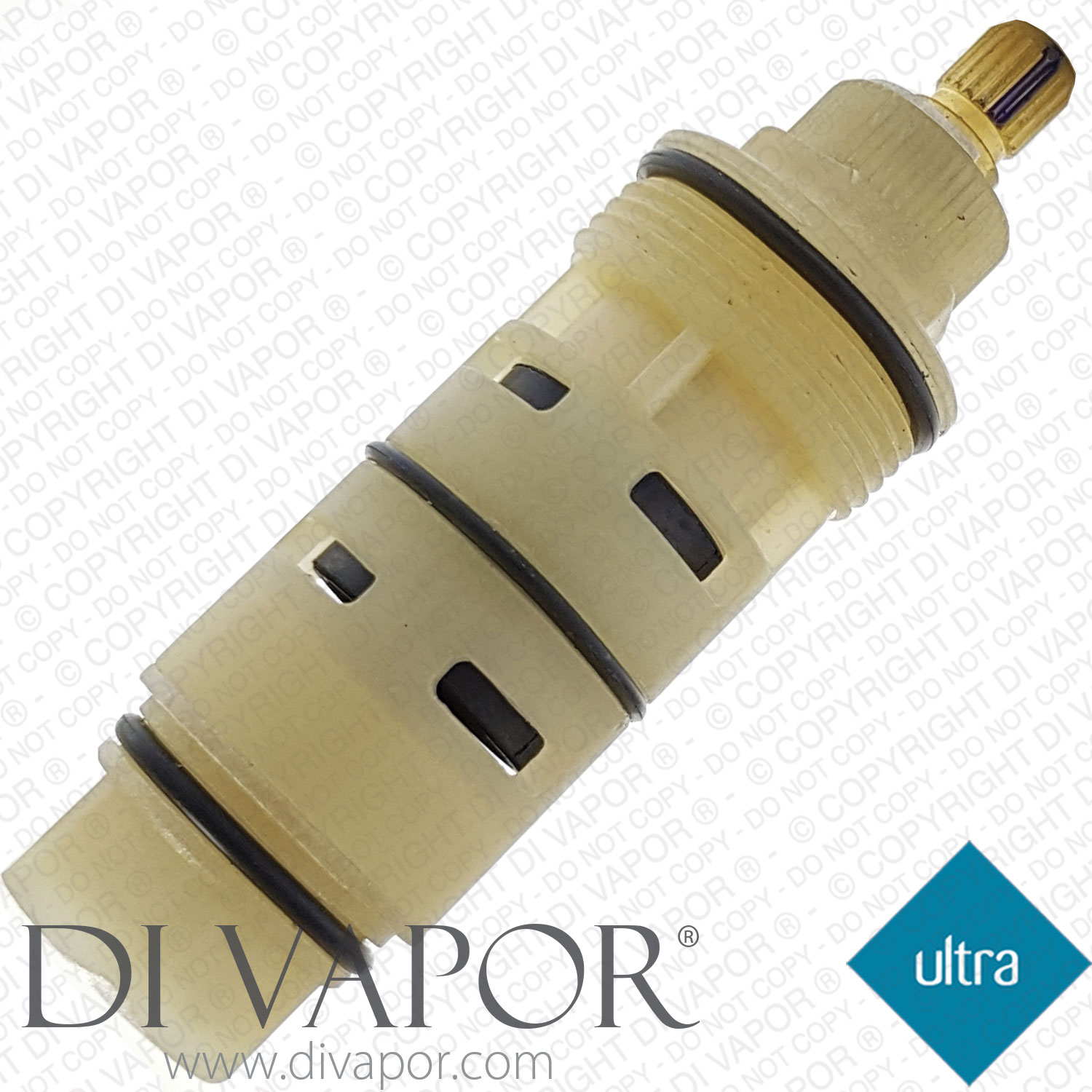

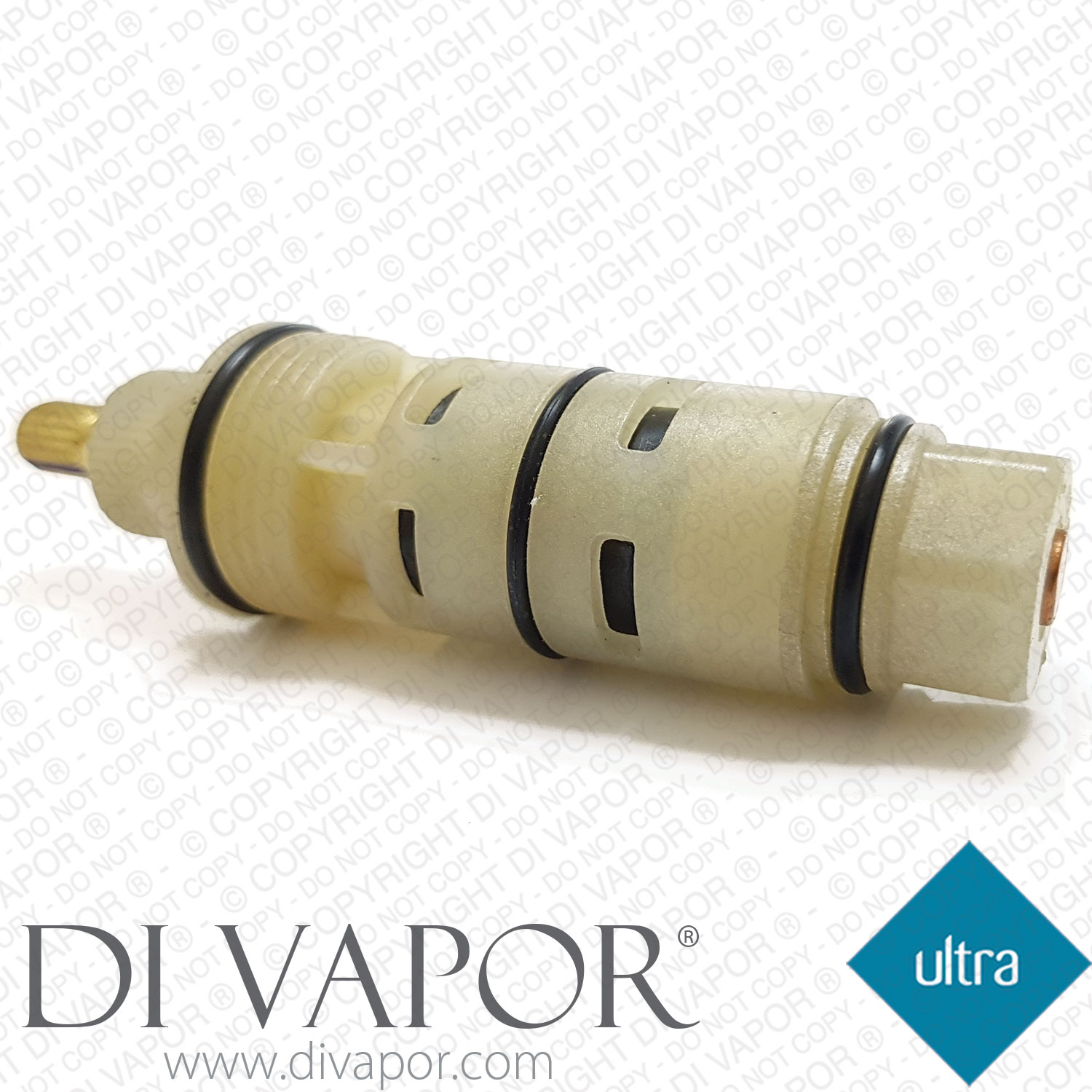

Ultra ZSPSBARCA09 Thermostatic Shower Cartridge for Hudson Reed A3559 Shower Mixer Valves
Ultra ZSPSBARCA09 is a thermostatic shower cartridge used to control mixed water temperature in selected Ultra Hudson Reed Premier and Nuie thermostatic shower mixer valves and bath shower mixer products. It is listed for A3559 shower mixer valves and should be matched against the installed cartridge before ordering.
This cartridge sits inside the valve body and regulates the hot and cold water blend. Replacement may be needed if the shower temperature becomes unstable, the valve no longer responds correctly to temperature adjustment, or the installed cartridge is worn or scaled. The code CL201A may be found at the bottom of the cartridge.
Technical Details
| Part Number | ZSPSBARCA09 |
|---|---|
| Part type | Thermostatic shower cartridge |
| Total Length | 87.7mm |
| Diameter at Widest Point | 27.8mm |
| Top Spline Diameter | 7.6mm |
| Top Spline Teeth / Notches | 20 |
| Diameter at Top O'ring | 27.4mm |
| Diameter at Middle O'ring | 25.3mm |
| Diameter at Bottom O'ring | 22.5mm |
| Barrel Diameter | 24.8mm |
| Thread Diameter | 26.6mm |
| Other Codes | CL201A at bottom of cartridge |
Confirmed Compatible Models
- Hudson Reed A3559 Thermostatic Bar Valve Shower Spare Parts
- Premier JTY365 Square Thermostatic Shower with Kit Spare Parts
- Premier / Nuie VBS004 Thermostatic Bath Shower Mixer Spare Parts
Before You Order
- Check the installed cartridge length, spline count, thread diameter and O-ring positions against the measurements above.
- Confirm whether the marking CL201A is present at the bottom of the cartridge if the visible code differs from ZSPSBARCA09.
- Apply WRAS-approved silicone grease to the O-rings during fitting to help protect the seals and ease installation.
Related Spares You May Need
- Ultra ZSPSBARCA09X Thermostatic Cartridge (Original Brass ZSPSBARCA09)
- Hudson Reed A391 Thermostatic Cartridge (Ultra)

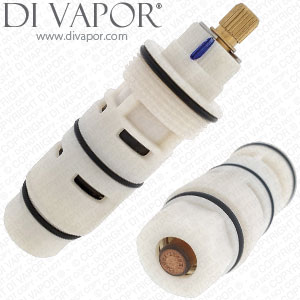

- Ultra Thermostatic Cartridge for A3559 Shower Valve
- Ultra ZSPSPR54 Flow Cartridge Control Valve for A3559 Valve
- Ultra ZSPSPR56 Flow Cartridge Control Valve for A3559 Valve
- 150mm Universal Shower Hose - NXT734
- TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
