Ultra ZSPSPR54 Flow Cartridge Control Valve for A3559 Valve
SUMMARY
Ultra ZSPSPR54 Cold Side Flow Control Cartridge for A3559 Shower Valve

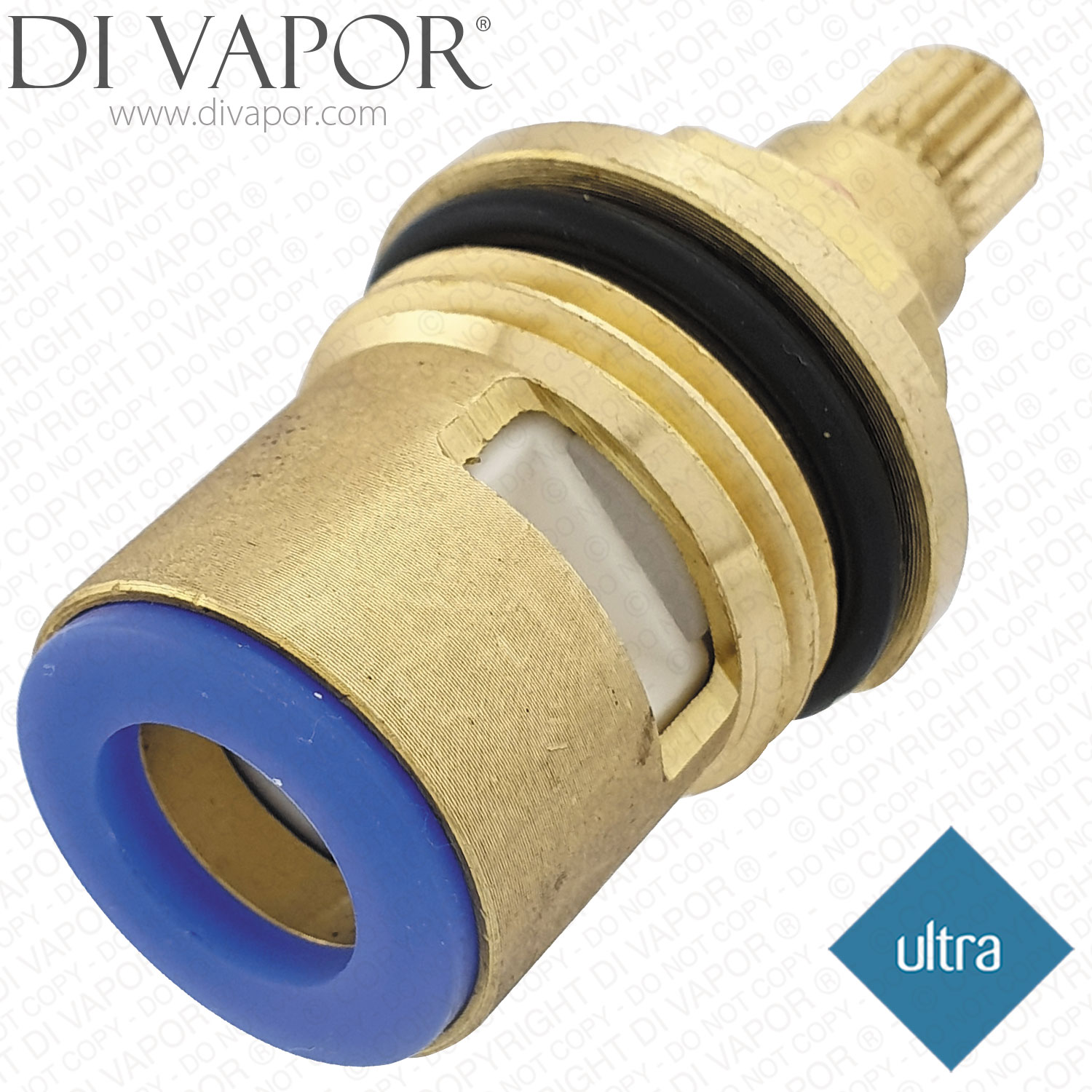

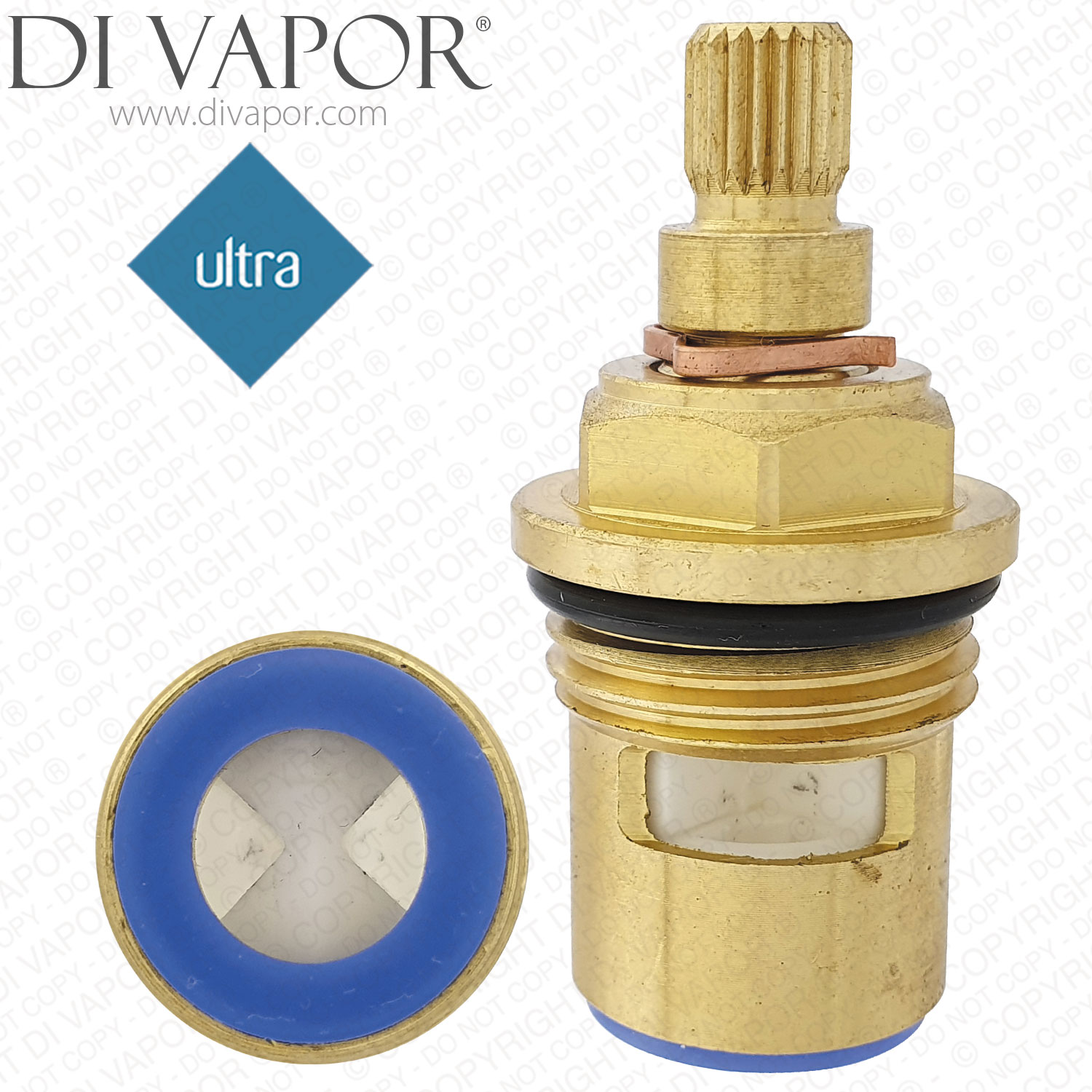

The Ultra ZSPSPR54 is a cold-side flow control cartridge used in the A3559 thermostatic shower valve. This screw-in ceramic disc cartridge controls the on/off water flow through the valve and is identified by its blue bottom seal.
A worn or damaged flow cartridge can cause poor shut-off or water to continue dripping from the shower outlet when the valve is turned off. Check the cartridge dimensions, spline count, operating direction and cold-side configuration against the part being removed before ordering.
Technical Details
- - Part Number: ZSPSPR54
- - Part type: Flow control / on-off ceramic disc cartridge
- - Total length including bottom seal: 47mm
- - Diameter at widest point: 23.8mm

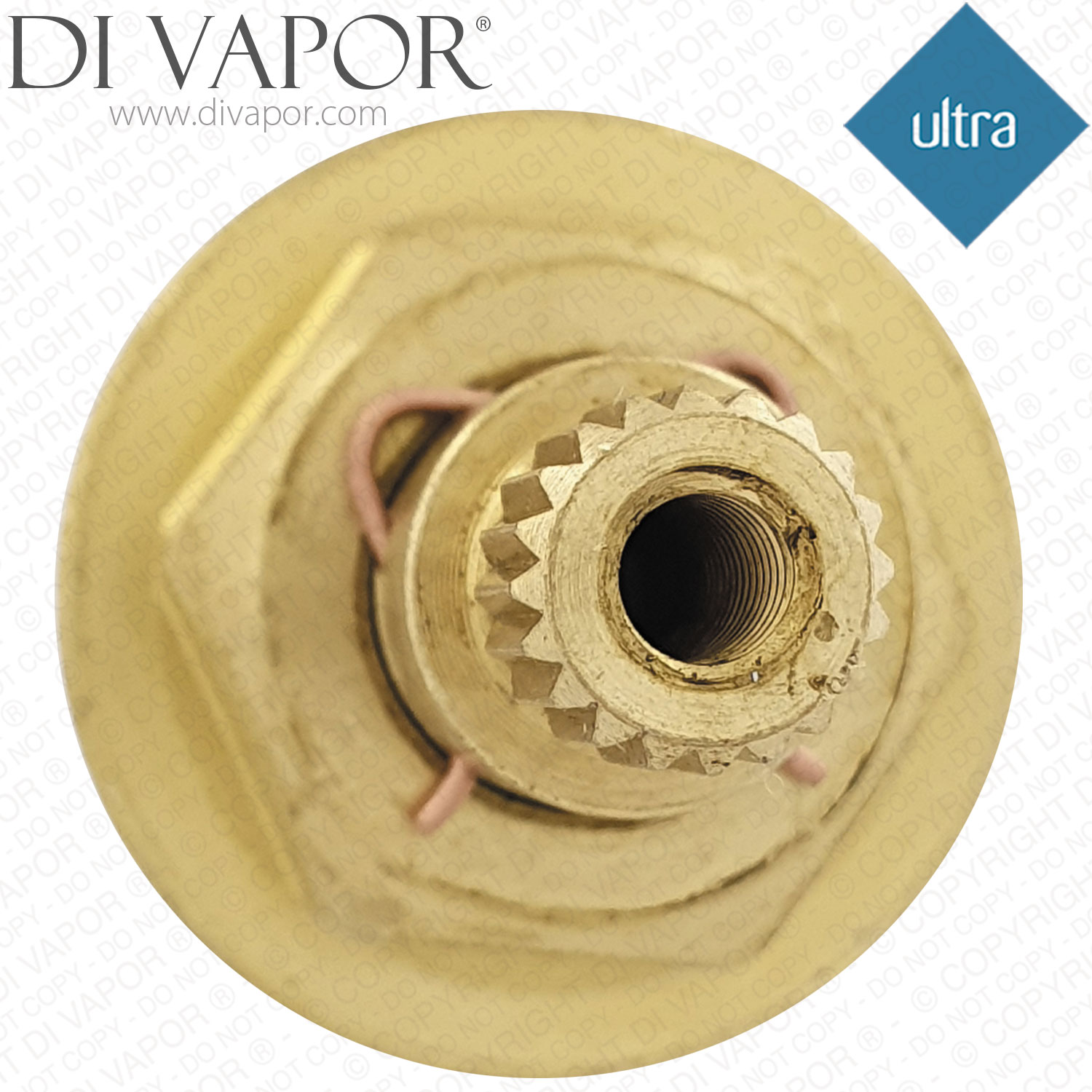

- - Top spline diameter: 7.65mm
- - Top spline teeth / notches: 20
- - Barrel diameter: 18.3mm
- - Lower thread diameter: 22.5mm
- - Bottom seal colour: Blue
- - Position: Cold side
- - Close direction: Clockwise
- - Open direction: Anti-clockwise
Before You Order
Compare the measurements, 20-spline spindle, blue bottom seal and operating direction with the cartridge being replaced. Similar-looking flow cartridges can have different dimensions and fitting arrangements.
If you are unsure which cartridge you need, use our part identification service.
Confirmed Compatible Models
- - Hudson Reed A3559 Thermostatic Bar Valve Shower
