Ultra ZSPSPR56 Flow Cartridge Control Valve for A3559 Valve
Part number: ZSPSPR56
Out of stock - Ask a Question now
Unfortunately, this specific item is now discontinued and can no longer be purchased from Di Vapor. See the description below for alternatives or scroll down this page and see the associated 'Other items'.
Is this the right part?
Send a photo of your item and we'll help confirm it.
Product description
Summary

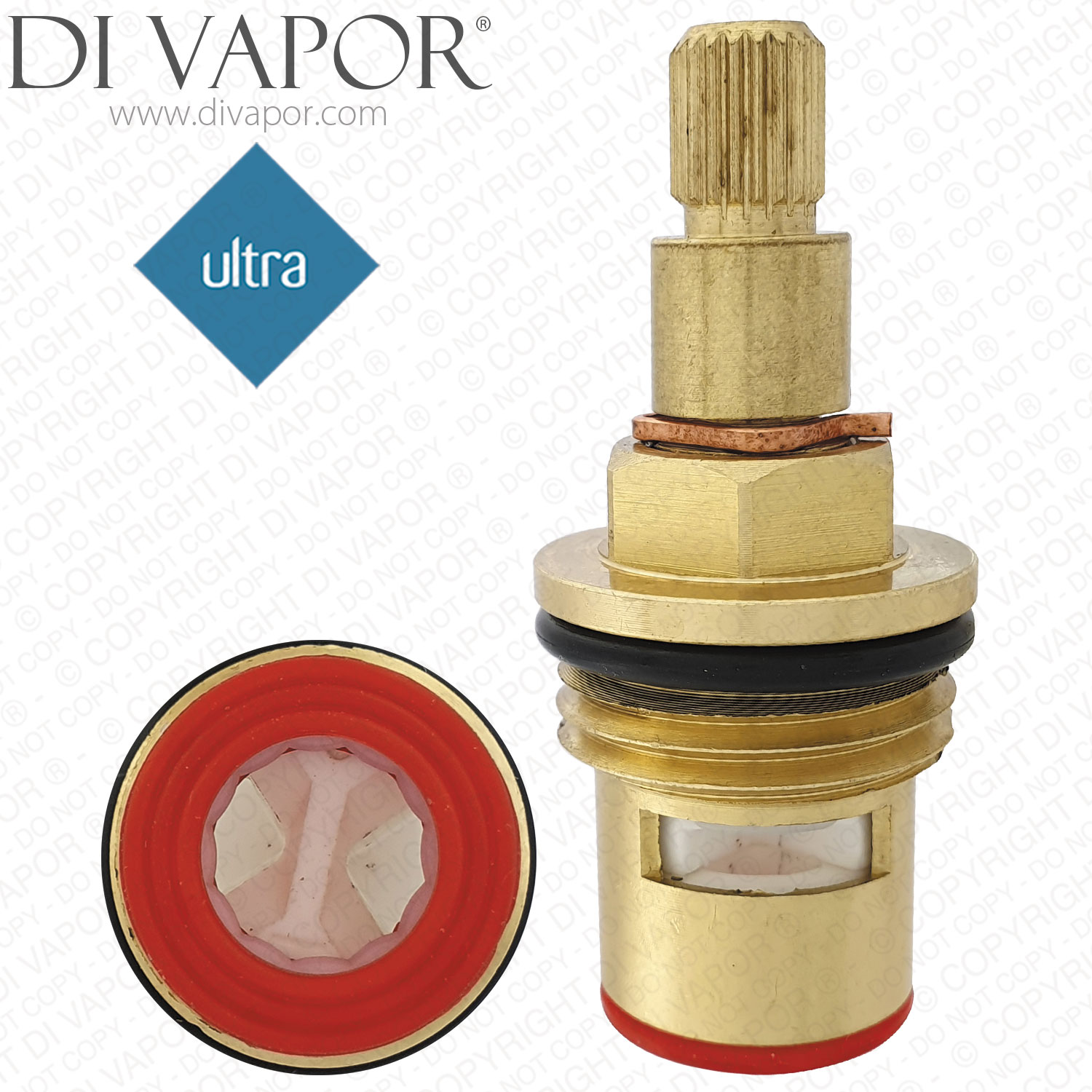

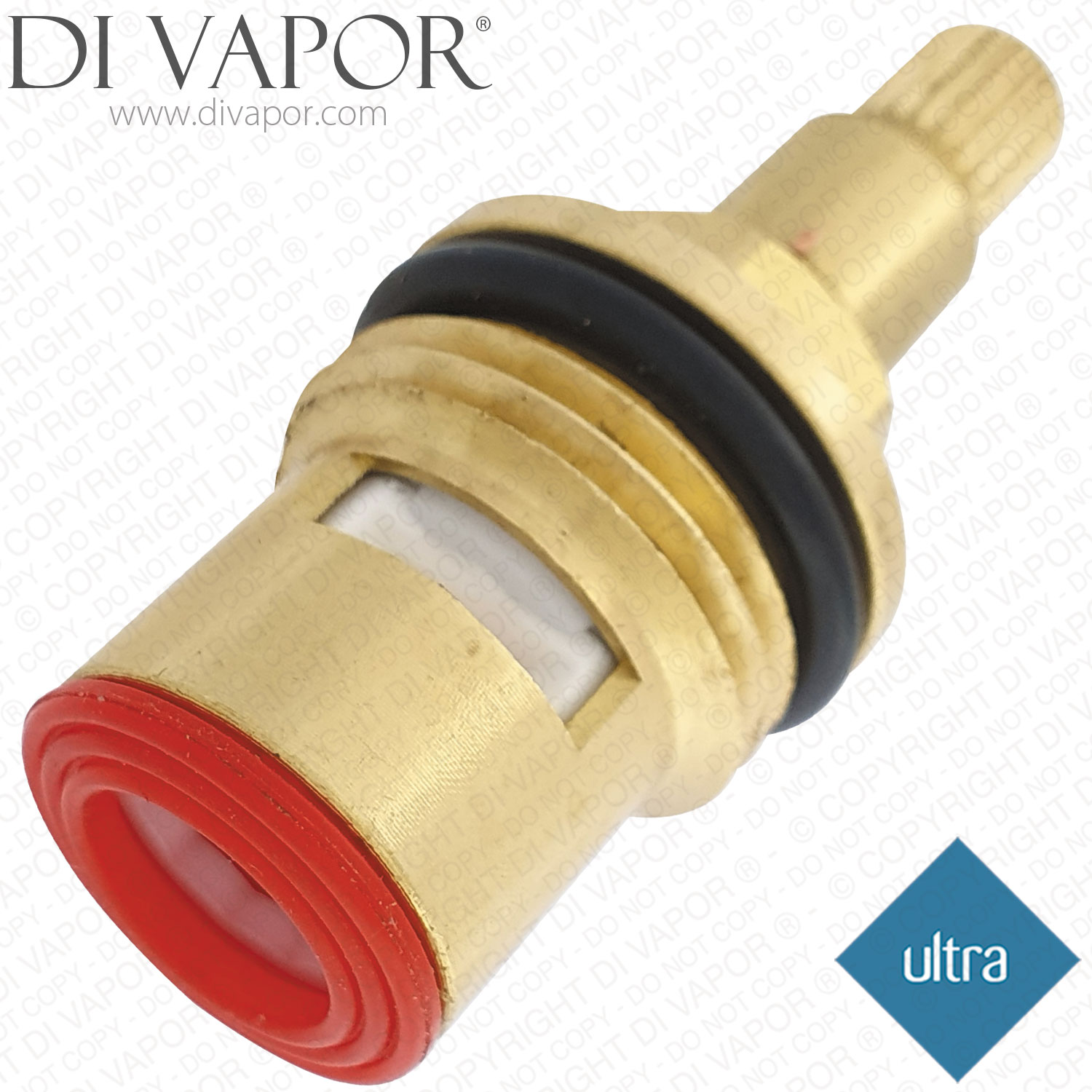

Ultra ZSPSPR56 Flow Cartridge Control Valve for A3559 Valve
Cartridge Measurements:
| Total Length (including bottom seal) | 51mm |
|---|---|
| Diameter at Widest Point | 22.4mm |
Spindle Length (from top of hex to top of splines): 20mm

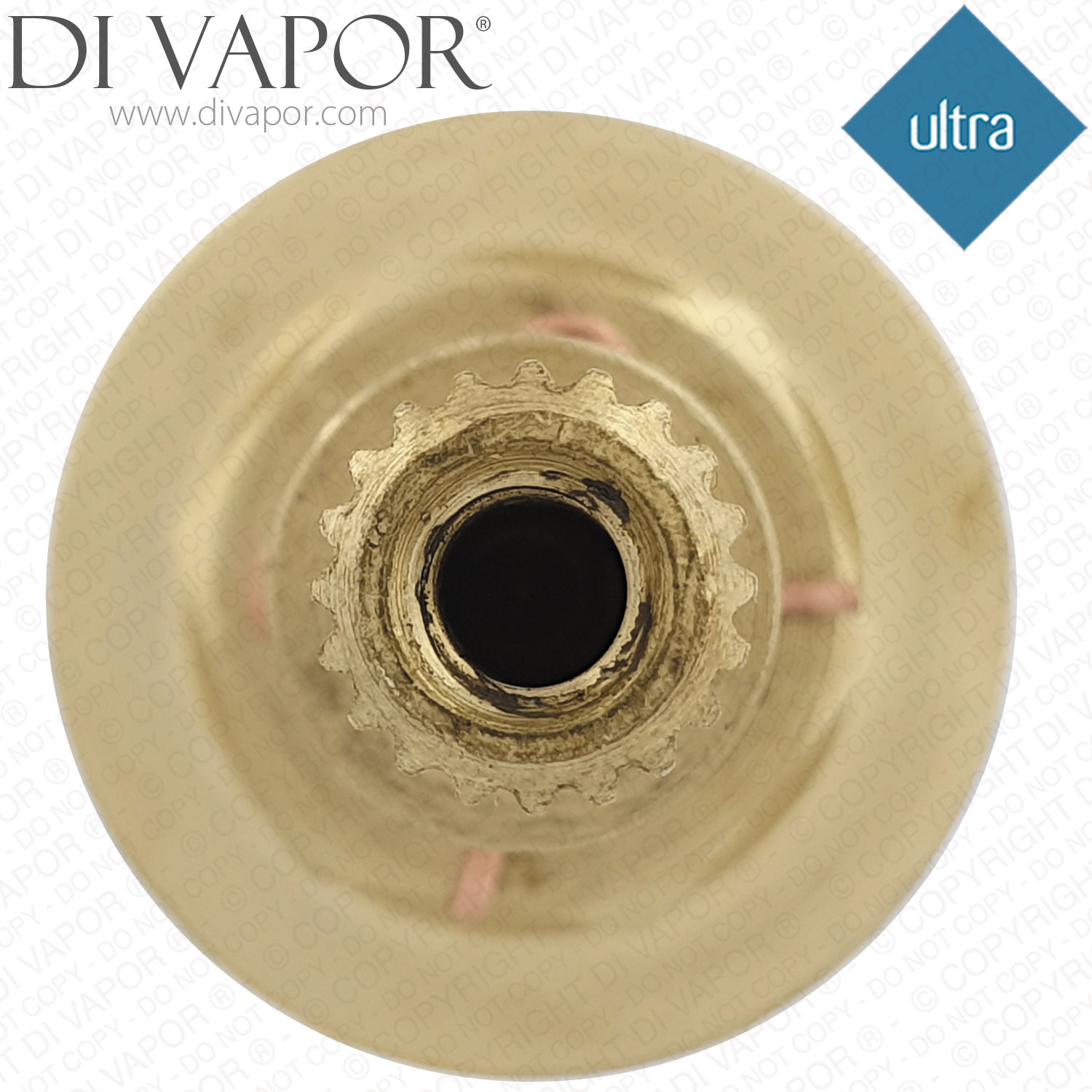

| Top Spline Diameter | 7.5mm |
|---|---|
| Top Spline Teeth / Notches | 20 |
| Lower Thread Diameter | 20.5mm (1/2" BSP) |
| Barrel Diameter Below Lower Thread | 16.5mm |
| Bottom Seal Colour | Red |
| Close Direction | Clockwise Close (Anti-Clockwise Open) |
| Turn | Quarter Turn (1/4 Turn) 90° |
| Diameter of Hex | 13.7mm |
