Ultra ZSPSBARCA09X Thermostatic Cartridge (Original Brass ZSPSBARCA09)
SUMMARY
Ultra ZSPSBARCA09X Thermostatic Cartridge (Original Brass ZSPSBARCA09)

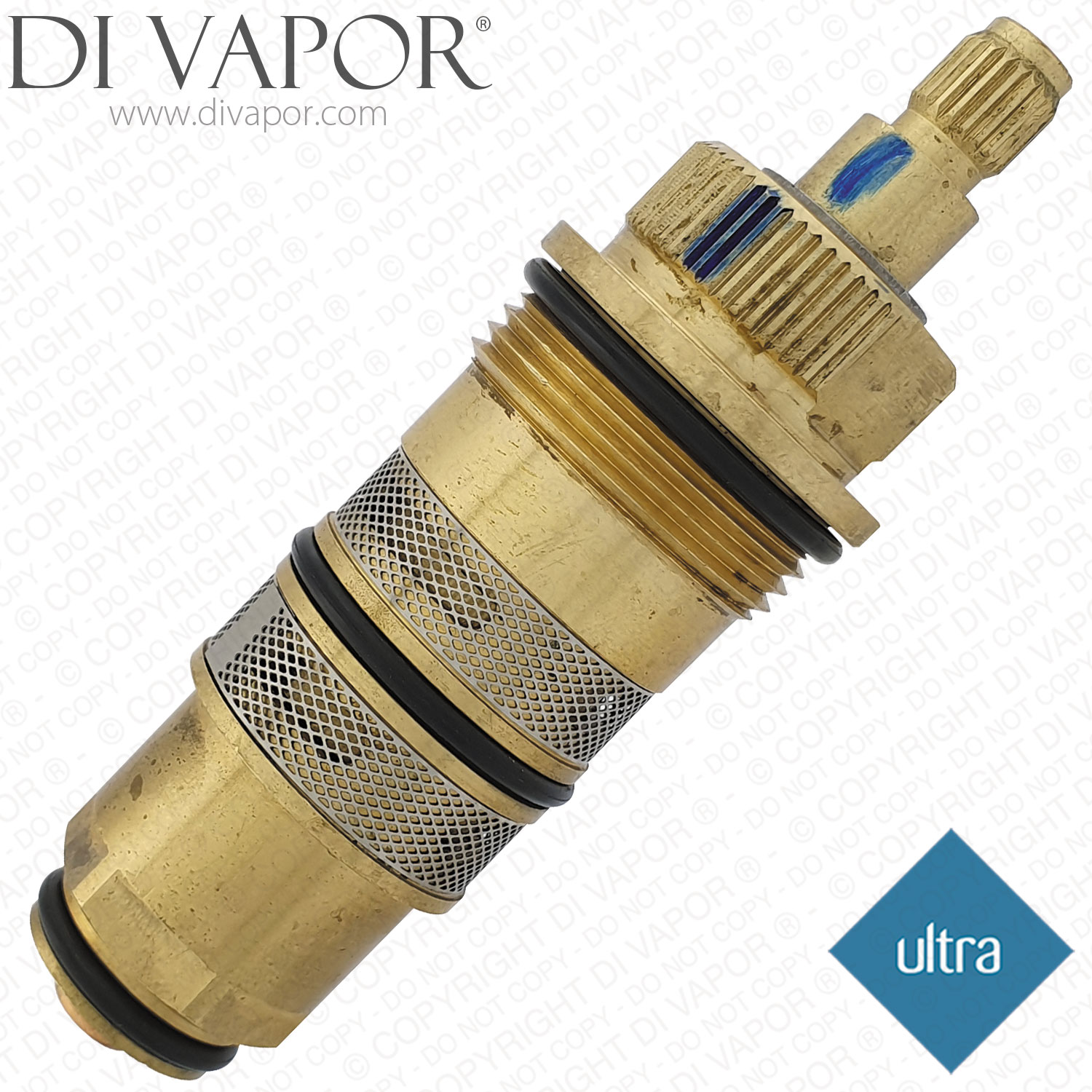

The Ultra ZSPSBARCA09X is a brass screw-fit thermostatic shower cartridge used to control the mixed water temperature within the Hudson Reed A3559 thermostatic bar shower valve. The cartridge incorporates the thermostatic element, sealing O-rings and splined spindle required for temperature adjustment.
The dimensions of this cartridge should be checked carefully against the part being removed before ordering. Although the product is described as the original brass ZSPSBARCA09, the separately listed ZSPSBARCA09 cartridge has different O-ring measurements, so the two listings should not be assumed to be interchangeable without checking the installed cartridge.
Technical Details
- - Part Number: ZSPSBARCA09X
- - Part type: thermostatic shower cartridge
- - Construction / colour: brass
- - Fitting type: screw fit

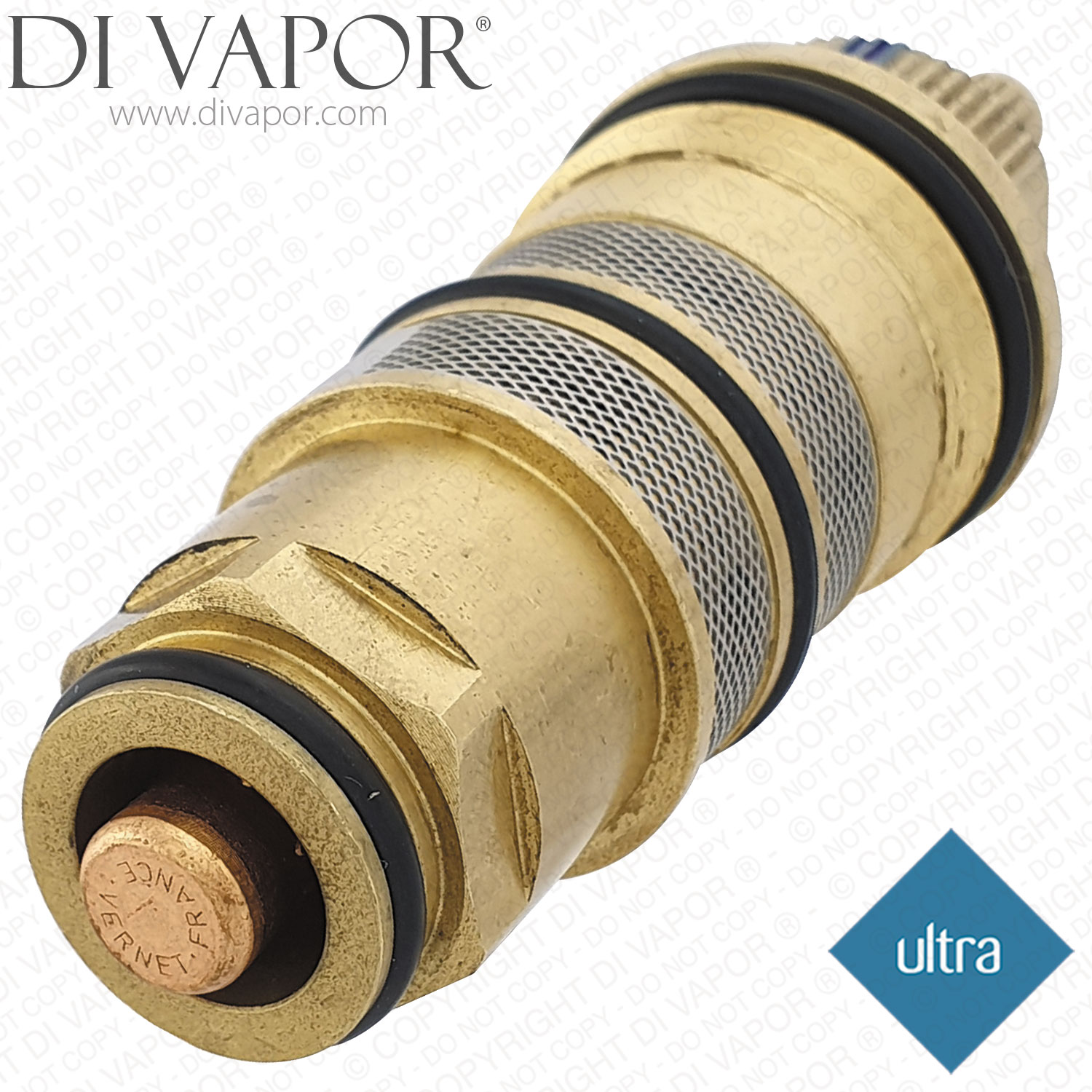

- - Total length: 87.8mm including the wax thermostat at the bottom
- - Diameter at widest point: 28mm
- - Diameter at stop-ring splines: 22.7mm
- - Stop-ring splines: 60

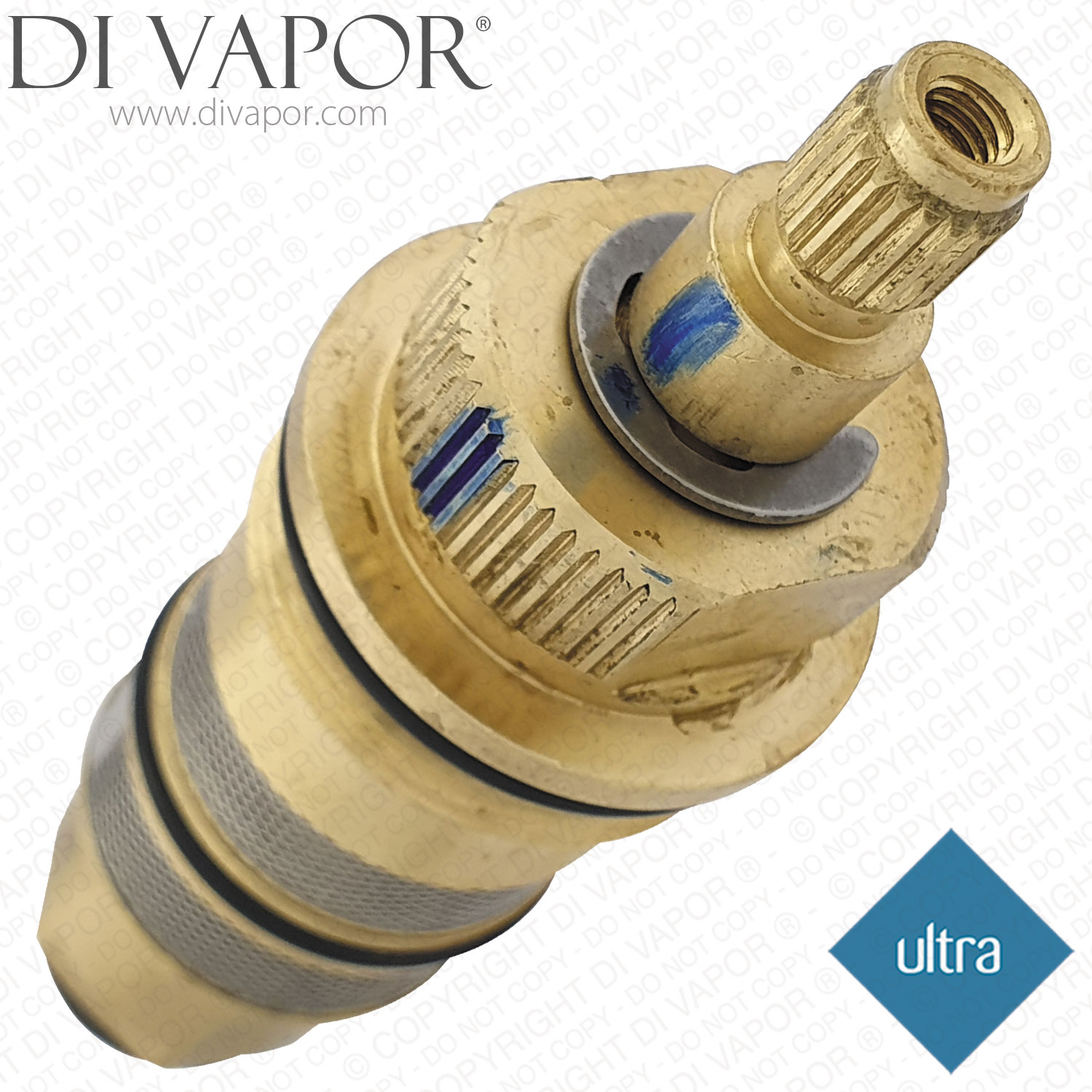

- - Top spline diameter: 7.6mm
- - Top spline teeth / notches: 20
- - Diameter at top O-ring: 27mm
- - Diameter at middle O-ring: 24.6mm
- - Diameter at bottom O-ring: 15.8mm
Confirmed Compatible Models
- - Hudson Reed A3559 Thermostatic Bar Valve Shower Spare Parts
Before You Order
- - Compare the cartridge length, spline sizes, spline counts and O-ring diameters with the cartridge being removed
- - Do not identify the cartridge from the ZSPSBARCA09 reference alone because the separately listed ZSPSBARCA09 cartridge has different O-ring measurements
If you are not sure this is the right cartridge, use the Di Vapor Part Identification Service.
