A923348 Trevi Therm A923 Handle Carrier (Ideal Standard)
Part number: A923348
Price: £17.92
Price includes UK VAT (Region: UK▼)
In stock
Is this the right part?
Send a photo of your item and we'll help confirm it.
Product description
Summary

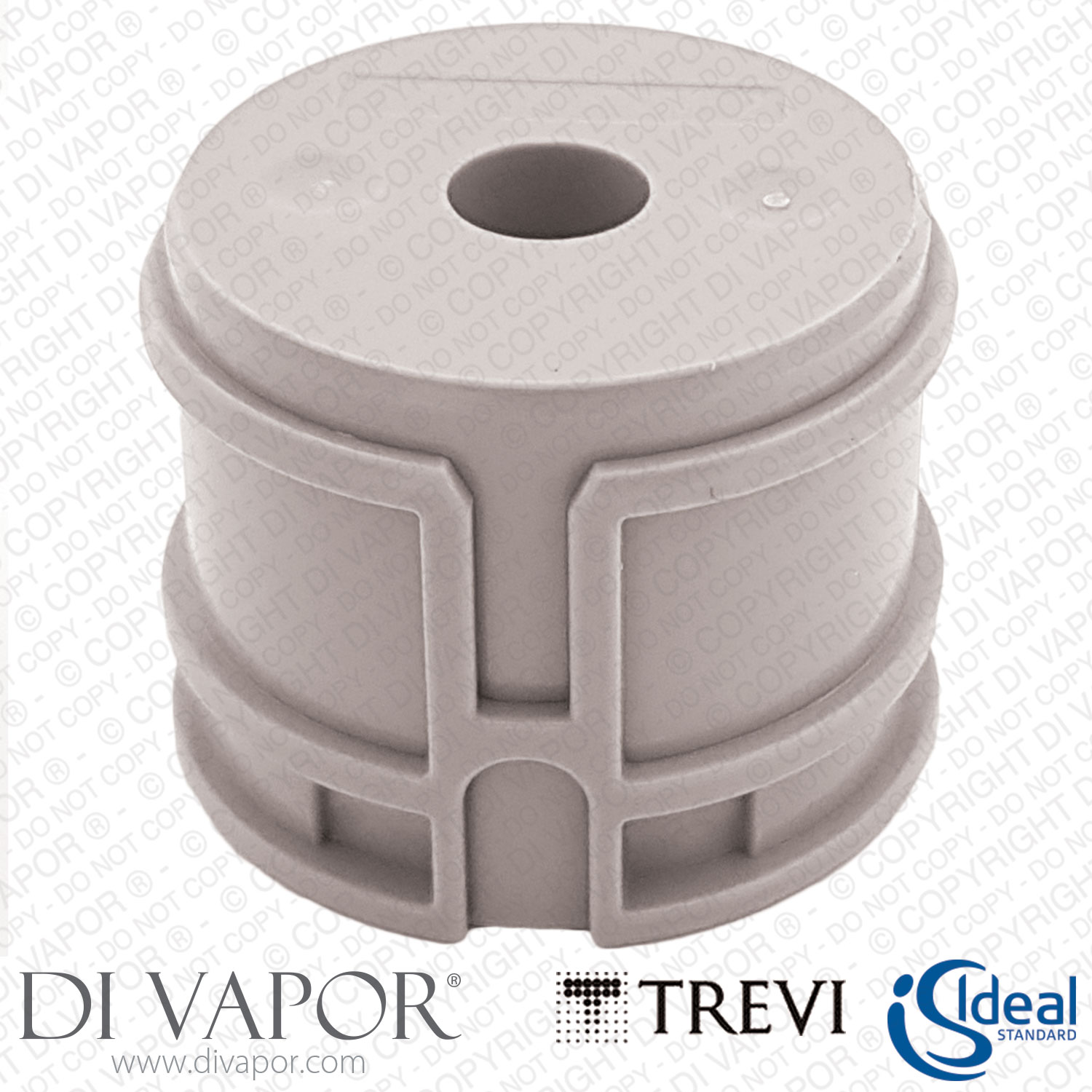

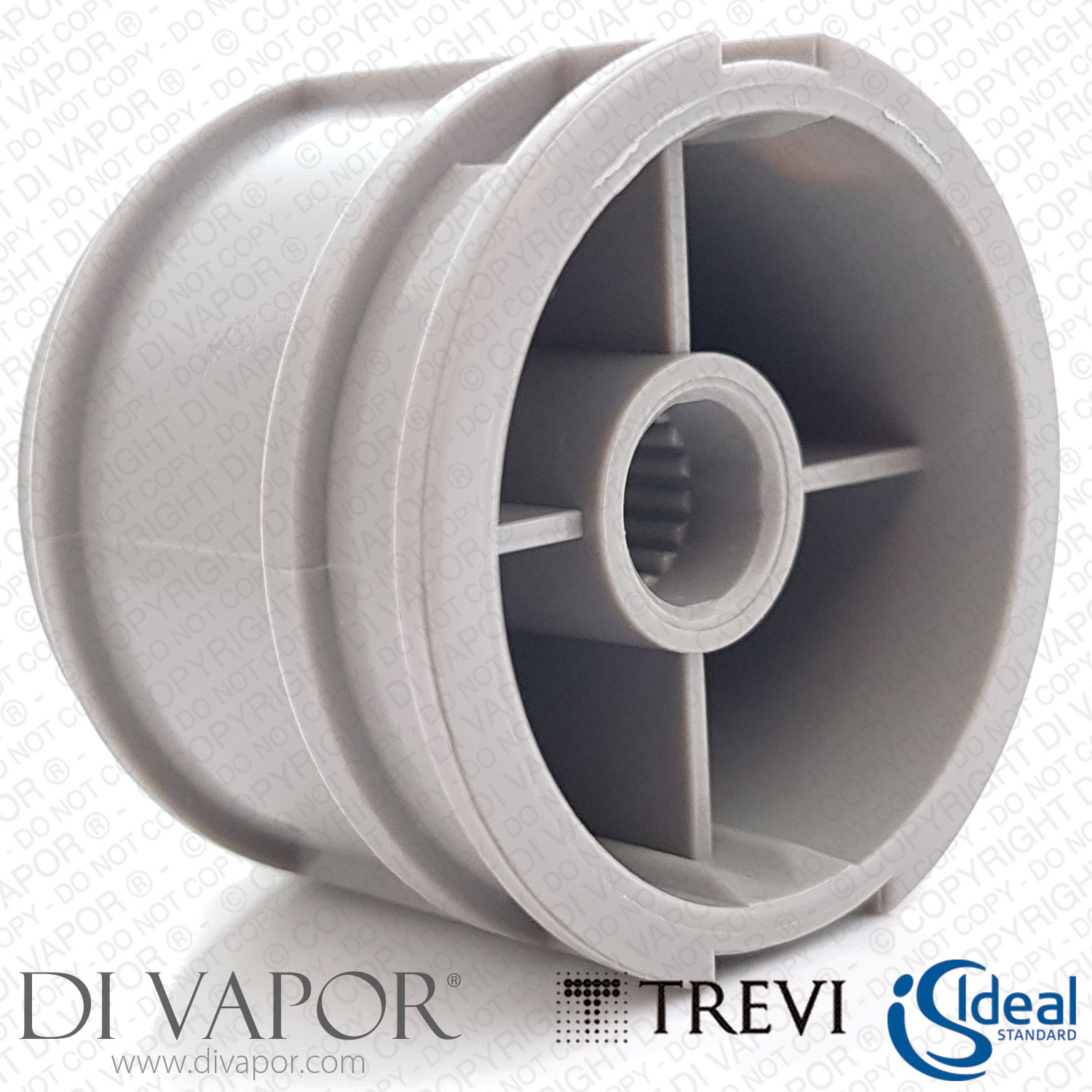

A923348 Trevi Therm A923 Handle Carrier (Ideal Standard)
Product Information
| Height | 27.8mm |
|---|---|
| Diameter | 32.9mm |

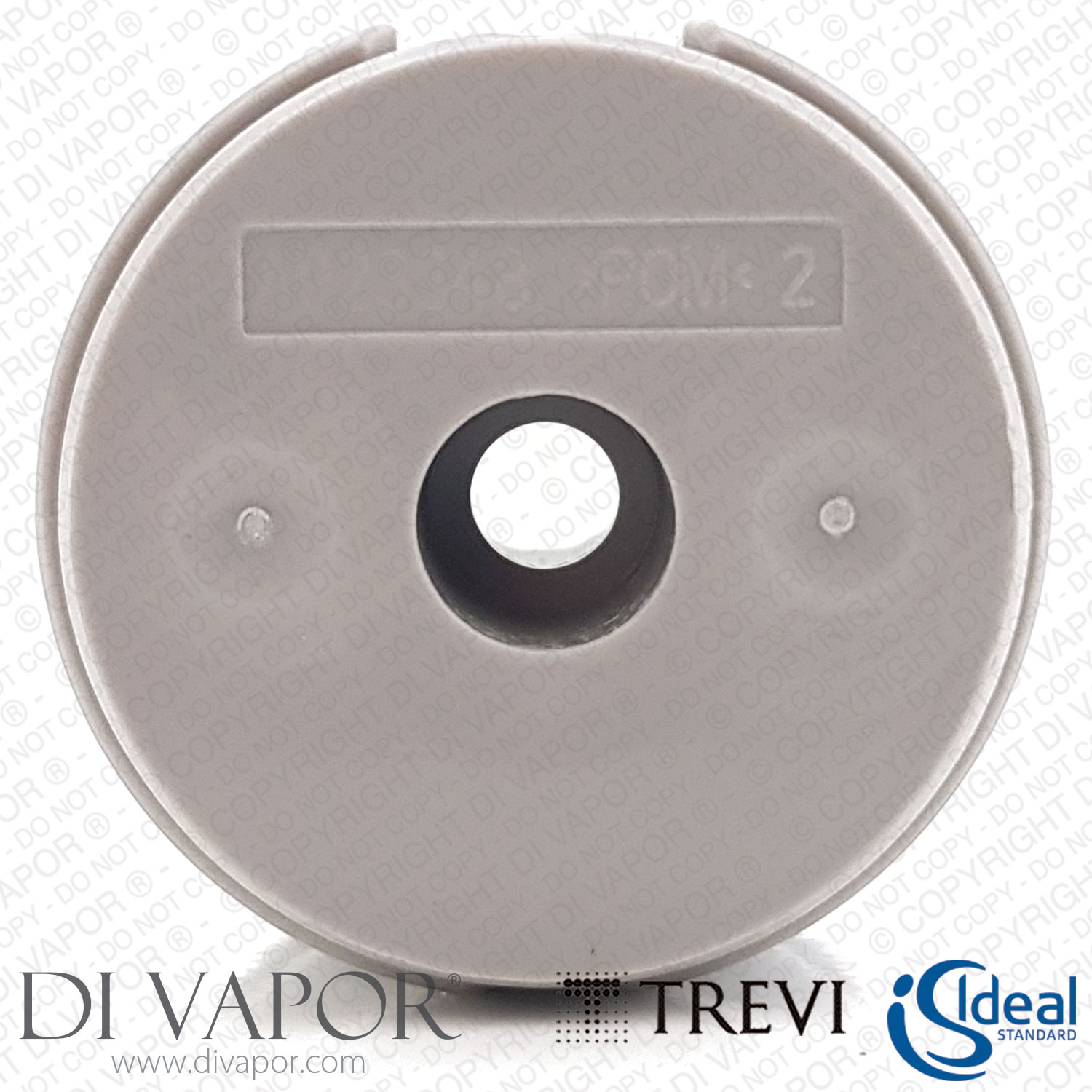

| Markings on Cartridge | A923348 >POM< 2 |
The A923348 cartridge / handle adapter is used in and with the following:
- A1544AA Velino Archimodule Volume Handle
- A1545AA Velino Archimodule Hand Spray Volume Handle
- A1547AA Velino Archimodule Bath Volume Handle
- A2158AA Trevi Therm Exposed Post 1997
- A3000AA Trevi Therm Built-in Thermostatic Shower Valve
- A3200AA Trevi Therm MK II exposed thermostatic shower valve - for concealed or exposed pipework - Bottom Oulet
- A3700AA Trevi Outline built-in thermostatic shower valve
- A3970NUTT Central built-in thermostatic shower valve - no faceplate or handle
- A4820AA Trevi 2 way diverter for high pressure systems (min. pressure 1 Bar)
- A4860AA Trevi flow control valve
- A5800AA Alchemy Built in thermostatic shower valve
- A5820AA Trevi 3 way diverter for high pressure systems (min. pressure 1 Bar)
- A5985AA Alto EV Shower with 1 Function Shower Kit
- A6593AA Velino Archimdule Temperature Handle
- E3115AA Trevi Traditional built-in thermostatic shower valve
- E9005AA Trevi Boost built-in mains pressure shower valve and Elipse BIV shower kit
- E960739AA Trevi Boost to Therm Conversion Kit Pre October 2011
- L6709AA Trevi Outline built-in thermostatic shower valve with BIV three function shower kit
- L6839AA Trevi Ascari built-in thermostatic shower valve with Moonshadow Dual ILV three function shower kit
A923348 is a Trevi / Ideal Standard volume control handle carrier and handle adapter used behind the operating handle on selected Trevi Therm, Trevi Outline, Trevi Boost, Velino Archimodule, Alchemy, Alto EV, Ascari and associated Ideal Standard shower valve assemblies.
This part helps connect the external volume or on/off handle to the internal valve control mechanism. It should be checked against the existing carrier, handle assembly and valve model before ordering, especially where older Trevi Therm and Trevi family valves may use different handle carriers or control components.
Technical Details
| Brand | Trevi / Ideal Standard |
|---|---|
| Part Number | A923348 |
| Part type | volume control handle carrier / handle adapter |
| Height | 27.8mm |
| Diameter | 32.9mm |
| Markings on part | A923348 >POM< 2 |
- This is not a thermostatic cartridge or flow cartridge
Confirmed Compatible Models
- A1544AA Velino Archimodule Volume Handle
- A1545AA Velino Archimodule Hand Spray Volume Handle
- A1547AA Velino Archimodule Bath Volume Handle
- A2158AA Trevi Therm Exposed Post 1997
- A3000AA Trevi Therm Built-in Thermostatic Shower Valve
- A3200AA Trevi Therm MK II exposed thermostatic shower valve - for concealed or exposed pipework - Bottom Oulet
- A3700AA Trevi Outline built-in thermostatic shower valve
- A3970NUTT Central built-in thermostatic shower valve - no faceplate or handle
- A4820AA Trevi 2 way diverter for high pressure systems min pressure 1 Bar
- A4860AA Trevi flow control valve
- A5800AA Alchemy Built in thermostatic shower valve
- A5820AA Trevi 3 way diverter for high pressure systems min pressure 1 Bar
- A5985AA Alto EV Shower with 1 Function Shower Kit
- A6593AA Velino Archimdule Temperature Handle
- E3115AA Trevi Traditional built-in thermostatic shower valve
- E9005AA Trevi Boost built-in mains pressure shower valve and Elipse BIV shower kit
- E960739AA Trevi Boost to Therm Conversion Kit Pre October 2011
- L6709AA Trevi Outline built-in thermostatic shower valve with BIV three function shower kit
- L6839AA Trevi Ascari built-in thermostatic shower valve with Moonshadow Dual ILV three function shower kit
Before Ordering
- Check the A923348 marking on the existing carrier where visible
- Compare the carrier height, diameter and handle connection with the removed part
- Confirm the valve model code before ordering where the shower has been repaired or converted before
Related Spares You May Need
- TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
- Trevi Therm A963515AAOn / Off Control Handle (Ideal Standard)
- Trevi A963348AA Boost Thermostatic Cartridge (Ideal Standard)
- Trevi A963067NU Therm 84mm Spindle Gear Box Cogs Assembly (Includes 2 Gears and Spindle Gear) - Ideal Standard
- Trevi A952501NU11 Ideal Standard 1/2 Dx 1/4 Turn Flow Cartridge Anti Clockwise Close
