Trevi A960508NU Gear Spindle Cog - 50.5mm
Send a photo of your item and we'll help confirm it.
Summary

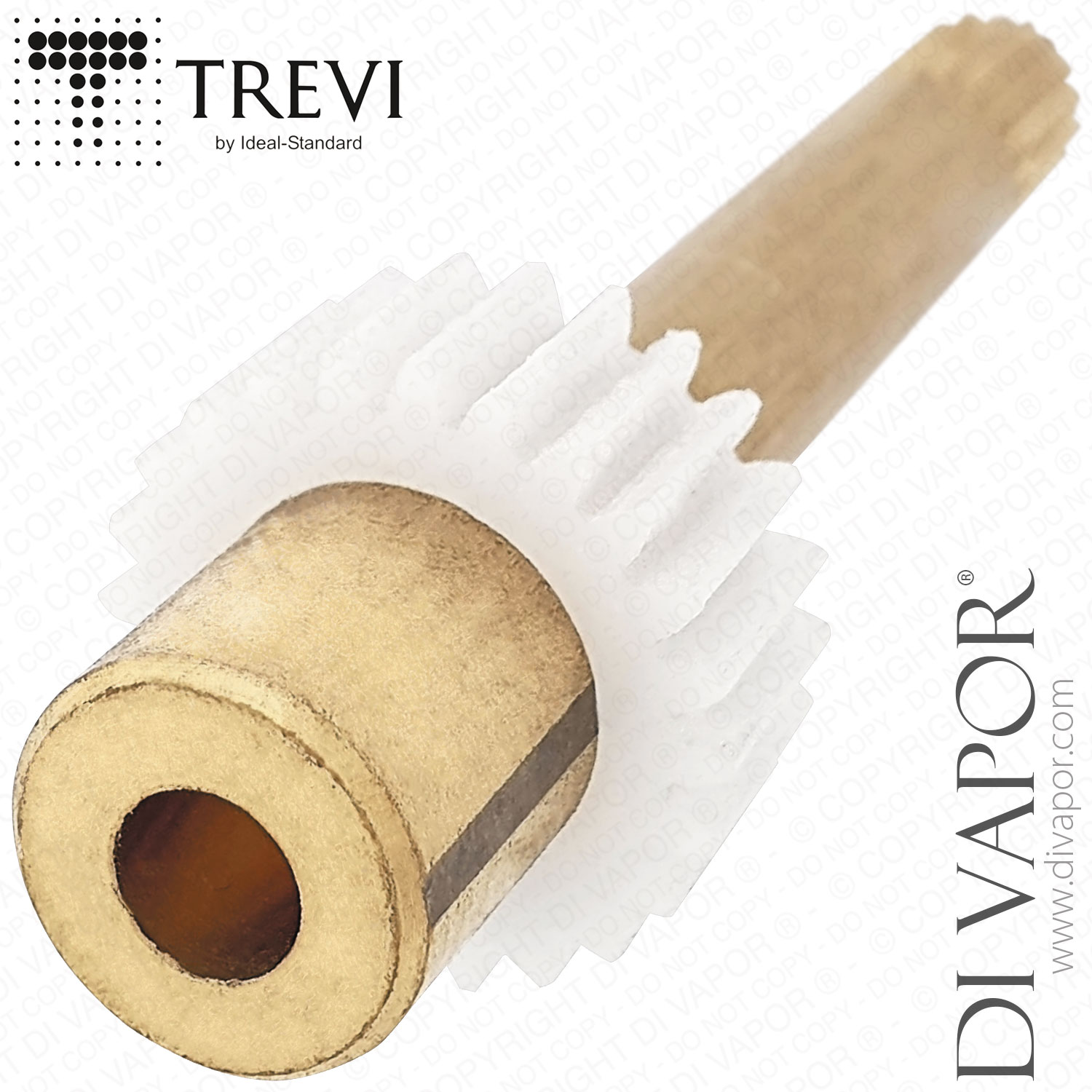

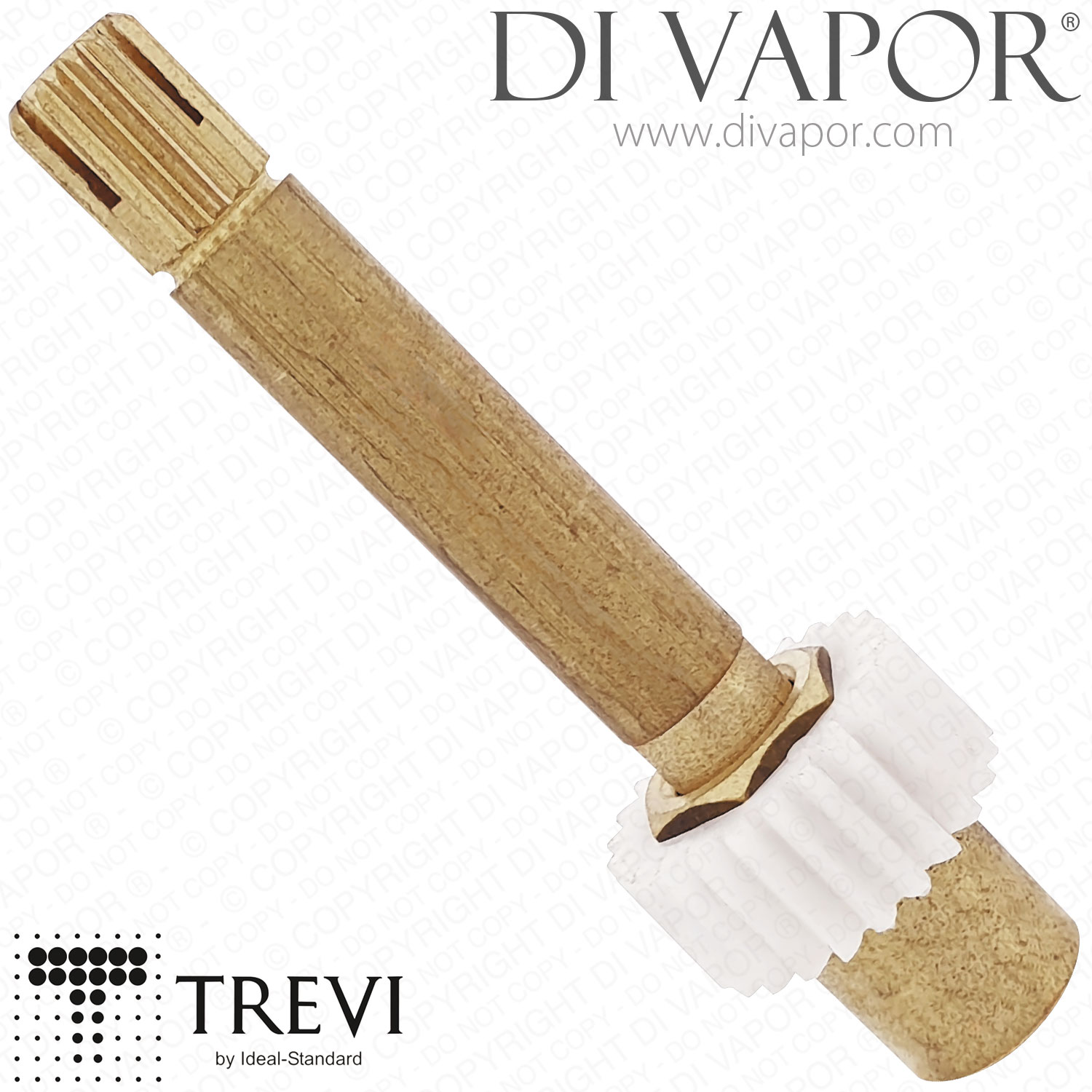

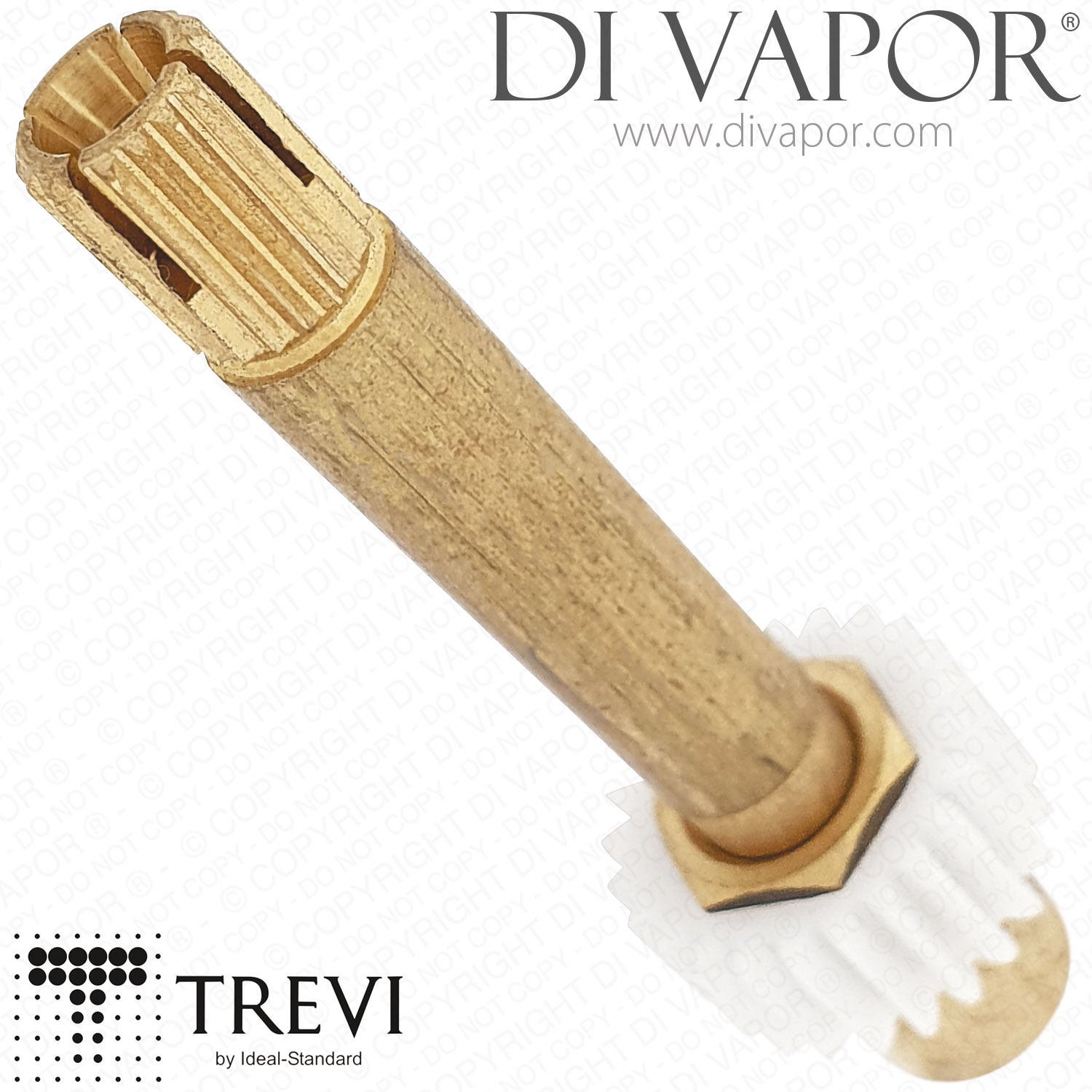

Trevi A960508NU Gear Spindle Cog - 50.5mm
Total length: 62.28mm
Trevi A960508NU is a gear wheel drive spindle for the control mechanism used in the Trevi Therm A3200 exposed thermostatic shower valve. This is a mechanical spindle and cog component used within the valve gear assembly rather than a ceramic shut-off cartridge.
The spindle helps transfer movement from the control handle through the gear and clutch mechanism. It should be checked when the flow or volume control is not engaging correctly, the gear drive feels worn or the existing spindle cog is damaged. If the shower continues to drip when turned off, also check the flow cartridge because the A960508NU spindle is not the ceramic sealing cartridge.
Technical Details
| Brand range | Trevi by Ideal Standard |
|---|---|
| Part Number | A960508NU |
| Part type | gear wheel drive spindle / gear spindle cog |
| Functional spindle size | 50.5mm |
| Total length | 62.28mm |
| Application | Trevi Therm A3200 exposed thermostatic shower valve gear control mechanism |
| Associated gear clutch wheel pack | A960489NU |
- No verified supersession found for A960508NU
Confirmed Compatible Models
- Trevi A3200AA Therm MK II Exposed Thermostatic Shower Valve with Bottom Outlet
- Trevi Therm MK II Exposed Thermostatic Shower Valve Bottom Outlet A3200AA GEN1
- Trevi Therm MK2 Exposed Shower Valve Spare Parts A3200 IDL DV 406
Before You Order
Compare the removed spindle with A960508NU and confirm the valve is the Trevi Therm A3200 exposed MK II bottom outlet valve. Do not order this item as a thermostatic cartridge or ceramic flow cartridge; it is a control mechanism gear spindle.
Related Spares You May Need
- TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved - Part Number TAC86
- Trevi A960489NU Gear Slip Clutches for Trevi Therm & Boost Valves Pair - Part Number A960489NU
- Trevi A952501NU11 Ideal Standard 1/2 Dx 1/4 Turn Flow Cartridge Anti Clockwise Close - Part Number A952501NU11
- Trevi S960134NU Thermostatic Cartridge for Trevi Therm Shower Valves Post 1997 - Part Number S960134NU
- Trevi Therm A907096AA Exposed Front Cover Plate for MK 2 Exposed Shower Valve Chrome - Part Number A907096AA
- Trevi A907294LJ Handle Cap Ideal Standard Indice T Logo - Part Number A907294LJ
- Ideal Standard A918393 FIXING SCREW 4X80 DIN 7996-A2 - Part Number A918393
- Trevi Temp Screw Control Handle - A918416 A918416NU11 - Ideal Standard - Part Number A918416
- Ideal Standard Trevi Therm Handle Screw M4 X 23.5 Azimuth - A91842814 A918428 - Part Number A91842814
- A923348 Trevi Therm A923 Handle Carrier Ideal Standard - Part Number A923348
- Trevi A953957NU11 Temperature Adjustment Carrier Handle Serenis New Haven Alchemy Sandringham Ideal Standard - Part Number A953957NU11
- Ideal Standard A961957NU SCREW M4 X 45.5 SET OF THREE - Part Number A961957NU
- Trevi Therm A962585NU Cap for Handles Black - Part Number A962585NU
- Ideal Standard A963425NU Back Plastic Cover Plate - A910852 - Part Number A963425NU
- Trevi Therm A963426AA Shroud Cover Sleeve - Part Number A963426AA
- Trevi Therm A963506AA Temperature Control Handle Ideal Standard - Part Number A963506AA
- Ideal Standard A963510NU SEALING FRAME - Part Number A963510NU
- Trevi Therm A963515AA On / Off Control Handle Ideal Standard - Part Number A963515AA
- Ideal Standard E4745AA Trevi 135cm Flexible Shower Hose with Easyclean Finish Chrome 1/2 BSP Connection - Part Number E4745AA
- Ideal Standard E960113NU FLOW REGULATOR 8L/MIN MRO1GA REF 58.6128 - Part Number E960113NU
