Vado HUB-PB3B-C/P Temperature Control Handle - Chrome - for HUB-001A-WAX Thermostatic Cartridge
Send a photo of your item and we'll help confirm it.
Summary

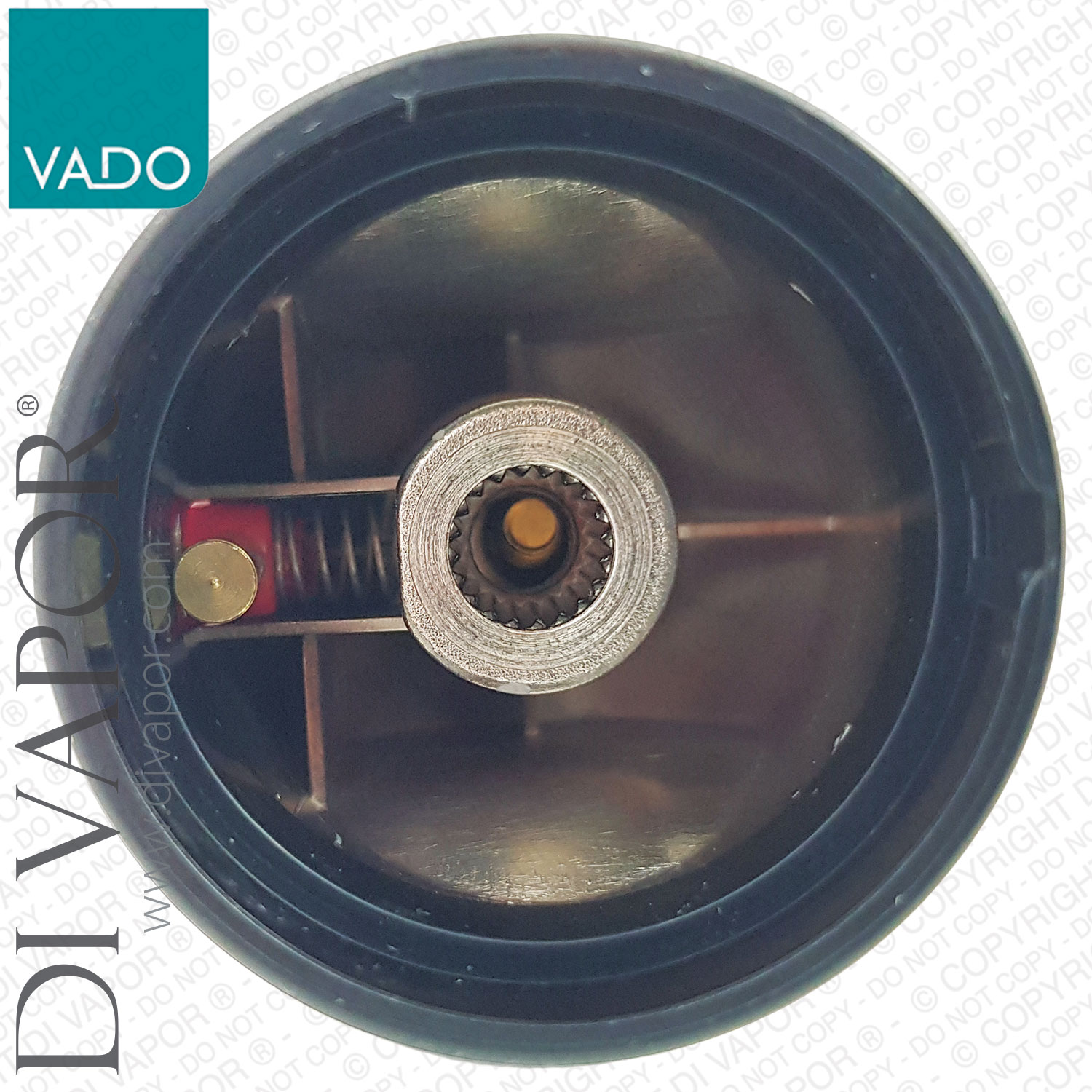

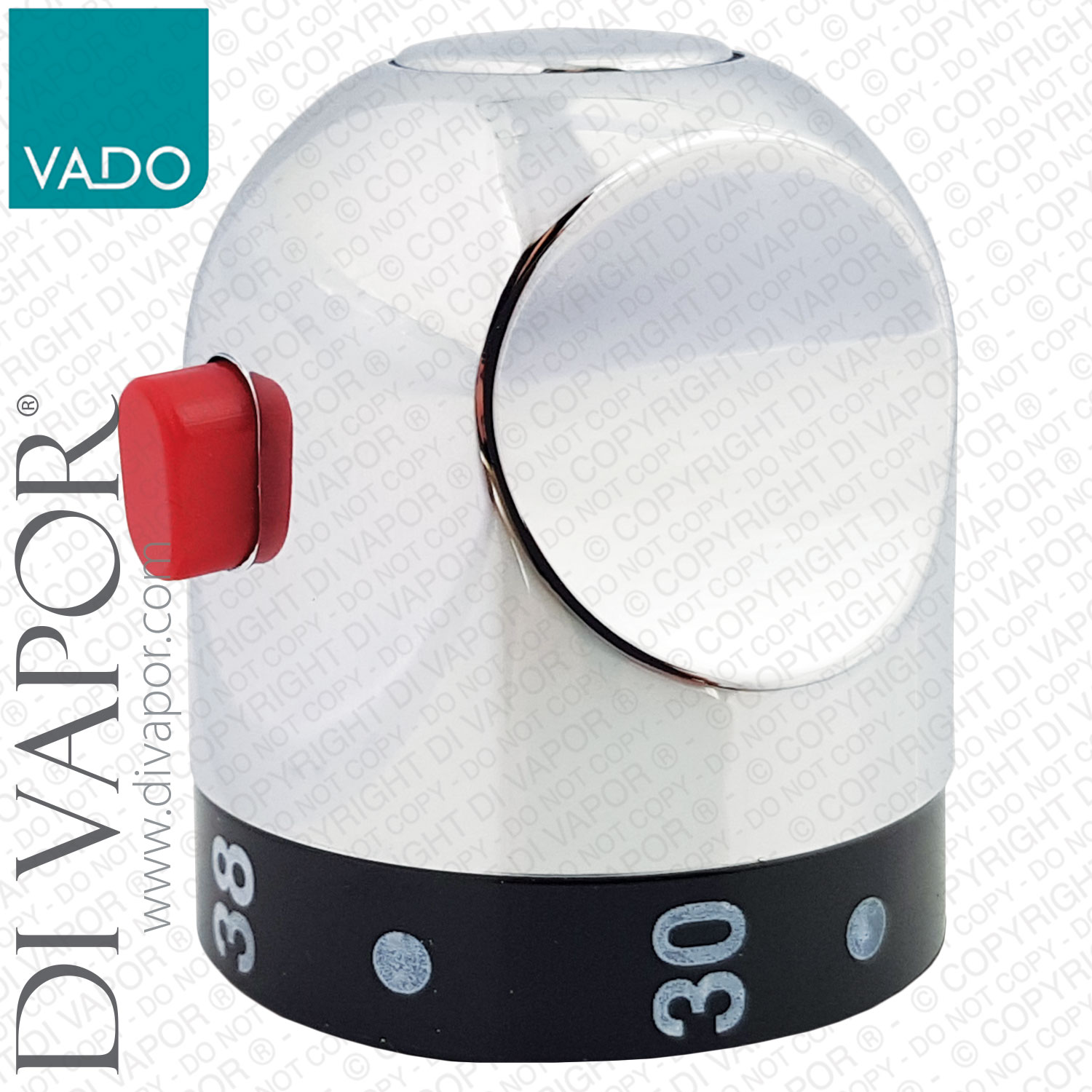

The Vado HUB-PB3B-C/P is a chrome temperature control handle for use with the Vado HUB-001A-WAX thermostatic cartridge. It is the external control handle used to turn the cartridge spindle and adjust the showering temperature on the valve.
This handle is useful where the original temperature control handle is missing, damaged, worn, loose or no longer engaging correctly with the cartridge spline. Check the existing cartridge, spline count and handle dimensions before ordering, especially where the valve has been serviced before.
Technical Details
| Brand | Vado |
|---|---|
| Part Number | HUB-PB3B-C/P |
| Part type | Temperature control handle |
| Finish | Chrome |
| Used with | HUB-001A-WAX thermostatic cartridge |

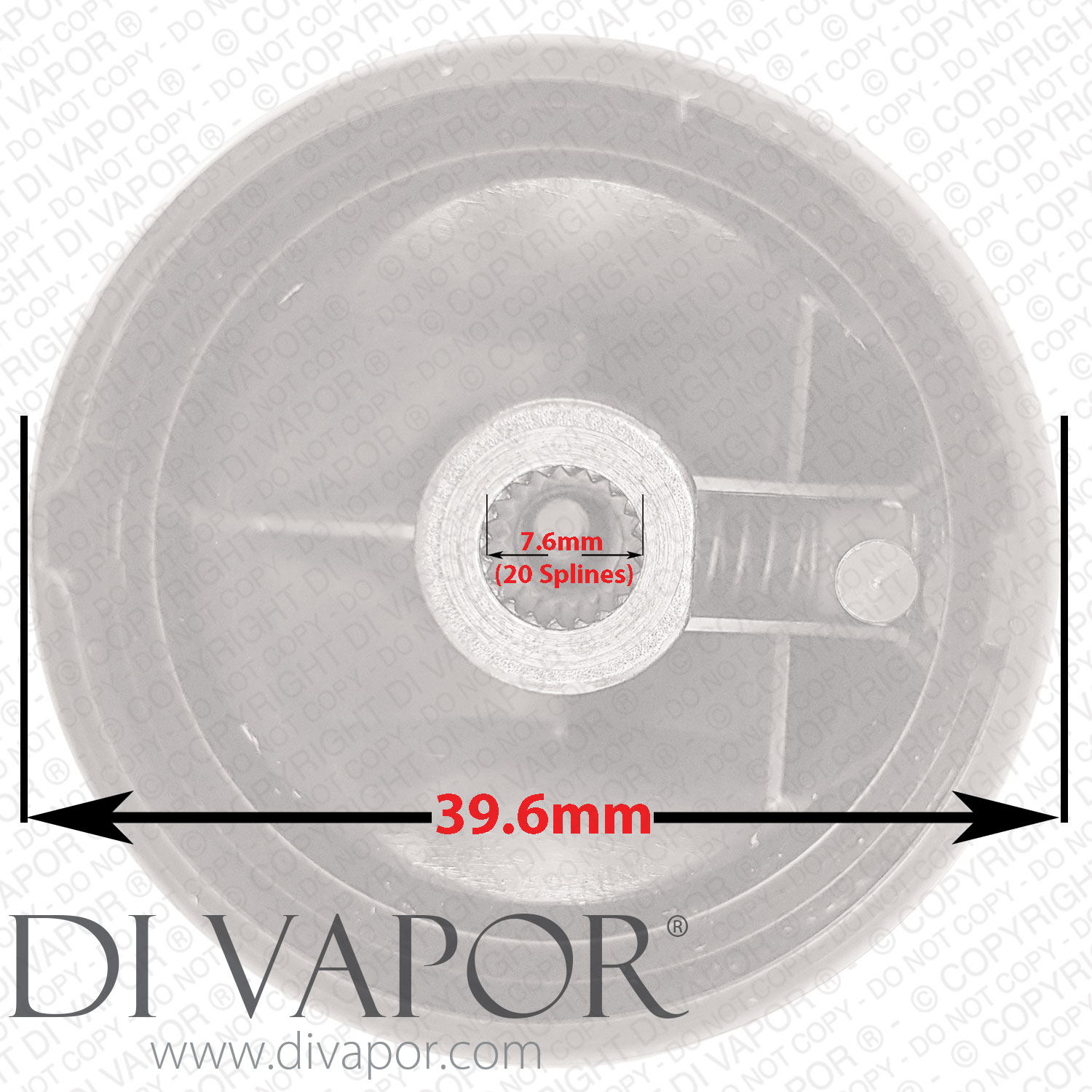

| Diameter at bottom black part | 39.6mm |
| Total height | 45mm |
| Spline requirement | 20 splines |
| Spline diameter | 7.6mm |
Before Ordering Check
Confirm that the valve uses the HUB-001A-WAX thermostatic cartridge and that the cartridge spline has 20 splines with a 7.6mm diameter. Do not order from the outside diameter of the handle alone, as spline form and cartridge type must also match.
Confirmed Compatible Models
- Vado WG-11901 Prima Built In Thermostatic Shower Spare Parts
- Vado WG-11901/2 Prima Built In Thermostatic Shower with Diverter Spare Parts
Related Spares You May Need
- Vado HUB-PB3A-C/P Flow Control Handle
- VADO HUB-0024-PLA Temperature Stop Ring Used on HUB-001A-WAX
- Thermostatic Cartridge for VADO HUB-001A-WAX WG-15951 | WSB-148 Shower Mixers
- Vado HUB-0006-C/P Cover Plate for Prima Standard Valve
- Vado HUB-002B-1/2 On/Off Flow Cartridge for Prima Shower Valves
- Vado HUB-001G-DIV Diverter Cartridge 148/2 Valve - 2 Way Diverter - Red Housing
- Vado HUB-003F-BRA Diverter Cartridge Brass Housing
- Vado HUB-003B-CAP Non-Return Valve Brass Cover Cap
- Vado HUB-002B-3/4 3/4" Ceramic Cold Flow Cartridge (On / Off) - Quarter Turn Clockwise Close
- Vado HUB-0019-PLA Plastic Cartridge to Handle Adapter
- Vado 925437SQ Temperature Stop Ring for HUB-001A-WAX Thermostatic Cartridge
- TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
- Vado HUB-003A-FIL Non Return Valve
