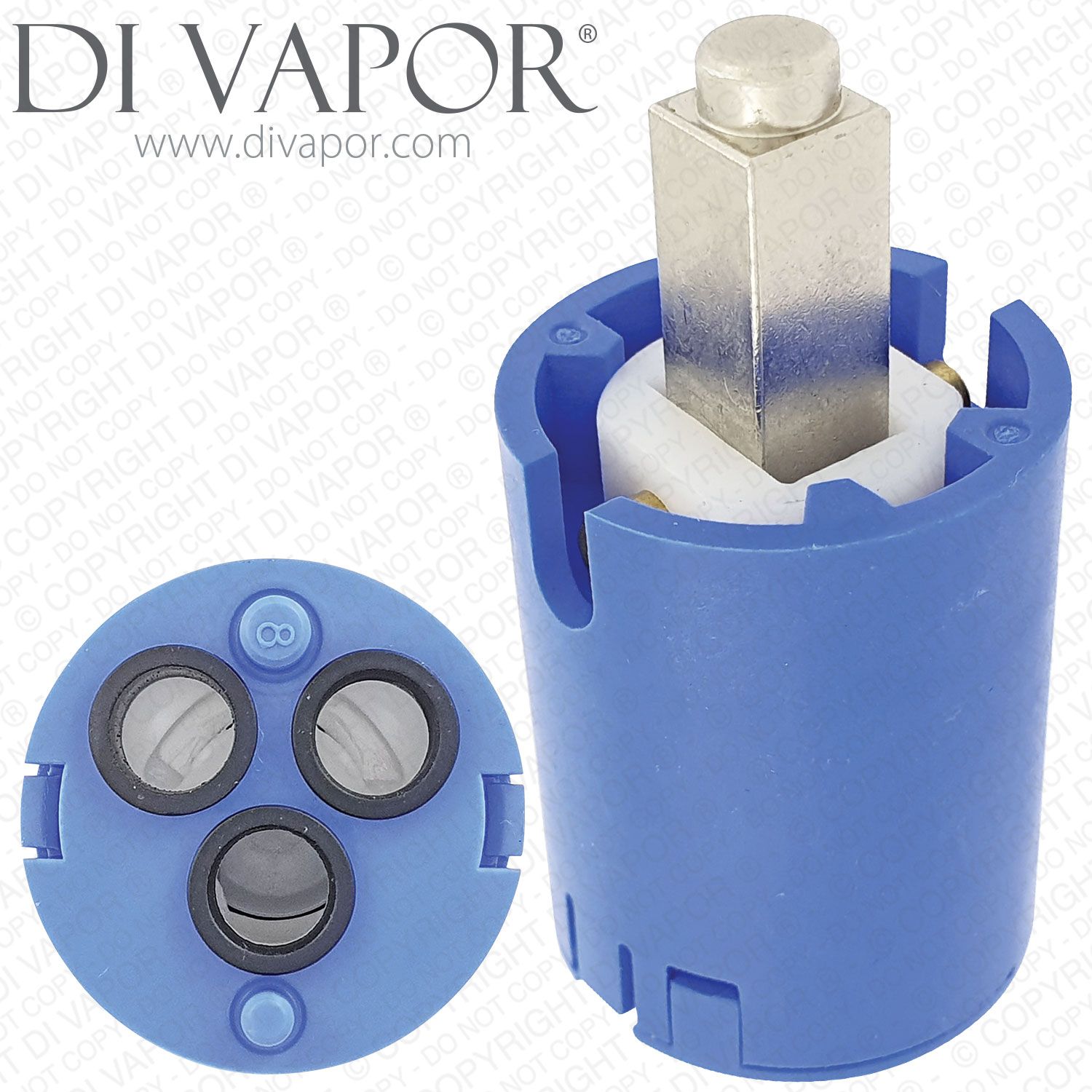

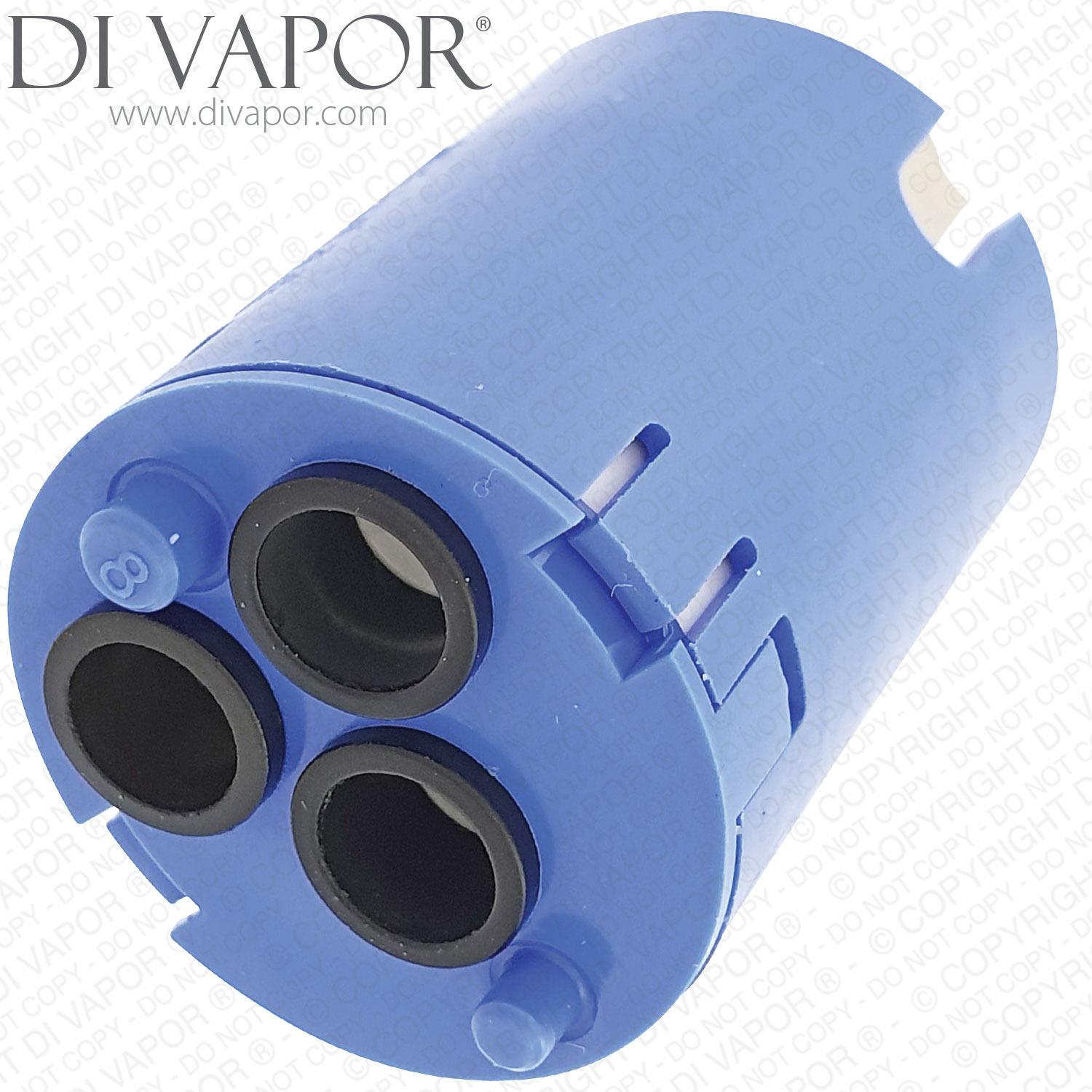

28mm Lever Cartridge for Vola VR277 Mixer Taps (Hastings) - Compatible Spare
Send a photo of your item and we'll help confirm it.
Summary
28mm Lever Cartridge for Vola VR277 Mixer Taps - Compatible Spare. No Hexagonal Tool Included.
The Vola VR277 lever cartridge for is the spare part for mixer taps:
| HV3 (Years | Post-1989) |
|---|---|
| KV1 (Years | Post-1989) |
| Total Height | 54.6mm (excluding locating pins) |
| Blue Plastic Body Height | 35.7mm (Excluding locating pins and black port seals) |
This Vola VR277 28mm lever cartridge is a Hastings compatible spare for Vola single-lever mixer taps using the VR277 cartridge, including post-1989 HV3 and KV1 mixer tap applications.
The cartridge sits inside the mixer body and controls water flow and mixing through the tap lever. A worn lever cartridge can cause stiff lever movement, poor temperature or flow control, water passing when the tap is turned off, or dripping from the spout after shut-off.
Technical Details
| Part Number | VR277 |
|---|---|
| Cartridge diameter | 28mm |
| Hexagonal tool | not included |
| Associated Vola kit reference | VR277K contains VR22, VR269 and VR277 |
Check the existing cartridge markings, cartridge size, handle fixing and retaining parts before ordering. This listing is for the VR277 cartridge only and does not include the hexagonal tool.
Confirmed Compatible Models
- Vola HV3 post-1989 mixer taps
- Vola HV3+30 one-handle mixer with ceramic disc technology height 150 mm fixed spout
- Vola HV3+170 one-handle mixer with ceramic disc technology height 290 mm fixed spout
- Vola HV3 family variants: HV3 150, HV3+30/150, HV3+170/150, HV3L 150, HV3L+30, HV3L+30/150, HV3L+170, HV3L+170/150, HV3M 150, HV3M+30, HV3M+30/150, HV3M+170 and HV3M+170/150
- Vola KV1 one-handle mixer with ceramic disc technology double swivel spout
- Vola KV1/250 one-handle mixer with ceramic disc technology double swivel spout
- Vola KV1/300 one-handle mixer with ceramic disc technology double swivel spout
- Vola KV1M/250 one-handle mixer with medium lever ceramic disc technology double swivel spout
- Vola KV1 family variants: KV1L/250, KV1L/300 and KV1M/300
