A962230NU Ideal Standard / Trevi Flight O Ring & Screens for A962229NU Cartridge
SUMMARY

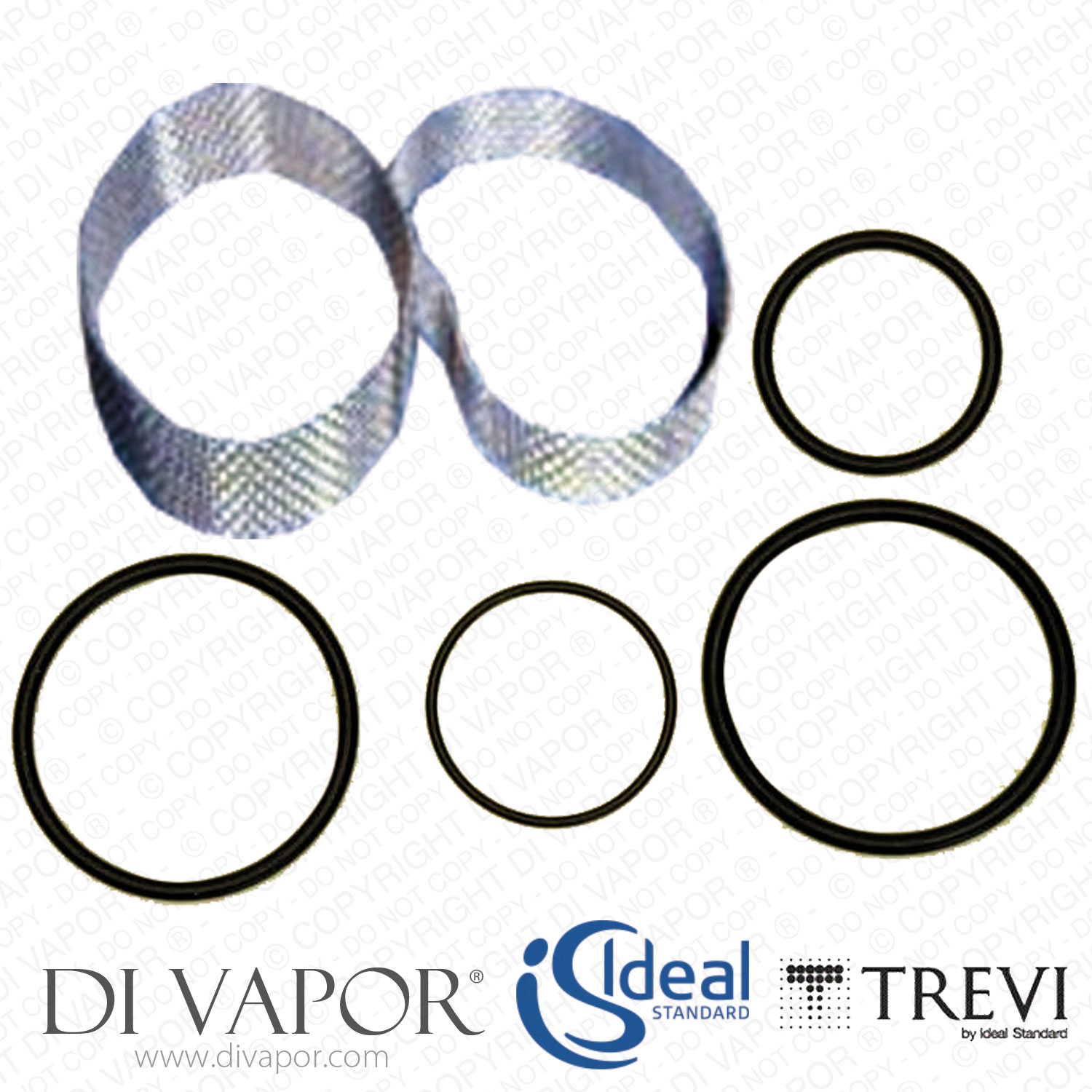

A962230NU Seal Kit for the A962229NU Thermostatic Cartridge
Ideal Standard Trevi A962230NU is an O-ring and gauze filter screen service kit used when servicing supported Ideal Standard and Trevi thermostatic shower and bath/shower valve assemblies. Its principal documented application is the A962229NU thermostatic cartridge. The complete thermostatic cartridge is not included.
The O-rings provide sealing around the thermostatic cartridge while the gauze screens help prevent debris in the water supply from entering the cartridge. Blocked or damaged screens and worn seals can affect the operation of the thermostatic assembly, so these components should be inspected when servicing the cartridge.
Technical Details
- - Exact Part Number: A962230NU
- - Part type: O-ring and gauze filter screen service kit
- - Principal cartridge application: A962229NU thermostatic cartridge
- - Function: replaces service seals and filter screens around the thermostatic cartridge
- - Complete thermostatic cartridge not included
- - Isolate the hot and cold water supplies before dismantling the valve
- - Inspect and clean the cartridge seating and filter areas during servicing
- - Lightly lubricate suitable O-rings with silicone grease during reassembly
- - Check the exact valve model and cartridge arrangement before ordering because some ranges have different generations and internal components
Confirmed Models Using A962230NU
The Ideal Standard / Trevi Flight O Ring Kit & Metal Gauze Screens can be used on the A962229NU cartridge which is used in the following valves:
- - A3543AA Trevi Link exposed thermostatic shower valve for high pressure balanced systems - 1 to 3 bar
- - A4127AA Contour 21 dual control exposed thermostatic shower valve for concealed supply pipework
- - A4290AA Melange faceplate and handles for use with A3969NU Trevi TT shower valve
- - A4337AA Melange exposed thermostatic bath shower mixer - no shower kit
- - A5346AA Glance faceplate and handles for use with A3141NU or A3143NU shower valve
- - Ideal Standard A5508AA Alto Ecotherm two taphole thermostatic bath shower mixer - no shower kit
- - Ideal Standard A5778AA Ceratherm 100 Bath Shower Mixer With Dual Kit
- - Ideal Standard S7834AA Sandringham exposed bar thermostatic shower valve - high pressure
- - Ideal Standard Celia A3435AA exposed shower mixer
- - Ideal Standard Celia A3436AA exposed bath/shower mixer
- - Ideal Standard Celia A3437AA concealed 1/2-inch assembly
- - Trevi Link A3542AA exposed thermostatic bath/shower valve
- - Ideal Standard Moments A3919AA concealed G1/2 assembly
- - Ideal Standard Active A4046AA exposed shower mixer
- - Ideal Standard Melange A4281AA exposed bath/shower mixer
- - Ideal Standard Melange A4336AA exposed thermostatic shower valve
- - Ideal Standard CeraTherm A4532AA exposed shower mixer
- - Ideal Standard Ceratherm 100 A4623AA exposed thermostatic bath/shower mixer
- - Ideal Standard Ceratherm 200 A4627AA thermostatic bar shower valve GEN1
- - Ideal Standard Alto Ecotherm A4740AA bar shower valve with Fast Fix wall bracket
- - Ideal Standard Alto Ecotherm A4741AA bar shower valve
- - Ideal Standard Ceratherm 100 A4815AA deck-mounted bath/shower mixer GEN1
- - Ideal Standard Ceratherm 100 A4816AA bath-rim-mounted thermostatic shower valve
- - Ideal Standard Alto Ecotherm A4899AA wall-mounted bath/shower mixer
- - Jado Glance A5328AA exposed bath thermostatic mixer
- - Ideal Standard Alto Ecotherm A5634AA wall-mounted bath/shower mixer
- - Ideal Standard Alto Ecotherm A5635AA bath/shower mixer with rim-mount legs
- - Ideal Standard Alto Ecotherm A5636AA bath/shower mixer with rim-mount legs and Idealrain S3 kit
- - Ideal Standard Alto Ecotherm A5637AA shower valve with lever handles GEN1
- - Ideal Standard Alto Ecotherm A5638AA deck-mounted bath/shower mixer with lever handles
- - Ideal Standard Alto Ecotherm A5639AA wall-mounted bath/shower mixer with lever handles
- - Ideal Standard Alto Ecotherm A5692AA shower pack with single-function kit and wall bracket
- - Ideal Standard Alto Ecotherm A6385AA exposed wall-mounted shower mixer with Idealrain S3 kit
Related Spares You May Need
- - Ideal Standard Trevi A962229NU Ecotherm thermostatic cartridge
- - TACSIL 3g cartridge silicone grease TAC86
- - Armitage Shanks Sandringham shower cartridge AMS1652
- - Trevi A963427NU temperature adjustment carrier and handle extension
- - Ideal Standard A963432NU volume control handle carrier assembly
- - Ideal Standard Trevi A962998NU M4 screws pair
- - Ideal Standard A962594NU non-return valves
- - Ideal Standard A961810NU seal kit
- - Ideal Standard A962232AA Alto Ecotherm temperature handle
- - Ideal Standard A962361LJ grey handle cap
- - Ideal Standard A960834AA Ceratherm 100 temperature handle
- - Ideal Standard Trevi A961233NU Alto Ecotherm flow control cartridge
- - Jado H960104NU 1/2-inch flow cartridge
- - Trevi A962568NU Ceratherm diverter
- - Ideal Standard A962870AA temperature control handle
- - Ideal Standard A962871AA volume control handle
- - Ideal Standard A962872AA thermostat handle cap
- - Ideal Standard A961332NU O-ring pair
Not sure this is the right part? Use the Di Vapor Part Identification Service and send us a photo of the part.
