A963033NU Ideal Standard /​ Trevi 1/​2 Inch Ceramic Disk Cartridge - Hot

SUMMARY

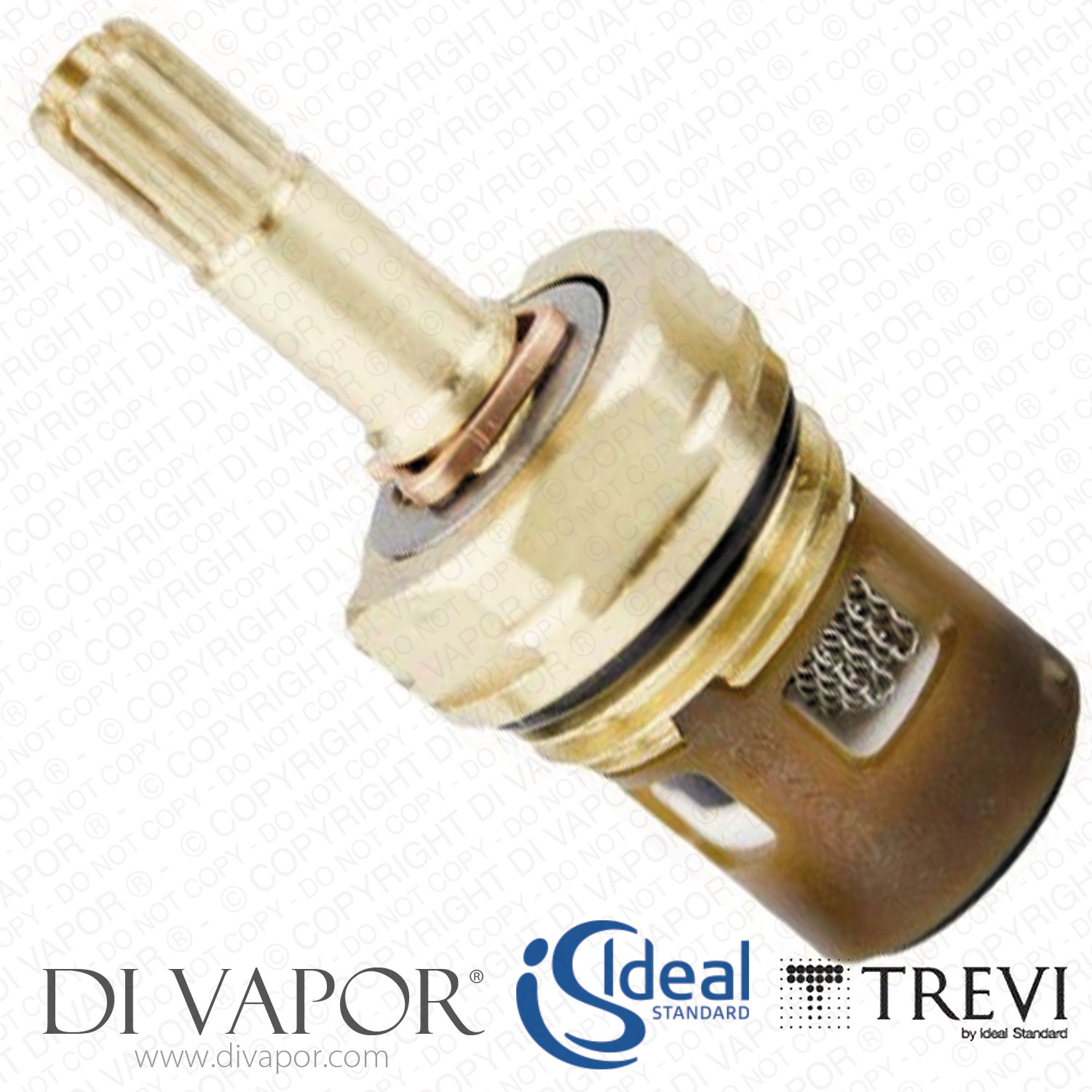

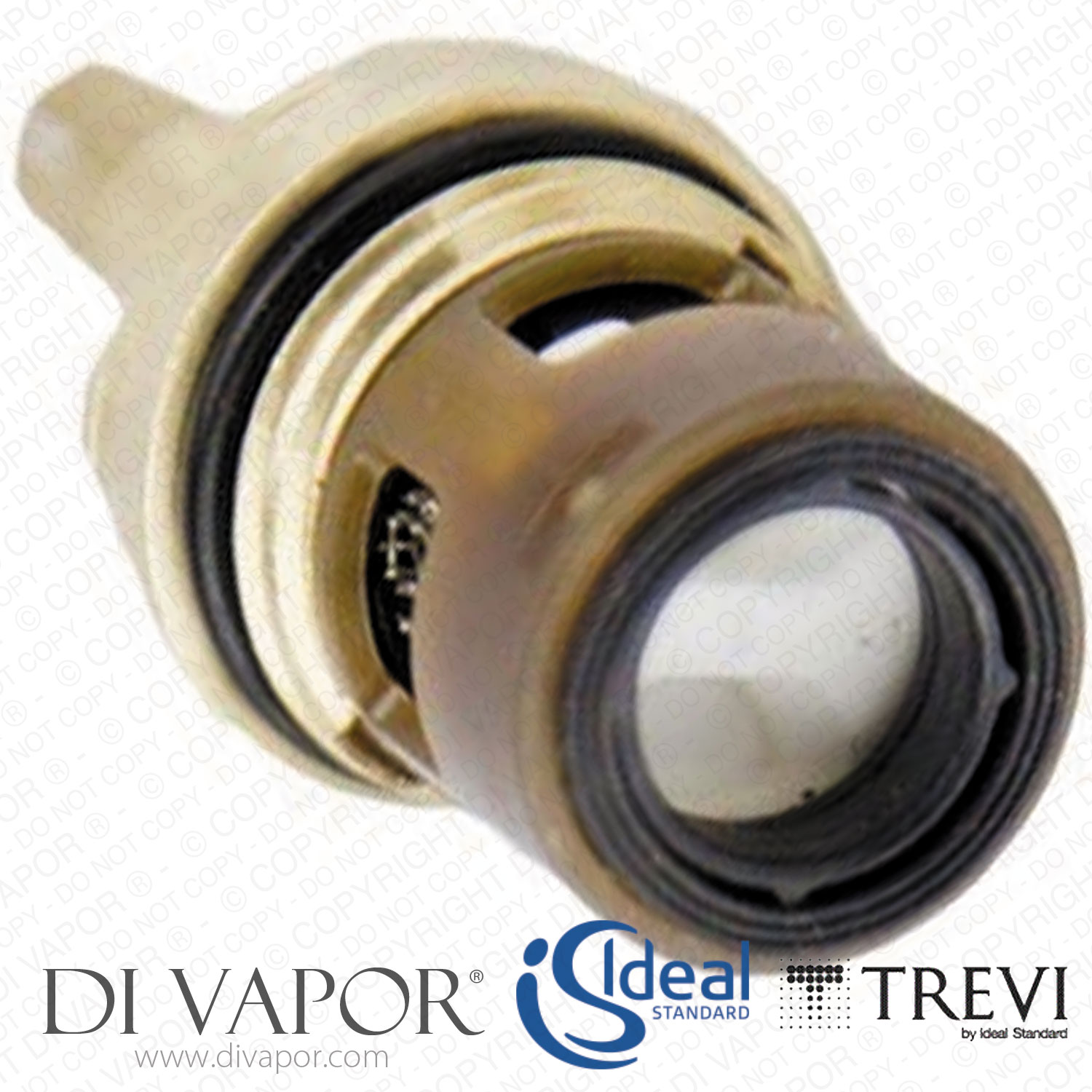

A963033NU Ideal Standard / Trevi 1/2 Inch Ceramic Disk Cartridge - Hot

NOTE: This is a quarter turn cartridge. The plastic version is now discontinued, you will receive the fully brass version.

The Ideal Standard Trevi A963033NU is a hot ceramic-disc flow-control cartridge for selected basin taps, bidet mixers, bath/shower mixers and shower valves. The brass version replaces the former plastic design under the same A963033NU part code.

This quarter-turn cartridge controls water flow and shut-off. It is not a thermostatic temperature-control cartridge; in the listed thermostatic shower assemblies, flow control and temperature regulation use separate components.

Technical Details

- - Nominal size: G1/2 (1/2 inch)

- - Operation: quarter-turn through 90 degrees

- - Mechanism: ceramic-disc flow control

- - Version: hot

- - Supplied construction: brass version replacing the discontinued plastic design

Earlier Part References

A963033NU replaces the earlier N045716NU cartridge. D99M090NU is a Porcher cross-reference for this headwork.

Confirmed Models

Match the complete model code and any generation or production dates shown below. A model name or nominal cartridge size alone is not sufficient to identify the correct part.

- - Ideal Standard A5637AA GEN1 Alto Ecotherm shower with lever handles and fast-fix kit

- - Ideal Standard A6263AA Melange four-hole bath/shower mixer with pull-out hand spray

- - Sottini N9565AA GEN1 Reprise dual-control single-taphole bidet mixer with pop-up waste

- - Ideal Standard A4289AA Melange dual-control three-taphole basin mixer with pop-up waste

- - Armitage Shanks A4127AA Contour 21 dual-control exposed thermostatic shower valve for concealed supply pipework

- - Armitage Shanks A4128AA Contour 21 dual-control exposed thermostatic bath/shower mixer for concealed supply pipework without shower kit

- - Ideal Standard A3920AA Moments dual-control four-taphole bath/shower mixer with diverter and shower kit without spout

- - Ideal Standard A3907AA Moments three-hole basin mixer

- - Sottini N9564AA GEN1 Reprise dual-control basin mixer

- - Ideal Standard A6870AA GEN1 CeraPlus 2 exposed thermostatic bar shower mixer with on/off S-connectors - production April 2017 to March 2021

- - Ideal Standard A3443AA Celia four-hole bath fitting

- - Ideal Standard A3477AA Celia concealed wall-mounted basin fitting - kit 2

Before Ordering

Check the original cartridge reference, exact tap or shower model and model generation. Compare the spindle, handle connection, cartridge seating and seals with the removed part. The supplied brass cartridge may look different from the earlier plastic version, but the change in construction retains the A963033NU code. Do not select a cartridge from its nominal size alone.

Troubleshooting

Symptom: water continues to drip from the shower head or spout when the shower or tap is turned off. Likely Cause: wear or debris affecting the flow cartridge or its sealing surfaces. Solution: inspect the shut-off cartridge and seals, then replace the identified faulty component. Temperature instability alone does not establish that this flow cartridge needs replacing.

Installation

Isolate the water supplies before dismantling the fitting. Follow the instructions for the exact model, inspect the handle carrier and seals during removal, and check for leaks and correct shut-off after reassembly.

Related Spares You May Need

These are model-specific associated spares, not a kit or a list of parts required for every cartridge change. Check the exact assembly before ordering. The thermostatic cartridge and its service parts perform a different function from A963033NU.

- - Ideal Standard A963432NU volume-control handle carrier assembly - flow-control carrier for the listed Alto, Contour and CeraPlus 2 GEN1 arrangements

- - N058997NU plastic handle adapter - for Reprise N9564AA GEN1 and N9565AA GEN1 mixers

- - Ideal Standard Trevi A962998NU M4 cartridge screws - pair - for the listed Alto and Contour assemblies

- - Ideal Standard Trevi A962229NU Ecotherm thermostatic cartridge - separate temperature-control cartridge for Alto A5637AA GEN1 and CeraPlus 2 A6870AA GEN1

- - Ideal Standard Trevi A962230NU O-ring and screen kit - services the A962229NU thermostatic cartridge, not the A963033NU flow cartridge

- - Ideal Standard Trevi A963427NU temperature-adjustment carrier and handle extension - temperature-control component for the listed Alto GEN1 and CeraPlus 2 GEN1 arrangements

- - Ideal Standard Trevi A953957NU11 temperature-adjustment carrier - associated Alto A5637AA GEN1 control component; check the installed carrier before selecting this part or A963427NU

- - Ideal Standard A962594NU non-return valves - associated with the listed Alto, Contour and Moments A3920AA assemblies

- - Ideal Standard A961810NU seal kit - for model-specific assembly servicing, including the listed Alto, Contour, Moments A3907AA and Celia A3443AA fittings; check the required seal position

- - Ideal Standard Trevi A961640NU O-rings for 1/2 inch cartridge - pair - associated with the listed Contour and Celia A3443AA assemblies; match the original seal location

- - Ideal Standard E960641AA chrome cover button without logo - associated Contour 21 control trim

- - Ideal Standard Trevi A960516NU four-hole bath/shower diverter valve - separate diverter for Moments A3920AA

- - Ideal Standard Trevi A963004NU 1/2 inch ceramic-disc flow cartridge - opposite-side cartridge for Moments A3920AA and A3907AA; do not assume this pairing applies to every A963033NU application

- - Ideal Standard A961230AA chrome pop-up waste - associated waste assembly for Moments A3907AA

- - Ideal Standard A963651NU 1/2 inch outlet nipple - associated outlet component for CeraPlus 2 A6870AA GEN1

- - Ideal Standard A962605NU O-ring 14.00X1.78 - associated seal for CeraPlus 2 A6870AA GEN1

Not sure which part you need? Use the Di Vapor part identification service for help.
