A962336NU Ideal Standard /​ Trevi 1/​2" Ceramic Disk Cartridge - Cold Clockwise Close

SUMMARY

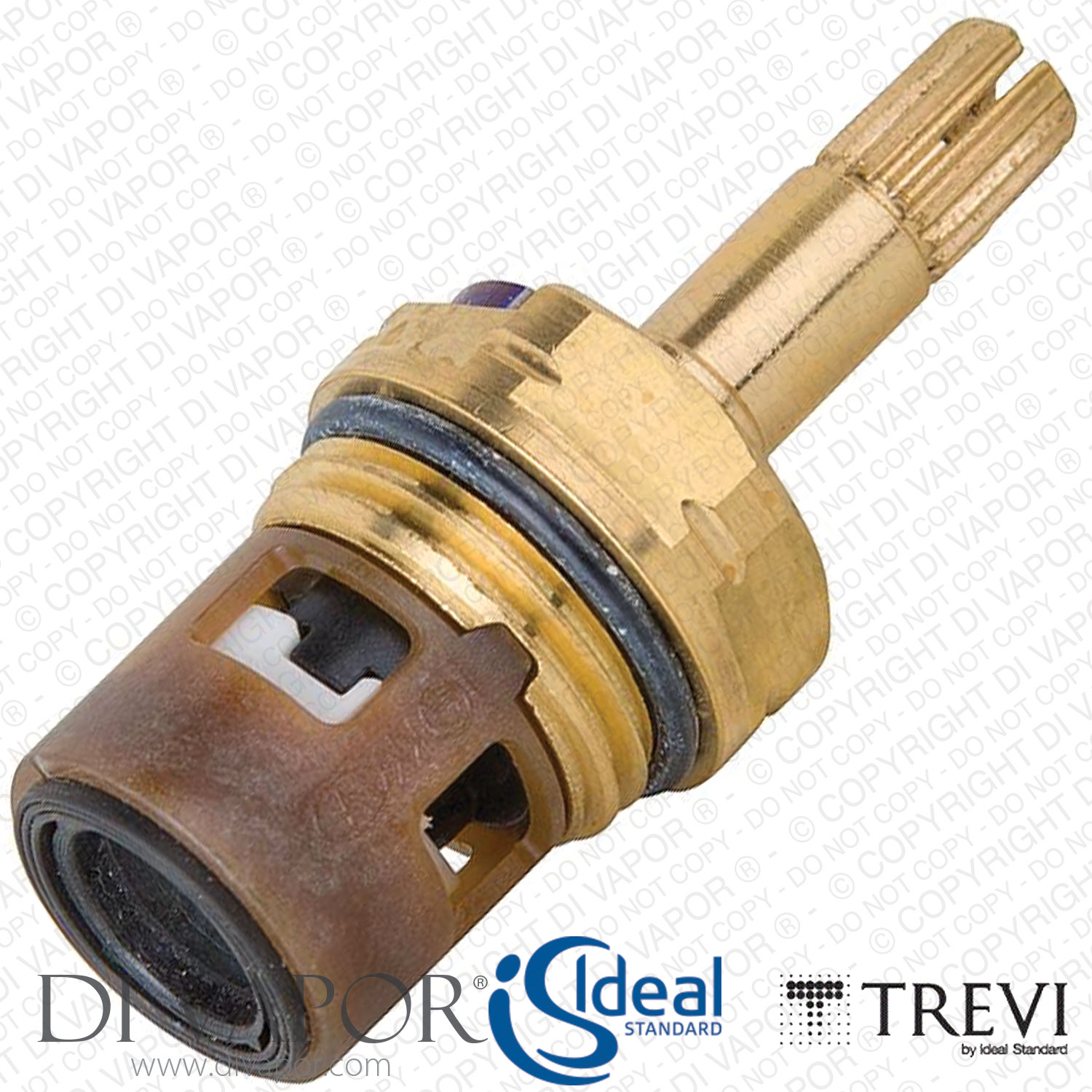

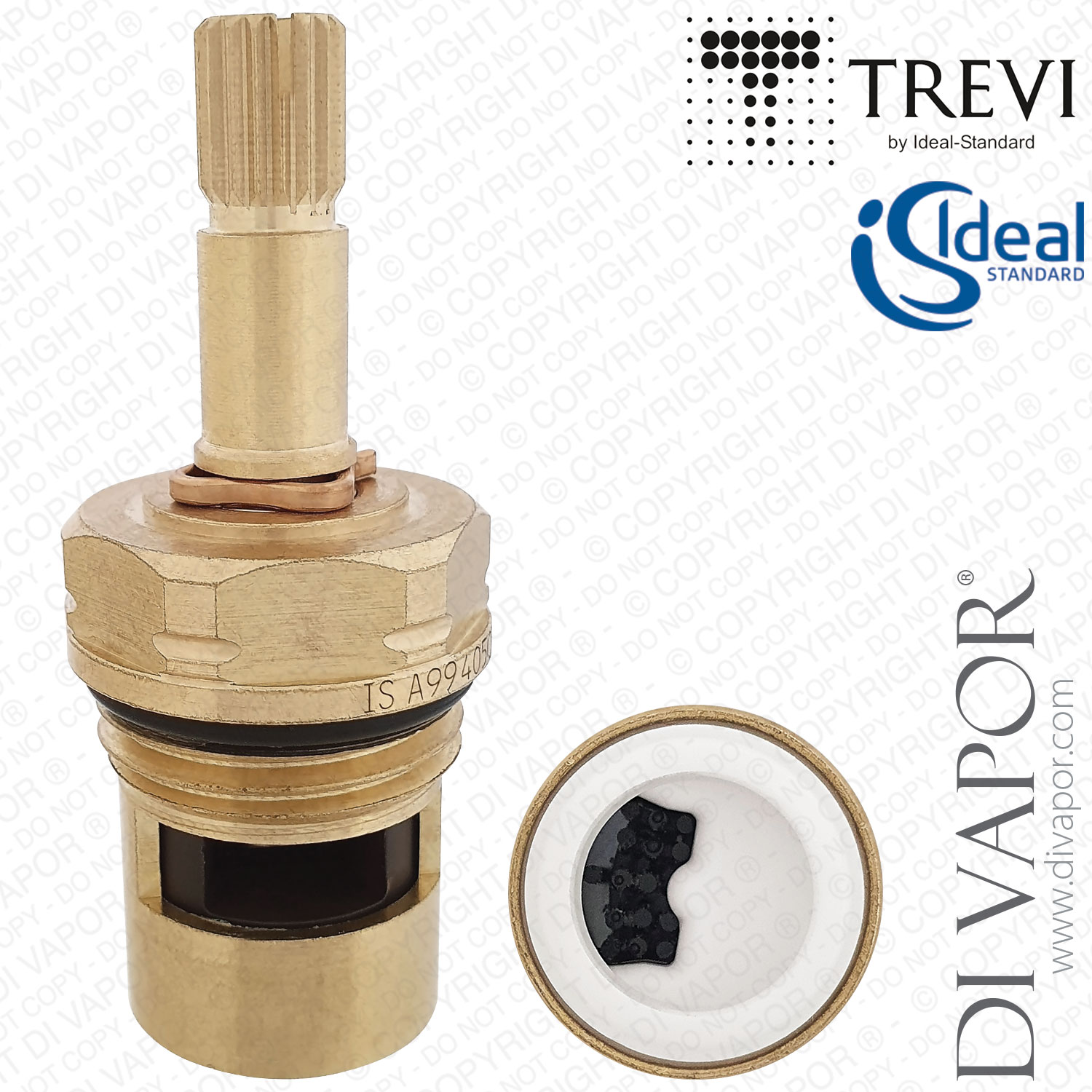

A962336NU Ideal Standard / Trevi 1/2" Ceramic Disk Cartridge - Cold Clockwise Close

Ideal Standard / Trevi A962336NU is a 1/2" ceramic disc flow-control cartridge used in selected basin mixers, bath/shower mixers and thermostatic shower valves. It serves as the cold-water headwork in the Melange and Jado dual-control mixers listed below and as a separate flow-control headwork in the specified thermostatic mixers.

The cartridge sits beneath the operating handle and controls water flow and shut-off. In thermostatic mixer applications, it operates separately from the temperature-control cartridge; A962336NU is not a thermostatic cartridge and does not itself regulate the mixed-water temperature.

Technical Details

- - Part code: A962336NU

- - Part type: ceramic disc flow-control cartridge / tap headwork

- - Nominal fitting size: G1/2

- - Operating movement: quarter-turn

- - Overall cartridge length: 56mm

- - Spline length: 25mm

- - Base diameter: 17mm

Confirmed Used In

- - Ideal Standard Melange A4289AA three-hole basin mixer with pop-up waste - cold-side headwork - GEN1

- - Ideal Standard Melange A4292AA four-hole deck-mounted bath/shower mixer - cold-side headwork

- - Ideal Standard Melange A4293AA four-hole bath/shower mixer with cascade spout - cold-side headwork

- - Ideal Standard CeraPlus A5642AA exposed thermostatic shower mixer - flow-control headwork

- - Ideal Standard CeraPlus A5644AA wall-mounted thermostatic basin mixer - flow-control headwork

- - Venlo Venlomix Medical New A5539AA shower thermostat - version from June 2010

- - Jado Akua A4045AA four-hole bath/shower mixer - cold-side headwork

- - Jado Neon A6047AA four-hole bath/shower mixer with diverter and handset - cold-side headwork

Before You Order

Check the exact mixer model and the part code specified for the control you are repairing. Compare the original cartridge's closing direction, spindle profile, handle connection, thread and sealing arrangement. The 1/2" fitting size and measurements are identification checks, not sufficient proof of fitment on their own. Confirm the required control position rather than assuming that the hot and cold headworks are the same.

Troubleshooting

Symptom: Water continues dripping from the tap spout or shower outlet after the control is turned off and residual water has drained. Likely Cause: The flow cartridge may not be sealing correctly because of wear, damage or debris. Solution: Check the flow-control headwork and its seating area, then replace the cartridge where a fault is confirmed. Temperature-control problems on a thermostatic mixer require separate checks of the thermostatic cartridge and water supplies.

Installation Note

Isolate the water supplies before dismantling the control and follow the servicing instructions for your exact mixer. Inspect the handle connection and seals while the assembly is accessible, then check shut-off operation and inspect for leaks after reassembly.

Related Spares You May Need

These are separate service parts for particular mixer assemblies listed above. Select each item by the exact mixer model and the component being serviced; not every item is used in every model.

- - TACSIL TAC86 3g Premium Cartridge Silicone Grease - for suitable seals during servicing

- - Ideal Standard A963432NU Volume Control Handle Carrier Assembly - flow-control handle carrier for CeraPlus A5642AA and A5644AA

- - Ideal Standard / Trevi A962229NU Ecotherm Thermostatic Cartridge - separate temperature-control cartridge for CeraPlus A5642AA and A5644AA

- - Ideal Standard / Trevi A962230NU O-Ring and Screen Kit for A962229NU - services the separate thermostatic cartridge rather than A962336NU

- - Ideal Standard / Trevi A963427NU Temperature Adjustment Carrier and Handle Extension - temperature-control assembly component for CeraPlus A5642AA and A5644AA

- - Ideal Standard A962594NU Non-Return Valve Set - model-specific check valves for the associated CeraPlus and Melange bath-mixer assemblies

- - Ideal Standard A961810NU Seal Kit - sealing components for the associated mixer assemblies

- - Ideal Standard / Trevi A962998NU M4 Cartridge Screws - Pair - associated fasteners for CeraPlus A5642AA and A5644AA

- - Ideal Standard A962574NU O-Ring 37.77mm x 2.62mm - associated seal for the Melange A4292AA bath-mixer assembly

Not sure which part you need? Use the Di Vapor part identification service for help.
