A951970NU11 Ideal Standard /​ Trevi Lever Cartridge (39mm Body Diameter)

SUMMARY

Ideal Standard Trevi A951970NU11 39mm Multiport Single Lever Tap and Manual Shower Cartridge

This is a genuine Ideal Standard cartridge.

The A951970NU11 cartridge is used in the following models:

- - E0265AA Idyll single lever one taphole bidet mixer with pop-up waste

- - A4515AA Defacto single lever one taphole bidet mixer with pop-up waste

- - A6338AA Tonic II SL Bath Shower Mixer - Exposed

- - E7836AA Affinity single lever one tap hole sink mixer

- - A6473AA Mazaro Built In Wall Mounted Basin Mixer

- - E0074AA Silver single lever one tap hole bidet mixer with pop-up waste

- - A6337AA Tonic II SL Shower Mixer - Exposed

- - A4514AA Defacto single lever one taphole vessel basin mixer - no waste

- - A7600AA Domi Solo single lever one taphole basin mixer with pop-up waste - no lever

- - A5537AA Defacto single lever one taphole standard basin mixer - no waste

- - A1165AA Class single lever one taphole basin mixer with pop-up waste - chrome lever

- - A4000AA Trevi Blend built-in single lever manual shower valve

- - A3086AA Trevi Blend exposed high flow single lever manual shower valve - for concealed or exposed pipework

- - E0083AA Silver single lever one taphole sink mixer

- - E0245AA Idyll single lever one taphole basin mixer with pop-up waste

- - A4513AA Defacto single lever one taphole standard basin mixer with pop-up waste

- - A3271AA Halo single lever one taphole bidet mixer with pop-up waste - chrome lever

- - A1395AA Tratto single lever one taphole basin mixer with pop-up waste - chrome lever

- - S7833AA Sandringham built-in manual shower valve

- - A1397AA Tratto single lever one taphole bidet mixer with pop-up waste - chrome lever

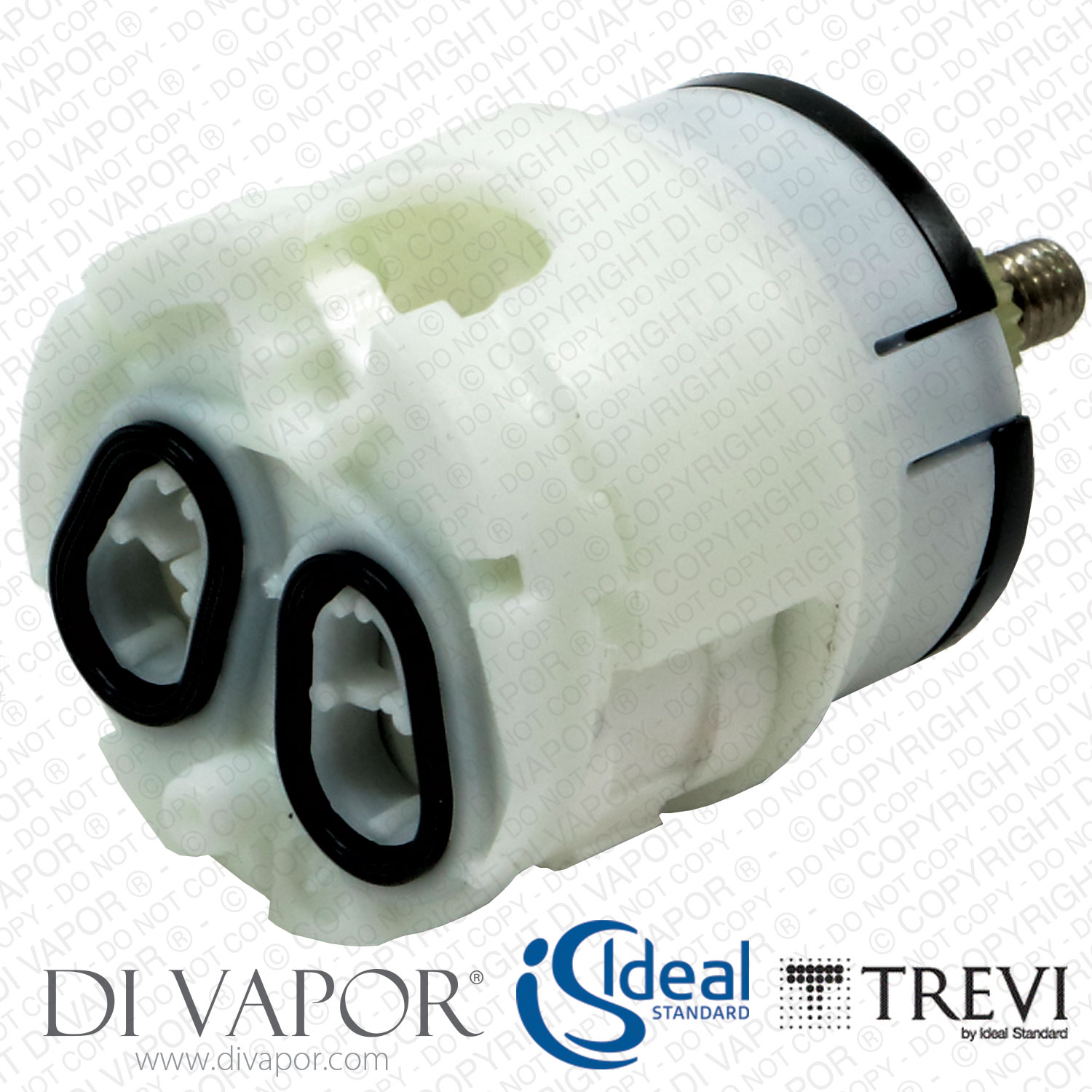

Genuine Ideal Standard A951970NU11 small multiport single-lever cartridge for selected Ideal Standard and Sottini mixer taps and Trevi and Armitage Shanks manual shower valves. This is the original cartridge design with a 39mm maximum body diameter and a threaded metal spline for the handle connection.

The cartridge controls water flow and mixes the hot and cold supplies through the operating lever. It is used inside the mixer body beneath the handle and retaining components. This is a manual mixing cartridge, not a thermostatic temperature-control cartridge.

Technical Details

- - Maximum body diameter: 39mm

- - Overall length: 65mm including the metal lever and bottom locating pin

- - Handle connection: threaded metal spline

- - Body material: plastic

- - Body colours: white or cream with black sections

- - Water connections: two inlets at the cartridge base

- - Location feature: pin at the bottom of the cartridge

Confirmed Model Applications

The following applications relate to assemblies using the original A951970NU11 cartridge. Check the production version and the cartridge currently installed, particularly where GEN1 is specified. A model name alone does not identify every production or previously serviced version.

- - Sottini Defacto A4515AA single-lever bidet mixer with pop-up waste

- - Ideal Standard Affinity E7836AA GEN1 kitchen sink mixer

- - Sottini Defacto A4514AA vessel basin mixer

- - Ideal Standard Domi Solo A7600AA GEN1 basin mixer

- - Sottini Defacto A5537AA GEN1 basin mixer

- - Ideal Standard Class A1165AA GEN1 monobloc basin mixer

- - Trevi Blend A4000AA built-in single-lever manual shower valve

- - Trevi Blend A3086AA exposed high-flow single-lever manual shower valve

- - Ideal Standard Silver E0083AA GEN1 kitchen sink mixer

- - Ideal Standard Idyll E0245AA GEN1 basin mixer

- - Sottini Defacto A4513AA GEN1 standard basin mixer

- - Ideal Standard Tratto A1395AA basin mixer with chrome lever

- - Armitage Shanks Sandringham S7833AA GEN1 built-in manual shower valve

- - Ideal Standard Tratto A1397AA GEN1 bidet mixer with pop-up waste

- - Trevi Blend A4100 exposed shower valve

- - Trevi Blend A4110 exposed shower valve

- - Ideal Standard Cone B5108AA GEN1 bidet mixer with pop-up waste - original A951970NU11 cartridge assembly only

- - Sottini Globe A5050AA basin mixer

Before Ordering

Compare the removed cartridge with the photographs and measurements, including the threaded handle connection, locating pin, base ports and retaining arrangement. Check the manifold and handle adaptor as well as the cartridge itself. Do not select this part from the 39mm diameter alone. The Cone B5108AA also has a different cartridge reference associated with other assemblies, so its installed cartridge must be identified before ordering.

Fault Symptoms and Fitting Checks

Persistent water dripping from the tap spout or shower head when the lever is turned off can indicate worn internal cartridge sealing. Stiff operation or difficulty controlling the hot and cold mix can also require investigation. Check the surrounding seals, manifold and water supplies rather than assuming every leak or flow problem is caused by the cartridge.

Isolate both water supplies and release the pressure before dismantling the mixer. Inspect the cartridge seating area and the model-specific retaining and handle components during servicing. Follow the instructions for the exact tap or shower valve when refitting and checking for leaks.

Related Spares You May Need

These parts serve different handle, sealing and cartridge-retention arrangements. Select them for the exact mixer assembly; they are not all required together.

- - Armitage Shanks E960008NU Capello drive insert for the handle connection

- - Ideal Standard A963372NU Capello handle-fixation adaptor used in the listed Defacto handle assemblies

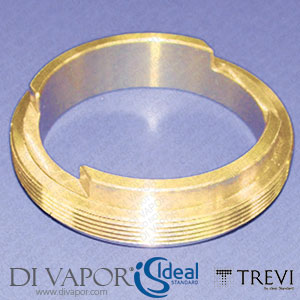

- - Ideal Standard Trevi A961637NU cartridge retaining nut for the A4000AA and S7833AA assemblies using A951970NU11

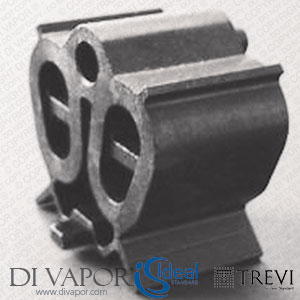

- - Trevi A960571NU plastic manifold for the old multiport cartridge used in the original Blend and Sandringham shower assemblies

- - Ideal Standard A960034NU handle adaptor - match the existing handle connection before ordering

- - Ideal Standard A962715NU cartridge sealing O-ring - 35mm x 3mm

- - Armitage Shanks A962981NU washers and nut for the multiport handle

- - Ideal Standard Trevi A961640NU O-ring pair for 1/2-inch cartridges - shower-valve service seals listed for A4000AA and S7833AA assemblies

- - Ideal Standard A961810NU seal kit for the Trevi Blend A3086AA exposed shower assembly

- - Ideal Standard Trevi A963022NU cartridge retaining nut - M43 X 1.5 thread for the Domi Solo A7600AA arrangement; discontinued part reference

- - Ideal Standard A963667NU lever-handle fixation screw used in the Cone B5108AA handle assembly

- - Ideal Standard A904629NU11 multiport tap manifold for applicable Cone B5108AA assemblies; check the original manifold rather than substituting it for the A960571NU shower manifold

- - TACSIL TAC86 cartridge silicone grease - 3g sachet for seal lubrication where specified during fitting

Later Service Replacement

Ideal Standard B961902NU small multiport cartridge supersedes A951970NU11 as the later service replacement. It has a different design and dimensions. The 39mm diameter and 65mm overall length stated above describe the original A951970NU11 only. B961902NU is an alternative service cartridge, not an additional part to fit alongside A951970NU11.

For help identifying the right cartridge, use the Di Vapor part identification service.
