A904629NU Ideal Standard /​ Trevi11 Plastic ManifOld for Multiport Cartridge

SUMMARY

A904629NU11 Ideal Standard Plastic Manifold for Multiport Mixer Tap Cartridges

This part is used in a number of different basin taps, including the following models:

- - Alchemy - E1964AA

- - Cone - B5108AA

- - Alchemy - E1950AA

- - Sandringham - B4447AA

- - Cone B5107AA

- - Halo A3273AA

- - Halo A3271AA

- - Halo A3270AA

- - Idyll A2799AA

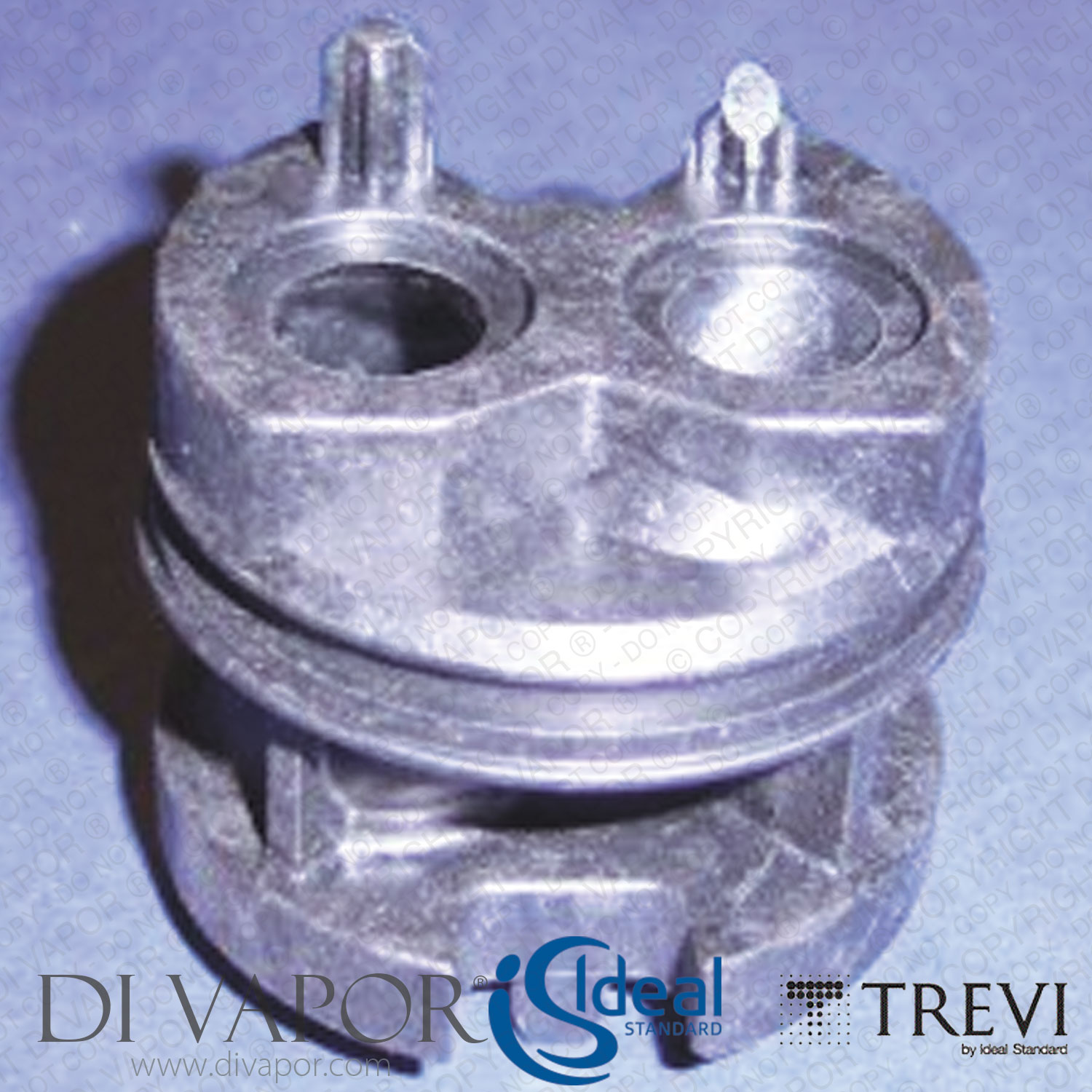

A904629NU11 Ideal Standard plastic manifold for multiport cartridges in selected single-lever basin and bidet mixer taps. Also known as a port adaptor or flow adaptor, this is the separate component beneath the cartridge, not the ceramic control cartridge itself.

The manifold forms the connection between the multiport cartridge and the water passages within the tap body. The cartridge, manifold and adjoining seals are separate service components, so identify the part requiring attention before ordering.

Technical Details

- - Part number: A904629NU11

- - Manufacturer's alternative code format: A904629, the short-form spares reference

- - Component type: multiport cartridge manifold, also described as a port adaptor or flow adaptor

- - Material: plastic

- - Installation position: beneath the multiport cartridge inside the mixer tap body

- - Application: selected single-lever basin and bidet mixer taps

Models and Applications

The following mixer tap assemblies use the A904629 manifold arrangement. Check the exact tap model, version and original manifold before ordering.

- - Ideal Standard Idyll A2799AA single-lever basin mixer without pop-up waste

- - Armitage Shanks Halo A3270AA single-lever basin mixer with pop-up waste

- - Armitage Shanks Halo A3273AA single-lever basin mixer without waste

- - Ideal Standard Cone B5107AA single-lever basin mixer with pop-up waste

- - Ideal Standard Cone B5108AA single-lever bidet mixer with pop-up waste

- - Sottini Alchemy E1950AA single-lever basin mixer with pop-up waste

- - Sottini Alchemy E1964AA single-lever bidet mixer with pop-up waste

Before Ordering and Fitting

Compare the original manifold's shape and water-port layout with the part required for your exact tap assembly. Do not select the manifold solely by the tap range name or cartridge diameter. Measurements given for an associated cartridge do not describe the manifold.

Inspect the adjoining O-rings and sealing surfaces during servicing, and select any required seals against the individual tap assembly. Isolate both the hot and cold water supplies before dismantling the tap.

Related Spares You May Need

These service parts are used in different tap assemblies and positions. Select each item against the exact model and original component; the cartridges listed are not interchangeable across all the applications above.

- - TAC86 TACSIL 3g cartridge silicone grease for lubricating cartridge seals and O-rings during servicing

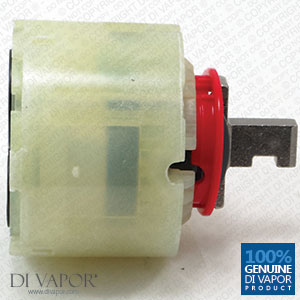

- - E960679NU Ideal Standard Trevi lever cartridge

- - A960500NU Ideal Standard 47mm Click lever cartridge, cartridge only, for the Idyll A2799AA assembly

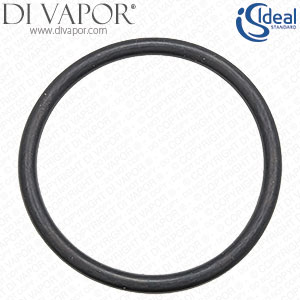

- - A962715NU Ideal Standard cartridge sealing O-ring, 35mm x 3mm, for the listed Halo, Cone and Alchemy assemblies

- - A962985NU Ideal Standard small multiport lever cartridge for the Halo A3270AA and Alchemy E1950AA and E1964AA assemblies

- - A962981NU Armitage Shanks multiport handle securing nut and washers for the Halo A3270AA and A3273AA handle assemblies

- - A951970NU11 Ideal Standard 39mm lever cartridge for the Cone B5107AA and B5108AA assemblies

- - E960008NU Armitage Shanks drive insert for the Alchemy E1964AA handle assembly

Not sure which part you need? Use the Di Vapor part identification service for help.
