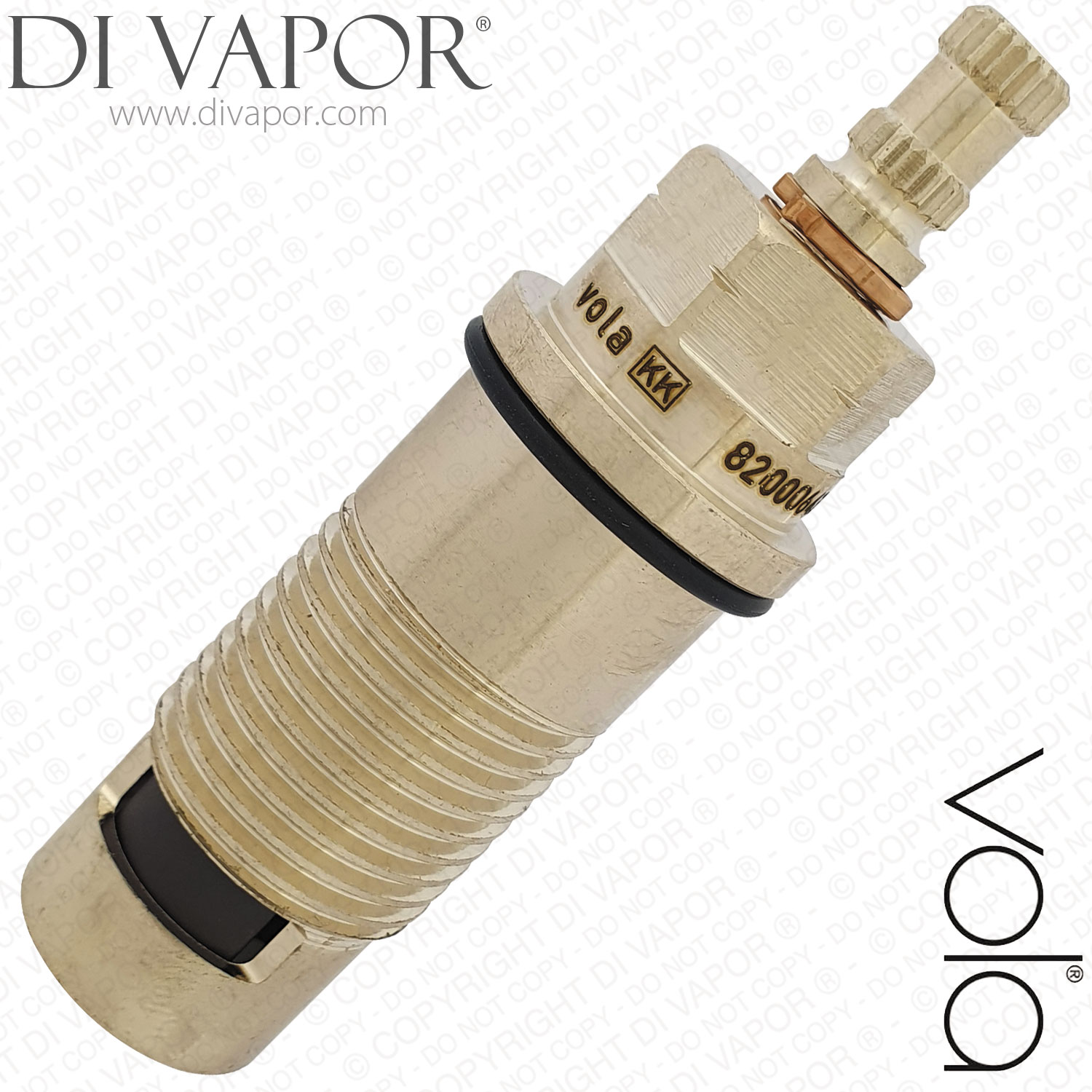

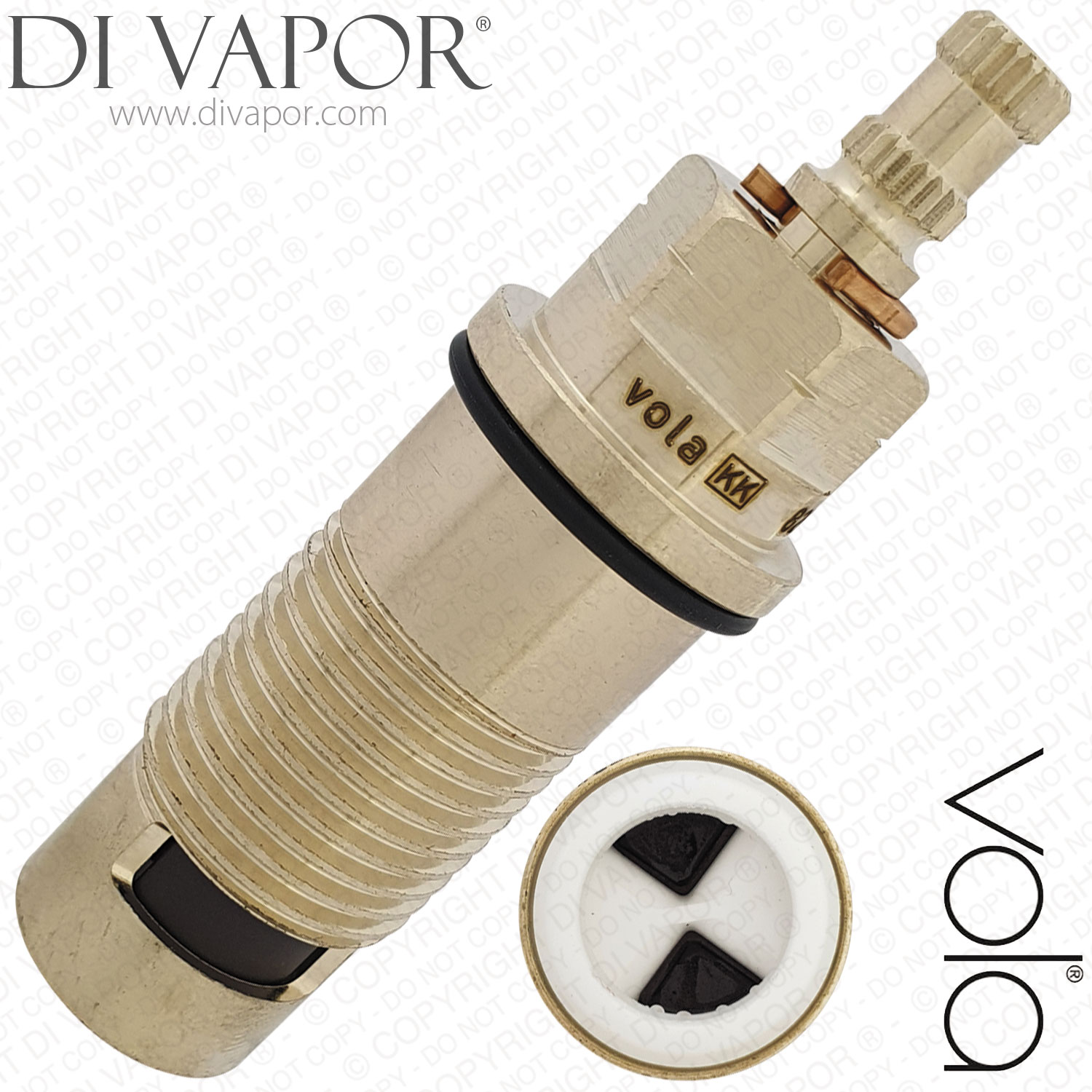

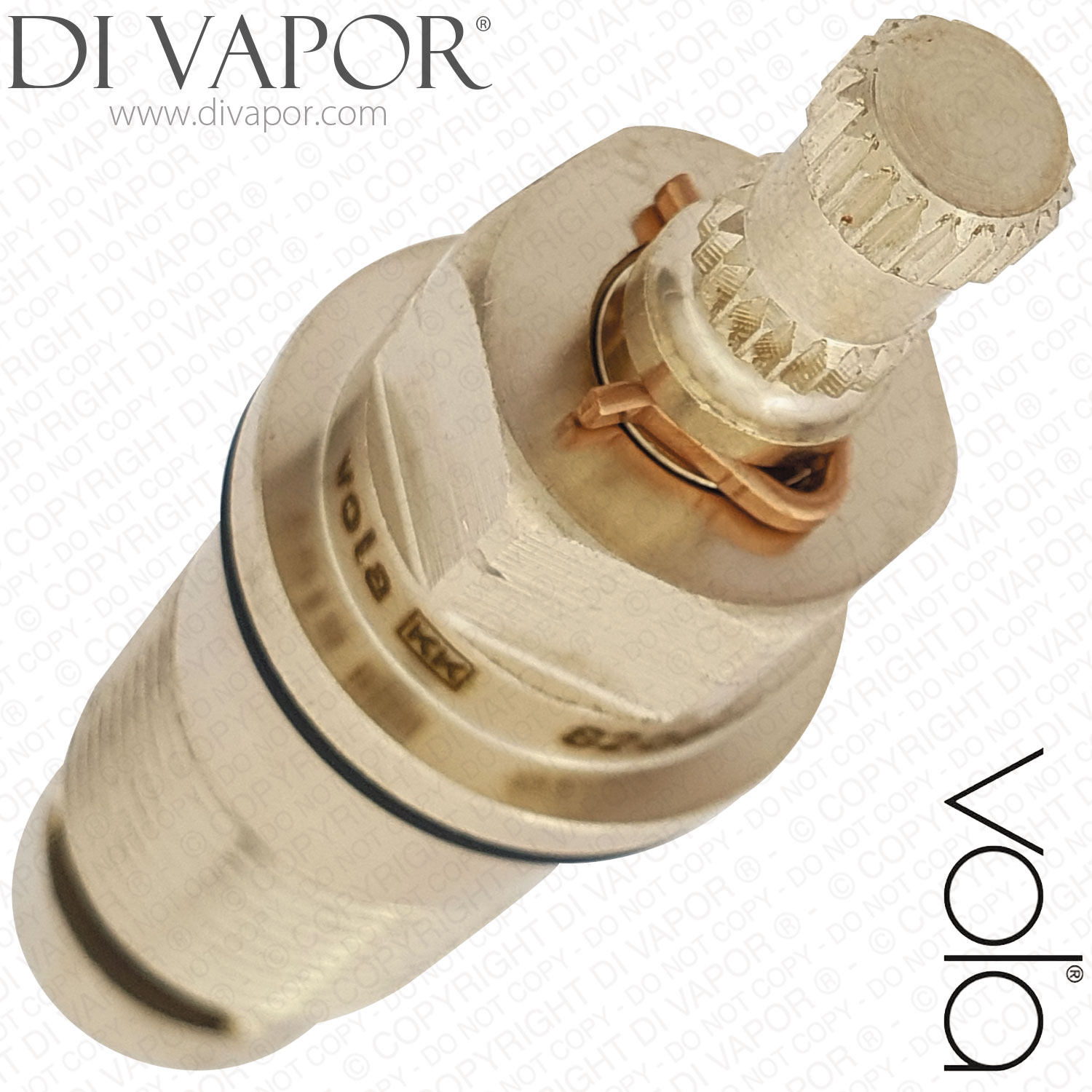

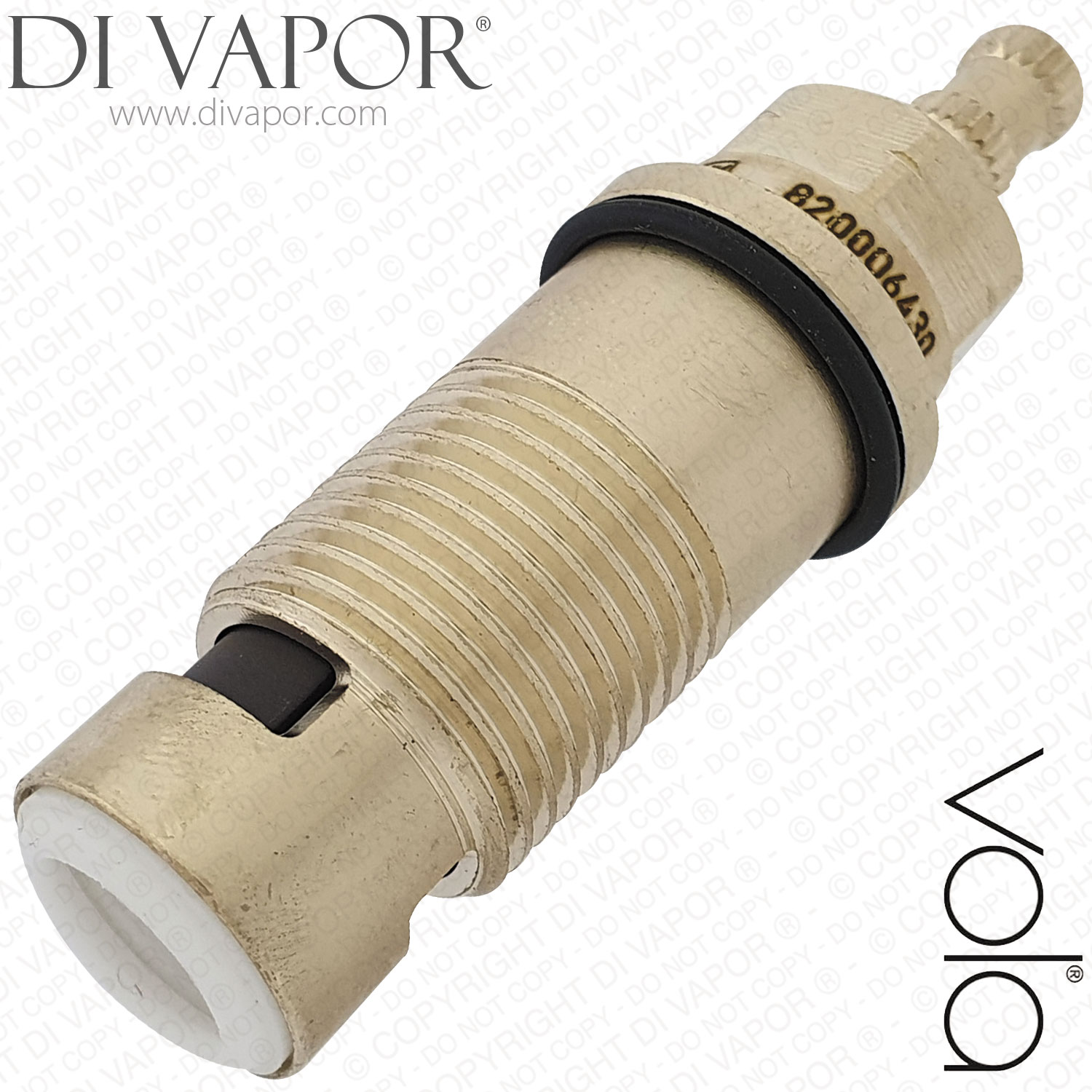

Vola VR692K Ceramic Cartridge (Hastings) - Hot Side
Send a photo of your item and we'll help confirm it.
Summary
The Vola VR692K Ceramic Flow Cartridge (Hastings) - Hot Side is a hot-side quarter turn ceramic cartridge used in Vola mixer tap and stop-valve applications that use the S50H / S50DH hot ceramic stop valve arrangement.
This cartridge controls hot water flow through the ceramic disc mechanism and is used to restore smooth handle movement and shut-off on the hot side. Common signs of a worn flow cartridge include dripping from the spout or shower outlet when turned off, stiff operation, poor shut-off or uneven hot water flow.
Technical Details
| Part Number | VR692K |
|---|---|
| Part type | hot-side ceramic flow cartridge |
| Total length including bottom seal | 76.5mm |
| Diameter at widest point | 23.7mm |
| Top spline diameter | 7.6mm |
| Top spline teeth / notches | 20 |
| Lower fitting thread diameter | 20.3mm / 1/2 inch BSP |
| Barrel diameter below lower thread | 18.6mm |
| Bottom seal colour | white |
| Close direction | anti-clockwise close / clockwise open |
| Turn | quarter turn / 90 degrees |
Confirmed Compatible Models
- VOLA S50H / S50DH hot-side quarter turn ceramic stop valve
- Vola Three-Hole Mixer Combination Consisting of 2 pcs. Quarter Turn Ceramic Stop Valves (HV5) Spare Parts
- Vola Three-Hole Mixer Quarter Turn Ceramic Stop Valves (HV8) Spare Parts
- Vola Three-Hole Mixer Quarter Turn Ceramic Stop Valves (KV3) Spare Parts
- Vola Three-Hole Mixer Quarter Turn Ceramic Stop Valves (KV4) Spare Parts
- Vola Three-Hole Mixer Quarter Turn Ceramic Stop Valves (KV15) Spare Parts
- VOLA Two-Handle Mixer S50DH + S50D (SC4) Spare Parts
- VOLA Two-Handle Mixer S50DH + S50D with Double Swivel Spout 090D (SC6) Spare Parts
- VOLA Two-Handle Mixer S50DH + S50D with Double Swivel Spout 090D (SC11) Spare Parts
- VOLA Two-Handle Mixer S50DH + S50D with Swivel Spout 090E One-Handle Mixer with Hand Shower 500T1 (SC13) Spare Parts
- VOLA Two-Handle Mixer with Double Swivel Spout for Bath Filling and Mixer with Hand Shower (BK11) Spare Parts
- VOLA Two-Handle Mixer S50DH + S50D with Swivel Spout 090E (SC8) Spare Parts
- Vola Three-Hole Mixer Quarter Turn Ceramic Stop Valves (KV10) Spare Parts
- Vola Three-Hole Mixer Quarter Turn Ceramic Stop Valves (HV10) Spare Parts
Ordering Check
Check the existing cartridge against the cartridge measurements, spline count, bottom seal colour and close direction before ordering. This item should not be selected by diameter alone because handedness and operating direction must match the hot-side valve position.
Related Spares You May Need
- Vola VR692K Ceramic Cartridge (Hastings) - Hot Side Compatible Replacement - Part Number: VR692K-C
- Vola VR691K Ceramic Cartridge (Hastings) - Cold Side Compatible Replacement - Part Number: VR691K-C
- Vola VR691K Ceramic Cartridge (Hastings) - Cold Side - Part Number: VR691K
- TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved - Part Number: TAC86
- Vola VR624C Aerator - Part Number: VR624C
- 28mm Lever Cartridge for Vola VR277K - VR269 Fixing Nut NOT Included (Hastings) - Compatible Spare - Part Number: VR277K
- 28mm Lever Cartridge for Vola VR277 Mixer Taps (Hastings) - Compatible Spare - Part Number: VR277
Apply a suitable silicone grease to cartridge o-rings and seals where required during installation. Isolate the water supply before removing the old cartridge and test the tap or valve for smooth operation and full shut-off after refitting.
