Ideal Standard A963469NU O-RING 12.5X2

SUMMARY

Ideal Standard A963469NU O-RING 12X2

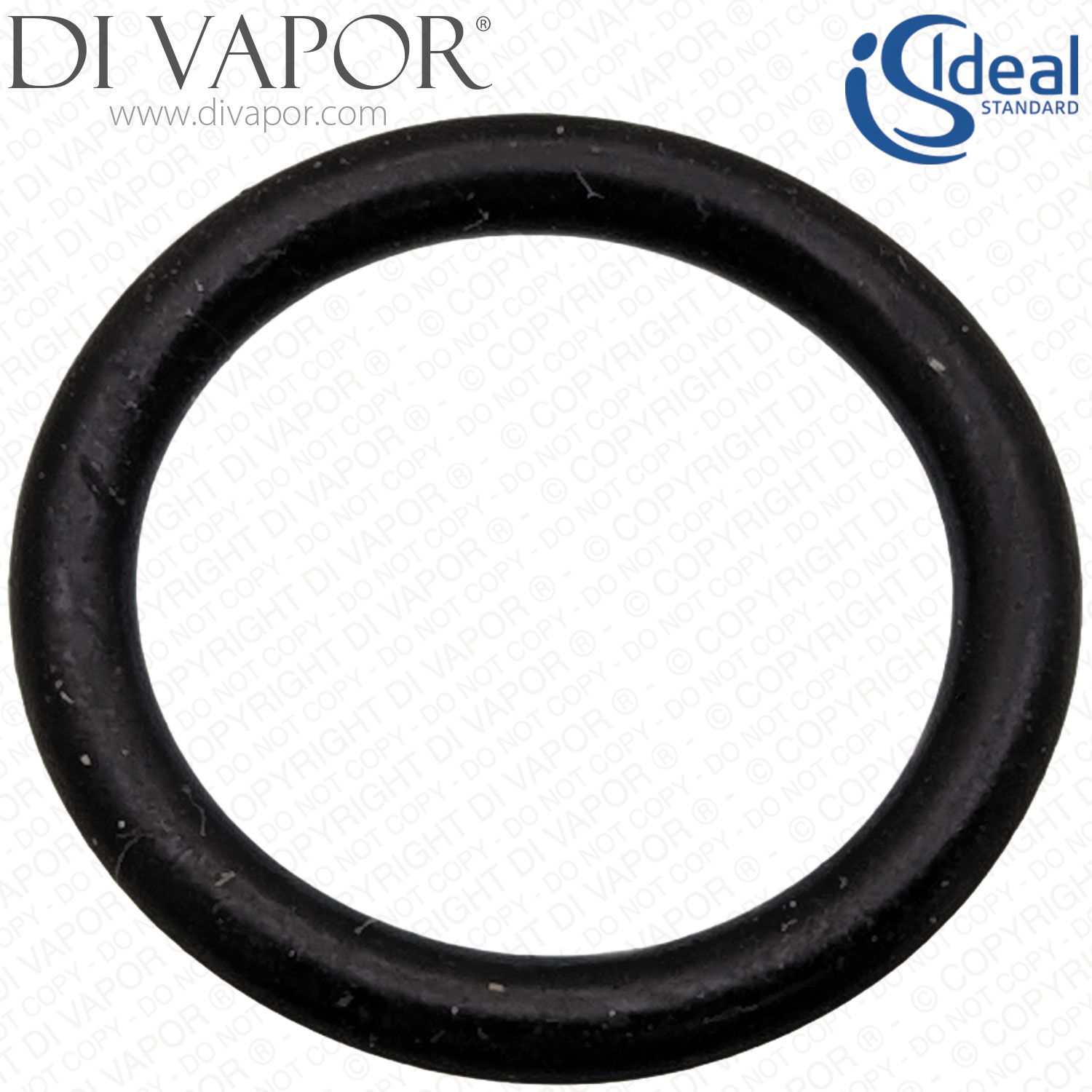

The Ideal Standard A963469NU is a small O-ring seal used in selected Ideal Standard and Trevi built-in thermostatic shower and bath-shower mixer valve diverter assemblies.

The O-ring helps seal within the diverter/control assembly where mixed water is routed to the selected outlet. It should be matched by the exact part code A963469NU and the valve spares diagram rather than by size alone because similar O-rings can sit in different positions.

Technical Details

- - Part Number: A963469NU

- - Part type: small O-ring seal

- - Listed Di Vapor title size: 12.5X2

- - Di Vapor summary wording: O-RING 12X2

- - Manufacturer diagram wording also appears as A 963 469 NU and as an O-ring small

- - Used with diverter service parts including A963470NU A963471NU A963472NU and selected diverter extension components

Before You Order

Check the valve model and the original spares diagram before ordering. Do not order this O-ring from the 12X2 or 12.5X2 measurement alone because the surrounding diverter assembly and service position must match A963469NU.

Confirmed Compatible Models

- - A5595AA Oposta TT Valve with 2 Outlet Diverter Spare Parts

- - A5601AA Oposta Thermostatic Shower Built-In 3-Control 2/Out Spare Parts

- - A5602AA Oposta Thermostatic Shower Built-In 3-Cntrl Chrm 3/Out Spare Parts

- - A5597AA GEN1 Moments Thermostatic Shower Built-In 3-Cntrl Chrm 2/Out Spare Parts

- - A5598AA GEN1 Moments Thermostatic Shower Built-In 3-Cntrl Chrm 3/Out Spare Parts

- - A5603AA Attitude Thermostatic Shower Built-In 3-Cntrl Chrm 2/Out Spare Parts

- - A5604AA Attitude Thermostatic Shower Built-In 3-Cntrl Chrm 3/Out Spare Parts

- - A5599AA Silver 3 Control 2 Outlet Shower Valve Spare Parts

- - A5600AA Silver 3 Control 3 Outlet Shower Valve Spare Parts

- - A4788NU TT Shower Th Built In Kit1 Outl/2 No Logo Spare Parts

- - A2390NU built-in thermostatic valve assembly

- - A2391NU built-in thermostatic valve assembly

- - A2392NU built-in thermostatic valve assembly

- - A2393NU built-in thermostatic valve assembly

- - S6933MY Armitage Shanks CTV In-Wall CTV Shower Box

Related Spares You May Need

- - Ideal Standard A963471NU O-RING 18.5 X 12.5 X 0.5

- - Trevi A963470NU Diverter Working Component Kit for Brass Cartridge (Ideal Standard)

- - Ideal Standard A962320NU SPINDLE EXTENSION CPL. A4788NU - UK

- - Ideal Standard A962574NU O-Ring 37.77mm X 2.62mm

- - Ideal Standard A963472NU Oposta Spring

- - Trevi A962322NU Diverter Assembly Extension (Brass)

- - TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved

Service Notes

When servicing the diverter assembly check the O-ring washer kit spring working component and brass extension for wear damage or limescale. Use a suitable silicone grease on O-rings and seals during assembly to help prevent dry fitting twisting or pinching.
