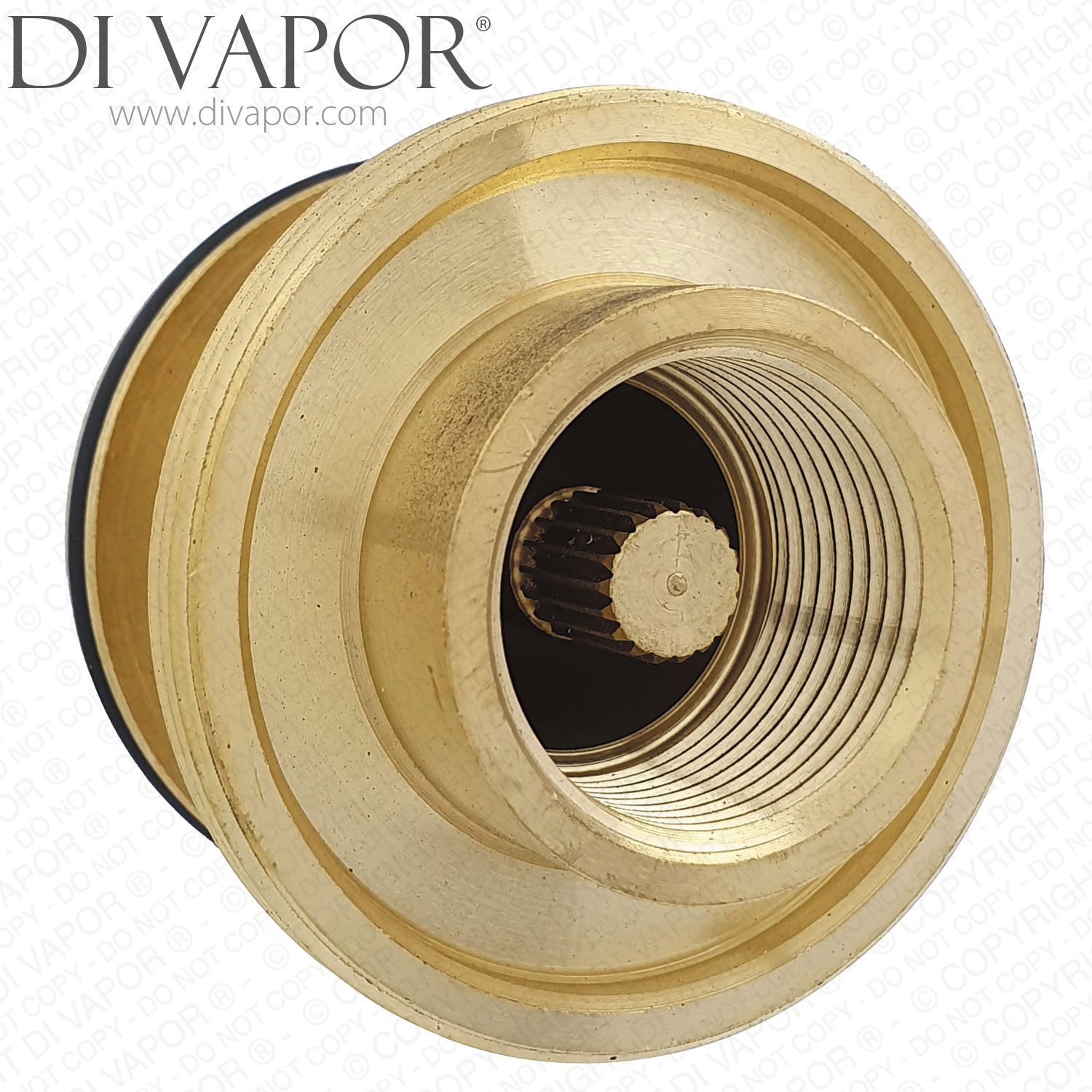

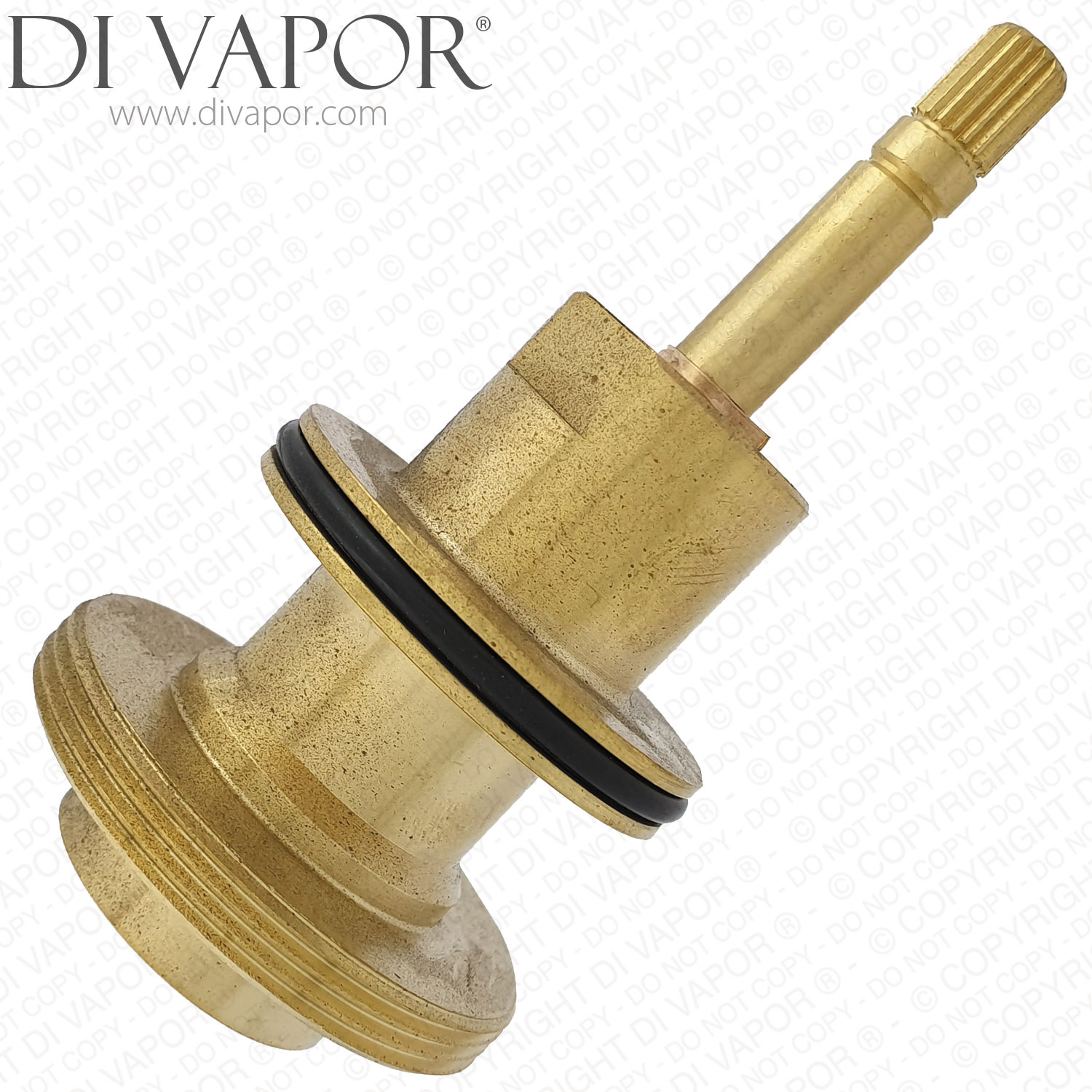

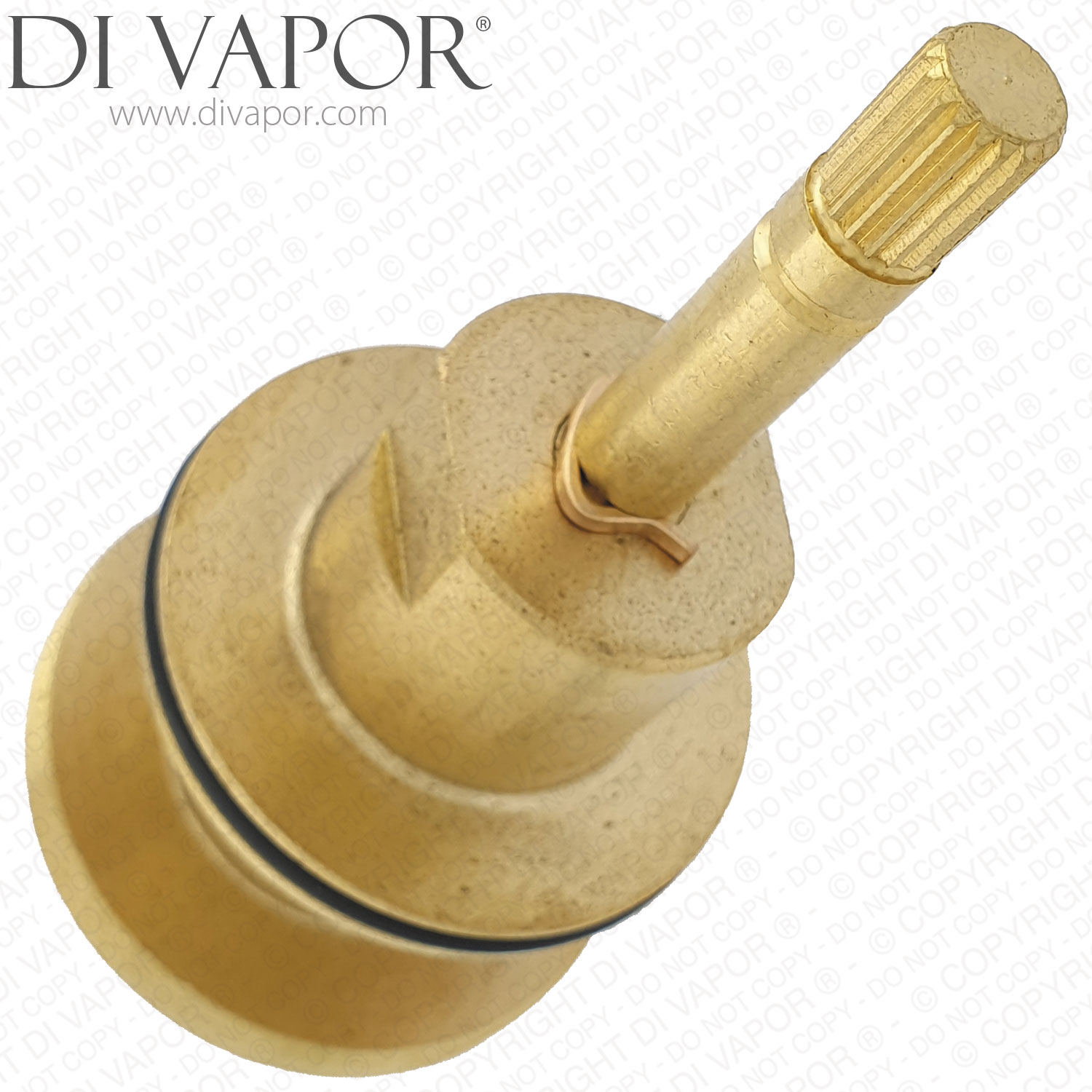

Trevi A962322NU Diverter Assembly Extension (Brass)

SUMMARY

Trevi A962322NU Diverter Assembly Extension (Brass) (Ideal Standard)

The Trevi A962322NU brass diverter extension assembly is a Trevi / Ideal Standard shower valve spare for Silver 3 Control built-in thermostatic mixing valves with integral diverter operation.

This brass extension housing is used on the diverter side of the valve, connecting the left-hand diverter control area to the diverter components that direct mixed water to the selected outlet.

Function and Use

The Silver 2 outlet valve diverts mixed water between bath and shower, while the Silver 3 outlet valve diverts mixed water between bath fill, shower handset and fixed overhead shower. If water drips from the shower head or spout when the valve is turned off, inspect the flow cartridge, diverter working component kit, diverter washers and spring as well as the brass extension housing before ordering.

Technical Details

- - Part Number: A962322NU

- - Part type: brass diverter extension assembly

- - Diagram reference: 15 - Diverter extension assy

- - Control position: left-hand diverter control on the Silver 3 Control valve layout

- - Service access: diverter extension housing removes with a 22mm A/F spanner

- - The spring-loaded diverter top cap sits behind this housing and is reached with a 24mm deep socket after the extension housing is removed

- - Valve-level connection data for the Silver valve assembly: G3/4 f/m inlets and G1/2 f/m outlets

- - Standalone dimensions for the A962322NU brass extension assembly were not verified, so confirm by valve model and existing part before ordering

Confirmed Compatible Models

- - Ideal Standard A5599AA Silver 3 Control 2 Outlet Shower Valve

- - Ideal Standard A5600AA Silver 3 Control 3 Outlet Shower Valve

Installation and Checking Notes

Isolate both hot and cold water supplies before dismantling the valve. The diverter handle movement is limited and should not be forced; resistance, poor outlet selection or unwanted outlet crossover can indicate wear in the internal diverter components rather than failure of the brass housing alone.

Related Spares You May Need

- - Trevi A963470NU Diverter Working Component Kit for Brass Cartridge Ideal Standard

- - Ideal Standard A963471NU O-RING 18.5 X 12.5 X 0.5

- - Ideal Standard A963472NU Oposta Spring

- - Ideal Standard A963469NU O-RING 12X2

- - A961772NU Trevi Cartridge 3/4 Inch Anti-Clockwise Open for Shower Mixer Valves

- - Trevi S960134NU Thermostatic Cartridge for Trevi Therm Shower Valves Post 1997

- - Ideal Standard A962574NU O-Ring 37.77mm X2.62mm

- - Trevi A963427NU Thermostatic Temperature Cartridge Adjustment Carrier and Handle Extension Ideal Standard

- - Trevi A960588NU RV-Unit Cold 3/4 Inch Non-Return Valve Ideal Standard A950597

- - Trevi A960589NU RV-Unit Hot 3/4 Inch Non-Return Valve Ideal Standard A950596

- - Ideal Standard A961658AA Shroud Chrome

- - Ideal Standard A960791AA Chrome Shroud Handle Grip & O Ring Pack

- - TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved

Need help identifying the correct Trevi or Ideal Standard spare? Compare the valve model code and send photos of the existing part if the installation is uncertain.
