Ideal Standard A963472NU Oposta Spring

Summary

Ideal Standard A963472NU Oposta Spring

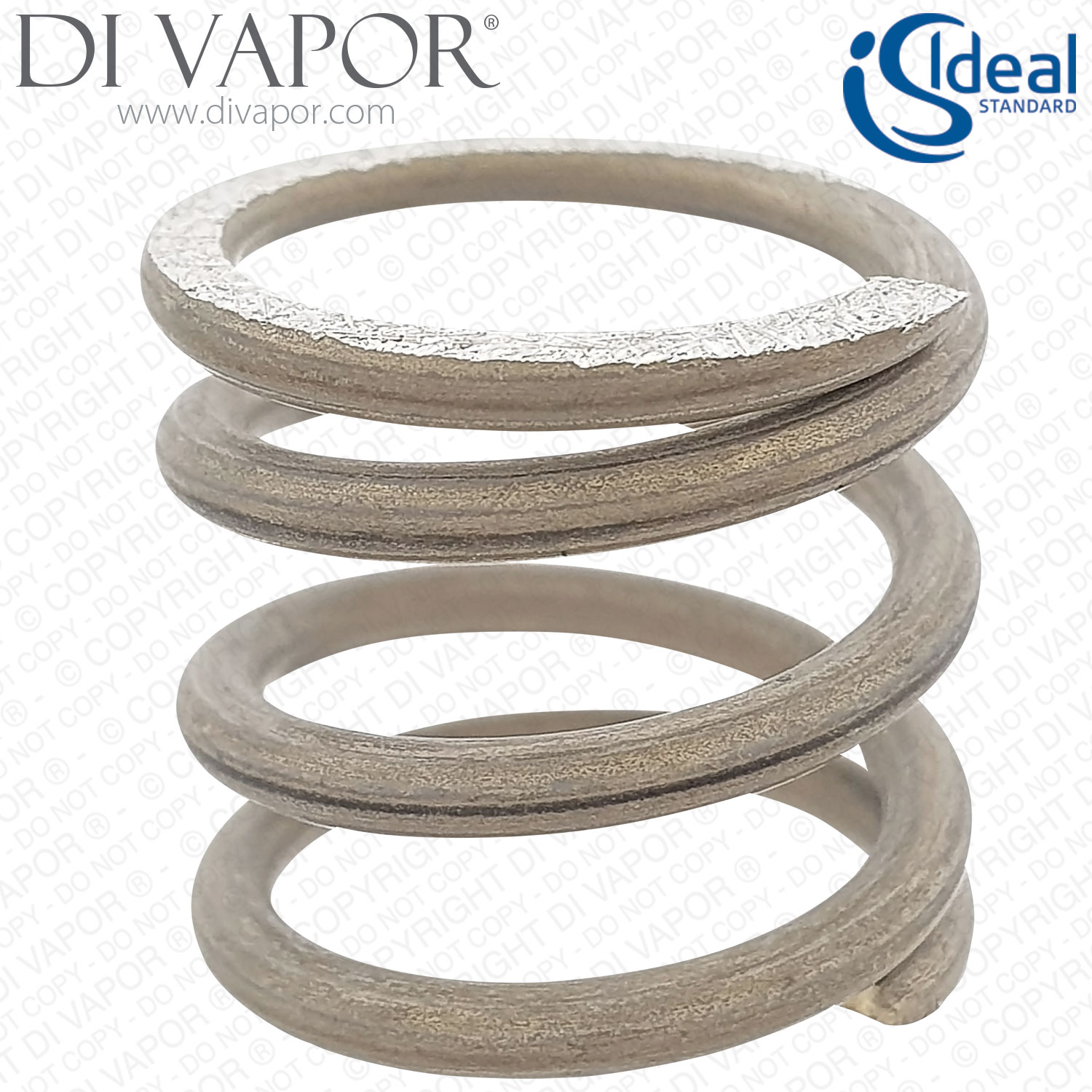

Ideal Standard A963472NU Oposta Spring is an internal spring used in the diverter/control assembly of selected Ideal Standard Trevi and related concealed built-in thermostatic shower valves with 2-way or 3-way diverter operation.

The spring sits within the diverter assembly where the control mechanism selects the required outlet. It is not a complete cartridge or full diverter assembly, so the existing valve model and the original part number should be checked before ordering.

Technical Details

• Used with valves that route mixed water between outlets such as handset, overhead shower and bath fill depending on the model
• Spring dimensions are not stated on the product listing, so do not order from size or visual similarity alone

Common Diverter Assembly Symptoms

• Diverter control feels weak, worn or no longer returns correctly
• Water continues from the wrong outlet or from more than one outlet
• Outlet selection feels loose or no longer switches cleanly
• Check the spring, O-rings, diverter working component kit and brass housing before replacing parts

Confirmed Compatible Models

• A5595AA Oposta 3 Control Built-In Shower Shower Mixer with Integral 2-Way Diverter
• A5601AA Oposta 3 Control Built-In Bath Shower Mixer with Integral 2-Way Diverter
• A5601AA Oposta 3 Control Built-In Bath Shower Mixer with Integral 2-Way Diverter GEN 1
• A5602AA Oposta 3 Control Built-In Bath Shower Mixer with Integral 3-Way Diverter
• A5602AA Oposta 3 Control Built-In Bath Shower Mixer with Integral 3-Way Diverter GEN 1
• A5597AA Moments 3 Control Built-In Bath Shower Mixer with Integral 2-Way Diverter
• A5597AA Moments 3 Control Built-In Bath Shower Mixer with Integral 2-Way Diverter GEN 1
• A5598AA Moments 3 Control Built-In Bath Shower Mixer with Integral 3-Way Diverter
• A5598AA Moments 3 Control Built-In Bath Shower Mixer with Integral 3-Way Diverter GEN 1
• A5603AA Attitude Thermostatic Shower Built-In 3 Control 2 Out Spare Parts A5603AA GEN1
• A5604AA Attitude 3 Control Built-In Bath Shower Mixer with Integral 3-Way Diverter
• A6538AA Sottini Basento Shower Mixer with Three Outlets
• A4657AA Ceratherm 100 Built-In Valve Diverter
• A4820AA 2 Way Diverter for High Pressure Systems
• A5820AA 3 Way Diverter for High Pressure Systems
• A4788NU TT Built-In Thermostatic Valve with 2-Way Diverter
• A4791NU TT Built-In Thermostatic Valve with 3-Way Diverter
• A5500NU TT Built-In Thermostatic Shower Valve with Two Way Diverter for A5501AA or A5558AA
• A5599AA Silver 3 Control 2 Outlet Shower Valve
• A5600AA Silver 3 Control 3 Outlet Shower Valve

Related Spares You May Need

• TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
• Trevi A963470NU Diverter Working Component Kit for Brass Cartridge (Ideal Standard)
• Trevi A962322NU Diverter Assembly Extension (Brass)
• Ideal Standard A963471NU O-RING 18.5 X 12.5 X 0.5
• Ideal Standard A963469NU O-RING 12.5X2
• Ideal Standard A962574NU O-Ring 37.77mm X 2.62mm
• Trevi A963427NU Thermostatic Temperature Cartridge Adjustment Carrier and Handle Extension (Ideal Standard)
• Trevi S960134NU Thermostatic Cartridge for Trevi Therm Shower Valves Post 1997
• A960462NU Ideal Standard / Trevi 3/4 Inch On/Off Ceramic Disc Cartridge for 3H Side Valve Lowfrict
• Trevi A960588NU RV-Unit Cold 3/4 Inch Non-Return Valve (Ideal Standard A950597)
• Trevi A960589NU RV-Unit Hot 3/4 Inch Non-Return Valve (Ideal Standard A950596)
• Ideal Standard A962320NU SPINDLE EXTENSION CPL. A4788NU - UK
• A961772NU Trevi Cartridge 3/4 Inch Anti-Clockwise Open for Shower Mixer Valves

Before You Order

Match the part number A963472NU and the valve spares diagram before ordering. For uncertain valves or if the diverter has multiple worn parts, use the Di Vapor Find a Part service with photos of the removed component and the valve trim.
