Hansgrohe 37391000 Shower Valve Temperature Control Handle

SUMMARY

Hansgrohe 37391000 Shower Valve Temperature Control Handle - Chrome

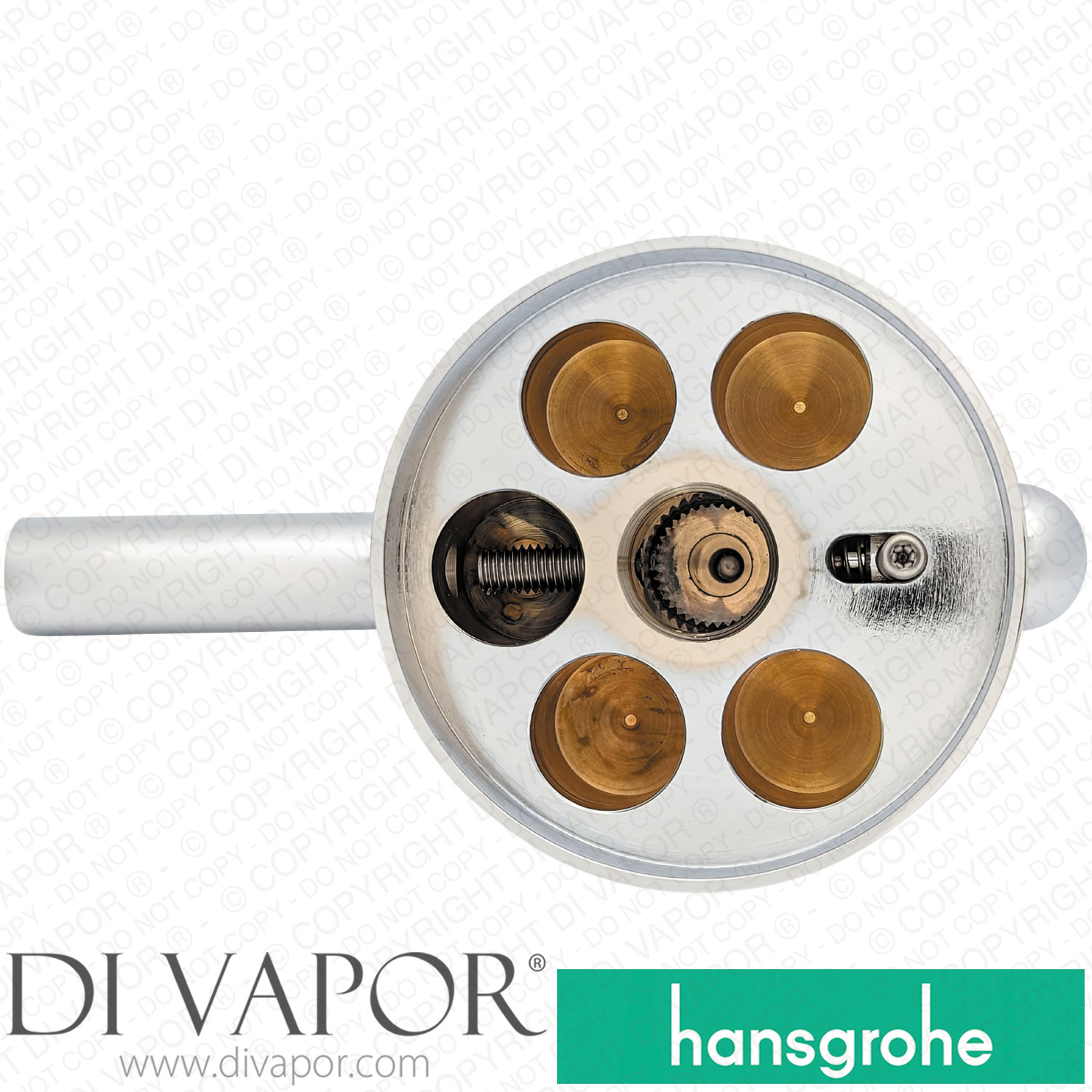

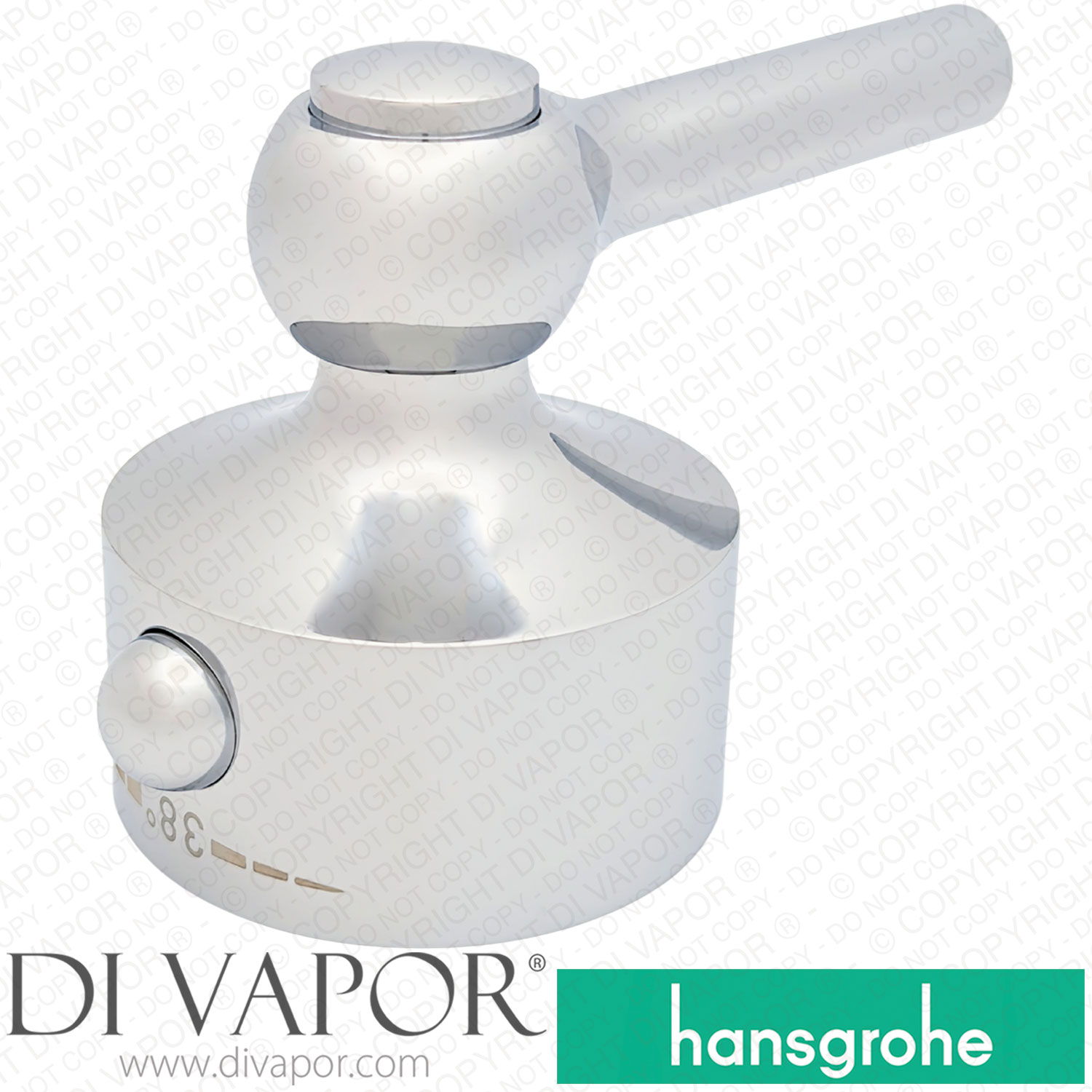

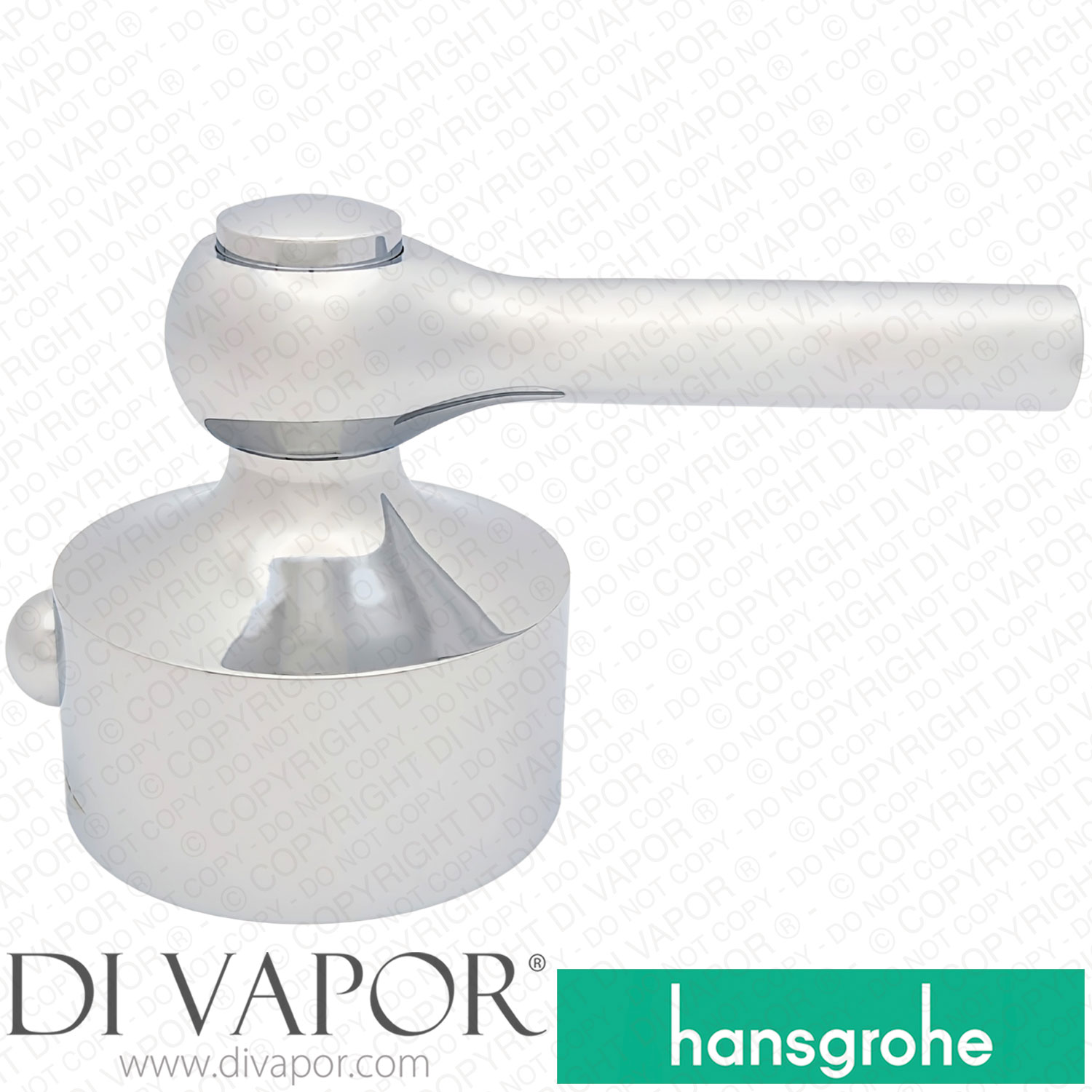

The Hansgrohe 37391000 is a chrome temperature-control handle used on the thermostatic element in the Hansgrohe Terrano 37710000 concealed shower valve. It forms the external control used to select and adjust the mixed-water temperature.

The handle turns anti-clockwise to increase the temperature and clockwise to reduce it. It also operates the valve's 40 C safety stop, helping to prevent accidental selection of a higher outlet temperature.

Technical Details

- - Brand: Hansgrohe

- - Manufacturer code: 37391000

- - Part type: thermostatic shower valve temperature-control handle

- - Finish: chrome

- - Application: external temperature control for a concealed thermostatic shower valve

- - Operating direction: anti-clockwise increases the temperature and clockwise decreases the temperature

- - Safety stop setting: 40 C

- - Supplied item: temperature-control handle only

- - Thermostatic cartridge, spindle adapter, sleeve, face plate and fixing components are not included

- - No superseding or replacement code has been confirmed for 37391000

Confirmed Compatible Models

- - Hansgrohe Terrano concealed thermostat kit 37710000

Installation and Calibration

The handle connects to the thermostatic element through the separate 96435000 spindle adapter. During calibration, the shower should be run and the thermostatic control adjusted until the measured outlet temperature reaches 40 C. The handle can then be refitted with the safety button positioned at 12 o'clock.

- - Isolate the hot and cold water supplies before dismantling the shower valve

- - Check that the spindle adapter is correctly fitted and secured before installing the handle

- - Confirm that the chrome sleeve is correctly aligned before refitting the face plate and handle

- - Test the outlet temperature and safety-stop operation after installation

Before Ordering

Confirm the complete shower valve code and compare the existing handle, spindle connection and surrounding trim before ordering. Visually similar Hansgrohe and AXOR handles may use different internal connections.

Related Spares You May Need

- - Hansgrohe 96435000 Handle Spindle Adapters

- - Hansgrohe 96439000 Sleeve - Chrome

- - Hansgrohe 96454000 M5 x 55 iBox Universal Fixing Screw Set

- - Hansgrohe 96447000 iBox Universal Concealed Mixer Carrier Plate

- - Hansgrohe 94282000 Thermostatic Cartridge for Axor Pharo and Other Valves

- - Hansgrohe 94073000 Noise Reduction Set

- - Hansgrohe 94074000 Pair of Non Return Valves DW15 / DN10

- - Hansgrohe 96525000 Screw Set

- - Hansgrohe 95037000 Thermostatic Cartridge Seal Kit
