Grohe 48361000 Push Buttons

Summary

GROHE 48361000 SmartControl Concealed Shower Push Button Kit - Chrome

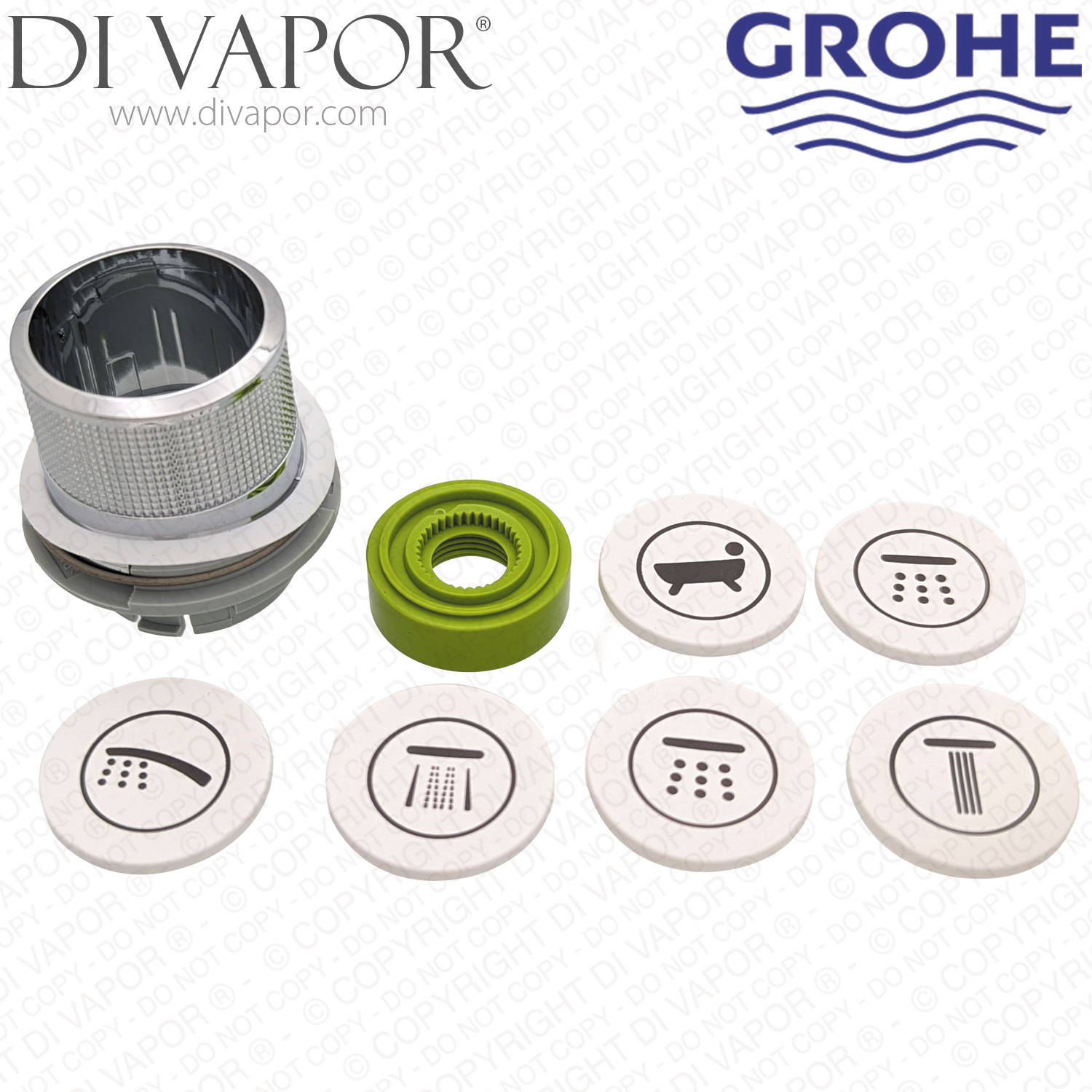

GROHE 48361000 is a chrome push-button kit for selected SmartControl and Grohtherm SmartControl concealed shower and bath/shower controls. The kit contains one complete button and six interchangeable symbol caps, allowing the button to identify the outlet it operates. It is not a pack of six complete push buttons.

The button forms the external operating control for the separate 48359000 concealed flow-control cartridge. SmartControl uses a push action for on/off operation and a turning action to adjust water flow. This kit is an external outlet-control component, not a temperature-control handle, thermostatic cartridge or complete mixer.

Technical Details

• Internal flow-control cartridge and temperature-control components are separate parts, not included in this button kit

Confirmed Models

Used in the following concealed control assemblies. Match the exact model and installation revision before ordering; the number of buttons, trim shape or concealed installation box alone does not identify the correct spare.

Grohtherm SmartControl Concealed Thermostats

• GROHE 29118000 Grohtherm SmartControl Concealed Thermostat with One Valve - Chrome
• GROHE 29123000 Grohtherm SmartControl Concealed Thermostat with One Valve - Chrome
• GROHE 29150LS0 Grohtherm SmartControl Concealed Thermostat with One Valve - Moon White
• GROHE 29153LS0 Grohtherm SmartControl Concealed Thermostat with One Valve - Moon White
• GROHE 29119000 Grohtherm SmartControl Concealed Thermostat with Two Valves - Chrome
• GROHE 29124000 Grohtherm SmartControl Concealed Thermostat with Two Valves - Chrome
• GROHE 29151LS0 Grohtherm SmartControl Concealed Thermostat with Two Valves - Moon White
• GROHE 29156LS0 Grohtherm SmartControl Concealed Thermostat with Two Valves - Moon White
• GROHE 29120000 Grohtherm SmartControl Concealed Thermostat with Two Valves and Integrated Shower Holder - Chrome
• GROHE 29125000 Grohtherm SmartControl Concealed Thermostat with Two Valves and Integrated Shower Holder - Chrome
• GROHE 29121000 Grohtherm SmartControl Concealed Thermostat with Three Valves - Chrome
• GROHE 29126000 Grohtherm SmartControl Concealed Thermostat with Three Valves - Chrome
• GROHE 29157LS0 Grohtherm SmartControl Concealed Thermostat with Three Valves - Moon White
• GROHE 29904LS0 Grohtherm SmartControl Concealed Thermostat with Three Valves - Moon White

SmartControl Triple-Volume Controls

• GROHE 29122000 Grohtherm SmartControl Triple-Volume Control Trim - Chrome
• GROHE 29127000 Grohtherm SmartControl Triple-Volume Control Trim - Chrome
• GROHE 29152LS0 Grohtherm SmartControl Triple-Volume Control Trim - Moon White
• GROHE 29158LS0 Grohtherm SmartControl Triple-Volume Control Trim - Moon White

SmartControl Concealed Manual Mixers

• GROHE 29144000 SmartControl Concealed Mixer with One Valve
• GROHE 29147000 SmartControl Concealed Mixer with One Valve
• GROHE 29145000 SmartControl Concealed Mixer with Two Valves
• GROHE 29148000 SmartControl Concealed Mixer with Two Valves
• GROHE 29146000 SmartControl Concealed Mixer with Three Valves
• GROHE 29149000 SmartControl Concealed Mixer with Three Valves

Grohtherm SmartControl Thermostatic Trims

• GROHE 29136000 Grohtherm SmartControl Single-Function Thermostatic Trim - Chrome
• GROHE 29140000 Grohtherm SmartControl Single-Function Thermostatic Trim - Chrome
• GROHE 29159LS0 Grohtherm SmartControl Single-Function Thermostatic Trim - Moon White
• GROHE 29163LS0 Grohtherm SmartControl Single-Function Thermostatic Trim - Moon White
• GROHE 29137000 Grohtherm SmartControl Dual-Function Thermostatic Trim - Chrome
• GROHE 29141000 Grohtherm SmartControl Dual-Function Thermostatic Trim - Chrome
• GROHE 29160LS0 Grohtherm SmartControl Dual-Function Thermostatic Trim - Moon White
• GROHE 29164LS0 Grohtherm SmartControl Dual-Function Thermostatic Trim - Moon White
• GROHE 29138000 Grohtherm SmartControl Triple-Function Thermostatic Trim - Chrome
• GROHE 29142000 Grohtherm SmartControl Triple-Function Thermostatic Trim - Chrome
• GROHE 29161LS0 Grohtherm SmartControl Triple-Function Thermostatic Trim - Moon White
• GROHE 29165LS0 Grohtherm SmartControl Triple-Function Thermostatic Trim - Moon White

Related Spares You May Need

These are separate service components, not additional items automatically required when replacing the button. Temperature-control and non-return parts vary between mixer types and installation revisions.

• GROHE 48359000 SmartControl Flow-Control Cartridge - the separate internal on/off and water-volume control cartridge operated by the button
• GROHE 49029000 Temperature-Control Handle with Safety Button - Chrome - the separate temperature handle for applicable Grohtherm SmartControl thermostatic assemblies, not the outlet-control button
• GROHE 49028000 Thermostatic Cartridge - the internal temperature-regulating component for applicable Grohtherm SmartControl thermostatic assemblies, not the manual mixers listed above
• GROHE 46989000 Temperature-Mixing Cartridge - the separate mixing cartridge used in the six SmartControl concealed manual mixers listed above, rather than a thermostatic cartridge
• GROHE 47753000 Non-Return Valve - for earlier assemblies that specify this valve, including earlier one-valve SmartControl mixers; check the existing valve code because later revisions can use a different part

Before You Order

Check the mixer model, installation revision, existing button and finish. Choose the symbol cap that matches the connected outlet; changing the cap identifies the outlet but does not add another shower function. This kit supplies one operating button, so a multi-button control may require more than one kit when several complete buttons need replacing.

Fitting and Fault Checks

Follow the servicing instructions for the exact concealed mixer. Replacing the complete button involves access to its retaining arrangement behind the control mounting assembly; it should not be treated as a tool-free decorative cap change.

If water continues to drip from a shower outlet after it has been switched off, investigate the separate flow-control cartridge rather than assuming that a new external button will correct an internal shut-off fault. Temperature regulation is handled by a different component.

For help identifying the correct button or associated spare, contact us with photographs of the controls, the existing part and any visible model references.
