Ideal Standard S8739NU Pair of Hot and Cold Flow Cartridges (On/​Off Cartridge)

SUMMARY

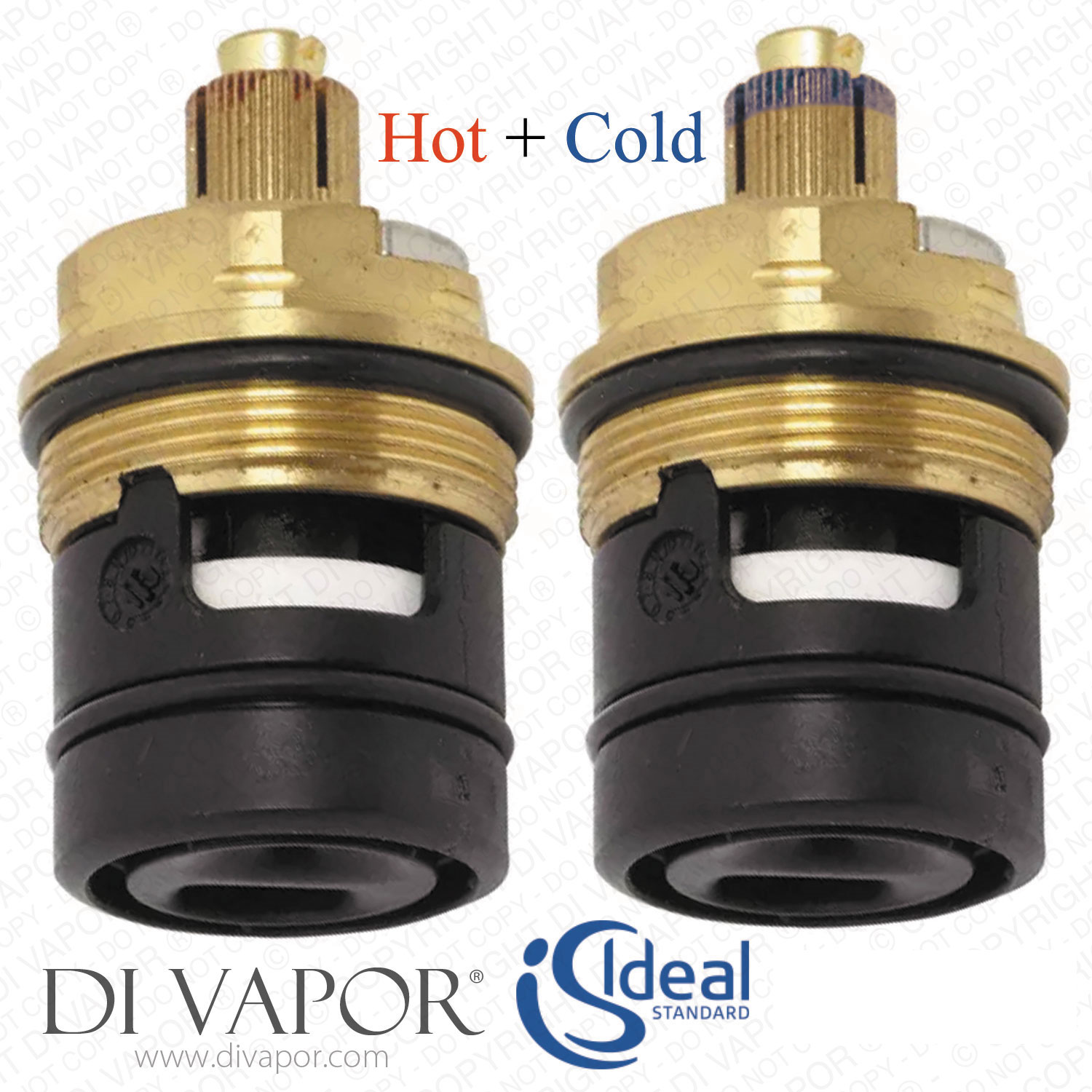

Ideal Standard S8739NU Pair of Hot and Cold Flow Cartridges (On/Off Cartridge). This is for the original black plastic version of the cartridge that you see in the photo.

These are NOT the cartridges that are used in Trevi shower valves. These cartridges are used in taps.

IMPORTANT - Please Read If you need the cartridge which is used in Trevi Therm valves, please note that most Trevi Therm valves use TWO of the Trevi A952501NU11 cartridges.

Technical Information
Total Height: 45.5mm (From top of screw at the top to the bottom of the cartridge)
Total Height: 43mm (From top (Excluding screw) at the top to the bottom of the cartridge)
Diameter at Bottom O-ring 23.9mm
Diameter of Thread: 24.8mm
Diameter of Toothed spline: 9.3mm
Number of Teeth: 40 to 44 (Depending on the cut of vertical cuts)
Cold & Hot: One hot side and one cold side included.
Close: One clockwise turn to open and one anti-clockwise turn to open cartridge included.
Colours: Ideal Standard manufacture the plastic body in both black and white. The colour of the body has no meaning. The metal part of the cartridge is brass and the top may have blue on it.
Materials: Brass and plastic
Number of O-Rings: 2

Confirmed Tap Models

This S8739NU cartridge is used in the following models:

- - Ideal Standard A7640AA Domi Duo dual control one-taphole bath filler

- - Sottini E7611AA Icarus dual control one-taphole basin filler with pop-up waste

- - Ideal Standard A7610AA Domi Duo dual control monobloc tap

Before Ordering and Fitting

Check the tap model, cartridge construction, spindle profile, sealing arrangement and opening direction against the parts being removed. Plastic bodies were manufactured in both black and white, so body colour alone does not identify the cartridge. Dimensions are identification checks, not proof of fitment.

Isolate both water supplies before removing the cartridges. Inspect the handle carriers and retaining screws for damage, and follow the tap manufacturer's fitting instructions. Apply suitable cartridge silicone grease to the O-rings and bottom seals during installation.

Related Spares You May Need

Choose additional parts for the exact tap model and fault being repaired. The seals, outlet fittings and waste components below are separate model-specific items, not a complete seal kit for S8739NU, and are not all required for a cartridge change.

- - TAC86 TACSIL 3g cartridge silicone grease for lubricating cartridge O-rings and bottom seals during fitting

- - Ideal Standard A953090 Domi-Duo handle carrier spline adapter for A7640AA, A7610AA and E7611AA; 20mm high with a 24.5mm bottom diameter

- - Ideal Standard A91831914 M4 tapered-shoulder slotted screw for A7640AA, A7610AA and E7611AA; sold individually

- - Ideal Standard A961667NU O-ring pair 28.3mm x 1.78mm for A7640AA

- - Ideal Standard A963165AA Domi pair of indices for metal tap handles for A7640AA and A7610AA

- - Ideal Standard A962974AA chrome basin mixer anti-splash outlet for A7610AA and E7611AA

- - Ideal Standard A961302NU central sealing gasket with A911680 reference for A7610AA and E7611AA

- - Ideal Standard A962989AA chrome pop-up waste rod 760/762 for A7610AA

- - Ideal Standard A961644NU O-ring set 20.35mm x 1.78mm and 20mm x 1.5mm for A7610AA; check the existing seals and their fitting position before ordering

- - Ideal Standard E960517NU pair of M12 inlet tails complete for E7611AA

- - Ideal Standard E960540NU stainless steel pop-up waste rod for E7611AA

Individual Cartridges and Other Versions

These are separate cartridge options rather than additional components required with the complete S8739NU pair. Check the cartridge version and operating direction before choosing an individual cartridge or the brass-bodied pair.

- - Ideal Standard A952500NU11 hot flow cartridge supplied individually in the later brass version; clockwise close

- - Ideal Standard A952501NU11 cold flow cartridge supplied individually in the later brass version; anticlockwise close

- - Ideal Standard A952501NU cold flow cartridge is the later reference for A952501NU11 and is sold individually

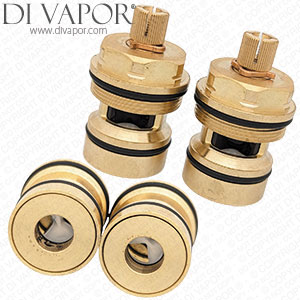

- - Ideal Standard S8739NU11 brass-version cartridge pair supplied as one clockwise-opening cartridge and one anticlockwise-opening cartridge

For help finding the right cartridge, use the Di Vapor part identification service.
