Ideal Standard S8739NU Brass Version
Send a photo of your item and we'll help confirm it.
Summary

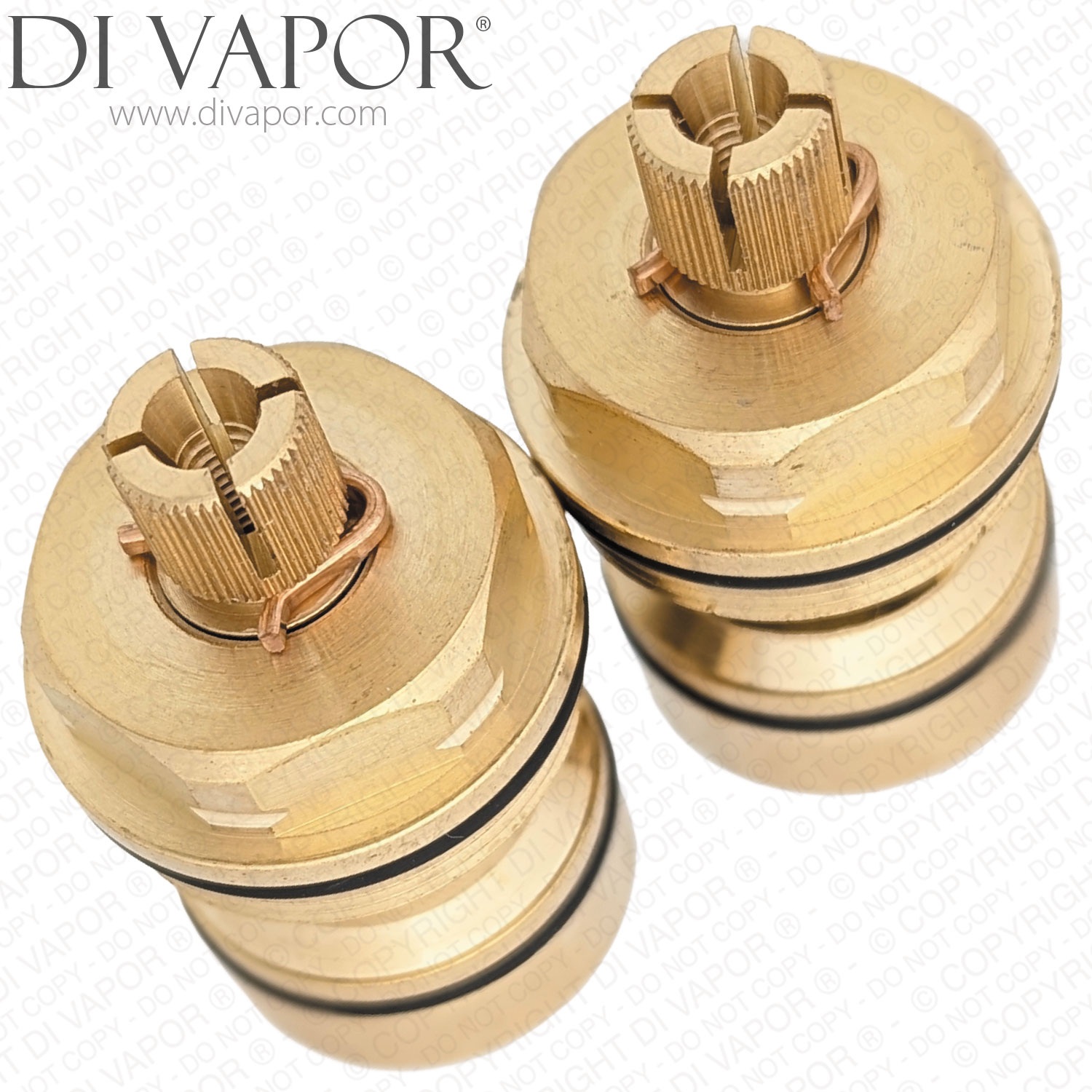

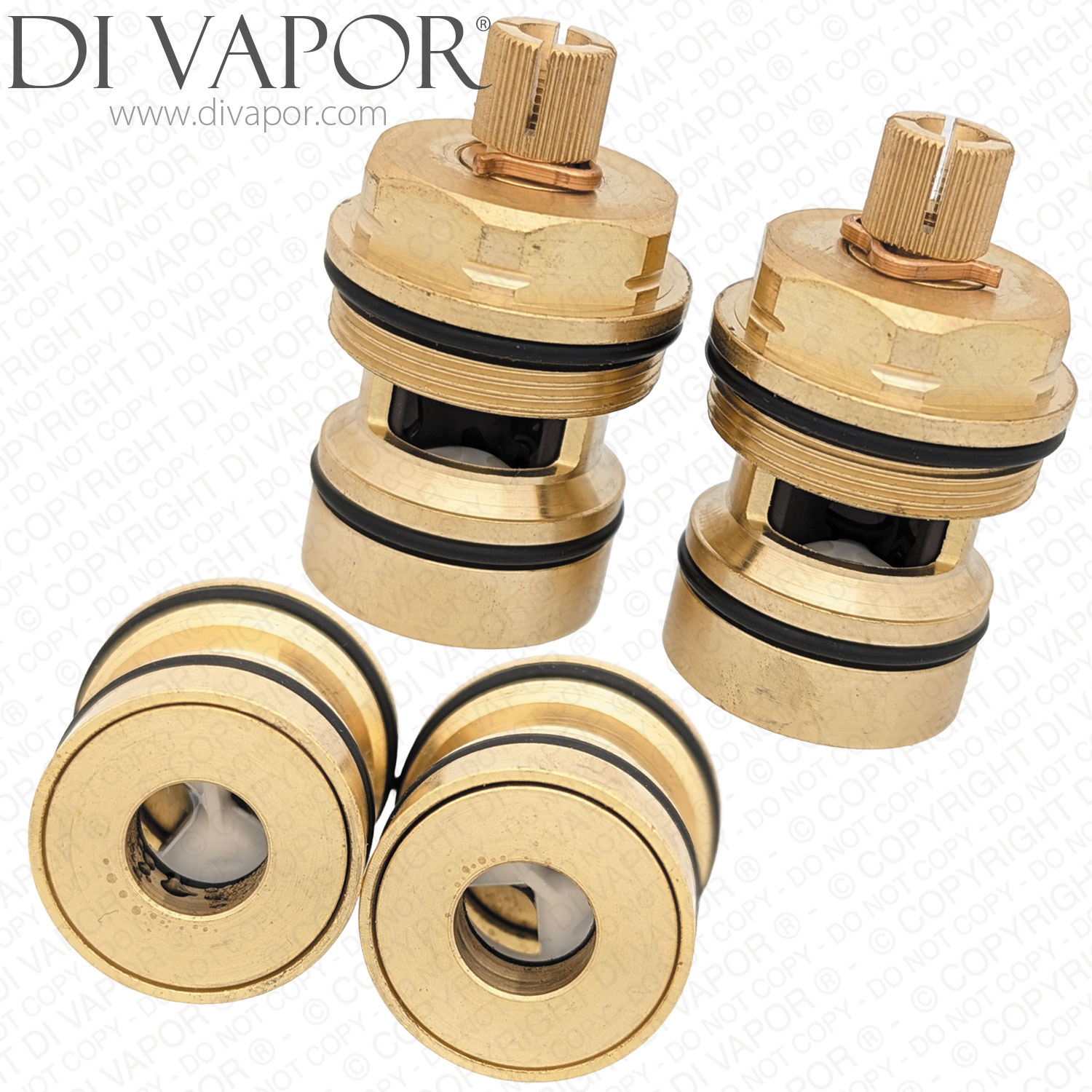

Ideal Standard S8739NU Brass Version.
Sold as a pair. Includes:
1 x Anti-Clockwise turn to open
1 x Clockwise turn to open
Ideal Standard S8739NU11 is the brass version pair of 1/4 turn ceramic disc tap flow cartridges used for hot and cold tap control. The pair includes one anti-clockwise turn to open cartridge and one clockwise turn to open cartridge.
These cartridges control water flow on the tap body by opening and closing the ceramic disc assembly through the tap handle. This pair is for taps and should not be ordered as the hot and cold cartridge set for Trevi shower valves.
Technical Details
| Part Number | S8739NU11 |
|---|---|
| Pack contents | 1 x anti-clockwise turn to open cartridge and 1 x clockwise turn to open cartridge |
| Cartridge type | M24 DX 1/4 turn ceramic disc flow cartridge pair |
| Total height from top screw to base | 45.5mm |
| Total height excluding screw | 43mm |
| Bottom O-ring diameter | 23.9mm |
| Thread diameter | 24.8mm |
| Toothed spline diameter | 9.3mm |
| Number of spline teeth | 40 to 44 depending on the vertical cut pattern |
| Number of O-rings per cartridge | 2 |
Before You Order
Check the cartridge height, thread diameter, spline diameter, number of spline teeth and turning direction against the removed cartridges before ordering. The brass version is supplied as a hot and cold pair, so make sure both cartridges are required rather than a single hot or cold side only.
Confirmed Tap Models
- Ideal Standard A7640AA Domi Duo Dual Control One Taphole Bath Filler Spare Parts
- Sottini E7611AA Icarus Dual Control 1 Taphole Basin Filler with Pop-Up Waste Spare Parts
- Ideal Standard A7610AA Domi Duo Dual Control Monobloc Tap Spare Parts
Related Spares You May Need
- Ideal Standard S8739NU Pair of Hot and Cold Flow Cartridges (On/Off Cartridge)
- Ideal Standard A952500NU11 Basin Tap 1/2 Dx 1/4 Turn Flow Cartridge Clockwise Close
- Trevi A952501NU11 Ideal Standard 1/2 Dx 1/4 Turn Flow Cartridge Anti Clockwise Close
- TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
- Ideal Standard A953090 Domi-Duo Handle Carrier Spline Adapter
- Trevi A91831914 Screw M4 taper shoulder slotted (Ideal Standard)
- A961667NU Ideal Standard / Trevi Ceramix O'Ring Pair for Cartridge (28.3mm x 1.78mm)
- Ideal Standard A963165AA Domi Pair Indices for Metal Handle Basin Taps
- Ideal Standard A961302NU (A911680) CENTRAL SEALING GASKET AD=42.5
- Ideal Standard A962974AA W/WAYS DF BAS MXR A/SPLASH CHROME
- Ideal Standard E960517NU PAIR OF M12 INLET TAILS COMPLETE
- Ideal Standard E960540NU W/WAYS BAS/BID PUW ROD ST.ST
- Ideal Standard A962989AA POP-UP ROD CHROME 760/762
