Hansgrohe 96766000 Flow Cartridge - Clockwise Close - Compatible Replacement
Send a photo of your item and we'll help confirm it.
Summary

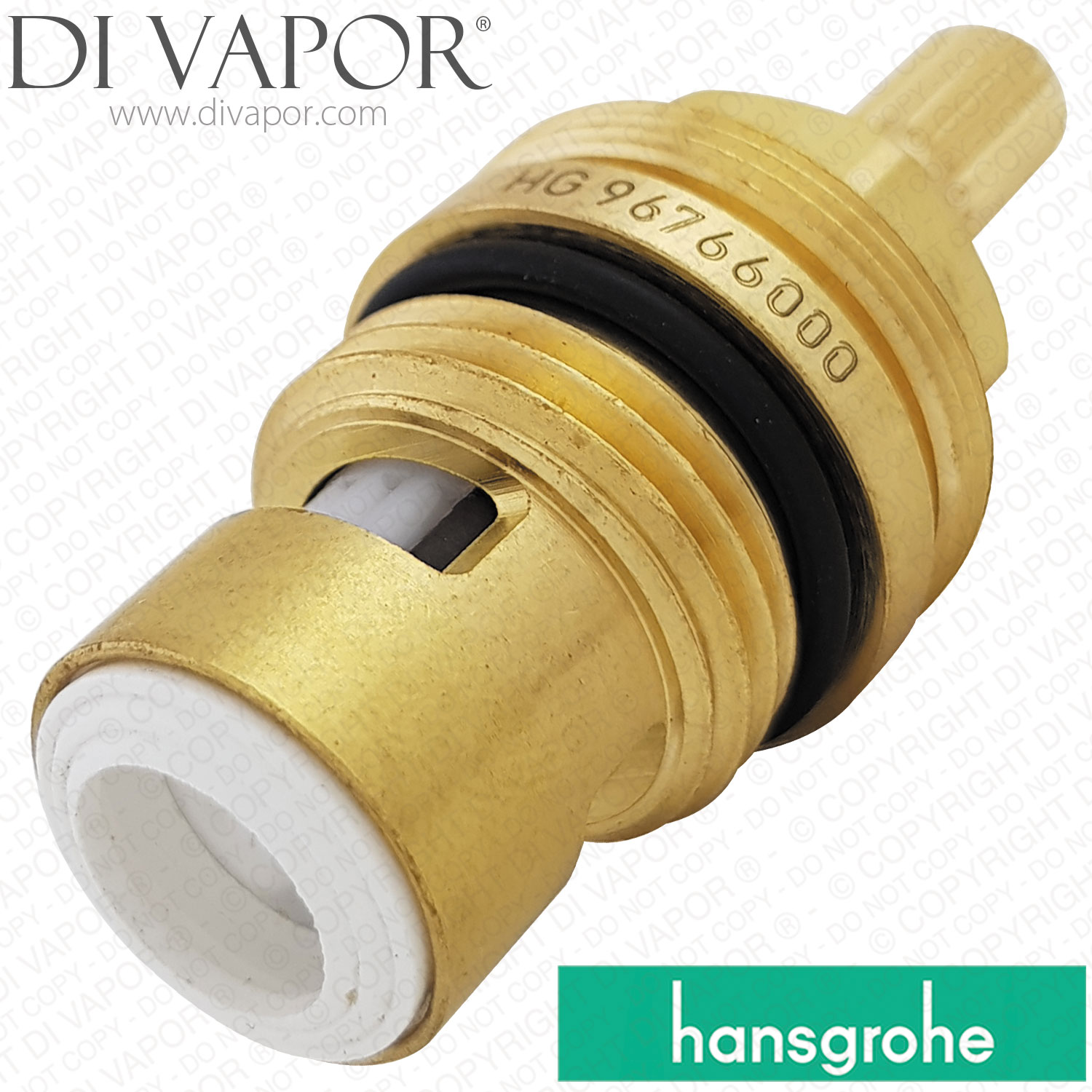

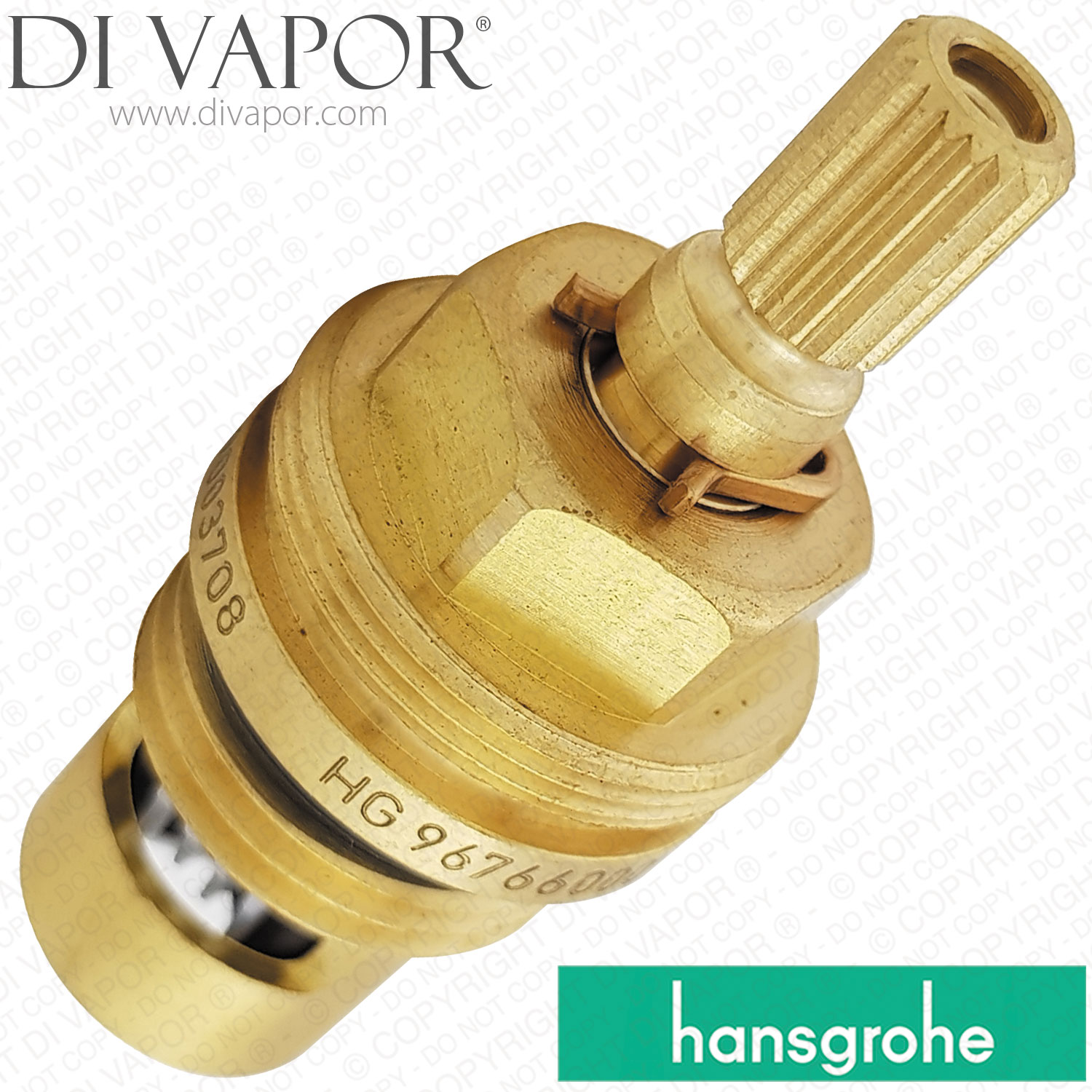

Hansgrohe 96766000 Clockwise Close Flow Cartridge Compatible Replacement for Basin Mixers
This Hansgrohe tap cartridge measures:
| Diameter | 18.5mm |
|---|---|
| Diameter at widest point | 23.8mm |
| Brass Spindle | 7.6mm |
| Splines | 20 |
| Close | Right-side close (Clockwise close) |
Flow cartridge 96766000 is a Hansgrohe Axor Starck spare part.
The Hansgrohe 96766000 is a compatible replacement clockwise-close flow cartridge for selected Hansgrohe AXOR Starck and Hansgrohe Logis 3-hole basin mixers. This ceramic shut-off cartridge controls the water flow on the right-closing side of the tap and is used where the existing cartridge closes clockwise.
This cartridge is intended for tap flow control rather than thermostatic temperature regulation. A failing flow cartridge can cause poor shut-off, stiff handle movement, reduced control or water dripping from the basin tap spout when the tap is turned off.
Technical Details
| Manufacturer code | 96766000 |
|---|---|
| Di Vapor Part Number | H-96766000 |
| Cartridge type | ceramic flow cartridge / shut-off unit |
| Connection | DN15 |
| Closing angle | 90 degree |
Before Ordering
Check the close direction, spline count, spindle diameter and cartridge body measurements before ordering. This is the clockwise-close version and should not be ordered in place of the anti-clockwise-close Hansgrohe 96765000 unless that is the cartridge required by the tap position.
Confirmed Compatible Models
- Hansgrohe 10133000 AXOR Starck Classic 3-Hole Basin Mixer 90 with Pop-Up Waste Set 08/94 - 02/10
- Hansgrohe 71133000 Logis 3-Hole Basin Mixer 150 with Pop-Up Waste Set >01/15
- Hansgrohe 71133000 Logis 3-Hole Basin Mixer 150 with Pop-Up Waste Set 04/14 - 12/14
- Hansgrohe 71323000 Logis Classic 3-Hole Basin Mixer 150 with Pop-Up Waste Set 01/15 - 02/18
Related Spares You May Need
- TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
- Hansgrohe 96350000 Cartridge Shut-Off Unit (Right Close)
- Hansgrohe 96765000 Flow Cartridge - Anti-Clockwise Close
- GROHE Premium Plumbers Silicone Grease - 2g - SYNTHESO LM 220 (18007031)
- Hansgrohe 98127000 Pair of O-Rings
- Hansgrohe 94184000 Handle Fixing Adapter
- Hansgrohe 97357000 Stop Valve
- Hansgrohe 96364000 O-ring Set 32x2.5mm
