Grohe 06905000 Headworks Flow Cartridge (On/Off) - 1/2"
Send a photo of your item and we'll help confirm it.
Summary

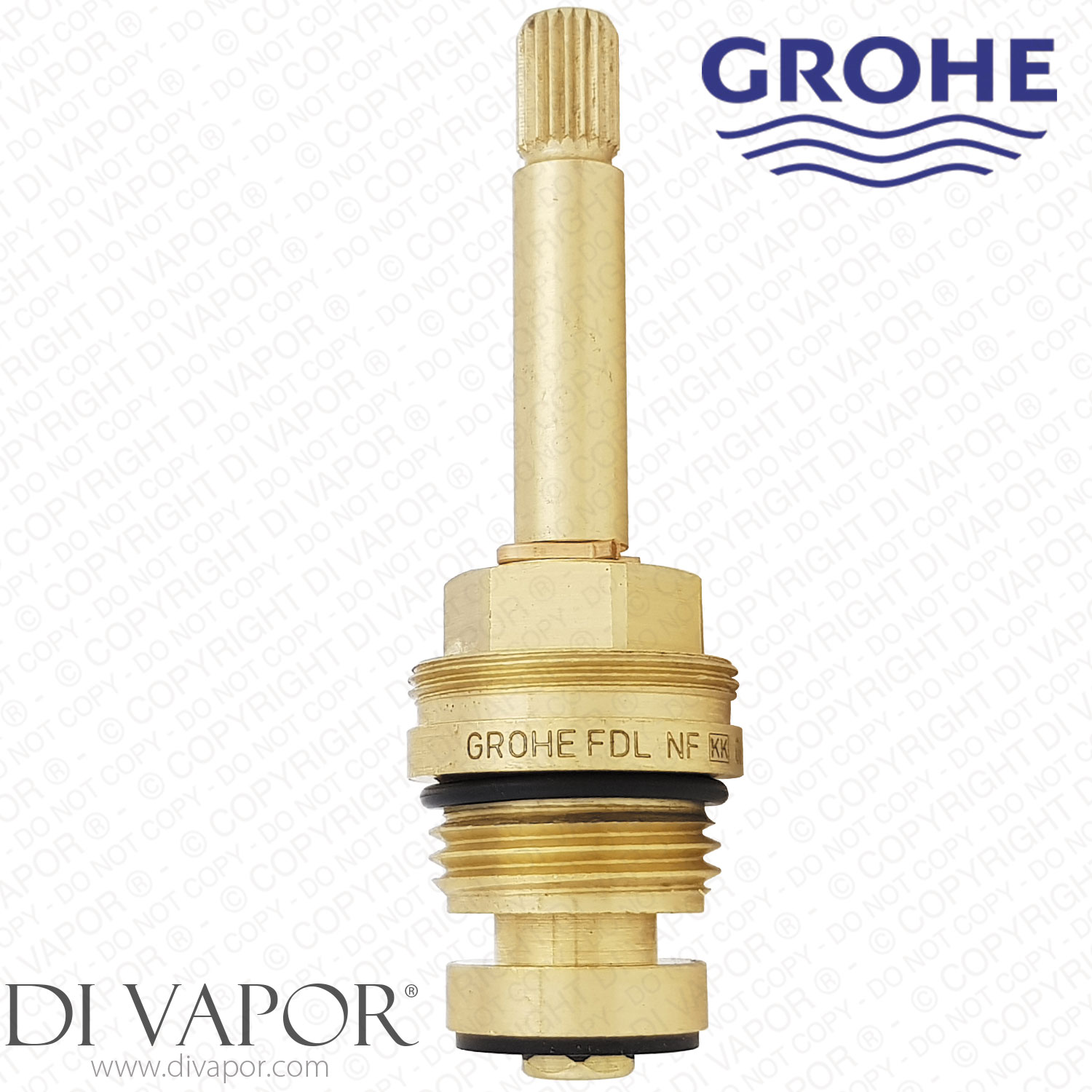

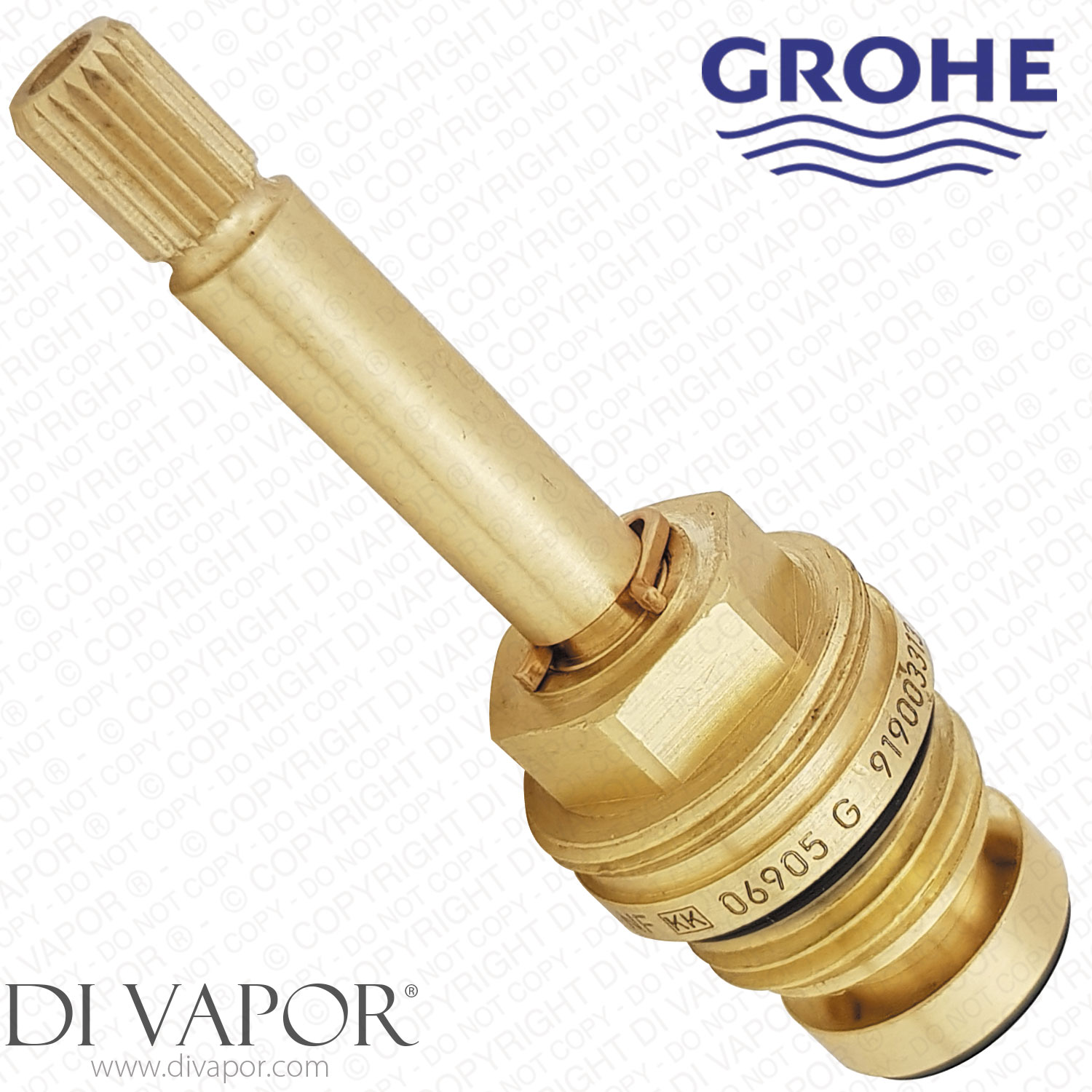

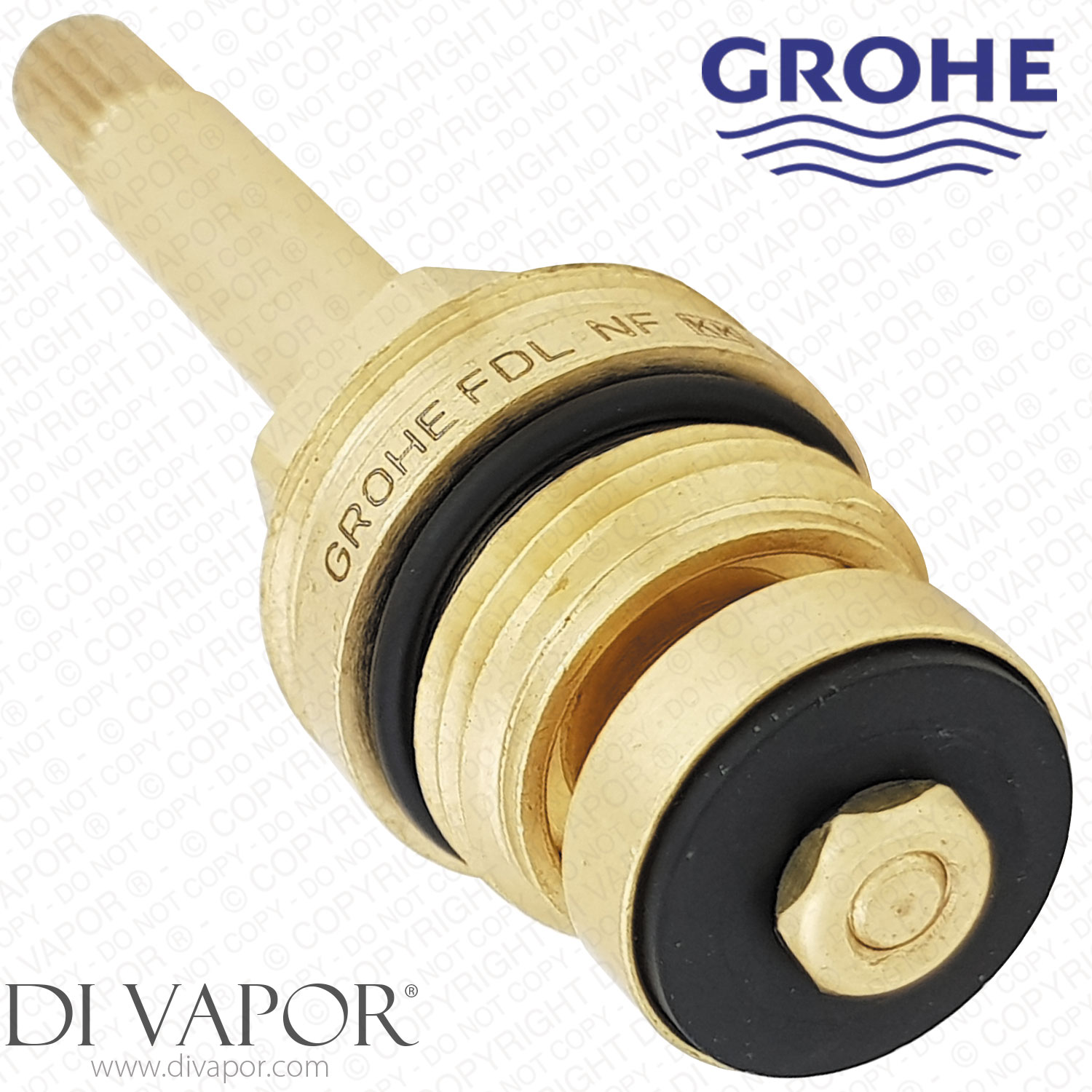

Grohe 06905000 Headworks Flow Cartridge (On/Off) - 1/2 Inch
This Grohe spare part is compatible with shower valves:
- (34310000) Grohe Grohtherm Auto 2000
Grohe 06905000 is a 1/2" screw-down headworks flow cartridge used for on/off water-flow control in the Grohtherm Auto 2000 shower valve arrangement. The headpart operates as a conventional screw-down valve with a non-rising spindle and is distinct from the separate half-turn flow cartridges used in other GROHE valve constructions.
The cartridge opens and closes the waterway as the flow control is turned. Wear to the headpart seals or associated valve seat can result in water continuing to drip from the shower head when the valve is turned off, difficulty shutting the water off fully, or increasingly stiff flow-control operation.
Technical Details
| Manufacturer code | 06905000 |
|---|---|
| Part type | screw-down headworks flow cartridge |
| Nominal size | 1/2" |
| Function | on/off water-flow control |
| Spindle operation | non-rising screw-down spindle |
| Historical catalogue reference | 06905 |
| Service O-ring 0128300M | 6 x 2 mm |
| Service O-ring 0392400M | 18.2 x 1.7 mm |
| Service seal | 0529100M |
| Associated replaceable flow cartridge seat | 45023000 |
Confirmed Compatible Models
Before Ordering
Check the removed headpart and its operating mechanism before ordering rather than identifying the cartridge from the 1/2" size alone. Automatic 2000 installations can use different flow-control constructions, including the separate 45869000 half-turn flow cartridge, so the existing cartridge code and screw-down operating style should be confirmed.
Related Spares You May Need
These verified Grohe spare parts are listed for the same confirmed 34310000 Auto 2000 valve or directly support servicing of the 06905000 flow-control assembly.
- TACSIL 3g WRAS Approved Silicone Grease for Tap & Shower Cartridges
- Grohe 0392400M Pack of 10 O-rings
- Grohe 47187000 Flow Control Knob for Auto 2000 Shower Valves
- Grohe Flow Cartridge Seat 45023000
- Grohe 47255000 Temperature Control Handle
- GROHE 47167000 Stop Ring Auto 2000 Adapter for 4745000 Thermostatic Cartridges
- Grohe 47450000 Thermo Element Thermostatic Cartridge SDT
- GROHE 28151000 Relaxaflex Shower Hose 1500mm
