Dornbracht 9090032000090 Pair of Cartridges

SUMMARY

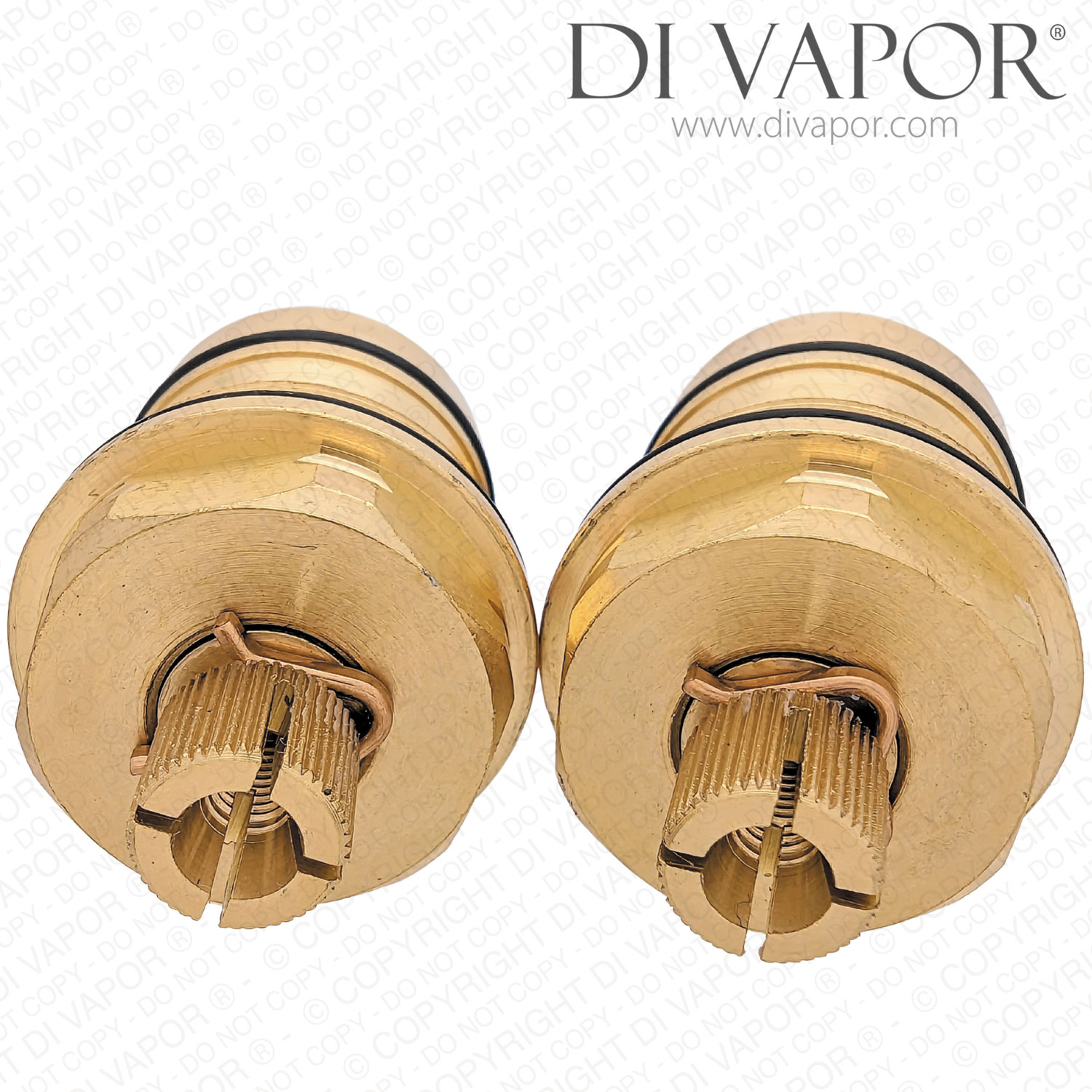

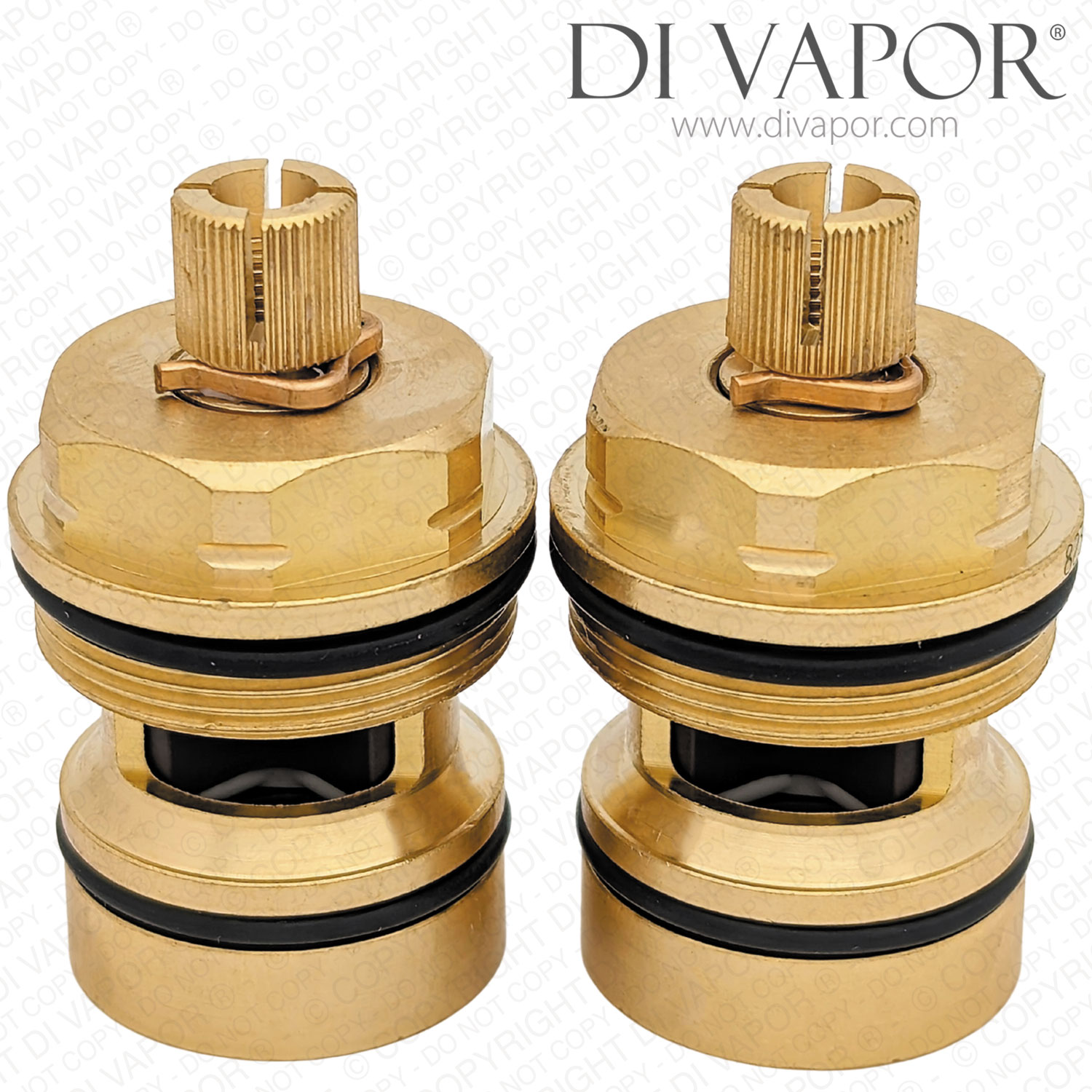

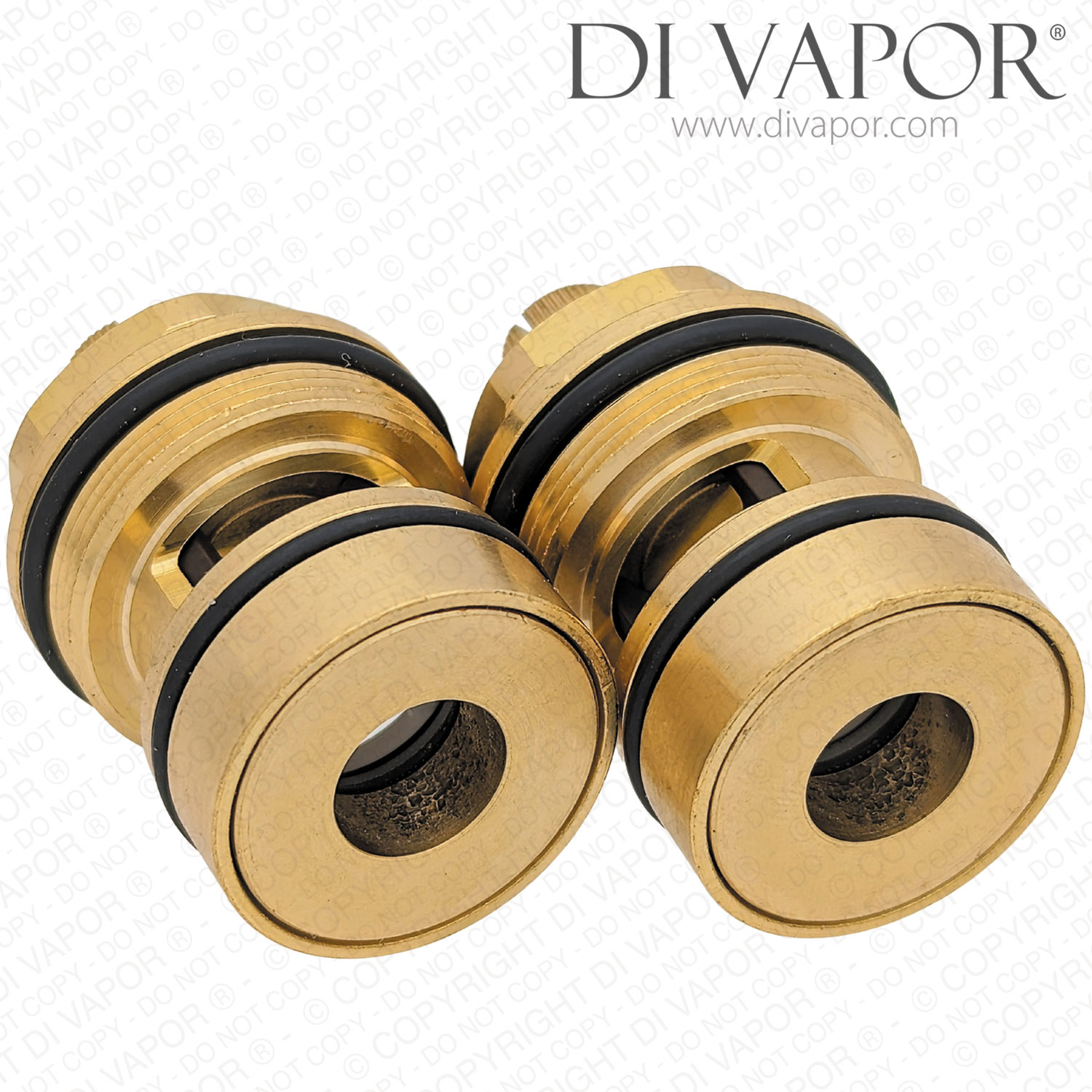

Dornbracht 9090032000090 is a pair of 1/2 inch ceramic disc flow cartridges for selected Dornbracht concealed thermostat module installations. The cartridges form the flow shut-off side of the valve and work with the matching gear assembly to open and close the water supply.

This cartridge pair is associated with the earlier Dornbracht 09900320090 cartridge reference and is supplied as the newer brass version within this flow-control cartridge family. It is used where the cartridge pair is being replaced rather than the complete geared clutch assembly.

Technical Details

- - Brand: Dornbracht

- - Part Number: 9090032000090

- - Part type: pair of ceramic disc flow cartridges

- - Nominal size: 1/2 inch

- - Current cartridge style: newer brass version

- - Application: flow shut-off control in selected concealed thermostat modules

- - Associated earlier reference: 09900320090

- - Used with the matching flow control clutch assembly that contains 2 cartridges 2 gears and the spindle gear

Common Symptoms

- - Water seeping from the flow-control handle

- - Stiff or rough operation at the flow handle

- - Water continuing to pass from the shower outlet when the flow control is turned off

Confirmed Compatible Models

- - Dornbracht concealed thermostat module 35 405 970 90

- - Dornbracht concealed thermostat module 35 505 970 90

Before You Order Check

- - The removed part is the flow cartridge pair and not the thermostatic cartridge

- - The valve belongs to the verified 35 405 970 90 or 35 505 970 90 concealed thermostat fitment group

- - You need the cartridge pair rather than the complete flow control clutch assembly

- - Existing screws and gear components are serviceable if you are ordering the cartridge pair only

Related Spares You May Need

- - Dornbracht 0490032100090 Flow Control Clutch Assembly (2 x Cartridges and Gears)

- - Dornbracht 9015020010190 Thermostatic Cartridge with Temperature Handle Carrier

- - Dornbracht 09150205590 Thermostatic Cartridge 3/4 Inch (35.505)

- - Dornbracht 0415020060190 Thermostatic Cartridge with Temperature Handle Carrier

- - TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved

- - Dornbracht 0415020010190 Thermostatic Cartridge with Temperature Handle Carrier
