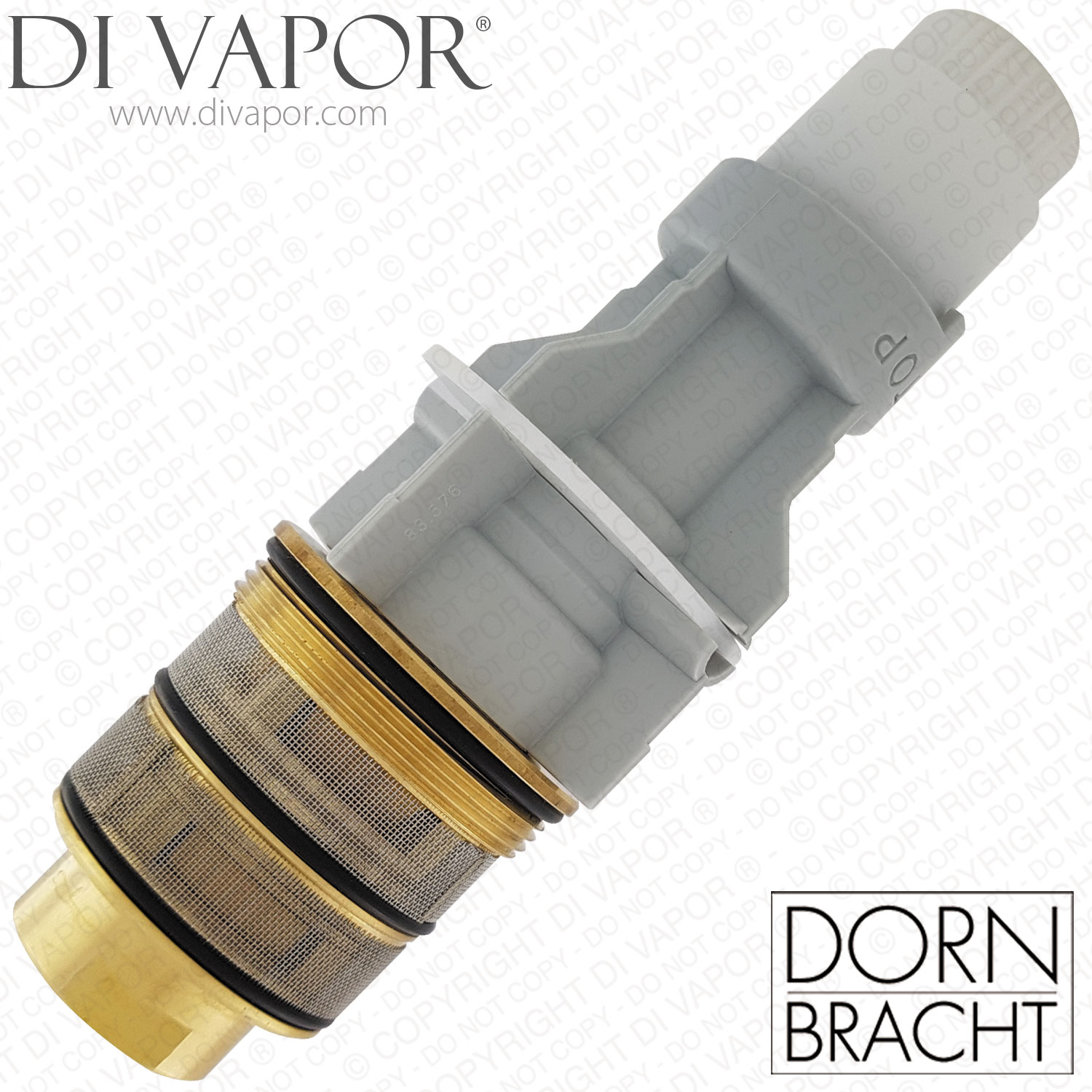

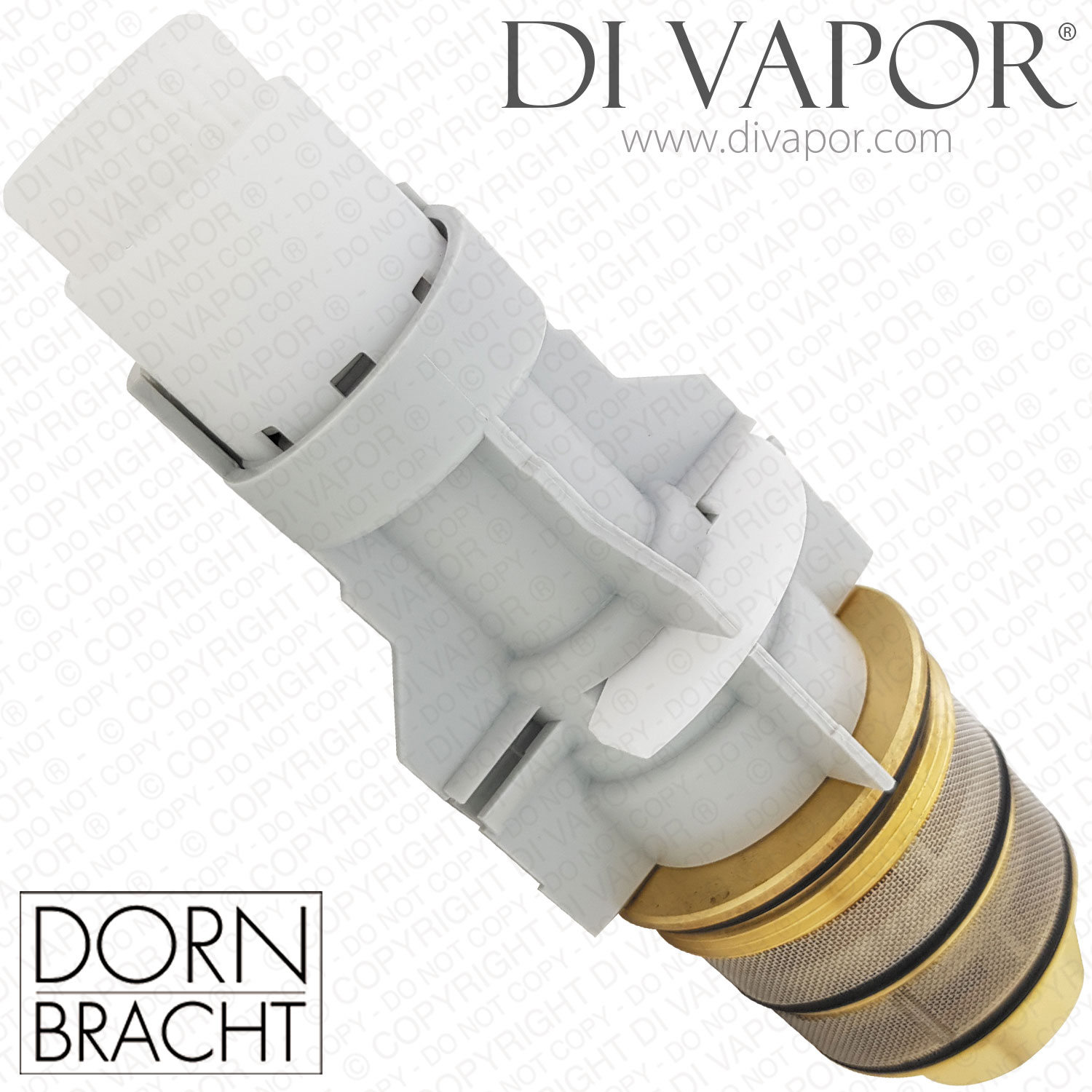

Dornbracht 9015020010190 Thermostatic Cartridge with Temperature Handle Carrier

SUMMARY

Dornbracht 9015020010190 is a thermostatic cartridge with temperature handle carrier for selected concealed thermostatic shower valve assemblies. It regulates and stabilises mixed water temperature and restores proper temperature control when the original thermostatic unit becomes stiff, inaccurate or unstable in use.

This code is commonly cross-referenced against older code 0415020010190. Before you order check the exact cartridge assembly used in your valve, because similar Dornbracht thermostatic cartridges are not interchangeable on appearance alone.

Technical Details

- - Part type: thermostatic cartridge with temperature handle carrier

- - Application: concealed thermostatic shower valve

- - Nominal size: 1/2 inch DN 15

- - Approximate cartridge dimensions: 51 mm diameter x 139 mm length

- - Rated flow: up to 40 litres per minute

Common Symptoms of Failure

- - Unstable or fluctuating shower temperature

- - Reduced control over temperature setting

- - Valve failing to maintain the selected mixed water temperature

Before you order check

- - Check the exact code on the original cartridge or service documentation

- - Check whether your valve uses the earlier 0415020010190 code or the later 9015020010190 replacement-coded assembly

- - Compare the overall cartridge dimensions and the temperature handle carrier arrangement with your original part

- - Do not assume interchangeability with other Dornbracht thermostatic cartridges that look similar

Confirmed Compatible Models

- - UP thermostat 35 405/410 970 90 and final assembly kit 36 405/410 SSS - FF from 09/1992 to 06/2005

- - xTool thermostat 35 412/435 970 90 from 10/2001 to 06/2005

- - Dornbracht UP thermostat xTOOL kit pre-assembled 1/2 inch 3541297090

- - Dornbracht UP thermostat xTOOL with 1 outlet pre-assembled kit 1/2 inch 3543597090

- - Dornbracht flush-mounted thermostat 1/2 inch with flow control 36405220

- - Dornbracht flush-mounted thermostat 1/2 inch without flow control 36410220

Installation Note

- - Apply suitable silicone grease to the O-rings during installation to help sealing and assembly
