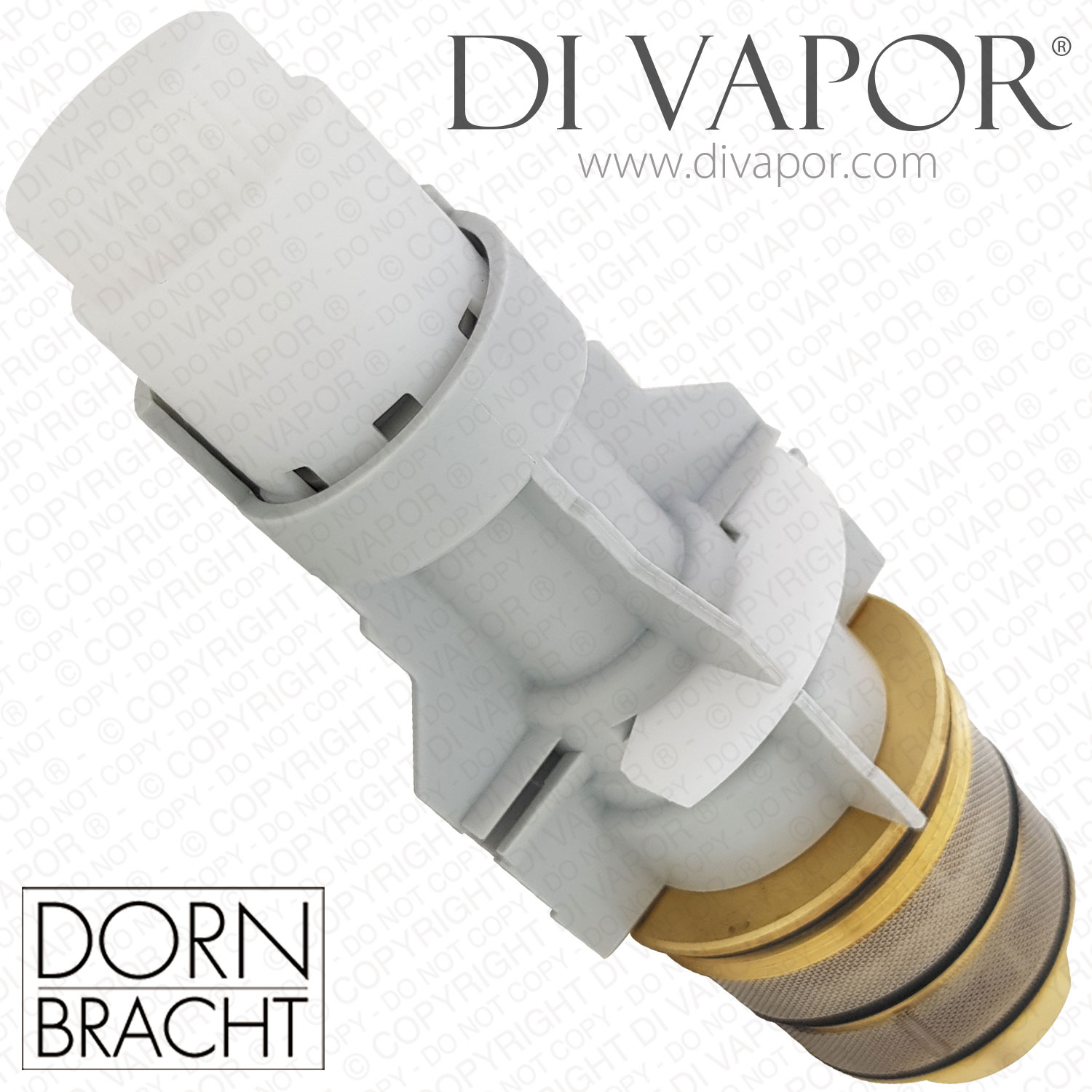

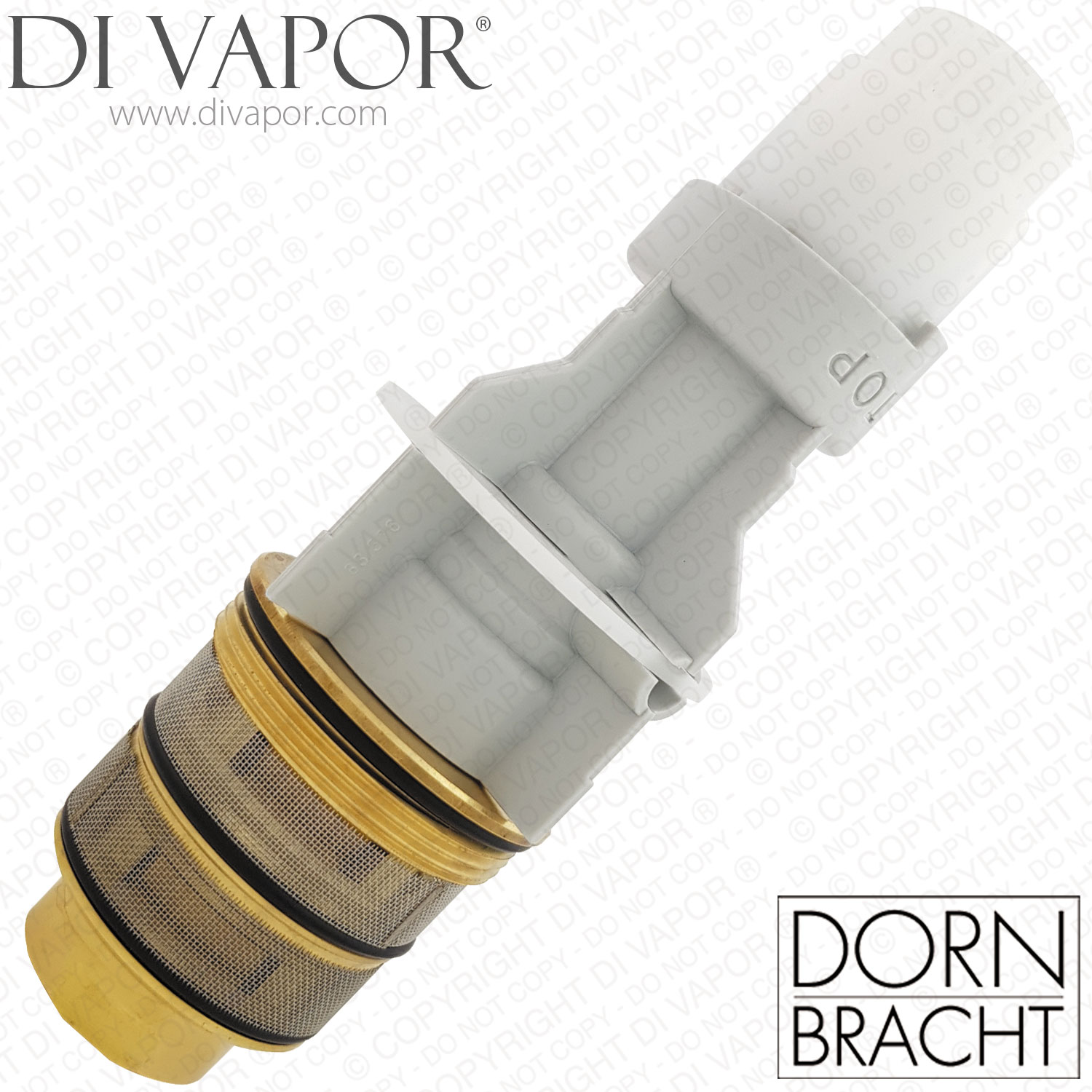

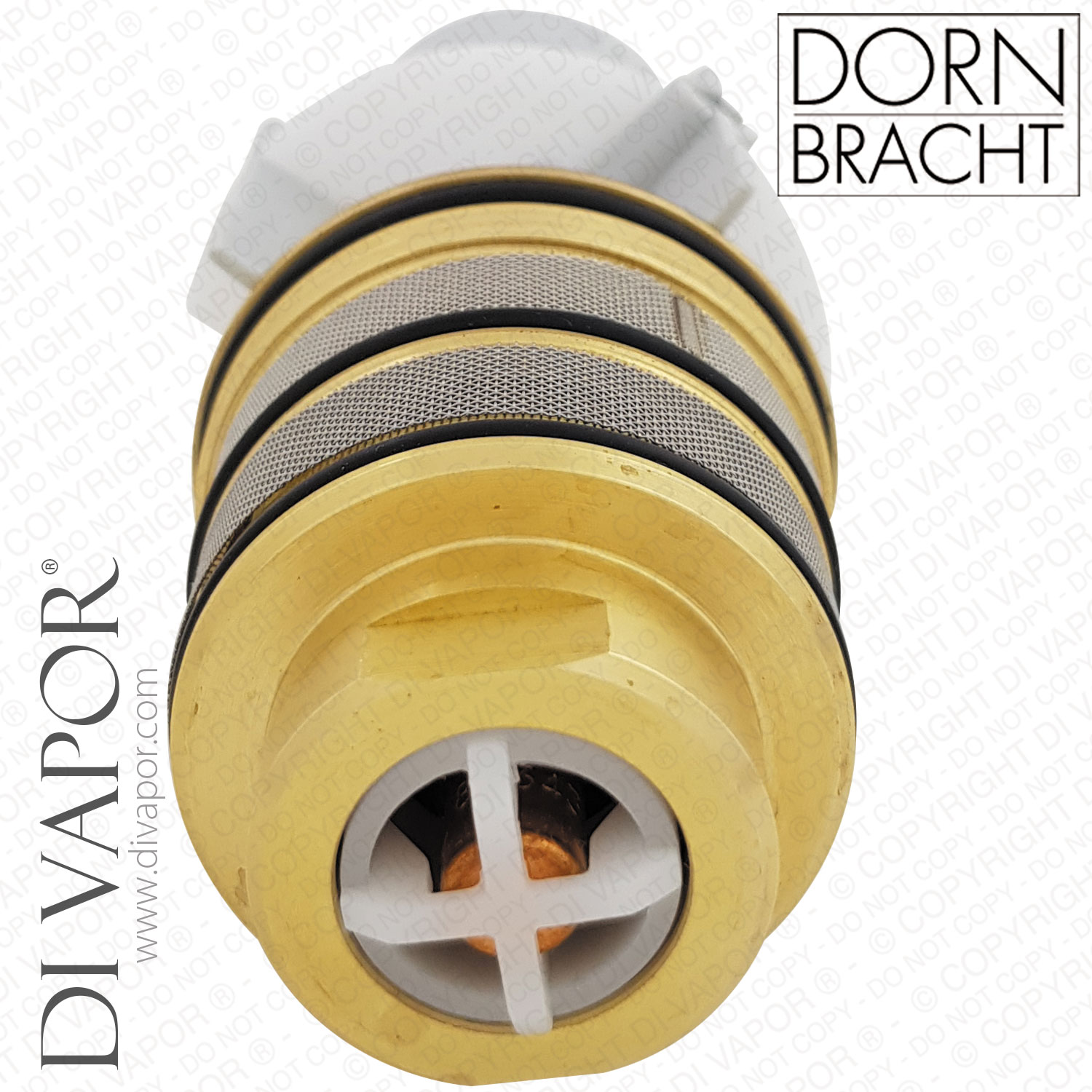

Dornbracht 0415020010190 Thermostatic Cartridge with Temperature Handle Carrier
Send a photo of your item and we'll help confirm it.
Summary
Dornbracht 0415020010190 is a thermostatic cartridge with temperature handle carrier used in selected concealed thermostatic shower valve assemblies.
This cartridge regulates and stabilises the mixed water temperature and restores proper temperature control when the original thermostatic unit has become stiff, inaccurate or unstable in use.
This older code is commonly cross-referenced to replacement code 9015020010190. But the two codes should not be treated as fully interchangeable in both directions without confirming the exact cartridge assembly used in the valve so it is important to match the exact cartridge assembly before ordering.
Technical Details
| Part type | thermostatic cartridge with temperature handle carrier |
|---|---|
| Application | concealed thermostatic shower valve |
| Thermostatic cartridge size | 1/2 inch DN 15 |
| Approximate cartridge dimensions | 51 mm diameter x 139 mm length |
| Rated flow | up to 40 litres per minute |
Common Symptoms of Failure
- Unstable or fluctuating shower temperature
- Reduced control over temperature setting
- Valve failing to maintain the selected mixed temperature
Before you order check
- Check the exact code on the original cartridge or service documentation
- Check whether your valve uses the earlier 0415020010190 code or the later 9015020010190 replacement-coded assembly
- Compare the overall cartridge dimensions and the temperature handle carrier arrangement with your original part
- Do not assume interchangeability with other Dornbracht thermostatic cartridges that look similar
Installation Note
- Apply suitable silicone grease to the O-rings during installation to help sealing and assembly
