Crosswater CG1210FA1 Flow Cartridge for Shower Valves
Send a photo of your item and we'll help confirm it.
Summary

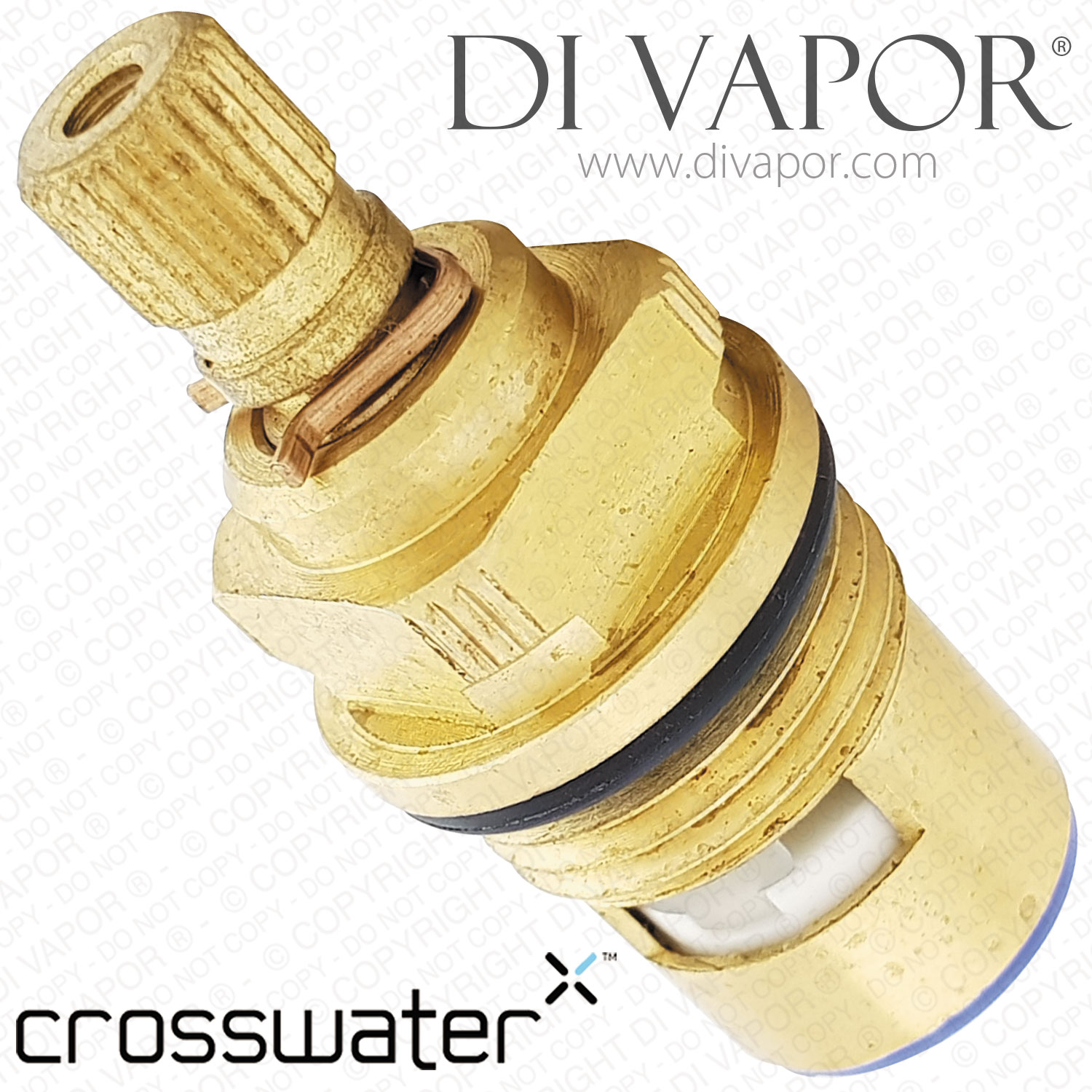

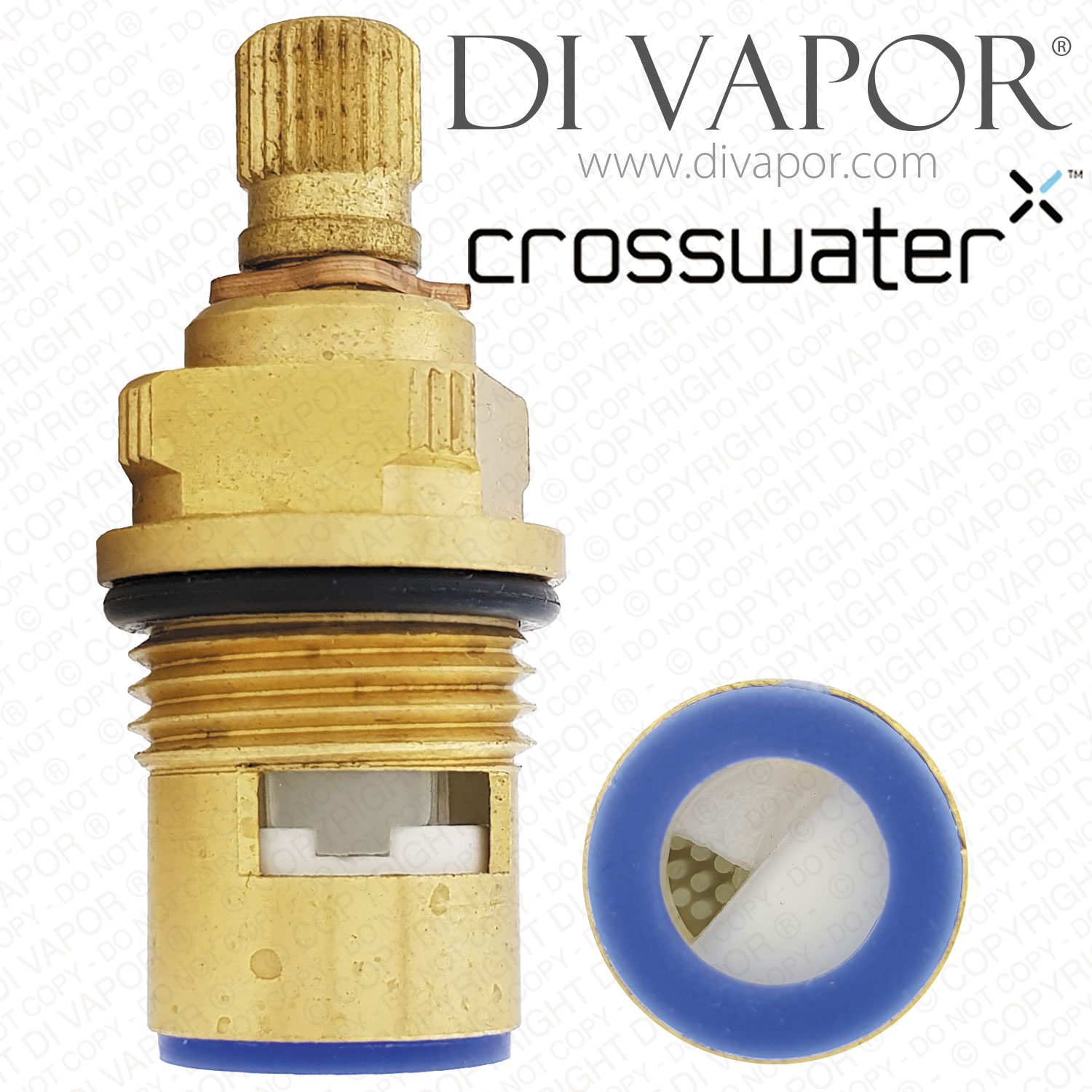

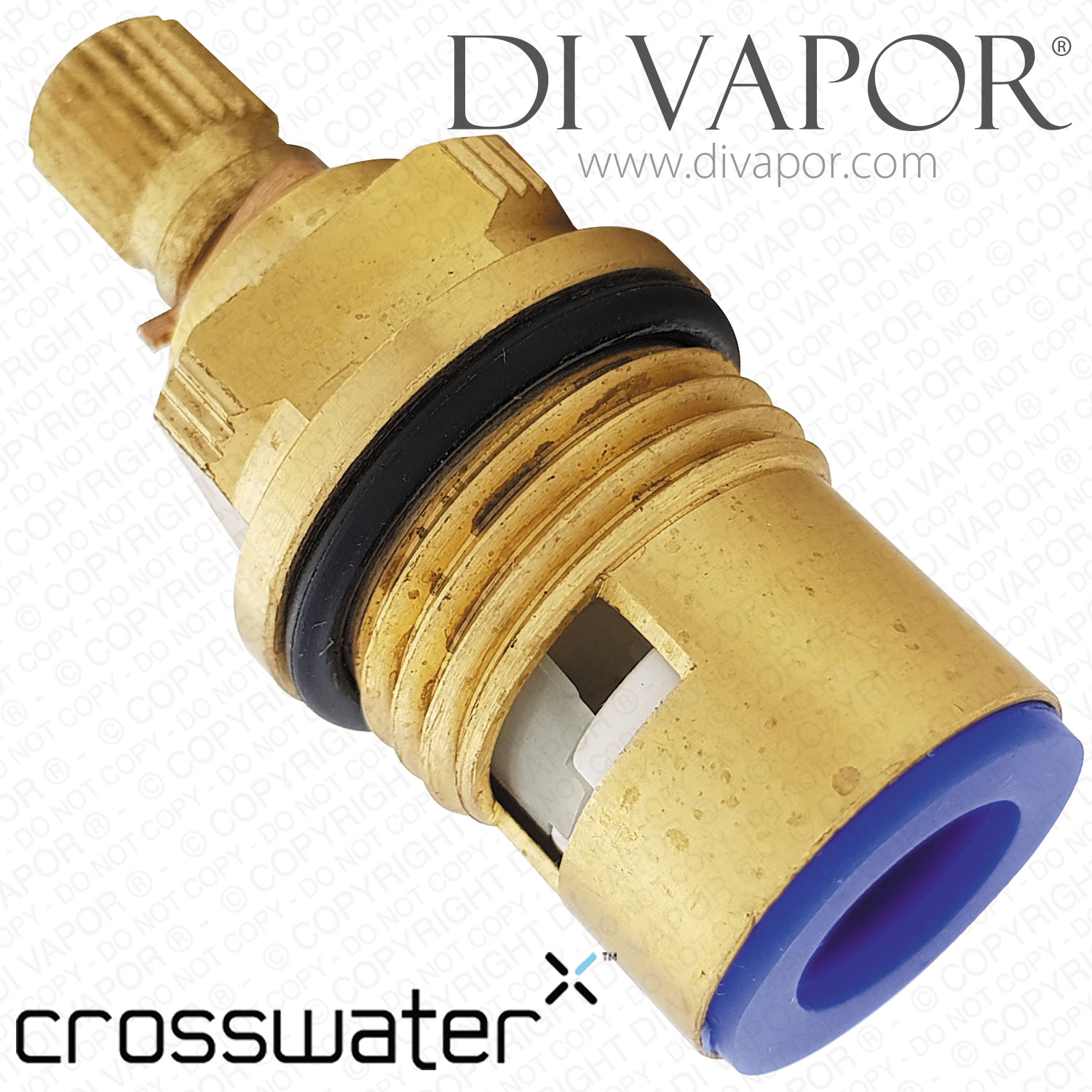

Crosswater CG1210FA1 Flow Cartridge for Shower Valves
CG1210FA1 Crosswater Flow Cartridge Measurements:
| Total Length (including bottom seal) | 51.7mm |
|---|---|
| Diameter at Widest Point | 22.8mm |
| Top Spline Diameter | 9.6mm |
| Top Spline Teeth / Notches | 24 |
| Barrel Diameter | 18.6mm |
| Lower Thread | 1/2" |
| Bottom Seal Colour | Blue (for Cold Side) |
| Close Direction | Clockwise Close (Anti-Clockwise Open) |
| Turn | Half turn (180 degrees) |
Shower Spares Common Questions: Crosswater CG1210FA1 Flow Cartridge
The Crosswater CG1210FA1 is used in shower valves Crosswater Kai bar valve EV1210EC and bath shower mixer EV1211EC. It controls the amount of water flow. These are some of the most frequent questions and answers regarding this shower spare part.
Question: Do I need a Crosswater CG1210FA1 if the shower valve will not turn off?
Answer: If the EV1210EC or EV1211EC will not shut off there might be a problem with its flow cartridge. A replacement CG1210FA1 Crosswater flow cartridge will likely allow your shower to turn off again.
Question: Why is my shower dripping from the shower head?
Answer: A dripping shower head may suggest that limescale or dirt has collected and is blocking the ceramic disc of the Crosswater CG1210FA1 flow cartridge. A replacement cartridge may stop the leak.
Question: What are the other EV1210EC shower spares that are used with the Crosswater CG1210FA1?
Answer: Here is a list of Crosswater shower spares for Crosswater Kai EV1210EC:
- CG1210FA1 - Crosswater on/off flow cartridge
- LV1210FA1 - Crosswater on/off flow control lever handle
- TCG1210FA1 - Crosswater thermostatic cartridge
- LV1210FB1 - Crosswater temperature control lever handle
Question: Can the Crosswater flow cartridge CG1210FA1 fit in other shower valves?
Answer: Yes, the Crosswater CG1210FA1 flow cartridge will also fit in other shower valves. You can send us a photo of the shower valve or the cartridge and we will identify if this is the spare part you need. We will personally respond to your messages. (Weekend messages will be attended to on Monday.)
Question: Is the CG1210FA1 Crosswater cartridge for temperature problems? Our Crosswater shower was installed in 2015 and it is having problems with water temperature adjustment.
Answer: The Crosswater CG1210FA1 controls the water flow. What you need is a thermostatic cartridge for post-2014 valves (TCG1210FA2).
Question: Do you have a guide for replacing the Crosswater CG1210FA1 of the Kai bar valve?
Answer: Fitting the CG1210FA1 Crosswater flow cartridge for the Crosswater Kai EV1210EC or EV1211EC can be easily done with the right tools. Turn off the hot and cold water supplies prior to beginning the repair.
- Remove the flow handle’s circular cover cap at the side of the bar shower or bath mixer. This can be done by hand or use a flat blade screwdriver to pop it out. Take extra care that the tool does not hurt the chrome finish.
- Use a screwdriver to undo the handle’s retaining screw. Remove the small washer together with the screw.
- Separate the flow handle from the valve and use an adjustable spanner to unscrew the faulty cartridge.
You can now proceed to replace the CG1210FA1 Crosswater flow cartridge of the Crosswater Kai EV1210EC or EV1211EC.
