Crosswater TCG1210FA2 Spare Metro Exposed Valve EV121EC Cartridge AFTER 2014

SUMMARY

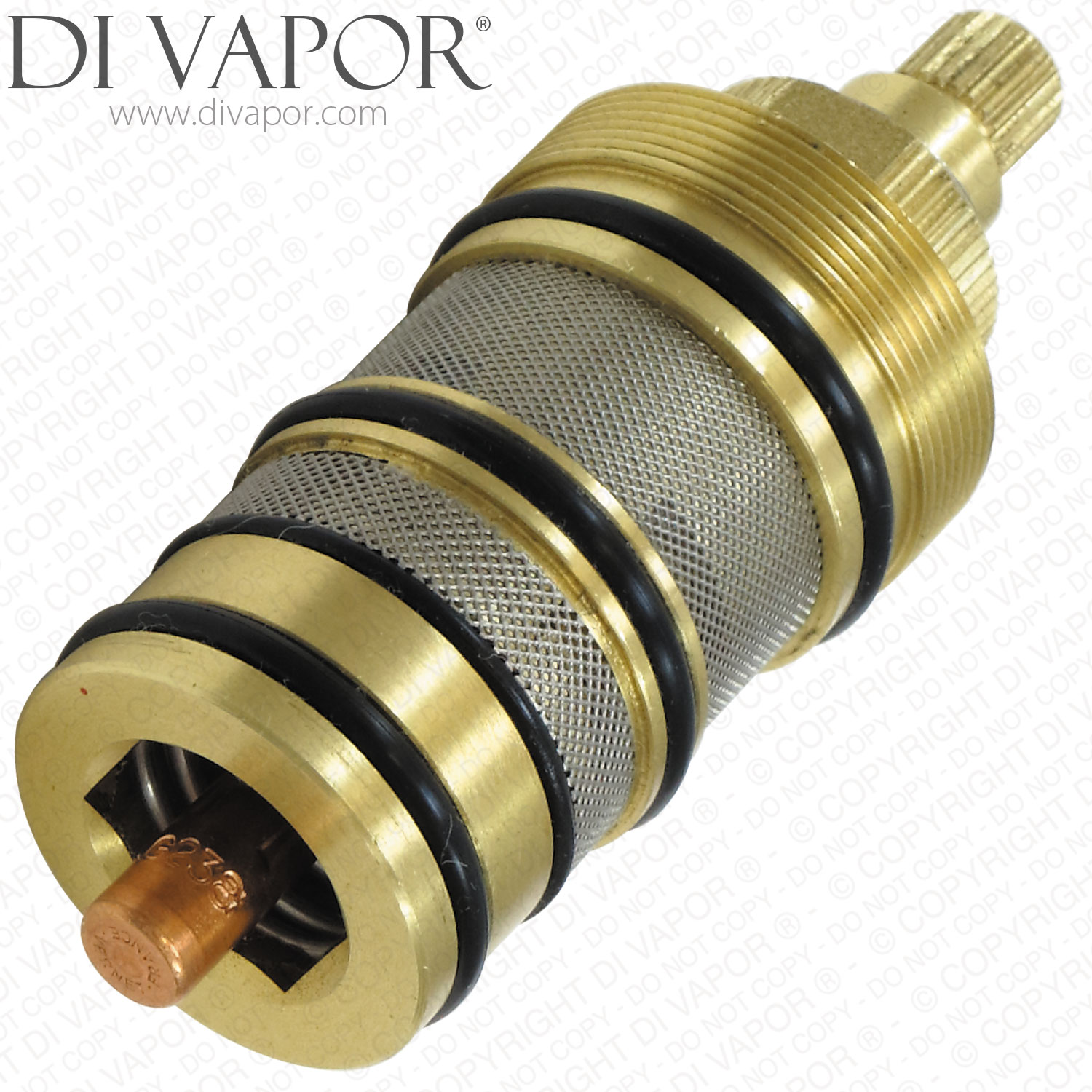

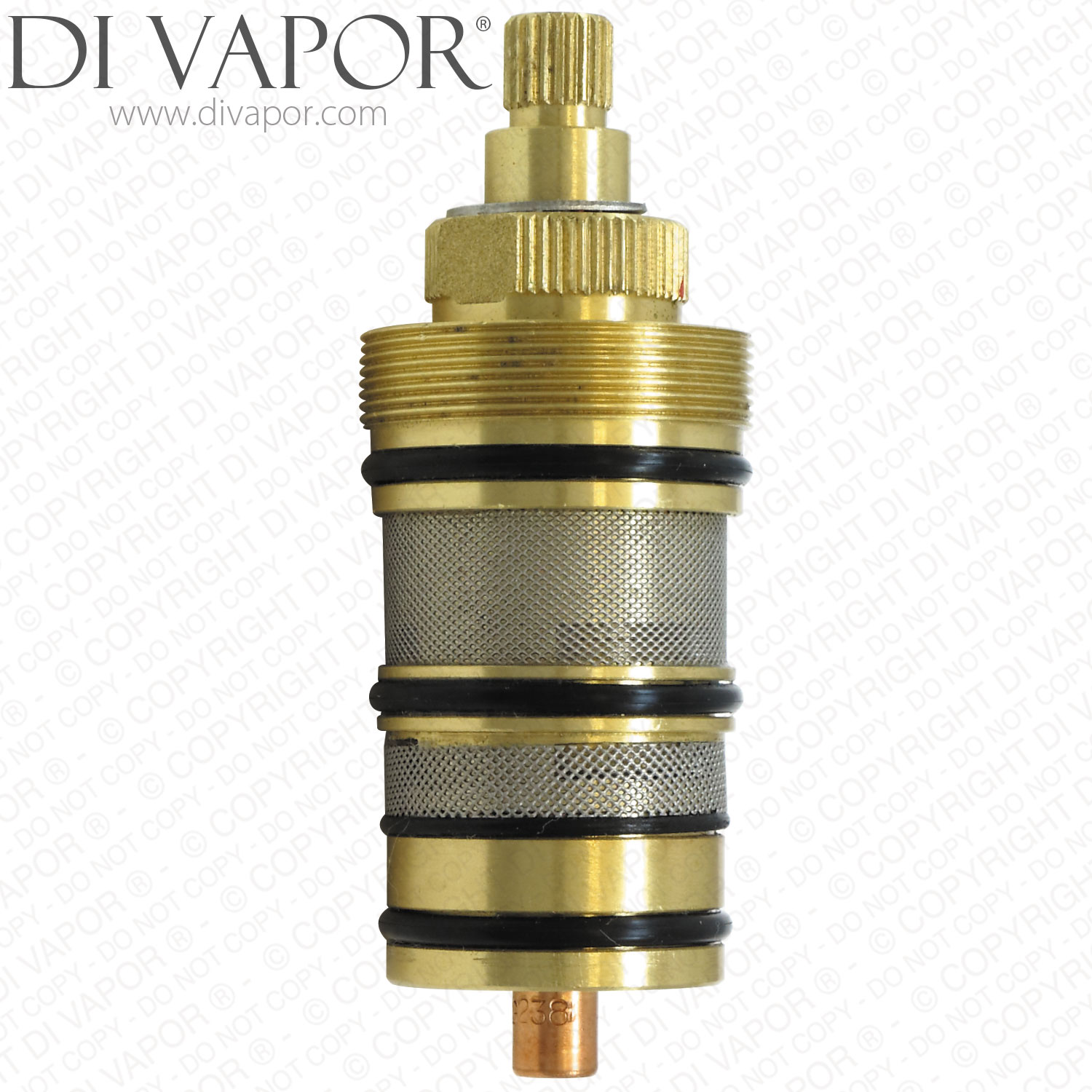

Crosswater TCG1210FA2 Thermostatic Cartridge for Kai EV1210EC and EV1211EC 2014 Onwards

Crosswater TCG1210FA2 is a thermostatic cartridge for the 2014 onwards versions of the Kai EV1210EC exposed thermostatic shower valve and Kai EV1211EC thermostatic bath shower mixer.

It regulates the mixed water temperature through the valve's temperature control. On/off operation and flow adjustment are handled by a separate flow cartridge. Persistent dripping from the shower head or bath spout when the valve is turned off can indicate a problem with the flow cartridge, so check this before ordering a thermostatic cartridge.

Technical Details

- - Brand: Crosswater

- - Part code: TCG1210FA2

- - Body material: Brass

- - Fitting: Threaded screw-in

- - Handle spindle: 24 splines

- - O-rings: 4

- - Valve version: 2014 onwards

Confirmed Compatible Models

- - Crosswater Kai EV1210EC exposed thermostatic shower valve - 2014 onwards versions

- - Crosswater Kai EV1211EC thermostatic bath shower mixer - 2014 onwards versions

- - Crosswater EV121EC - 2014 onwards version

Check Before Ordering

Check the valve version and compare the original cartridge's body, thread, spindle and seals with the product photographs. Do not rely on the installation year alone or assume that TCG1210FA1 and TCG1210FA2 are interchangeable.

Servicing

Temperature problems can also result from supply faults, blocked filters or incorrect temperature adjustment. Check these before replacing the cartridge. Isolate the hot and cold water supplies before servicing, keep the valve body free of debris and lightly lubricate the cartridge seals with suitable silicone grease. After fitting, check for leaks and set the temperature control in accordance with the valve instructions.

Related Spares You May Need

Match the handle version to the existing components before ordering.

- - TACSIL 3g cartridge silicone grease (TAC86) for lubricating cartridge seals

- - Crosswater CG1210FA2 on/off flow cartridge

- - Crosswater LV1210FA2 lever handle

- - Crosswater LV1210FB2 chrome handle

Use our part identification service if you need help choosing the right cartridge.
