Crosswater LV1210FA1 On/​Off Lever Handle Used on EV1210EC Shower Bars

SUMMARY

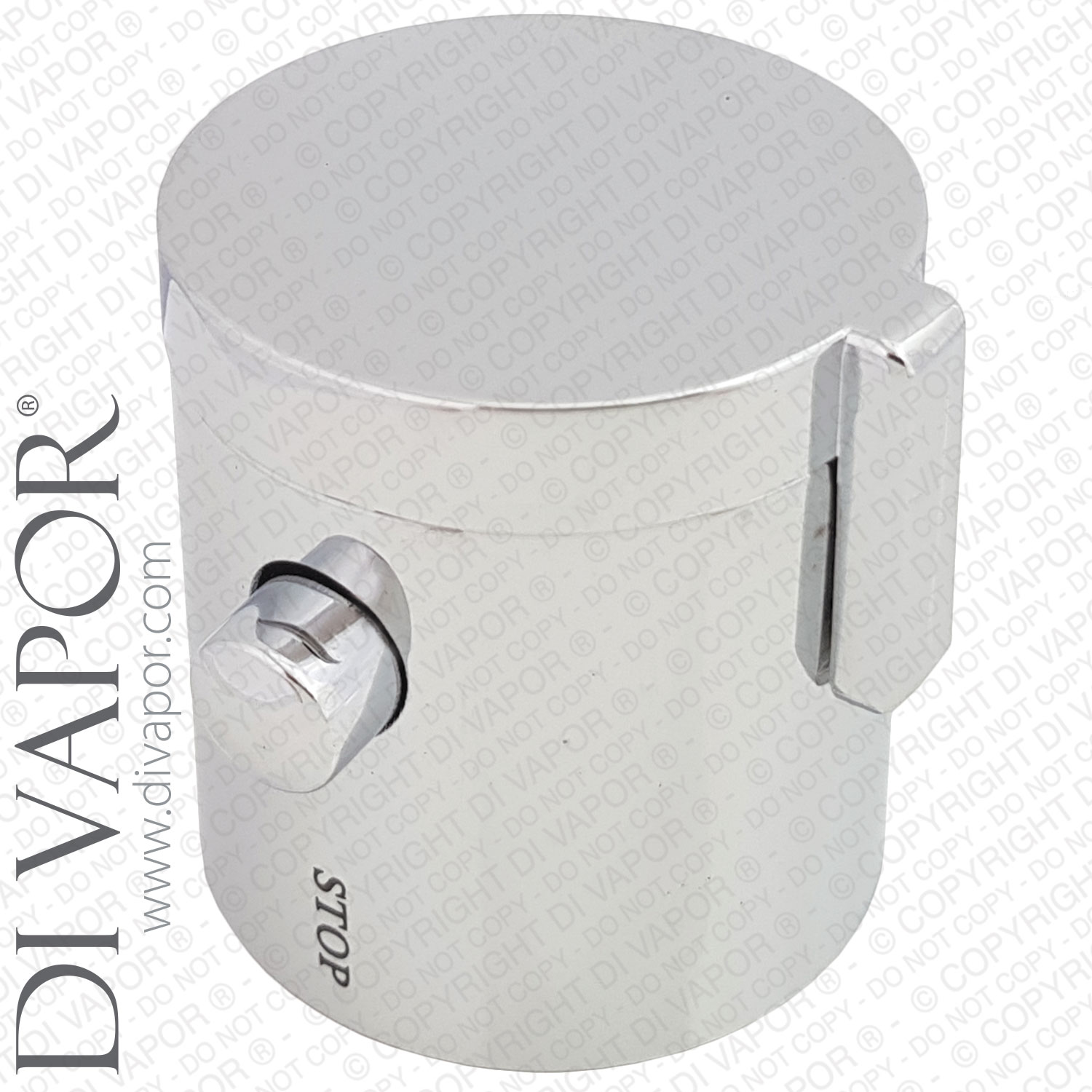

Crosswater LV1210FA1 Chrome On/Off Lever Handle for Kai EV1210EC Shower Valves and EV1211EC Bath Shower Mixers

Crosswater LV1210FA1 is a chrome on/off flow-control lever handle for older-generation Kai EV1210EC exposed thermostatic shower valves and EV1211EC thermostatic bath shower mixers.

The handle fits over the flow cartridge spindle to turn the water on and off and adjust the flow. It is the external operating handle, not the flow cartridge or the separate temperature-control handle.

Technical Details

- - Part code: LV1210FA1

- - Part type: On/off flow-control lever handle

- - Finish: Chrome

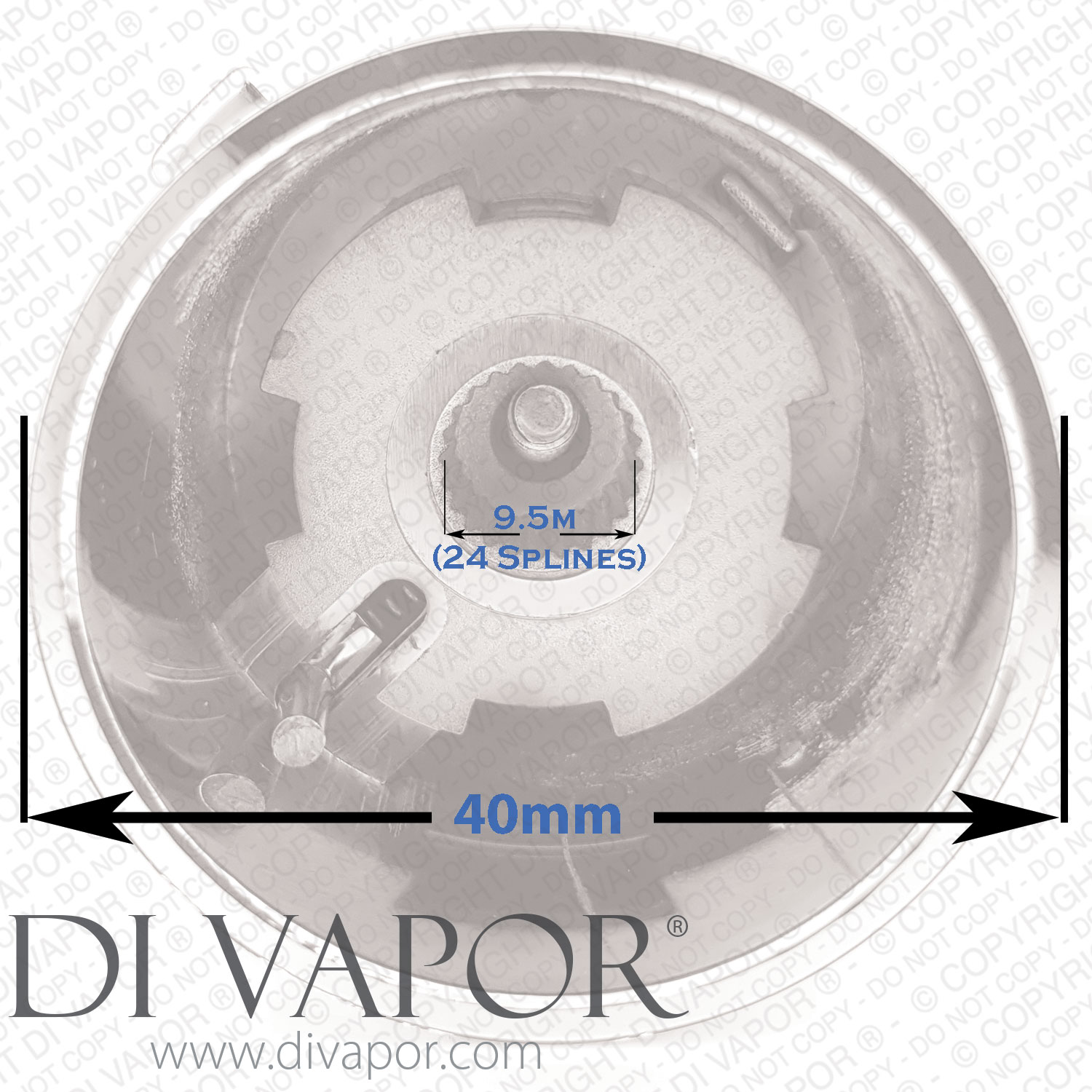

- - External diameter at the base: 39.6mm

- - Overall height: 45mm

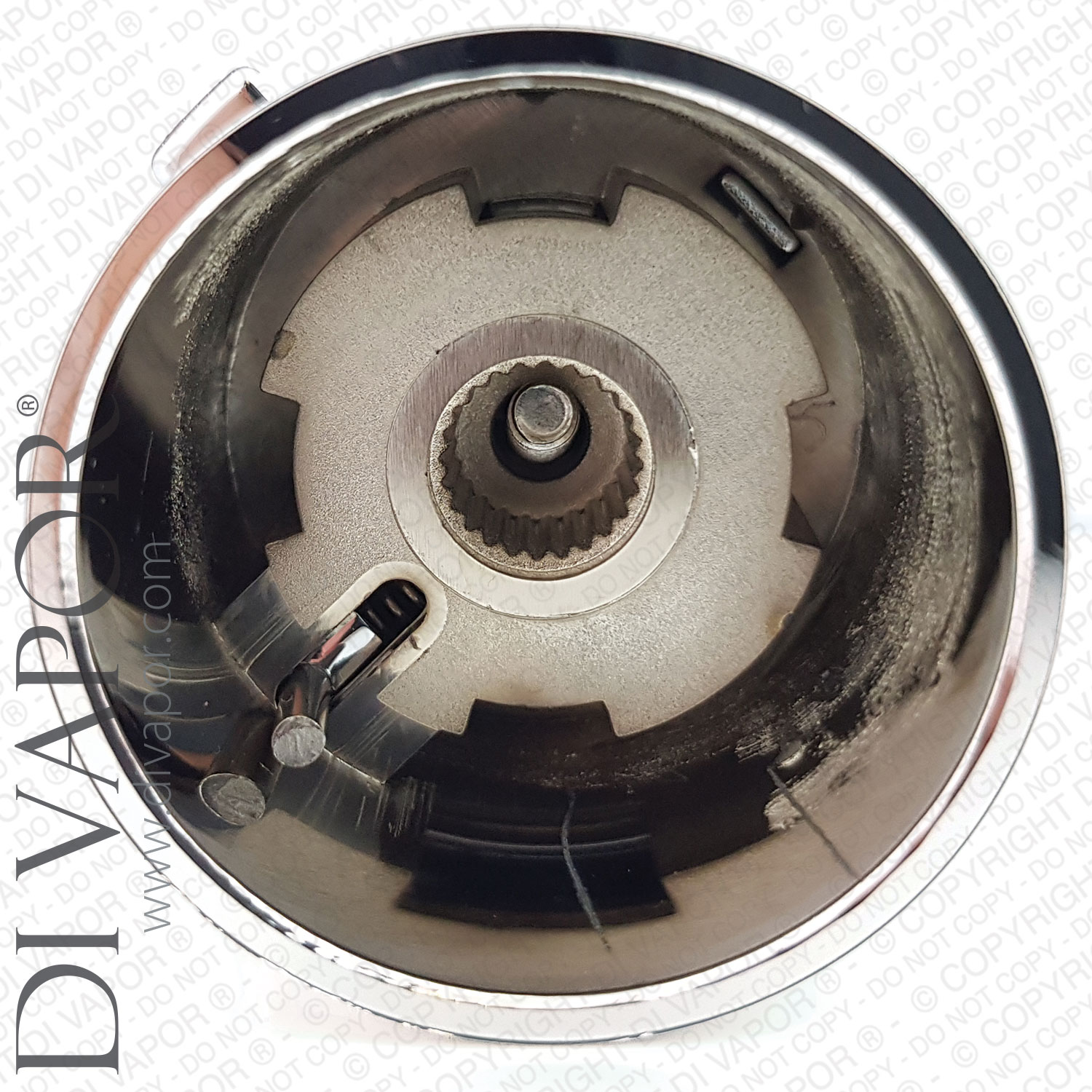

- - Cartridge spindle connection: 24 splines with a 9.5mm diameter

- - Fixing arrangement: Retaining screw beneath a circular end cap

- - Bathstore catalogue cross-reference: 90000014080

Confirmed Compatible Models

- - Crosswater Kai EV1210EC exposed thermostatic shower valve - pre-2014 version

- - Crosswater Kai EV1211EC thermostatic bath shower mixer - older-generation version using LV1210FA1

Check Before Ordering

Compare the existing handle, part code, spline connection and fixing arrangement before ordering. LV1210FA1 is the pre-2014 EV1210EC handle; LV1210FA2 is a later-generation part and should not be assumed to be interchangeable. Dimensions and an approximate installation date alone are not enough to establish fitment.

Fitting and Fault Checks

The existing handle is secured by a screw and washer beneath its circular end cap. Remove the cap carefully to avoid marking the chrome finish, then undo the screw and remove the washer before withdrawing the handle. Check the condition of the existing cap, screw and washer before fitting.

A damaged or worn handle can prevent the cartridge spindle from being operated correctly. If the handle turns the spindle but water continues to drip from the shower head when switched off, the CG1210FA1 flow cartridge may need attention rather than the handle. Replacing this handle does not repair the internal sealing mechanism.

Related Spares You May Need

- - Crosswater CG1210FA1 On/Off Flow Cartridge - the flow-control cartridge operated by this handle

- - Crosswater LV1210FB1 Temperature Control Lever Handle - the separate temperature-control handle for the older-generation valve arrangement

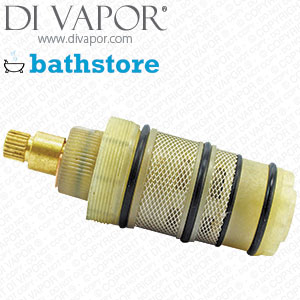

- - Crosswater TCG1210FA1 Thermostatic Cartridge - the temperature-regulating cartridge for older-generation EV1210EC and EV1211EC valves

Use our part identification service if you need help finding the right handle.
