Bristan 00622130 3/​4" Cold Flow Control Cartridge Replacement for Prism Concealed Shower Valves

Summary

Bristan 00622130 3/4 Inch Cold Flow Control Cartridge Replacement for Prism Concealed Shower Valves - Compatible Cartridge

This is a genuine Bristan spare part. It is used is:

• Bristan 1901 2 Control Concealed Shower
• Bristan 1901 3 Control Concealed Shower
• Bristan Chill 3 Control Shower with Stopcock and Two Outlets
• Bristan Chill 3 Control Concealed Shower
• Bristan Chill 2 Control Concealed Shower
• Bristan Nero 2 Control Concealed Shower
• Bristan Prism 3 Control Concealed Shower (Landscape and Portrait)
• Bristan Prism 3 Control Concealed Shower with Diverter
• Bristan Prism 2 Control Shower
• Bristan Qube 2 Control Thermostatic Shower

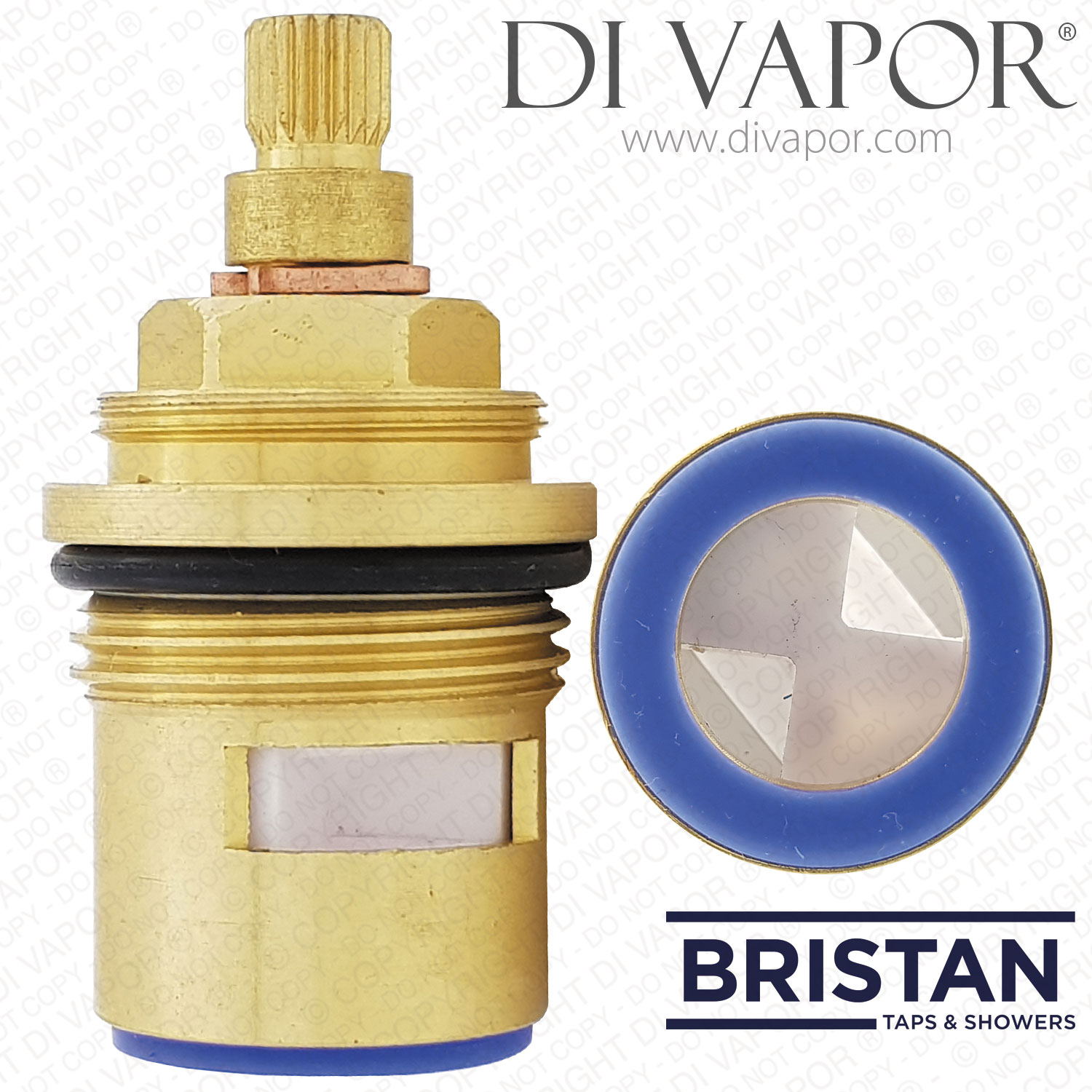

Bristan 00622130 brass screw-in flow-control cartridge for selected Bristan Prism, 1901, Chill, Nero and Qube thermostatic shower valves. This is the cold/right-hand version with clockwise shut-off and a 20-spline spindle.

The quarter-turn ceramic-disc mechanism controls water flow and closes the waterway when the flow handle is turned off. This is a flow-control cartridge, not the separate thermostatic cartridge that regulates the shower temperature.

Technical Details

Before Ordering

Check the exact shower model and valve version, then compare the removed cartridge's overall length, threaded sections, spindle, spline count and closing direction. Bristan used different cartridges across different generations of the same shower ranges, so the range name, thread size or seal colour alone is not enough to identify the correct part.

Take particular care with Prism PM TSHCVO C and 1901 concealed dual-control valves because these model names cover different flow-cartridge versions. The model entries below apply to the versions fitted with 00622130. Do not confuse this clockwise-closing cartridge with the opposite-closing 00622131.

Confirmed Compatible Models

• Bristan Prism PM SHC3STPP C concealed three-control shower valve - portrait
• Bristan Prism PM SHC3STPL C concealed three-control shower valve - landscape
• Bristan Prism PM SHC3DIV C concealed three-control shower valve with diverter
• Bristan Prism PM TSHCVO C concealed dual-control shower valve - check the cartridge version before ordering
• Bristan Chill CL SHCVO C concealed dual-control shower valve
• Bristan Chill CL SHC3DIV C concealed thermostatic shower with diverter and stopcock
• Bristan Chill CL SHC3DIV CB three-control thermostatic concealed shower valve
• Bristan Nero NR SHCVO C concealed dual-control shower valve
• Bristan Qube QU SHCVO C concealed dual-control shower valve
• Bristan 1901 N SHC3STPP C three-control concealed shower valve
• Bristan 1901 concealed three-control shower valve - gold-finish version
• Bristan 1901 concealed dual-control shower valve - chrome and gold versions - check the cartridge version before ordering

Common Failure Symptoms

A worn or damaged flow cartridge can allow water to continue dripping from the shower head after the shower is turned off. Other possible symptoms include stiff operation or difficulty shutting the flow off fully. Continued dripping after residual water has drained can indicate a shut-off problem, but the cartridge and its seating should be checked before deciding which part to replace.

Related Spares You May Need

These parts are used in relevant versions of the shower systems listed above. They are separate items, not a service kit, and not every part is used in every valve. Check your exact model's component diagram before ordering additional spares.

• Bristan 00622415 screw-in thermostatic cartridge - separate temperature-control cartridge used in relevant valve versions
• Bristan 00622131 flow-control cartridge - opposite-closing companion cartridge for relevant Prism three-control arrangements; closes anticlockwise and is not a substitute for 00622130
• Bristan 00622206 diverter cartridge - outlet selector for relevant Chill and Prism diverter configurations
• Bristan NUT 04335CSET-BL compression nut and olive - connection components for relevant valve assemblies
• Bristan OR 08015 O-ring - 17.17mm x 1.78mm sealing ring for relevant valve connections
• Bristan WSHR 08210 fibre washer - 1/2" washer for relevant valve assemblies
• Bristan WSHR 27073 grey wall-outlet washer - for relevant wall-outlet assemblies
• Bristan 00515534 chrome shroud - trim component for relevant Prism valve assemblies; discontinued and listed for identification reference

Installation

Isolate both hot and cold water supplies before servicing the shower. Follow the instructions for the exact valve model, check the cartridge seating and seals, and test for leaks and complete shut-off after fitting. Use a qualified plumber if you are unsure about dismantling or identifying the valve.

Not sure which cartridge you need? Use the Di Vapor part identification service for help.
