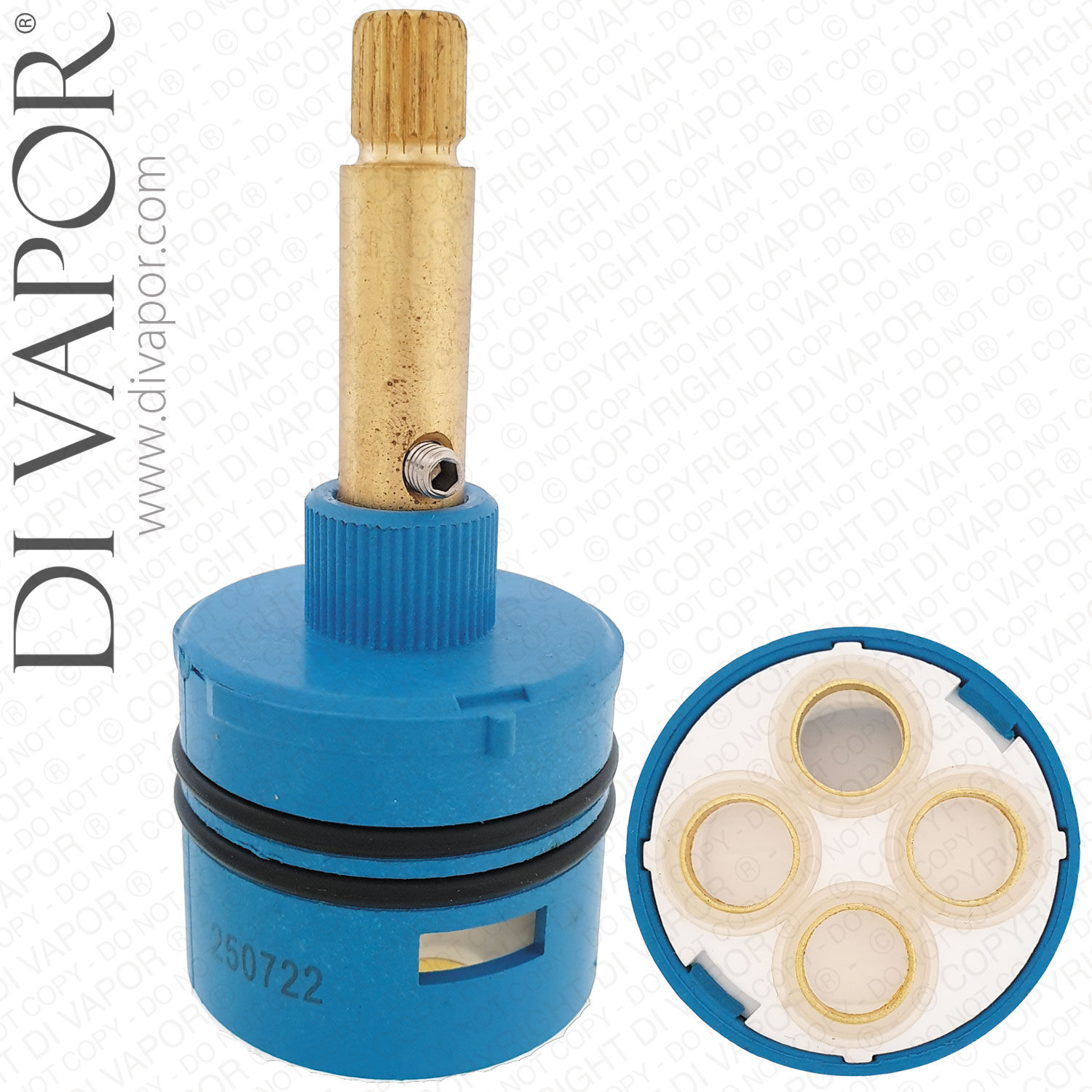

Pura FH TE01A Levo Diverter Cartridge

SUMMARY

The Pura FH-TE01A is a shower diverter cartridge used for selecting outlets on Pura Levo and Pura SmartBOX shower valve applications. It is the internal diverter control cartridge rather than the thermostatic temperature cartridge or the on/off flow cartridge.

This cartridge is used where the shower valve needs to divert water between outlets. A worn diverter cartridge can cause poor outlet selection, water passing to an unwanted outlet or dripping from a shower head or spout when the shower valve is turned off.

Technical Details

- - Part Number: FH-TE01A

- - Product type: shower diverter cartridge

- - Body material: plastic

- - Base diameter: 35mm

- - Length: 74mm to 74.1mm

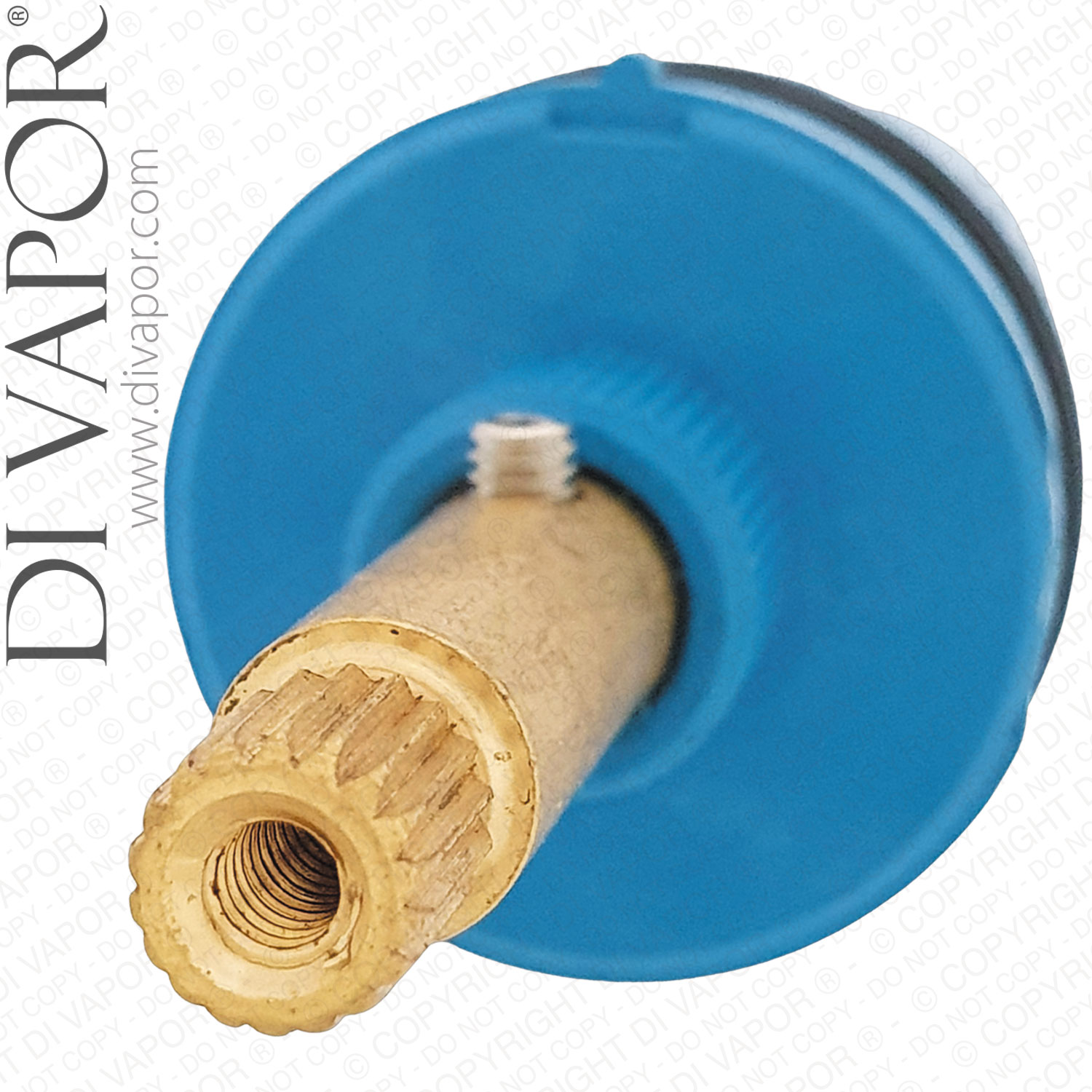

- - Spline diameter: 7.8mm

- - Splines: 18

- - Port layout: 4 port

- - Seal count: 2 seals

Confirmed Compatible Models

- - Pura Levo three outlet diverter thermostatic shower valve LV444

- - Pura SmartBOX SMBOX333

- - Pura SmartBOX SMBOX444

Before Ordering

Match the FH-TE01A code and compare the spline count, spline diameter, body diameter and overall length with the cartridge removed from the valve. Do not order from diameter alone, as diverter cartridges with similar measurements can have different porting and spindle arrangements.

Installation Note

Use a suitable silicone grease on the o-rings and bottom seals during installation. Do not use general-purpose grease on cartridge seals.

Related Spares You May Need

- - Pura Levo LV444 Flova Version Replacement Thermostatic Cartridge FH HW-V - LV444CT

- - Non-return Valve for Levo LV444 (FH NZ15-NP Compatible)

- - TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
