Niagara Equate 9312 Shower Valve Original Thermostatic Cartridge

SUMMARY

Niagara Equate 9312 Shower Valve Original Thermostatic Cartridge

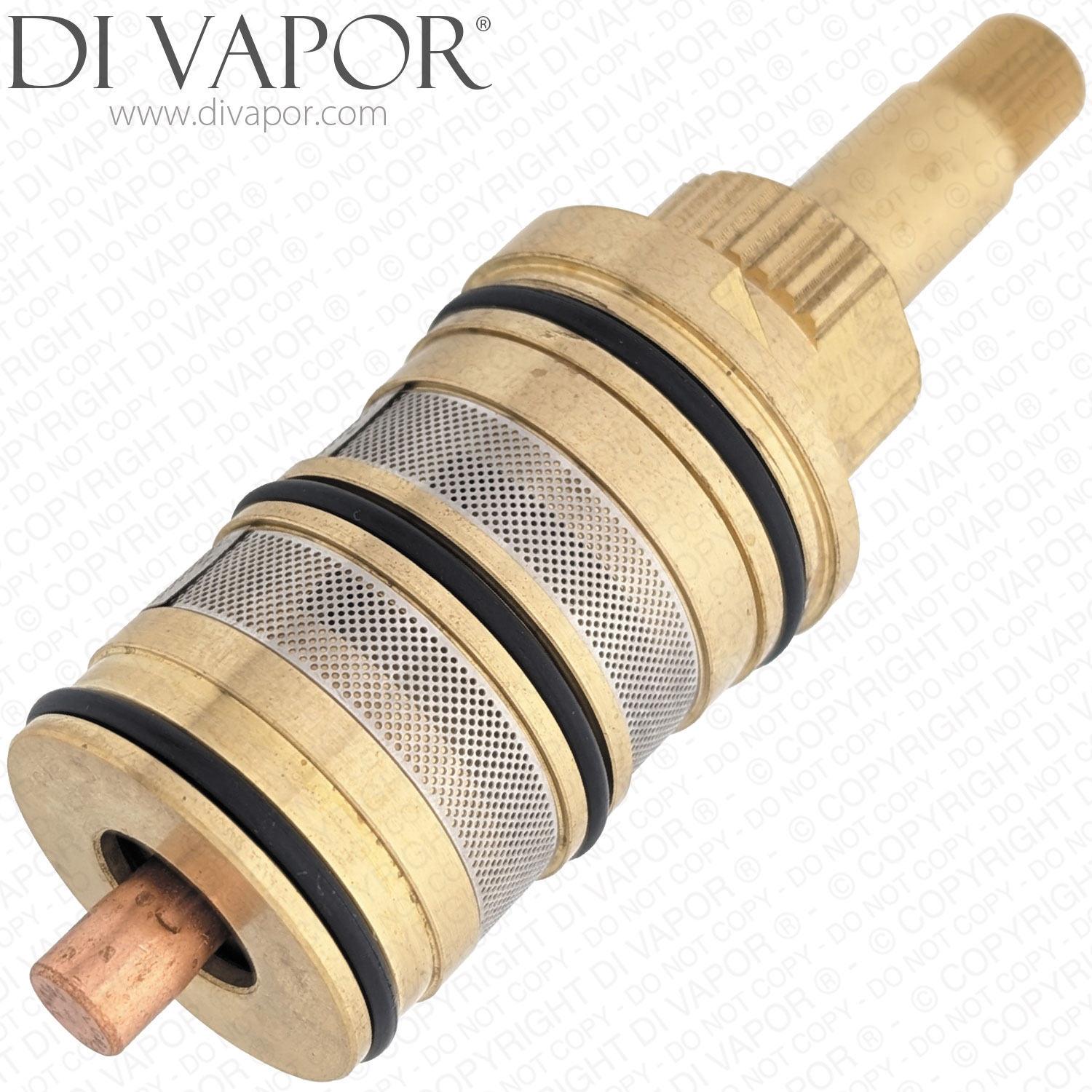

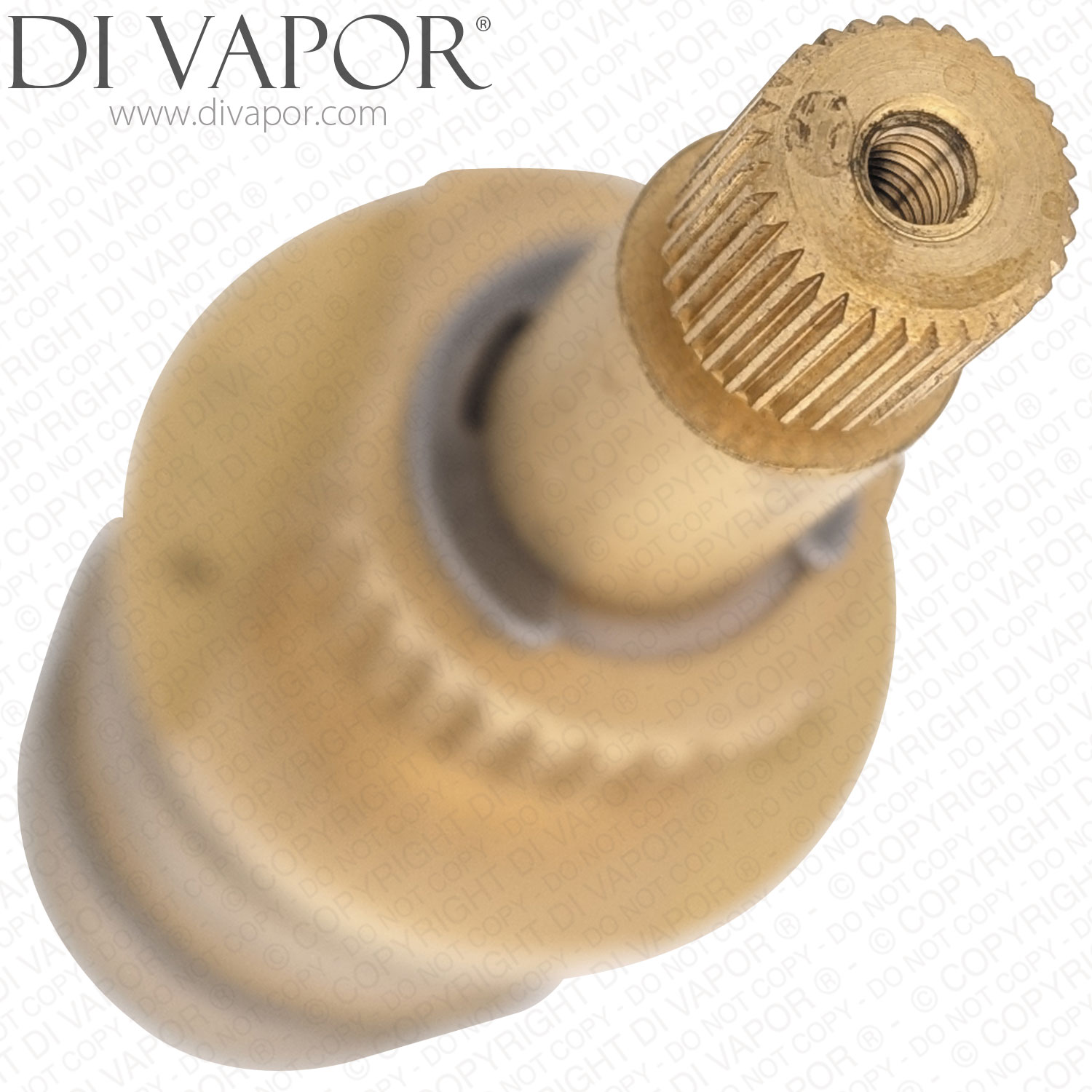

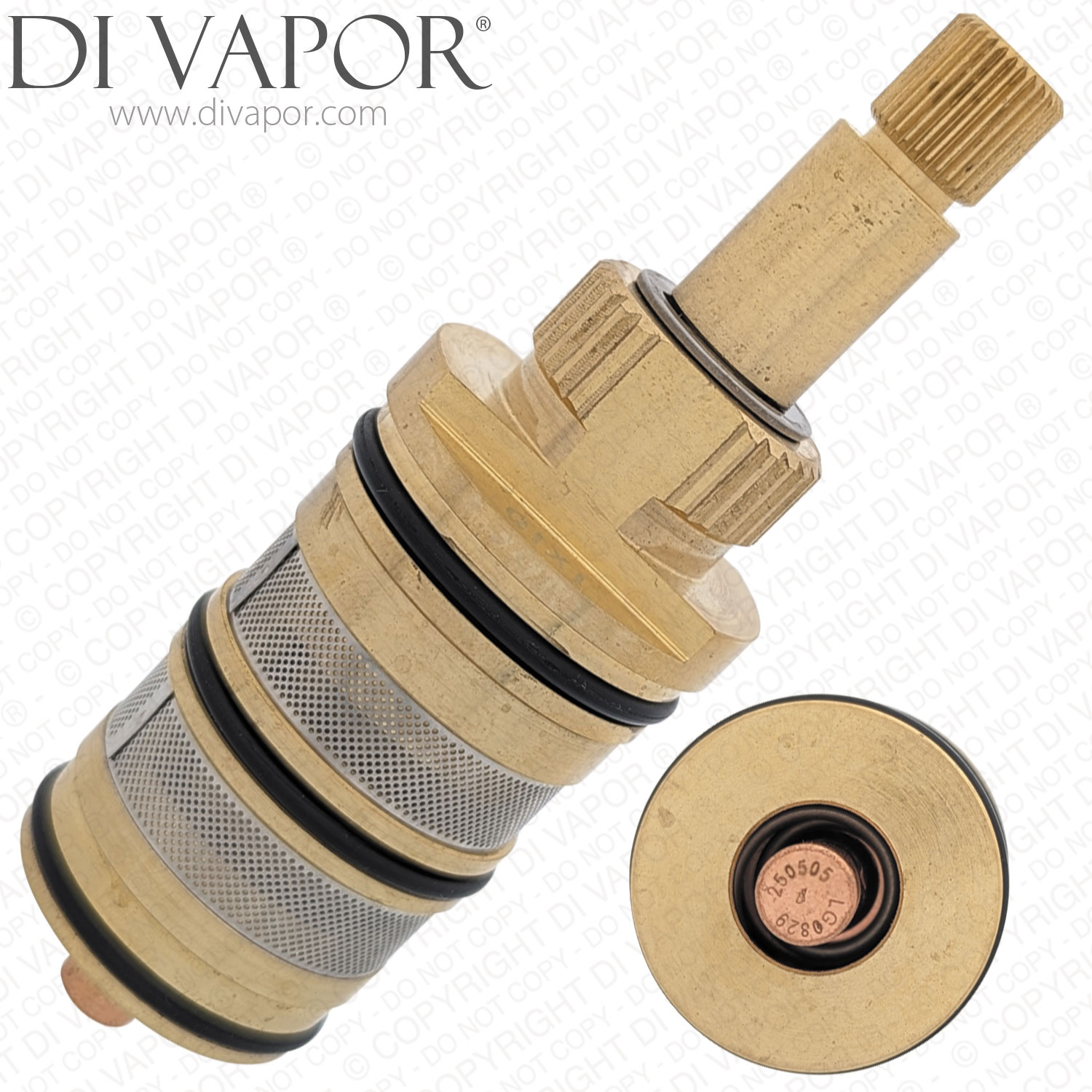

Niagara Equate 9312 NEX9312 is an original thermostatic cartridge for the Niagara Equate 9312 Round Twin concealed shower valve. It is the temperature-regulating cartridge within the valve and is used to restore controlled mixed-water temperature where the existing cartridge has become worn scaled or unresponsive.

The Niagara 9312 Round Twin valve is a concealed twin shower valve for one shower outlet such as a fixed shower head or slide rail kit. The valve uses separate controls for flow and temperature so this NEX9312 part should be checked against the temperature side of the valve rather than the flow control side before ordering.

Technical Details

- - Brand: Niagara

- - Part Number: NEX9312

- - Part type: original thermostatic cartridge

- - Valve application: Niagara Equate 9312 Round Twin concealed shower valve

- - Valve code: 9312

- - Valve type: twin concealed shower valve for one shower accessory

- - Minimum operating pressure for the 9312 valve: 0.5 Bar

- - The 9312 valve specification uses separate flow and temperature control

- - The 9312 valve specification includes thermostatic temperature control to help maintain stable showering temperature

- - The 9312 valve specification includes a ceramic disc flow control cartridge as a separate service part

- - The 9312 valve specification includes automatic shut-off in the event of cold water supply failure

- - The 9312 valve specification includes a 38°C factory-set temperature stop

Common Faults This Part Can Help With

- - Shower temperature fluctuates during use

- - Water runs too hot or too cold even when the handle is adjusted

- - Temperature control feels stiff or no longer responds correctly

- - The shower will not maintain a comfortable mixed temperature after cleaning filters and checking supplies

Before You Order

Check that the shower valve is the Niagara Equate 9312 Round Twin concealed valve and compare the existing thermostatic cartridge with NEX9312 before ordering. If the shower fault is no water shut-off or dripping from the outlet when turned off the flow cartridge should also be checked because the flow control is a separate cartridge on this valve.

Confirmed Compatible Models

- - Niagara Equate 9312 Round Twin concealed shower valve

Related Spares You May Need

- - Niagara Equate 9312 Shower Valve Flow Cartridge - Compatible Spare

- - Niagara Equate 9312 Shower Valve Flow Handle - Compatible Spare

- - Niagara Equate 9312 Shower Valve Temperature Handle - Compatible Spare

- - Niagara Shower Valve Non-Return Check Valve Assembly

- - Niagara Equate 9312 Shower Valve Non-Return Valve Housing - Compatible Spare

- - Flow Control Handle Adapter Used on Same Valve as Niagara NEX9312 Thermostatic Cartridge

- - TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
