NF Alpi CR010N 35mm Diverter Cartridge
Send us a photo of your existing item and we'll help you confirm.
Summary

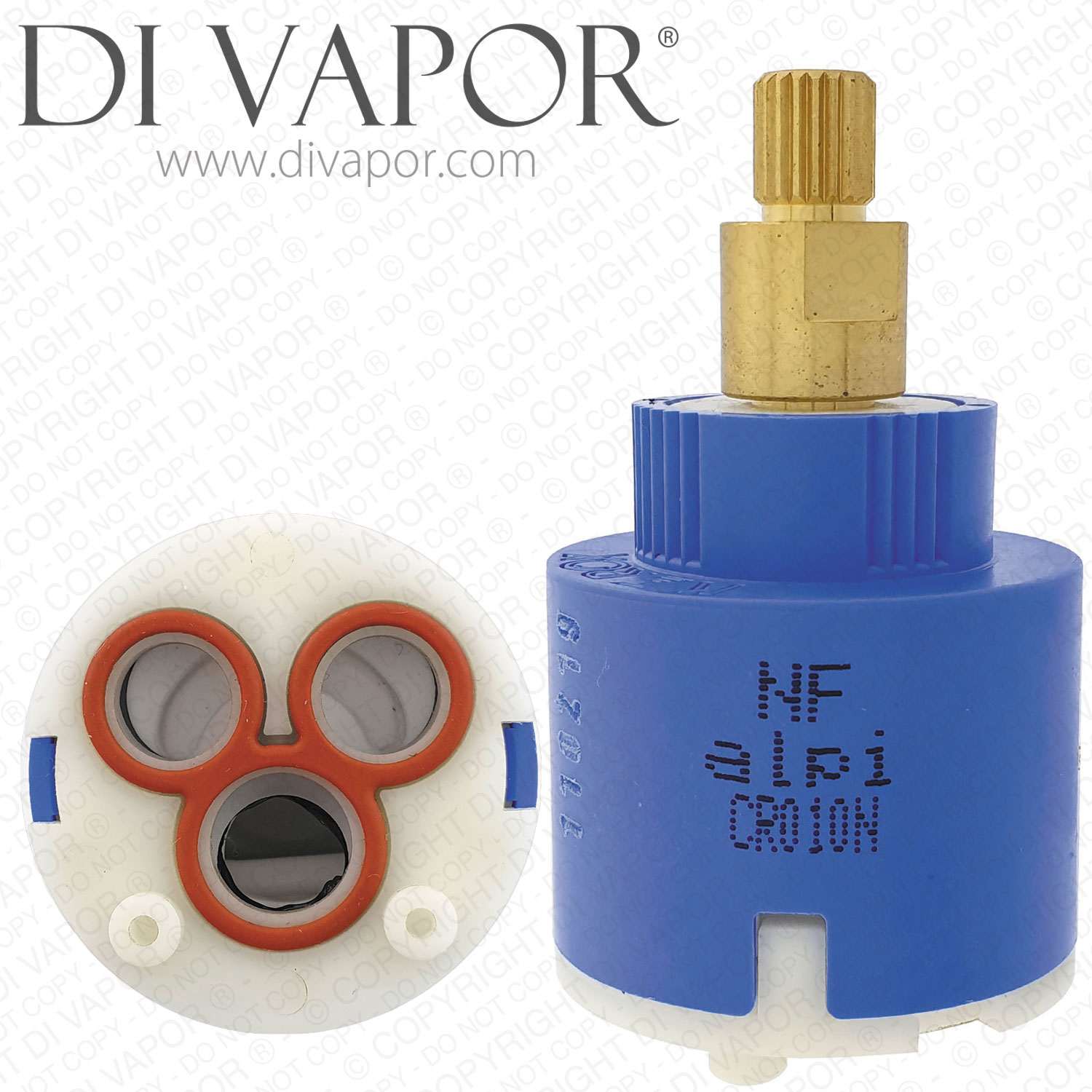

NF Alpi CR010N 35mm Diverter Cartridge
The NF Alpi CR010N is a 35mm shower diverter cartridge used inside a valve body to control the diversion of water between shower outlets or bath and shower functions where the removed cartridge matches CR010N.
This ceramic disc diverter cartridge is designed for outlet selection rather than temperature control. A failing diverter cartridge can cause stiff operation, poor outlet switching or water dripping from the shower head or spout when the shower or tap is turned off.
Technical Details
| Part Number | CR010N |
|---|---|
| Cartridge type | 2-way ceramic disc diverter cartridge |
| Diameter | 35mm |
| Total height | 60mm |
| Spline count | 20 splines |
| Spline detail | 8mm x Z20 |
| Closure angle | 24 degrees |
Pre-Order Check
Remove the existing cartridge and compare the body diameter, total height, spline count and base shape before ordering. Do not select this part from the 35mm diameter alone because diverter cartridges with the same nominal size can have different outlet paths, spline profiles and seating arrangements.
Installation Note
Isolate the hot and cold water supplies before removing the valve trim and cartridge. Clean the valve bore and apply a suitable silicone grease to the cartridge O-rings and bottom seals before refitting to help protect the seals during installation.
