Summary

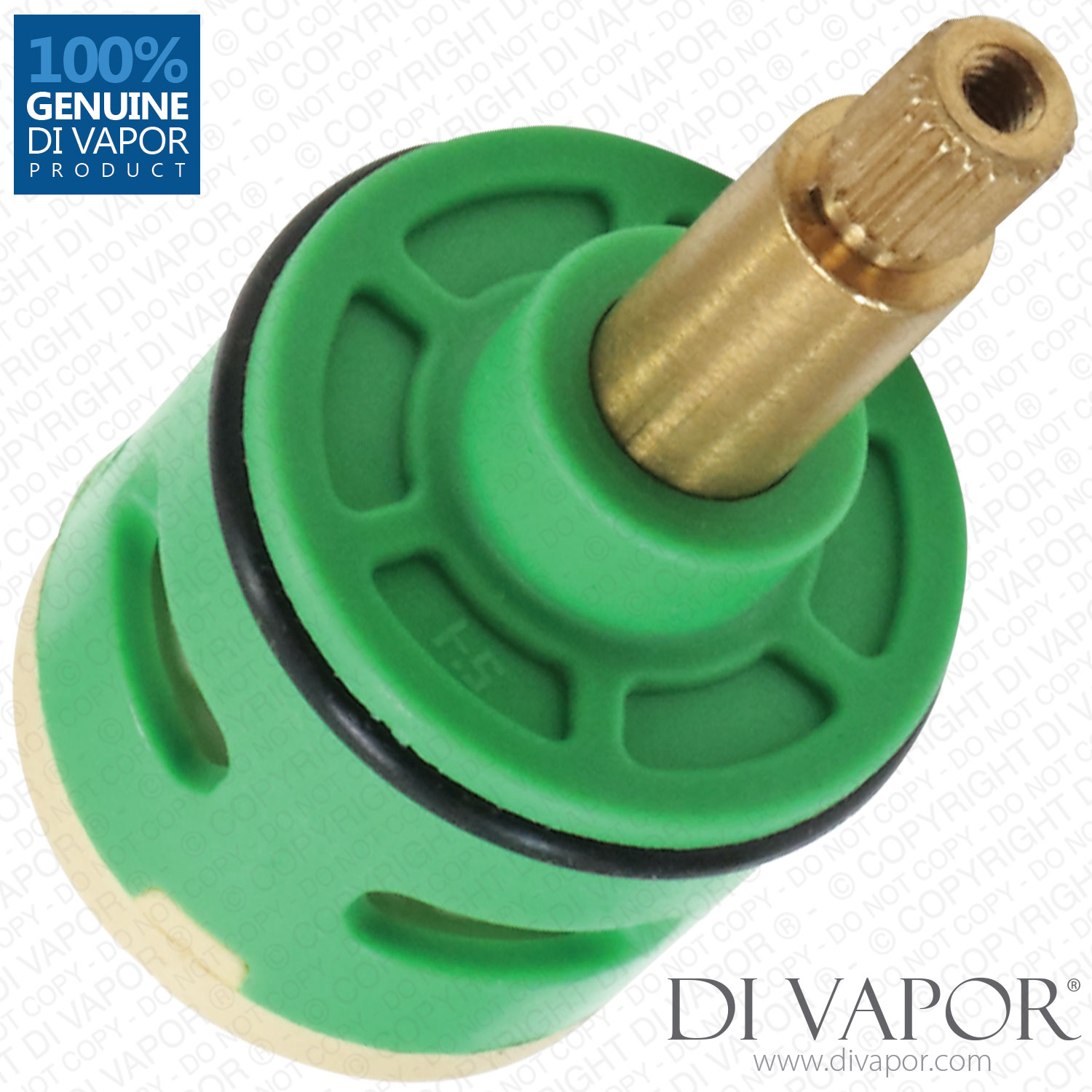

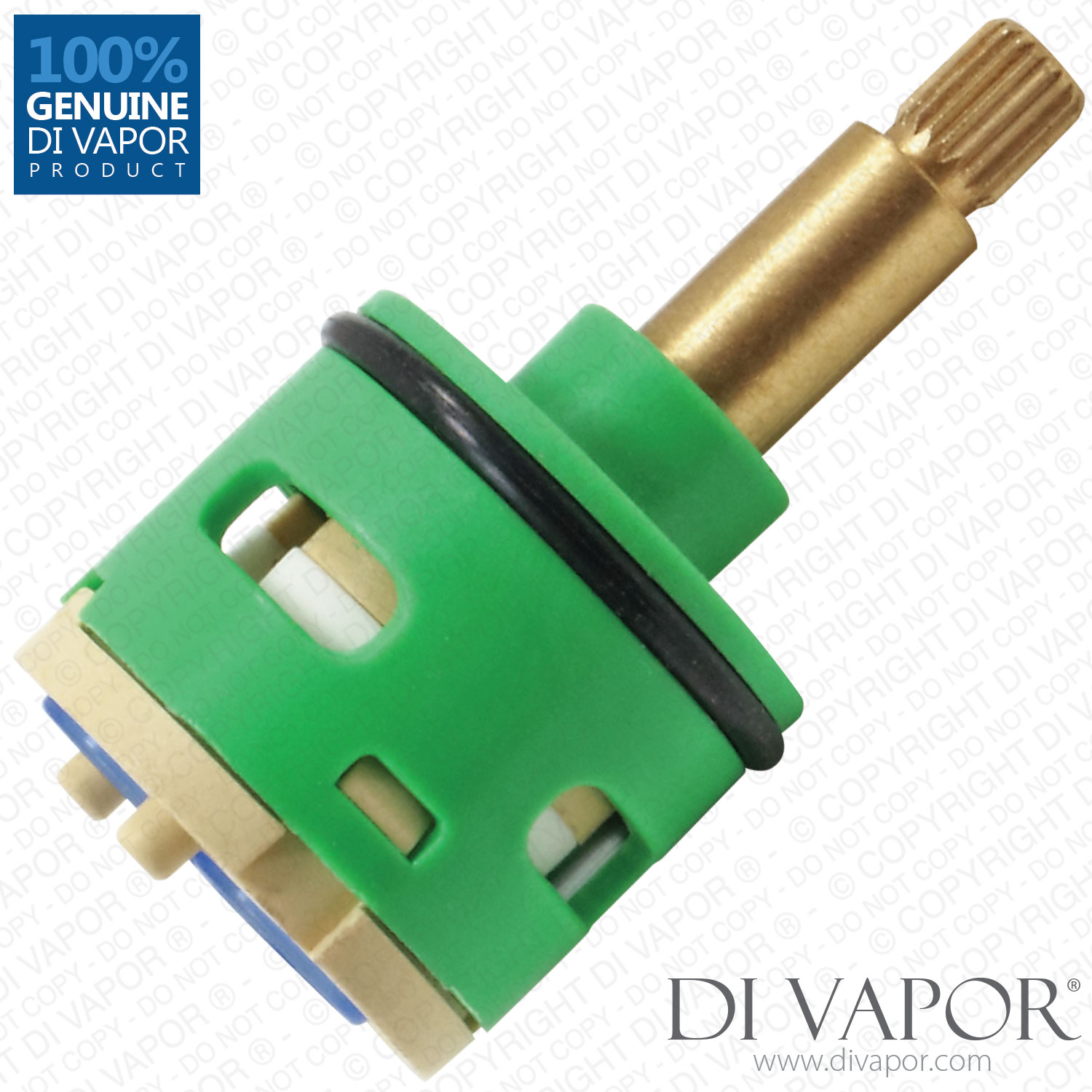

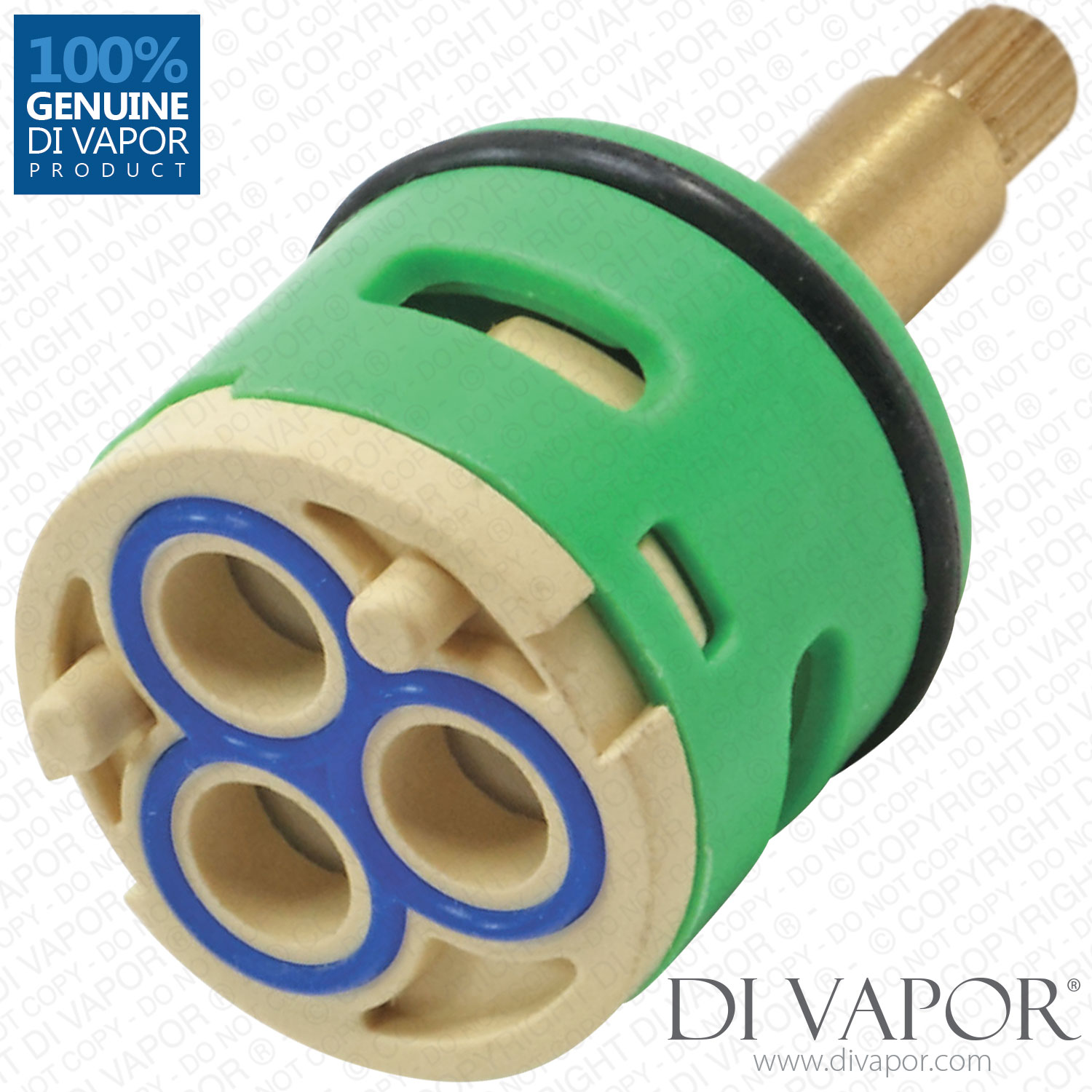

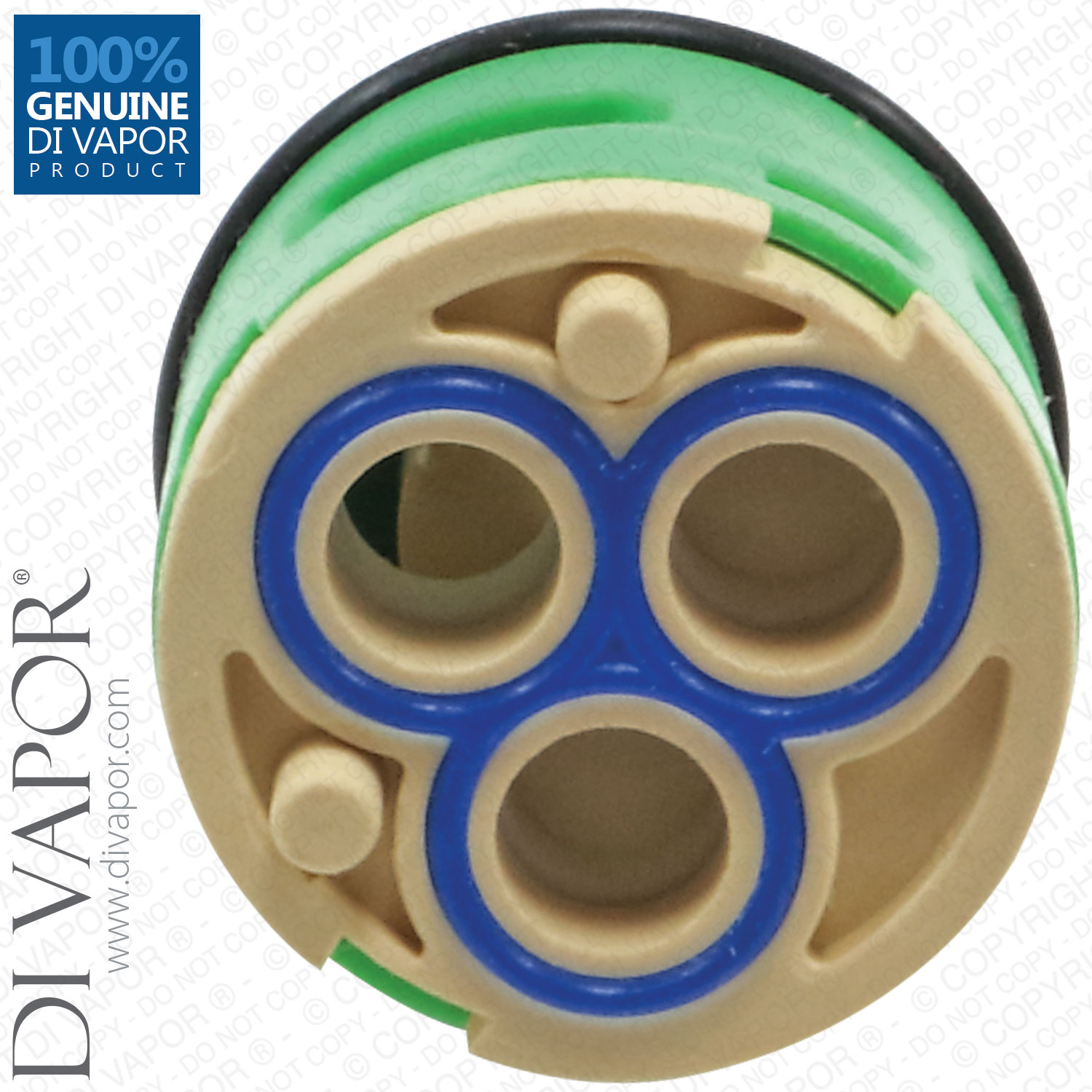

Genuine Di Vapor three way diverter cartridge. This diverter cartridge is used to switch water flow between three different functions in the shower. They are quite often used in luxury enclosures such as steam showers which have lots of different water function features.

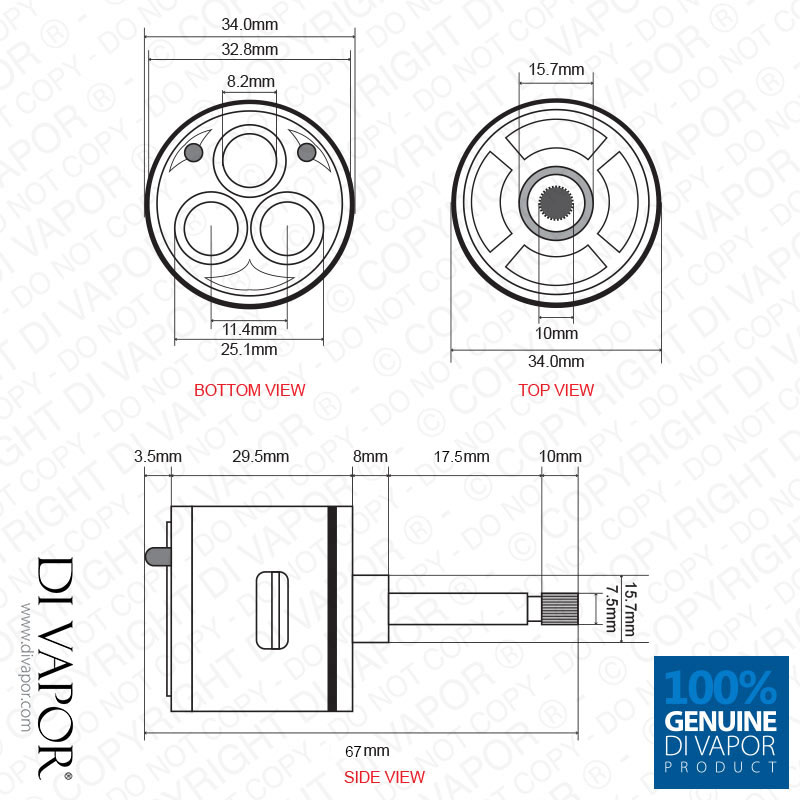

For detailed measurements please take a look at the technical diagram in the photos above.

Brief Technical Overview

67mm (6.7cm)

33mm at plastic and 34mm at O-ring

28mm (2.8cm)

20

19.7mm from locating pin centre to centre

Is it time to replace the steam shower’s 3-way diverter cartridge?

These are the three of the most common problems that indicate the diverter cartridge is about to wear out.

Once every few years the shower valve part will require a new replacement. Limescale (especially if you live in an area with high levels of hard water) and wear and tear are among the most prominent factors that bring about the end of a 3-way diverter cartridge’s life span.

1. Leaks

Is one outlet of the shower leaking while another is in use? One of the causes of this might be a build-up of limescale in and around the 3-way diverter cartridge. Another is a deteriorated O-ring. Leaks can also come from the spindle which leads to water seeping from the diverter handle.

2. Inability to Redirect Water Flow

When water flow stubbornly refuses to move to a different outlet it can be due to a blocked diverter cartridge.

3. Poor Water Flow Rate

The ideal PSI for a good water flow rate is about 60 to 65 PSI. A less than normal flow may indicate the diverter cartridge may need to be replaced.

Want to know if this 3-way diverter cartridge compatible with your shower valve? Explore our diverter cartridge catalogue and discover the spare part you need.

• If you have the spare part with you, you can take its measurements and compare it with the information given above.
• You can opt to contact us via our Find a Part free service. Our reliable and friendly spares experts will personally attend to your queries.

Steam Shower Repair Recommendation

Grease the O-rings of the replacement diverter cartridge with the proper silicone-based lubricant. This will help the new part squeeze and seal in the valve.

Please refer to the last section below to see the heat-resistant plumber’s grease we offer.
