Ultra SINFV-S /​ SINFV Thermostatic Cartridge for Infinity Mixer Shower Valves (No Handle)

SUMMARY

Ultra SINFV-S / SINFV Thermostatic Cartridge for A389 Infinity and A388 Tiamo Showers (No Handle).

This brass thermostatic cartridge is used to replace cartridges in the Ultra (and Hudson Reed) Infinity range of shower mixer valves.

The thermostatic cartridge control the mixing of the hot and cold water into the valve, therefore if you are having water temperature issues, the thermostatic cartridge is the prime suspect.

Ultra SINFV-S is a brass thermostatic cartridge for A389 Infinity and A388 Tiamo mixer showers from the Ultra and Hudson Reed ranges. It fits inside the shower valve and is supplied without the temperature control handle.

The cartridge regulates the mixture of hot and cold water to control the shower's outlet temperature. Incorrect or unstable water temperature, or poor response to temperature adjustments, can indicate a cartridge problem. The water supplies and temperature calibration should also be checked before replacing the cartridge.

Technical Details

- - Part Number: SINFV-S

- - Part type: Thermostatic shower cartridge

- - Cartridge body: Brass

- - Control spindle: Splined

- - External seals: Three O-rings

- - Filtration: Two mesh filter bands

- - Temperature control handle: Not included

Confirmed Compatible Models

- - Hudson Reed A389 Dream Showers Infinity Chrome

- - Hudson Reed A388 Dream Showers Tiamo

Before Ordering

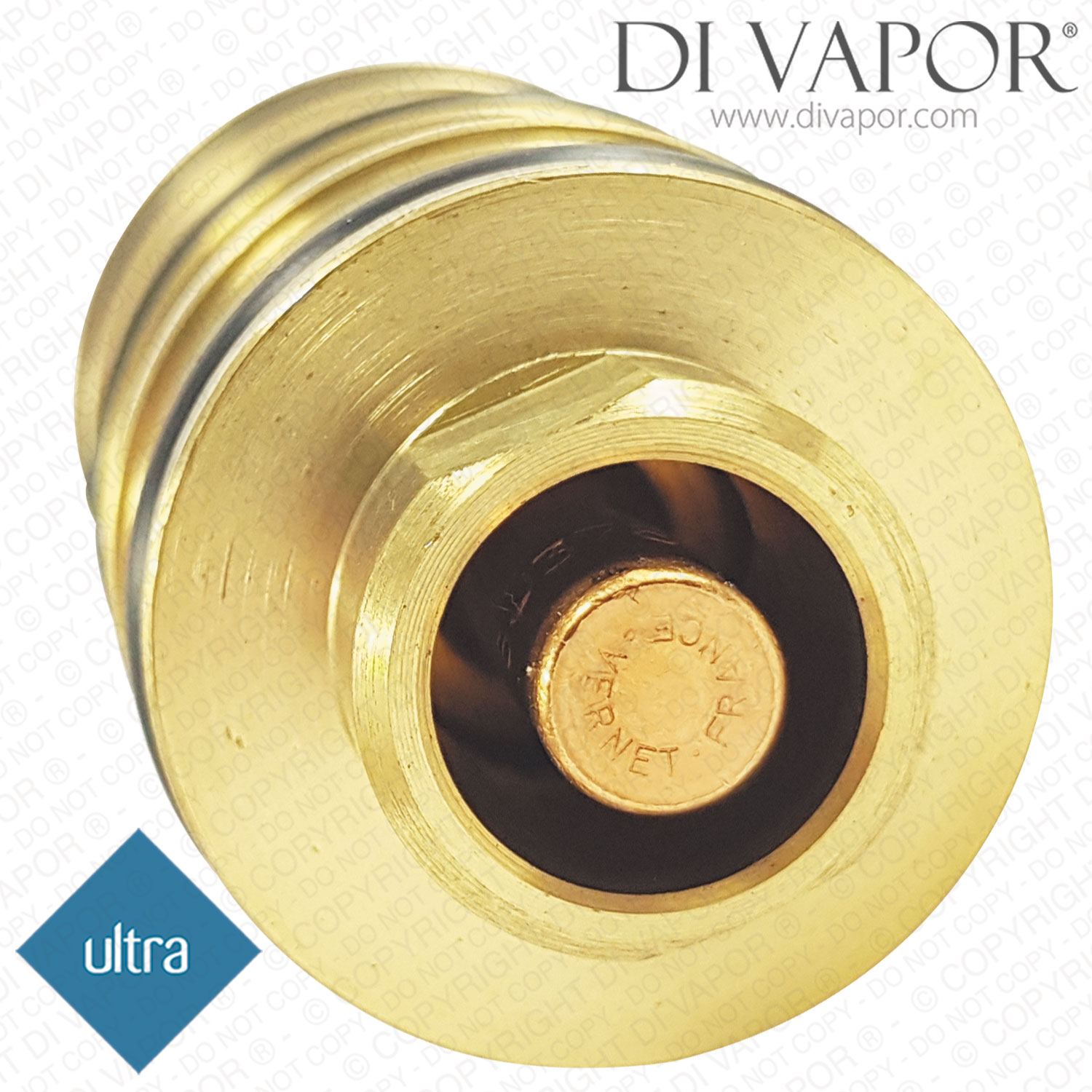

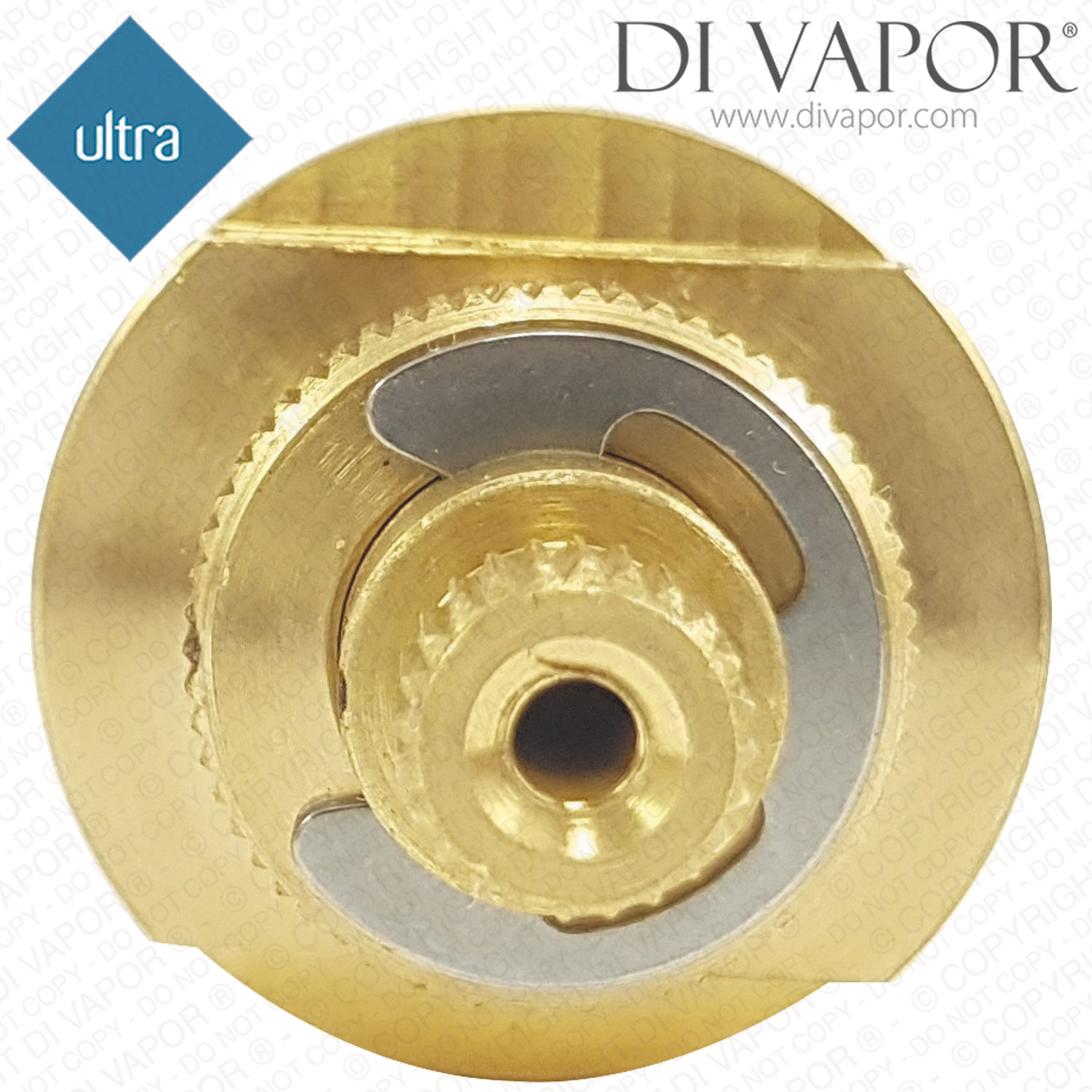

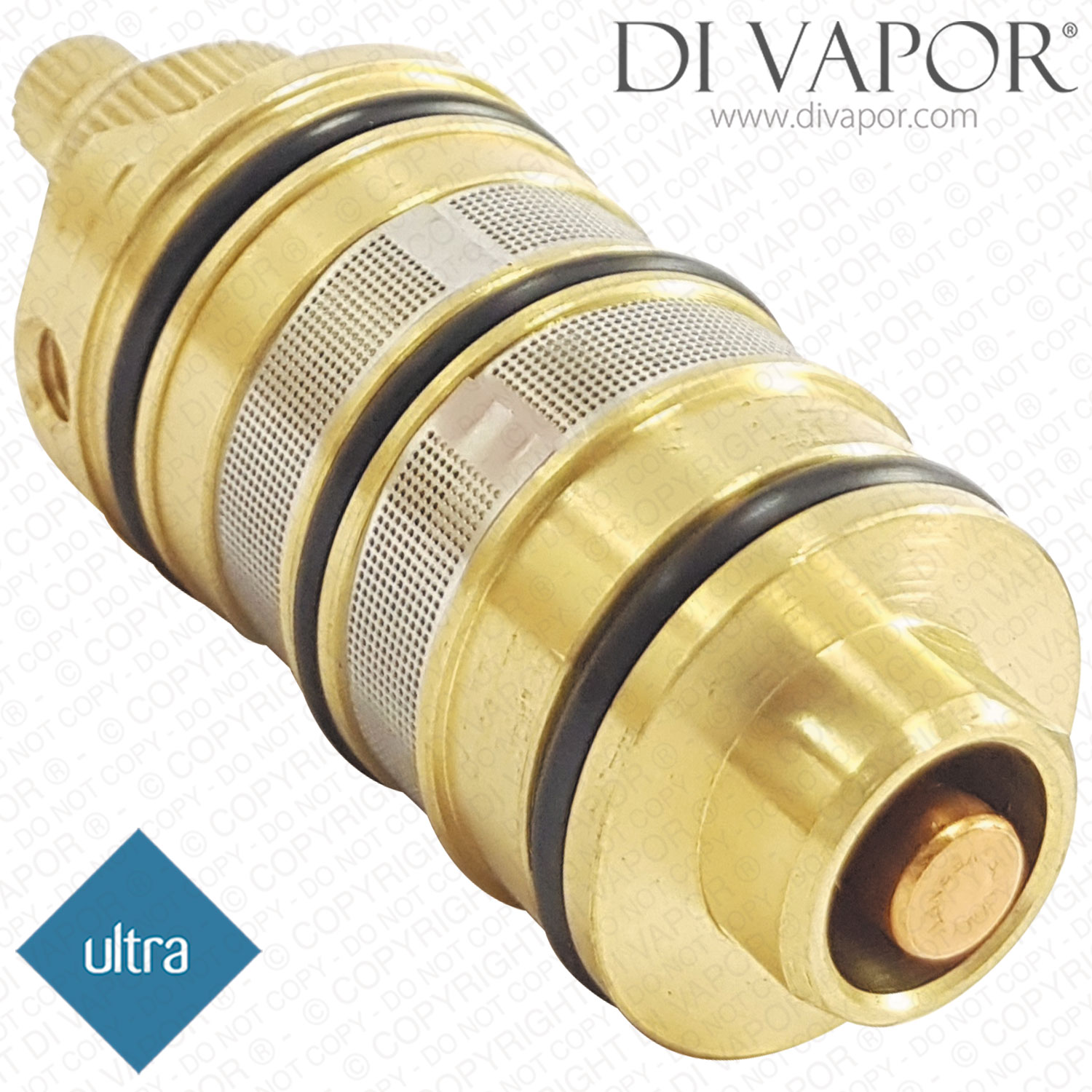

Confirm the cartridge fitted to your shower and compare it with the product photographs, checking the body profile, splined spindle, O-ring positions and filter arrangement. If you intend to reuse the existing temperature handle, check its condition and fit.

SINFV is also used for a separate thermostatic cartridge assembly supplied with a chrome handle. This SINFV-S item is supplied without the handle, so check which components you need before ordering.

Fitting and Temperature Setting

Apply a thin coating of suitable silicone grease to the O-rings during installation. After fitting, check for leaks and check the outlet temperature in accordance with the instructions for your shower. The A389 Infinity and A388 Tiamo instructions use 38°C as the temperature calibration setting. The temperature handle may need to be repositioned on its splined shaft during calibration.

For water dripping from the shower outlet when the shower is turned off, or difficulty switching between outlets, check the separate diverter mechanism as part of the fault diagnosis.

Related Spares You May Need

- - TAC86 TACSIL 3g silicone grease - for lubricating cartridge O-rings and seals during fitting

- - 070225M 3-way diverter cartridge - separate outlet-control cartridge for the SINFC assembly; a green plastic version is supplied

- - SINFCLR SINFC diverter locking ring - locking ring for the separate diverter assembly

- - ULTRA-SINFC diverter cartridge and chrome handle - discontinued assembly; see 070225M above when only the diverter cartridge is required

For help finding the right cartridge, use the Di Vapor part identification service.
