Ideal Standard SV96667 Hose Adapter for Conceala 2 Side Inlet Float Valve
Send a photo of your item and we'll help confirm it.
Summary

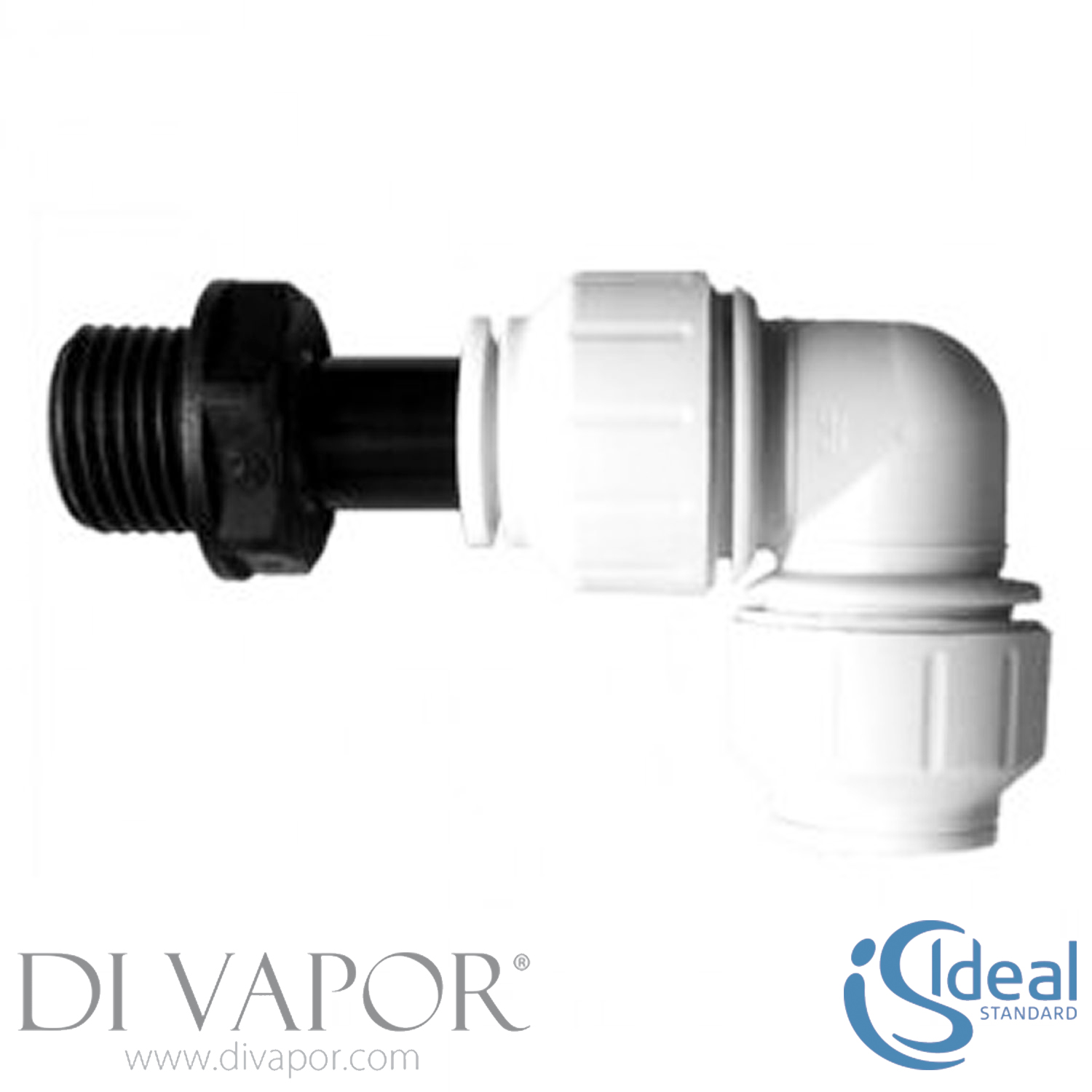

Ideal Standard SV96667 Conceala 2 Toilet Cistern Side Inlet Float Valve Hose Adaptor
The Ideal Standard SV96667 is a Conceala 2 toilet cistern hose adaptor designed for the inlet valve connection. This push-fit adaptor is used with the Ideal Standard SV80367 Conceala 2 Univalve inlet valve when replacing the older SV04667 inlet valve. It is a connecting fitting rather than a complete float valve or flushing mechanism.
The SV96667 adaptor allows the SV80367 inlet valve to connect to the existing braided flexible hose arrangement when upgrading from the earlier valve. It helps retain the existing cistern water supply connection without replacing the entire cistern. Check the inlet valve and hose connection carefully before ordering, as different Conceala 2 inlet arrangements use different connecting fittings.
Technical Details
| Manufacturer part code | SV96667 |
|---|---|
| Brand | Ideal Standard |
| Product type | Conceala 2 toilet cistern inlet valve hose adaptor |
| Connection type | Push-fit |
| Associated inlet valve | SV80367 Conceala 2 Univalve |
| Earlier inlet valve reference | SV04667 |
| Application | Adapting the SV80367 inlet valve connection for an existing braided flexible hose arrangement |
| EAN | 5017830424581 |
Confirmed Compatible Models
- Ideal Standard Conceala 2 S362467 top-inlet cistern - 6 or 4.5 litre flush
- Ideal Standard Conceala 2 S362567 bottom-inlet cistern - 6 or 4.5 litre flush
Before Ordering
Check the existing inlet valve part number and the type of hose connection fitted inside the cistern. The SV96667 adaptor is associated with the SV80367 inlet valve when replacing the earlier SV04667 arrangement. Do not confuse SV96667 with the separate SV96567 15mm stem adaptor or SV96467 15mm equal elbow connector, as these are different fittings. Isolate the cistern water supply before removing the existing inlet connection. After fitting, restore the supply and check all connections for leaks.
Related Spares You May Need
These parts are associated with the SV80367 inlet valve or the identified Conceala 2 cistern arrangements. Select the spare required for the particular inlet or flushing mechanism.
- Ideal Standard SV80367 Conceala 2 Inlet Valve Univalve
- Ideal Standard SV90167 Sottini Inlet Valve Servicing Kit
- Ideal Standard SV32967 Univalve Diaphragm - Pack of 5
- Ideal Standard SV93467 Pneumatic Dual Flush Cistern Valve
- Ideal Standard SV01967 Flush Valve Seal and Clip
- Ideal Standard SV70367 Replacement Pneumatic Diaphragm
- Ideal Standard S4399AA Conceala 2 Pneumatic Dual Flush Plate Chrome
- Ideal Standard SV04567 Conceala 2 Pump Service Kit for S4399AA Plate
If you are unsure which part you need, use the Di Vapor Part Identification Service and send us a photo of your existing fitting.
