Ideal Standard SV70367 Replacement Pneumatic Diaphragm For Pneumatic Valves

Summary

Ideal Standard SV70367 Replacement Pneumatic Diaphragm For Pneumatic Valves

Used In

• S8109AASensorflow Solo w.c. flushing device with surface mounting sensor

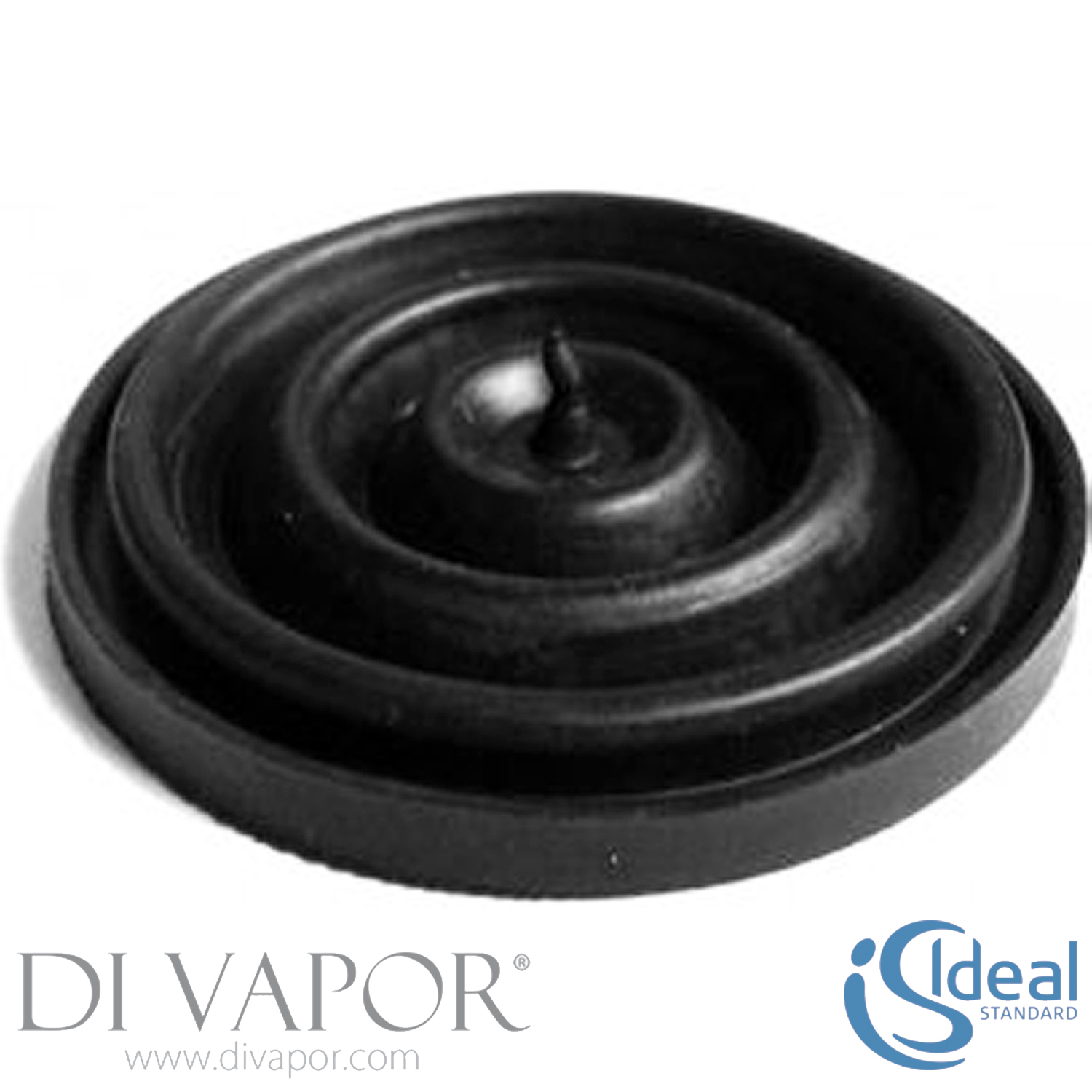

Ideal Standard SV70367 is a pneumatic flush valve diaphragm, also known as a bellows, for selected Ideal Standard, Armitage Shanks and Sottini toilet flushing systems. It is used in air-operated flush valve mechanisms, including Conceala 2 concealed cisterns and the Sensorflow Solo system.

The diaphragm sits beneath the pneumatic air-hose connection on the flush valve. Air pressure from the flush control acts on the diaphragm to operate the flushing mechanism. If the diaphragm splits, cracks or loses its seal, the flush button may feel soft, fail to operate or work intermittently. On dual-flush systems, one flush button may stop working while the other still operates.

Technical Details

Confirmed Compatible Models

• Ideal Standard S362467 Conceala 2 top-inlet concealed cistern with pneumatic dual flush
• Ideal Standard S362567 Conceala 2 bottom-inlet concealed cistern with pneumatic dual flush
• Armitage Shanks / Ideal Standard S8109AA Sensorflow Solo WC flushing device with surface-mounted sensor

Before Ordering and Fitting

Compare the old diaphragm and flush valve arrangement with the product photographs and check the air hose and connections for damage or disconnection. Remove the hose from the valve, release the old diaphragm using its quarter-turn fitting and secure the new diaphragm before reconnecting the hose and testing the flush. This part does not include a complete flush valve, push-button assembly or outlet seal.

If water continues to run into the toilet pan after flushing, inspect the outlet valve seal as well; the SV70367 diaphragm operates the pneumatic flush mechanism rather than sealing the water outlet.

Related Spares You May Need

• Ideal Standard SV93467 Pneumatic Dual Flush Valve - complete dual-flush outlet valve assembly
• Ideal Standard SV01967 Flush Valve Seal and Clip - outlet sealing components for the associated flush valve
• Ideal Standard S4399AA Conceala 2 Pneumatic Dual Flush Plate Chrome - associated flush control plate (discontinued)
• Ideal Standard SV04567 Conceala 2 Pump Service Kit - service kit for the S4399AA flushplate actuator
• Ideal Standard SV80367 Conceala 2 Inlet Valve Univalve - separate cistern filling valve (discontinued)
• Ideal Standard SV90167 Sottini Inlet Valve Servicing Kit - servicing components for the cistern inlet valve, not the pneumatic flush diaphragm
