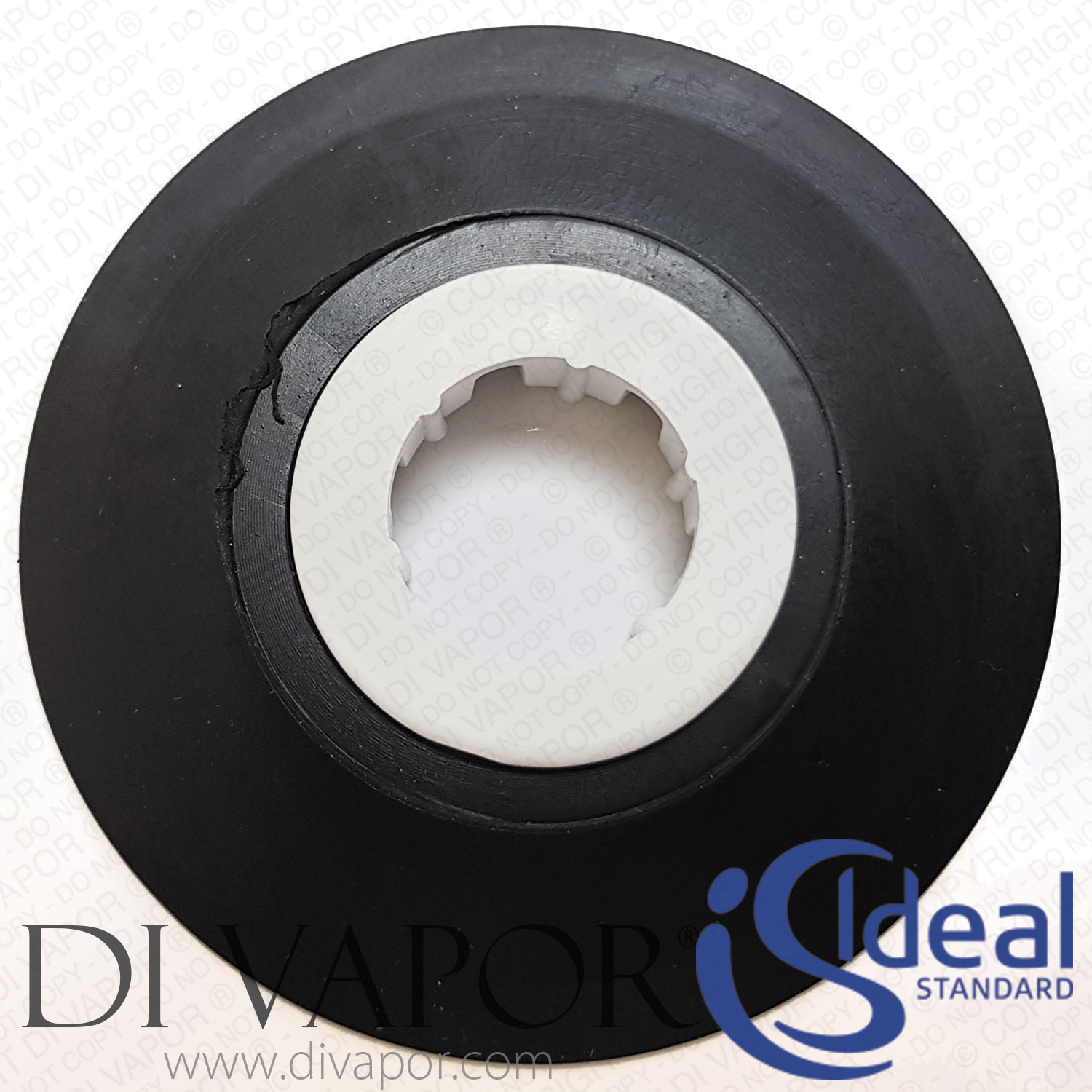

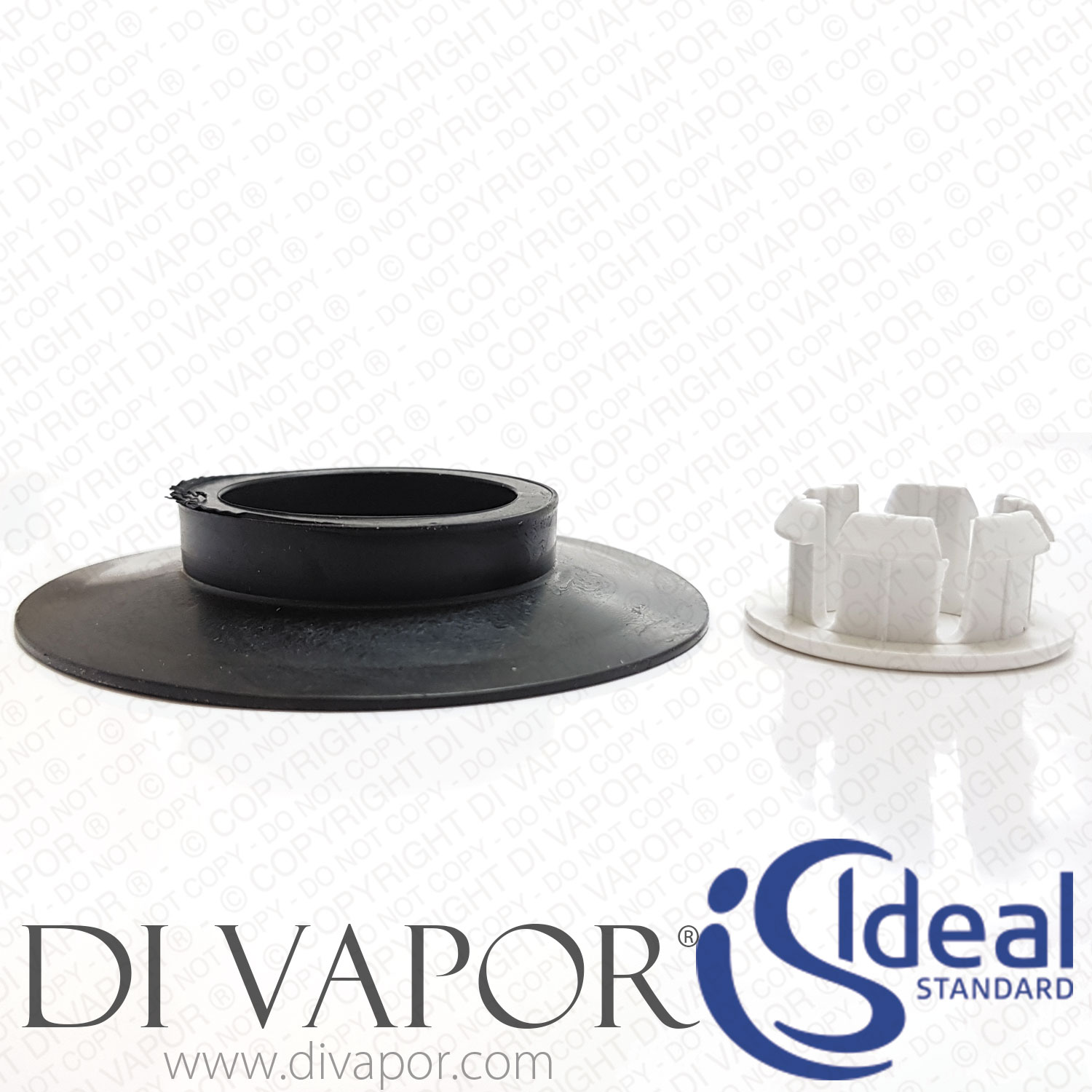

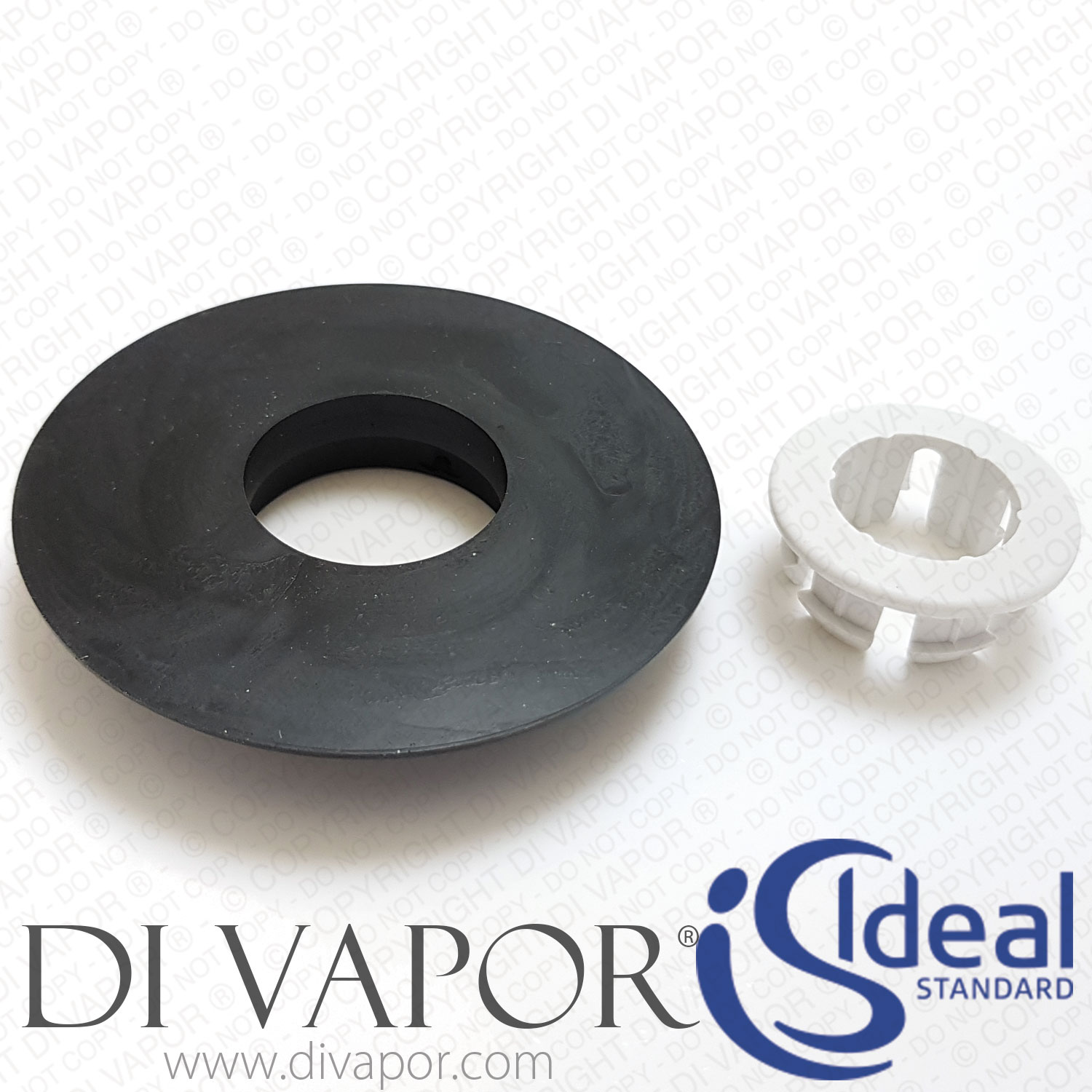

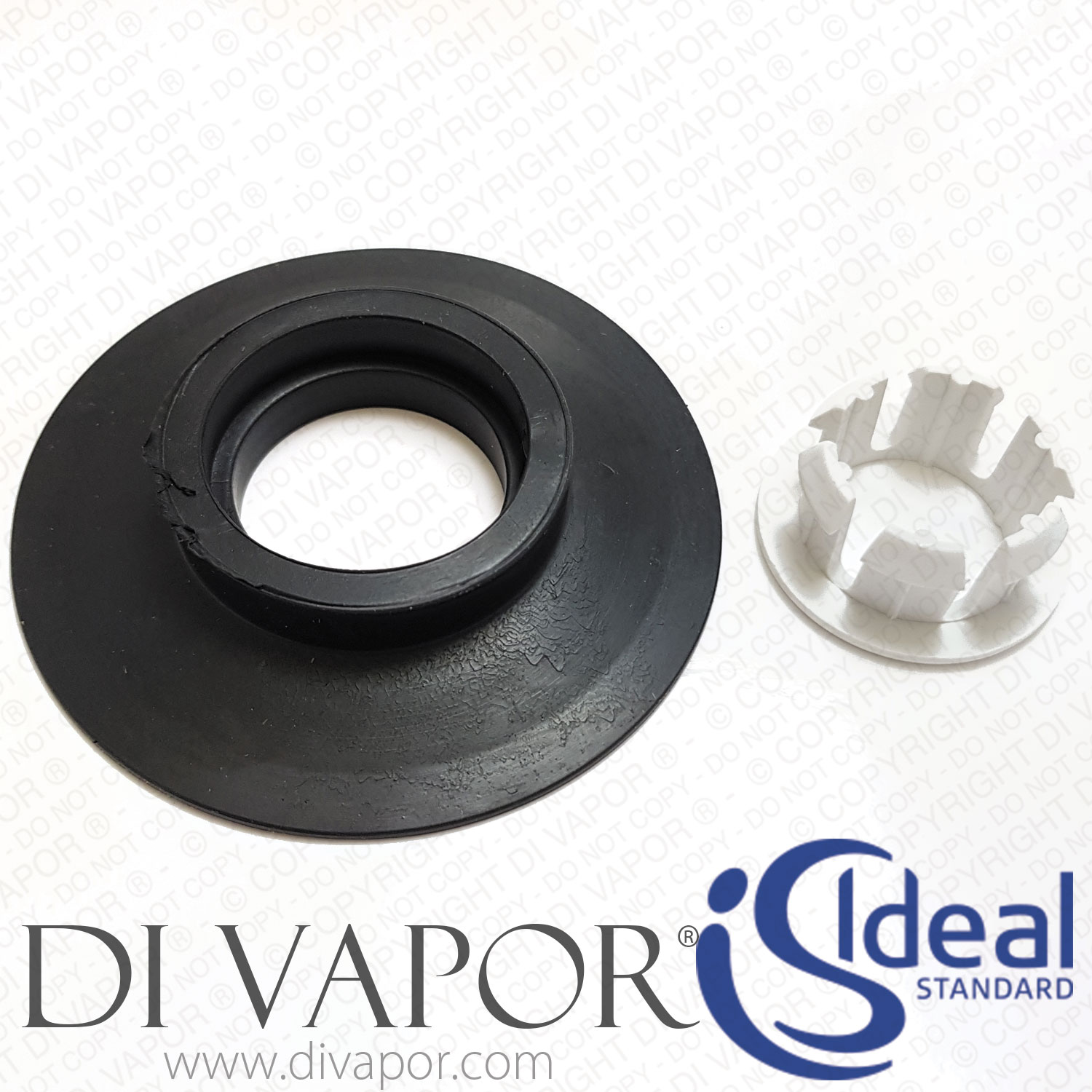

Ideal Standard SV01967 Flush Valve Seal and Clip

Summary

Ideal Standard SV01967 Flush Valve Seal and Clip

Instructions to Replace SV01967 Seal

1. Turn off the water supply to the cistern and flush.

2. Close toilet seat and lid.

3. Remove cistern lid.

4. Remove valve body by gripping and turning anti-clockwise to unlock.

Apply downward pressure whilst turning valve, (to prevent clips breaking). Lifting the valve body exposes the valve seal.

5. Inspect and clean valve seal if necessary. To replace valve seal first

remove retaining clip, by inserting screwdriver down centre hole.

6. Check condition of seal face, remove any obstruction.

7. Refitting the valve is reversal of removal, taking care to locate the

tabs of the valve body into the lugs of the valve seat.

8. Re-fit cistern lid and turn on the water. Re-fill cistern, test flush and sealing.

9. Quote reference SV01967 to purchase a replacement seal.

Also used on Amitage Shanks flush valves.
