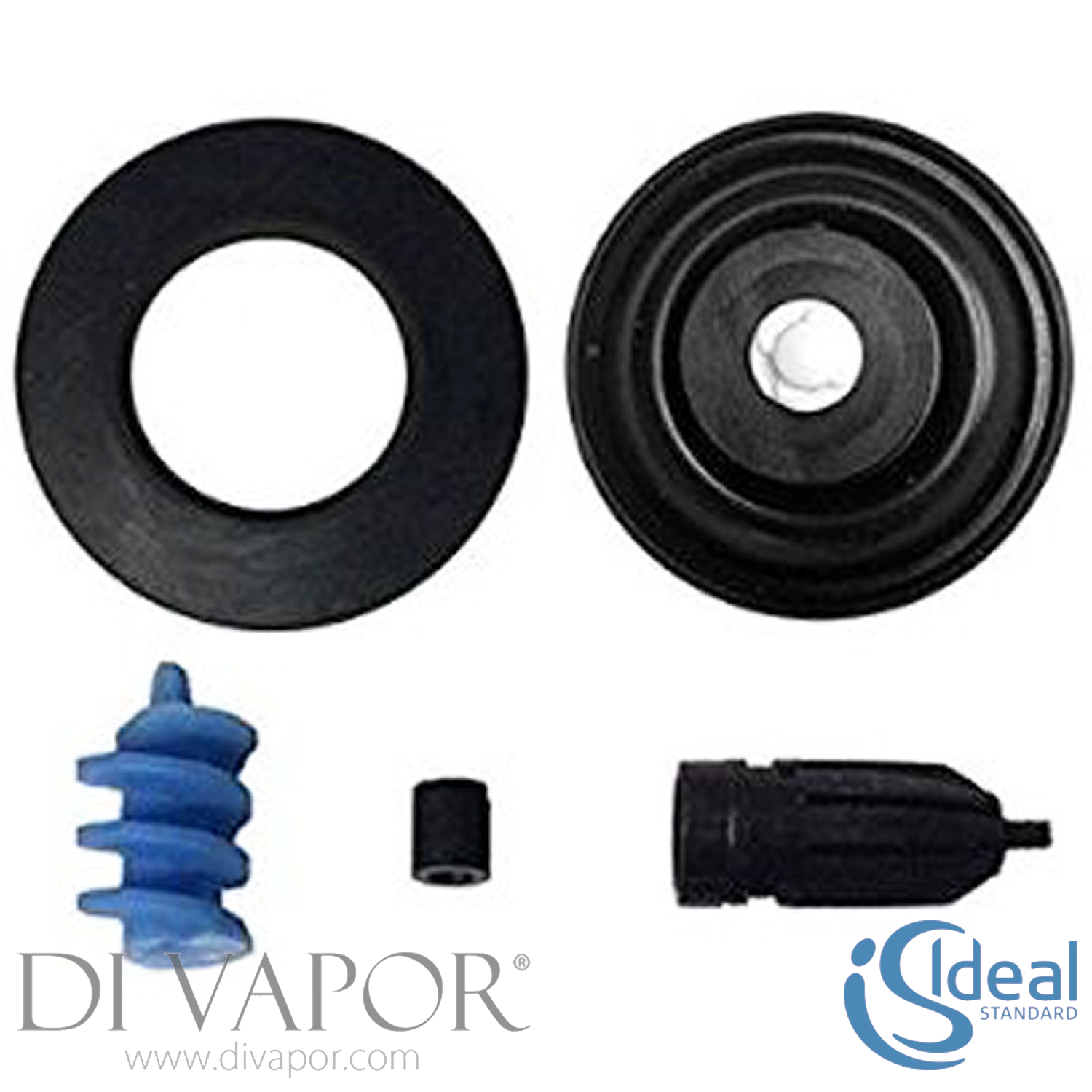

Ideal Standard SV90167 Sottini Inlet Valve Servicing Kit

Summary

Ideal Standard SV90167 Univalve Toilet Cistern Inlet Valve Servicing Kit for Sottini and Conceala 2

Ideal Standard SV90167 is an inlet valve servicing kit for bayonet-fitting Univalve toilet cistern filling valves used in selected Ideal Standard, Sottini and Armitage Shanks cisterns. It services the newer quarter-turn release SV valve design rather than the older compression-fitting inlet valve.

The kit renews serviceable internal inlet valve components that help regulate water entering the cistern and allow the valve to shut off at the correct fill level. It can be useful where a worn diaphragm, restricted filter or deteriorated seal is contributing to continuous filling, water running into the overflow or erratic cistern refilling. This is a servicing kit, not a complete inlet valve or flush valve.

Technical Details

Confirmed Compatible Models

• Ideal Standard Conceala 2 S362267 side-inlet cistern with pneumatic single flush - 6 litres
• Ideal Standard Conceala 2 S362467 top-inlet cistern with pneumatic dual flush - 6/4.5 litres
• Ideal Standard Conceala 2 S362567 bottom-inlet cistern with pneumatic dual flush - 6/4.5 litres
• Sottini Conceala 2 E600667 side-inlet cistern with pneumatic single flush - 6 litres
• Sottini Conceala 2 E600767 top-inlet cistern with pneumatic dual flush - 6/4.5 litres

Before You Order

Check that your existing inlet valve uses the quarter-turn bayonet release design and compare the parts with the components removed from the valve. A toilet that continues to run may instead have a worn flush valve seal; check whether water is entering through the inlet valve or escaping through the outlet valve before choosing a spare. Isolate the water supply to the cistern before dismantling the inlet valve.

If you are unsure which part you need, use the Di Vapor Part Identification Service for help.

Related Spares You May Need

The following items relate to Univalve inlet servicing or to particular cistern and flushing arrangements within the wider range. Check the model and valve type before ordering, as not every item is used in every cistern.

• Ideal Standard SV32967 Univalve diaphragm washers - pack of five
• Ideal Standard SV80367 Conceala 2 Univalve inlet valve (discontinued)
• Ideal Standard SV81767 Univalve 237mm Spares
• Ideal Standard SV89867 Sottini Wisperflow inlet valve diverter
• Ideal Standard E4447AA dual flush push button (Geberit 261.616.00.1)
• Ideal Standard SV01967 flush valve seal and clip
• Ideal Standard SV93467 Conceala 2 pneumatic dual flush valve
• Ideal Standard SV04567 Conceala 2 pump service kit for S4399AA
• Ideal Standard SV70367 pneumatic flush valve diaphragm
• Ideal Standard S4399AA Conceala 2 pneumatic dual flush plate - chrome (discontinued)
• Ideal Standard EV344AA dual flush cistern lid push button
• Ideal Standard E004067 valve retaining nut
• Ideal Standard E4450AA 50 x 44mm flush bend set for Space cisterns
• Ideal Standard SV20967 Type 290 dual flush valve
• Ideal Standard SV21067 Type 290 chrome dual flush push button
