Grohe Grohtherm 800 Thermostatic Bath Mixer (1/2 Inch) 160CC - 2014 to 2019 - Spare Parts 34569000 GEN1
Send a photo of your item and we'll help confirm it.
Summary

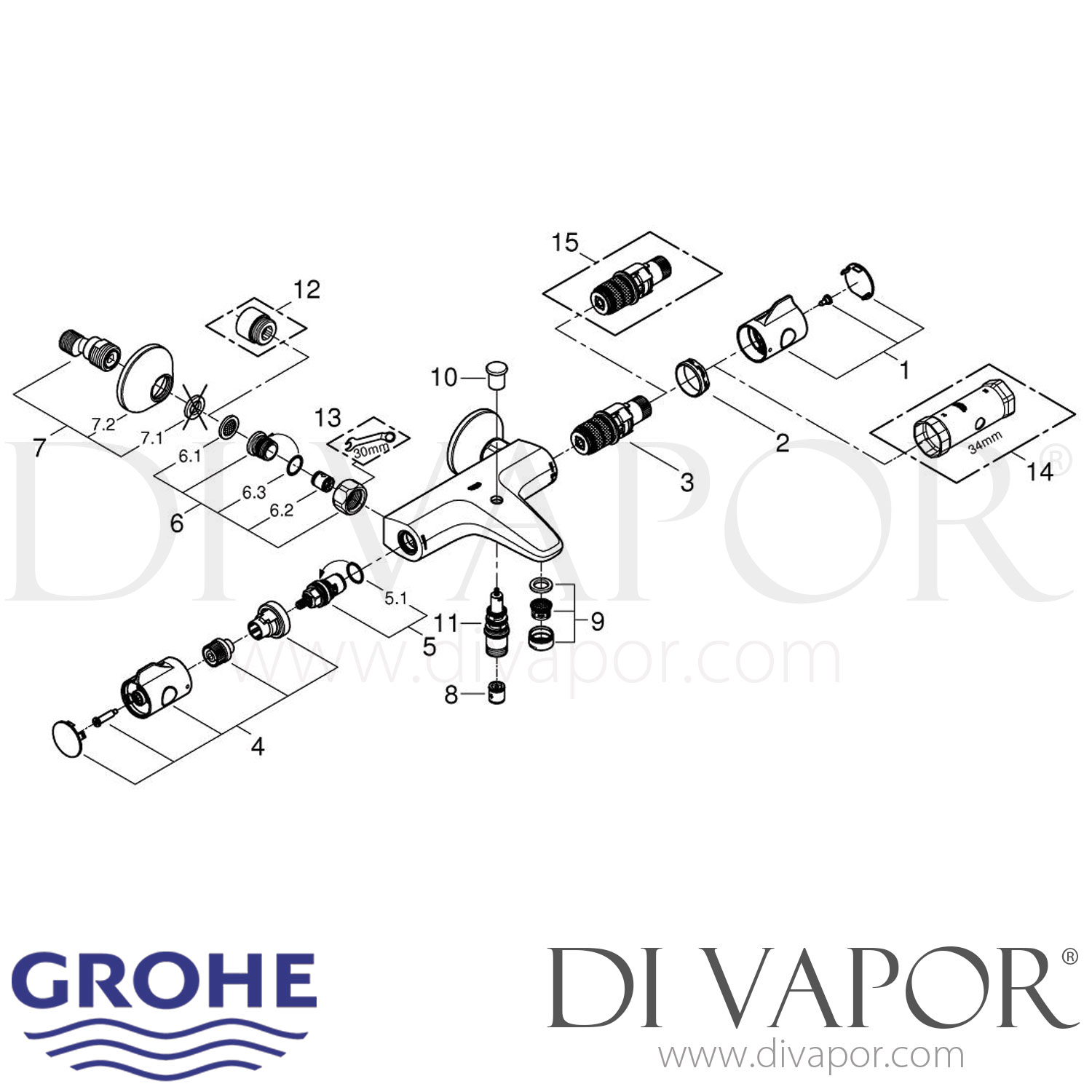

Tap Spares for Grohe Grohtherm 800 Thermostatic Bath Mixer 1/2 Inch 160CC
| Code | 34569000 |
|---|---|
| Year | 2014 - 2019 |

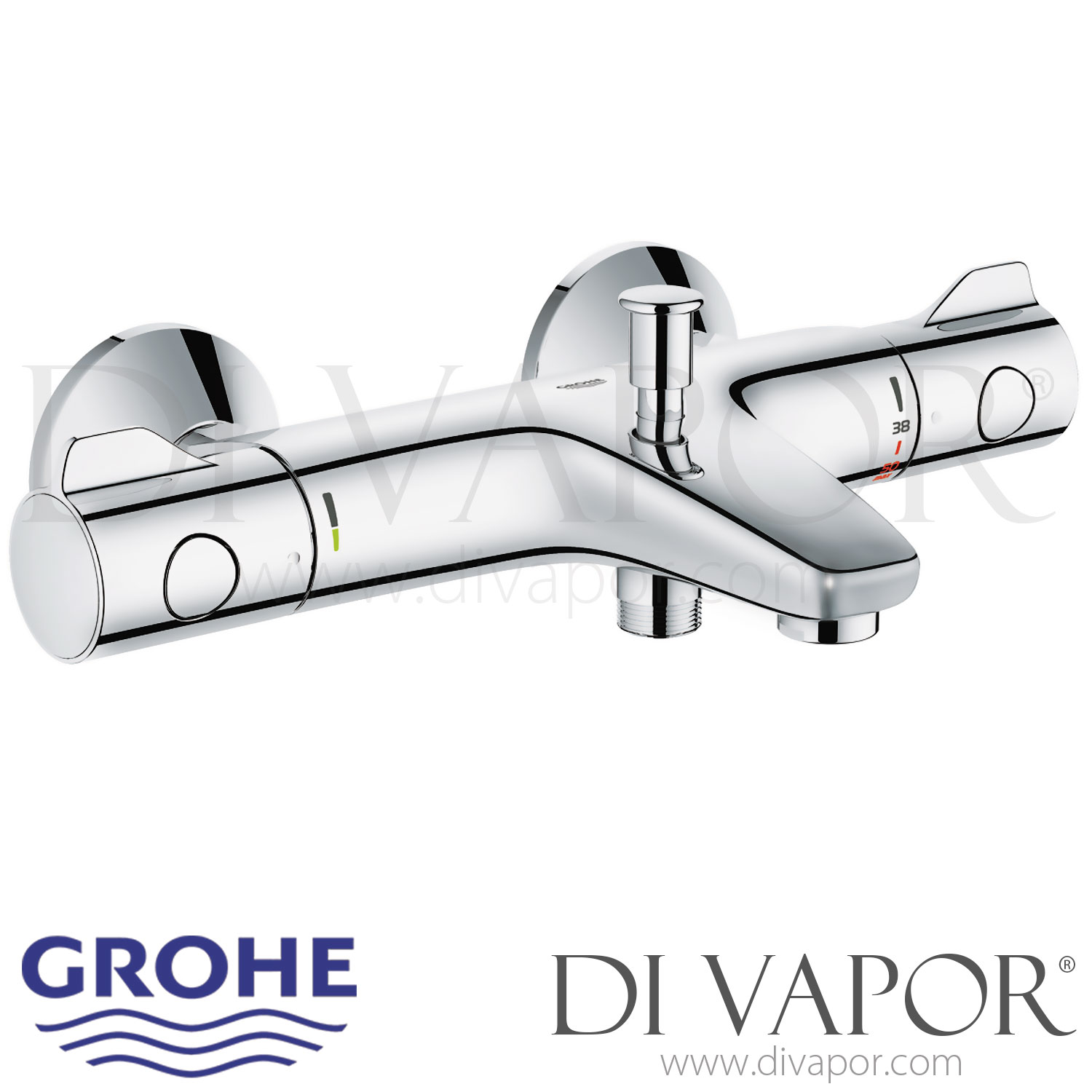

Spare parts for the Grohe 34569000 GEN1 Grohtherm 800 thermostatic bath mixer 1/2 inch 160CC, covering the 2014-2019 valve generation. This wall-mounted thermostatic bath and shower mixer uses separate temperature and flow controls with an automatic bath/shower diverter.
The mixer incorporates Grohe thermostatic temperature control, a 38 C SafeStop temperature stop, a maximum 50 C SafeStop Plus limiter, an integrated mixed-water shut-off, built-in non-return valves and dirt strainers. The valve also uses a 1/2 inch 180-degree ceramic headpart and has a 1/2 inch bottom shower outlet.
Technical Details
| Brand | Grohe |
|---|---|
| Range | Grohtherm 800 |
| Category | Bath shower mixer |
| Product code | 34569000 |
| Production period | 2014-2019 |
| Installation | Wall mounted |
| Finish | Chrome |
| Connection designation | 1/2 inch |

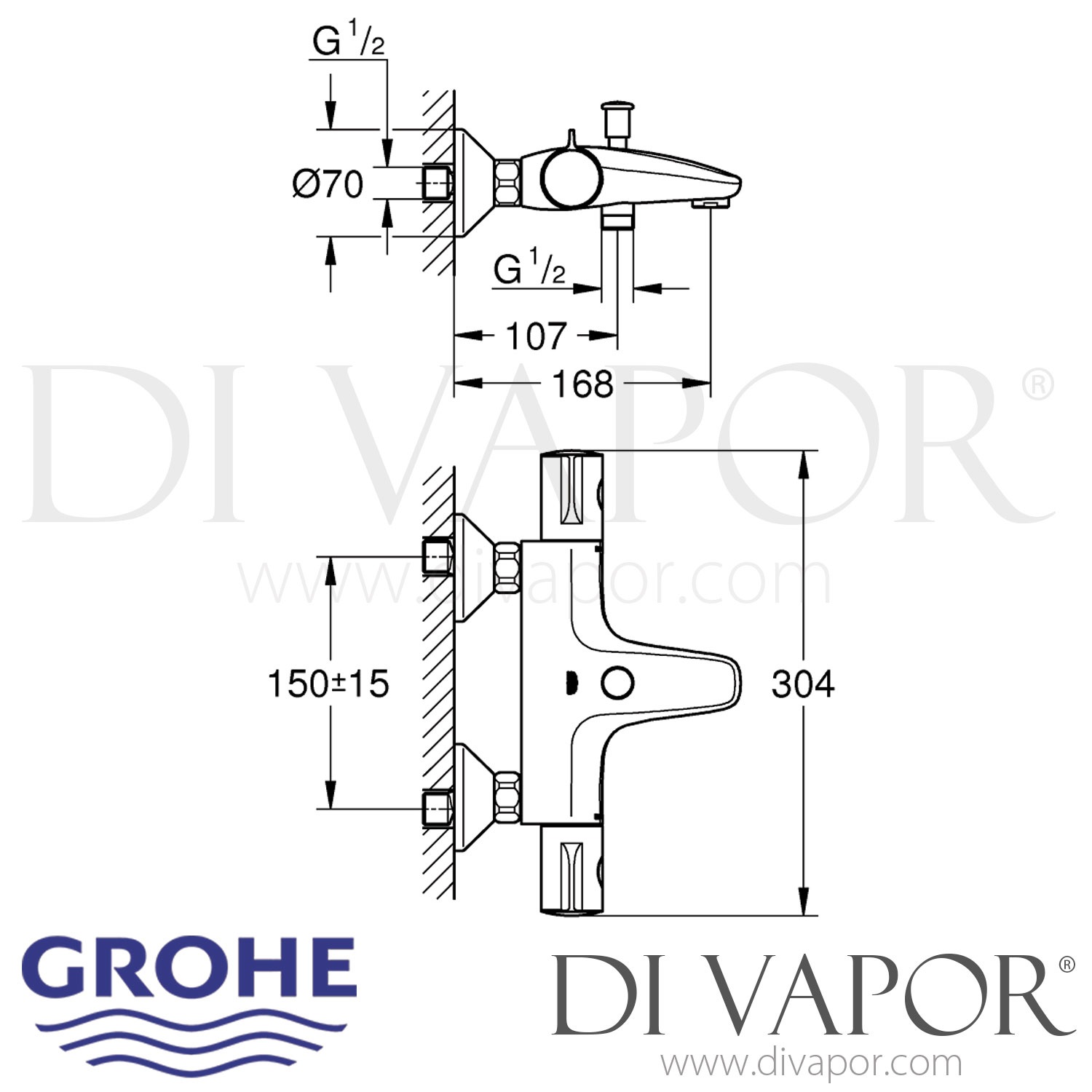

| Connection centres | 150 +/- 15mm |
| Temperature safety stop | 38 C |
| Maximum temperature limiter | 50 C |
| Minimum flow rate | 5 l/min |
| Maximum static pressure | 10 bar |
| Hot-water supply temperature | 55-65 C |
| Cold-water supply temperature | 25 C or below |
| Ceramic headpart | 1/2 inch 180-degree |
| Shower outlet | 1/2 inch bottom outlet |
| Bath/shower selection | Automatic diverter |
Before you order check
Check the model code and valve generation before selecting replacement parts. Di Vapor lists this 34569000 GEN1 construction for 2014-2019 and also lists a later 34569000 generation from 2019 onwards. A valve dated 2019 should therefore be identified by its actual construction rather than the year alone.
Other Available Valve Generations
GROHE 47743000 Thermostatic Cartridge Retaining Ring for Shower and Bath MixersThe GROHE 47743000 is a thermostatic cartridge retaining ring for the specified shower mixers, bath/shower mixers and concealed thermostatic mixer assemblies listed below. It fits behind the temperatur...
Grohe 47885000 1/2 Inch Thermostatic Cartridge for Grohtherm 800 1000 Shower Bar Valves The Grohe 47885000 is used in the following Grohe valves: - Grohtherm 800 Thermostatic shower mixer 1/2″ - Grohtherm 1000 Thermostatic shower mixer 1/2″ To uninstall this cartr...
Grohe 45346000 1/2" carbodur half turn flow cartridge for hot taps / showers. This flow cartridge controls the on and off water flow function and is a genuine Grohe product. Measurements: Turn Orientation: Clockwise Close Turn: Half Turn Total Length: 56mm Diameter at wid...
GROHE 0392400M Pack of 10 O-Rings 18.2mm x 1.7mmGROHE 0392400M is a service pack of 10 O-rings, each measuring 18.2 mm outside diameter with a 1.7 mm cross-section. The seals are used in identified GROHE tap and shower assemblies, including 1/2-inch ceramic headparts and selected...
Grohe 08565000 Non-Return Valve for Selected Mixers and Shower SystemsGROHE 08565000 is a non-return valve used in selected GROHE mixers, shower systems, shower outlets and pull-out spray assemblies. The valve allows water to pass in the intended direction while helping to preven...
GROHE 65648000 Chrome Diverter Knob for Bath Shower Mixers and Shower SystemsGROHE 65648000 is a chrome diverter control knob used on selected GROHE bath/shower mixers, bath fittings and wall-mounted shower systems. It forms the external operating control for the outlet diverter,...
GROHE 65655000 Automatic Bath and Shower Diverter Cartridge ChromeThe GROHE 65655000 is a chrome automatic diverter cartridge used within selected single-lever bath mixers, thermostatic bath mixers, floor-mounted bath fillers and bath/shower systems. It directs mixed water betwee...
GROHE 19332000 34mm and 32mm Socket Box Spanner for Tap and Shower CartridgesGROHE 19332000 is a double-ended tubular socket box spanner for servicing selected GROHE tap cartridges and thermostatic shower mixer assemblies. Its two differently sized hexagonal ends are used for the...
