Grohe 34569000 Grohtherm 800 Thermostatic Bath Mixer (1/2 Inch) 160CC Spare Parts
Send a photo of your item and we'll help confirm it.
Summary
Tap Spares for Grohe 34569000 Grohtherm 800 Thermostatic Bath Mixer
Year: 2019 - Present (July 2021)

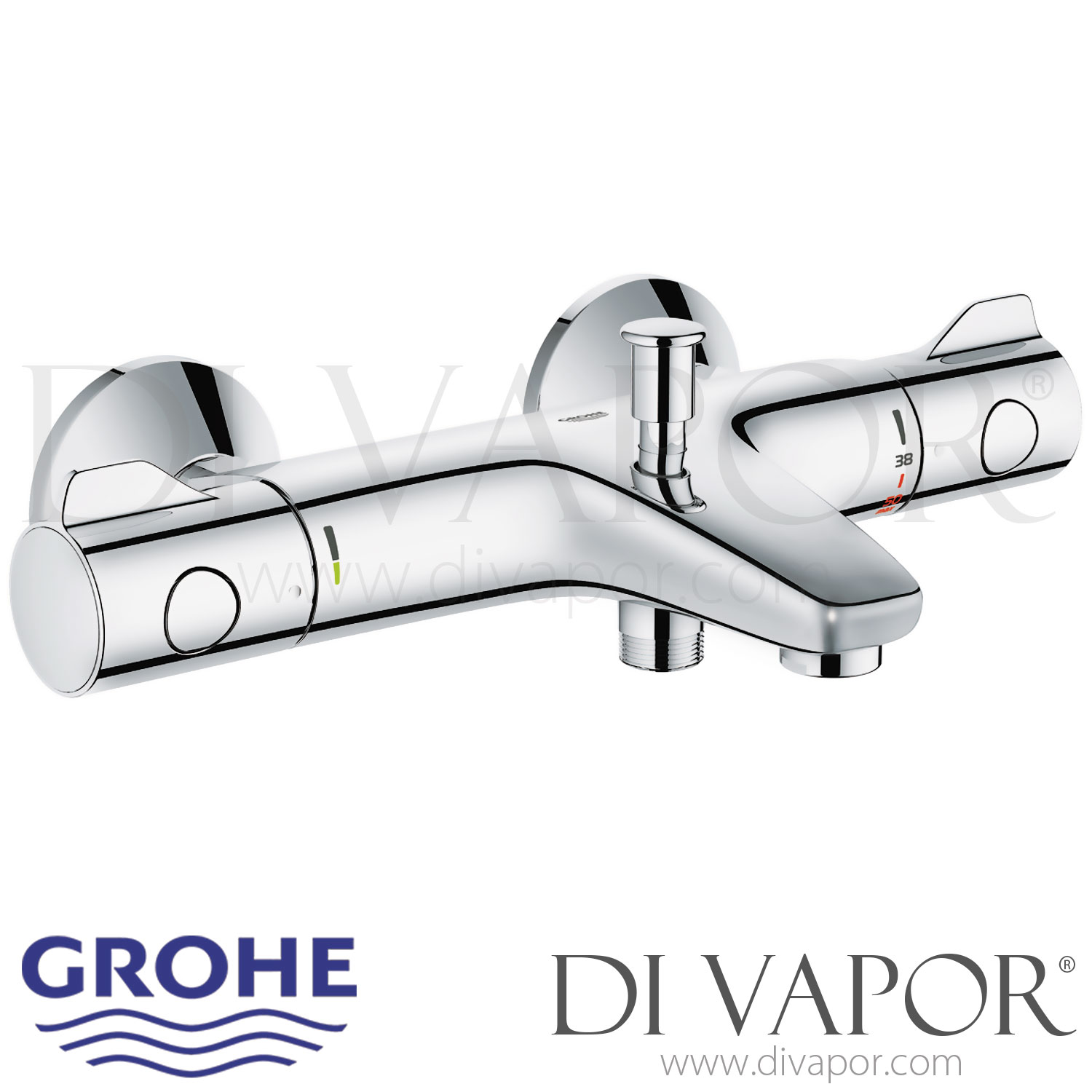

GROHE 34569000 is a Grohtherm 800 wall-mounted thermostatic bath shower mixer in chrome, with thermostatic temperature control, integrated mixed-water shut-off and automatic diversion between the bath and shower outlets. The current GROHE spare-parts configuration is listed from May 2019 onwards.
The mixer uses the 47885000 thermostatic compact cartridge to regulate mixed-water temperature and the 45346000 ceramic headpart for on/off flow control. The 65655000 diverter directs water between the bath and shower outlets. Poor shut-off can cause water to continue dripping from the bath spout or shower outlet when turned off, while diverter wear can result in incomplete or unreliable switching between outlets.
Technical Details
| Brand | GROHE |
|---|---|
| Range | Grohtherm 800 |
| Category | Bath shower mixer |
| Product code | 34569000 |
| Installation | Wall mounted |
| Finish | Chrome |
| Thermostatic control | GROHE TurboStat compact cartridge |
| Standard thermostatic cartridge | 47885000 |
| Flow control headpart | 45346000 ceramic headpart 1/2 inch |
| Bath/shower selection | Automatic diverter |
| Inlet centres | 150 +/- 15 mm |
| Overall mixer width | 304 mm |
| Projection | 168 mm |
| Escutcheon diameter | 70 mm |
| Wall connection | G1/2 |
| Bottom shower outlet | 1/2 inch |
| SafeStop temperature stop | 38 C |
| SafeStop Plus maximum temperature limiter | 50 C |
| Minimum flow rate | 5 l/min |
| Maximum static pressure | 10 bar |
| 45346000 headpart | half turn, clockwise close, 56 mm overall length, 23.8 mm maximum diameter, 20.6 mm bottom thread diameter, 7.6 mm spline diameter and 20 splines |
| 0392400M O-ring size | 18.2 x 1.7 mm; supplied by Di Vapor as a pack of 10 |

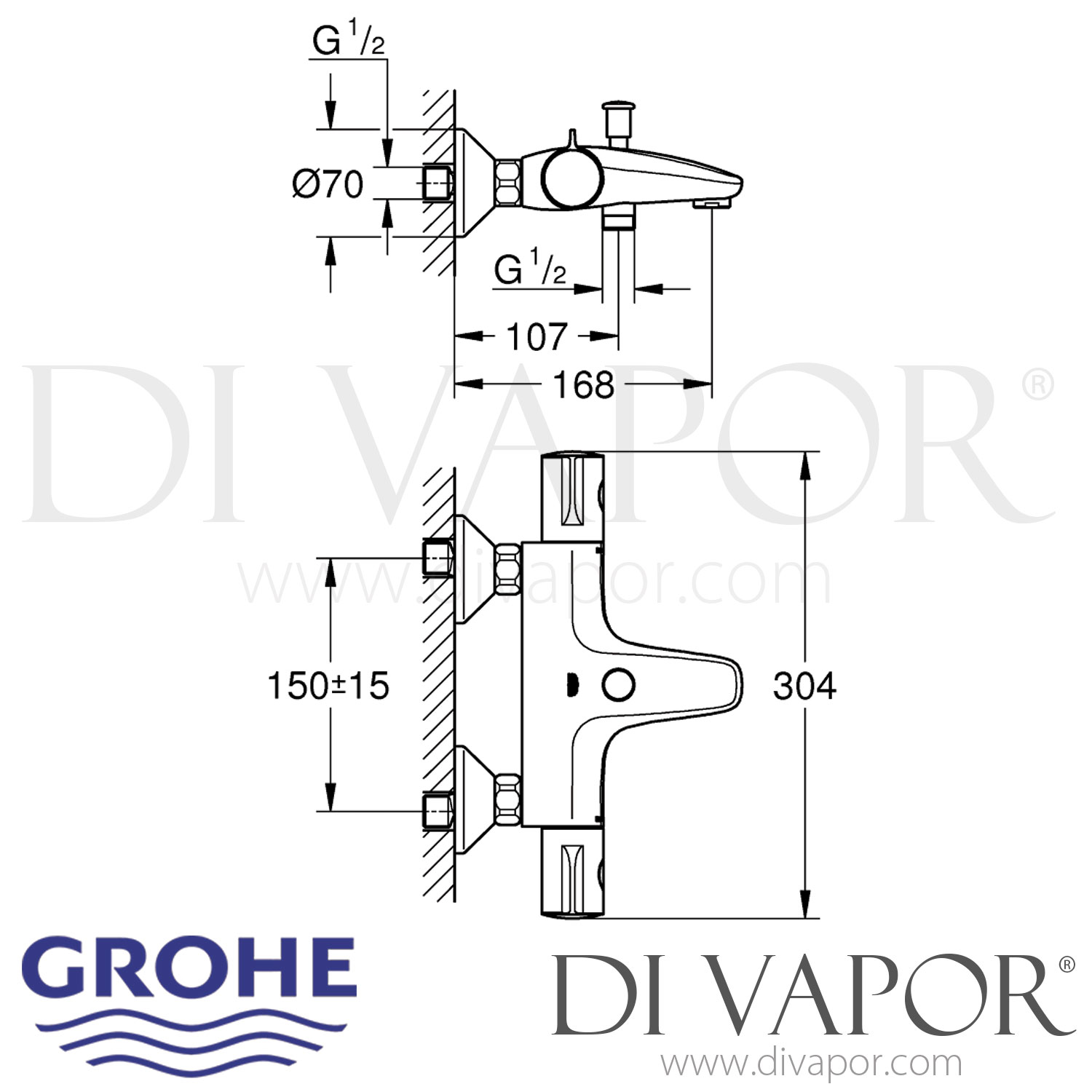

The 160CC wording forms part of the GROHE product designation. For installation dimensions, the current technical drawing specifies adjustable inlet centres of 150 +/- 15 mm rather than a fixed 160 mm centre measurement.
Confirmed Model
Before you order check
Check the mixer article number is 34569000 and confirm the production period before selecting internal service parts. GROHE publishes the current spare-parts configuration from May 2019 onwards, while the 34569000 article number was also used before this date.
Compare the code and physical form of the removed cartridge, headpart or diverter with the required spare before ordering. After thermostat servicing, check the mixer temperature and recalibrate the 38 C safety stop where required.
GROHE 47743000 Thermostatic Cartridge Retaining Ring for Shower and Bath MixersThe GROHE 47743000 is a thermostatic cartridge retaining ring for the specified shower mixers, bath/shower mixers and concealed thermostatic mixer assemblies listed below. It fits behind the temperatur...
Grohe 47885000 1/2 Inch Thermostatic Cartridge for Grohtherm 800 1000 Shower Bar Valves The Grohe 47885000 is used in the following Grohe valves: - Grohtherm 800 Thermostatic shower mixer 1/2″ - Grohtherm 1000 Thermostatic shower mixer 1/2″ To uninstall this cartr...
Grohe 45346000 1/2" carbodur half turn flow cartridge for hot taps / showers. This flow cartridge controls the on and off water flow function and is a genuine Grohe product. Measurements: Turn Orientation: Clockwise Close Turn: Half Turn Total Length: 56mm Diameter at wid...
GROHE 0392400M Pack of 10 O-Rings 18.2mm x 1.7mmGROHE 0392400M is a service pack of 10 O-rings, each measuring 18.2 mm outside diameter with a 1.7 mm cross-section. The seals are used in identified GROHE tap and shower assemblies, including 1/2-inch ceramic headparts and selected...
Grohe 08565000 Non-Return Valve for Selected Mixers and Shower SystemsGROHE 08565000 is a non-return valve used in selected GROHE mixers, shower systems, shower outlets and pull-out spray assemblies. The valve allows water to pass in the intended direction while helping to preven...
GROHE 65648000 Chrome Diverter Knob for Bath Shower Mixers and Shower SystemsGROHE 65648000 is a chrome diverter control knob used on selected GROHE bath/shower mixers, bath fittings and wall-mounted shower systems. It forms the external operating control for the outlet diverter,...
GROHE 65655000 Automatic Bath and Shower Diverter Cartridge ChromeThe GROHE 65655000 is a chrome automatic diverter cartridge used within selected single-lever bath mixers, thermostatic bath mixers, floor-mounted bath fillers and bath/shower systems. It directs mixed water betwee...
GROHE 19332000 34mm and 32mm Socket Box Spanner for Tap and Shower CartridgesGROHE 19332000 is a double-ended tubular socket box spanner for servicing selected GROHE tap cartridges and thermostatic shower mixer assemblies. Its two differently sized hexagonal ends are used for the...
