Grohe 65655000 Atrio Diverter Cartridge - GR-65655000
SUMMARY

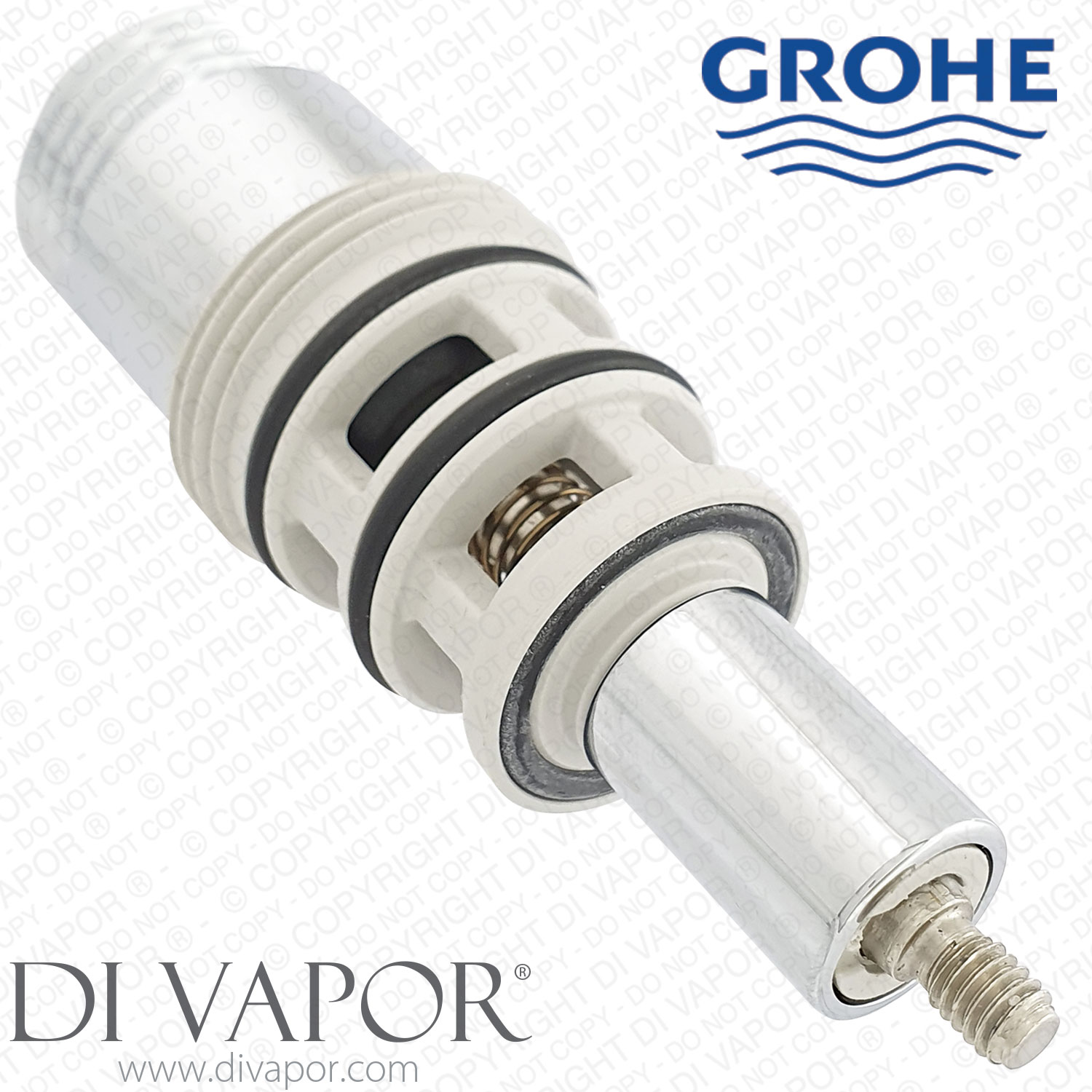

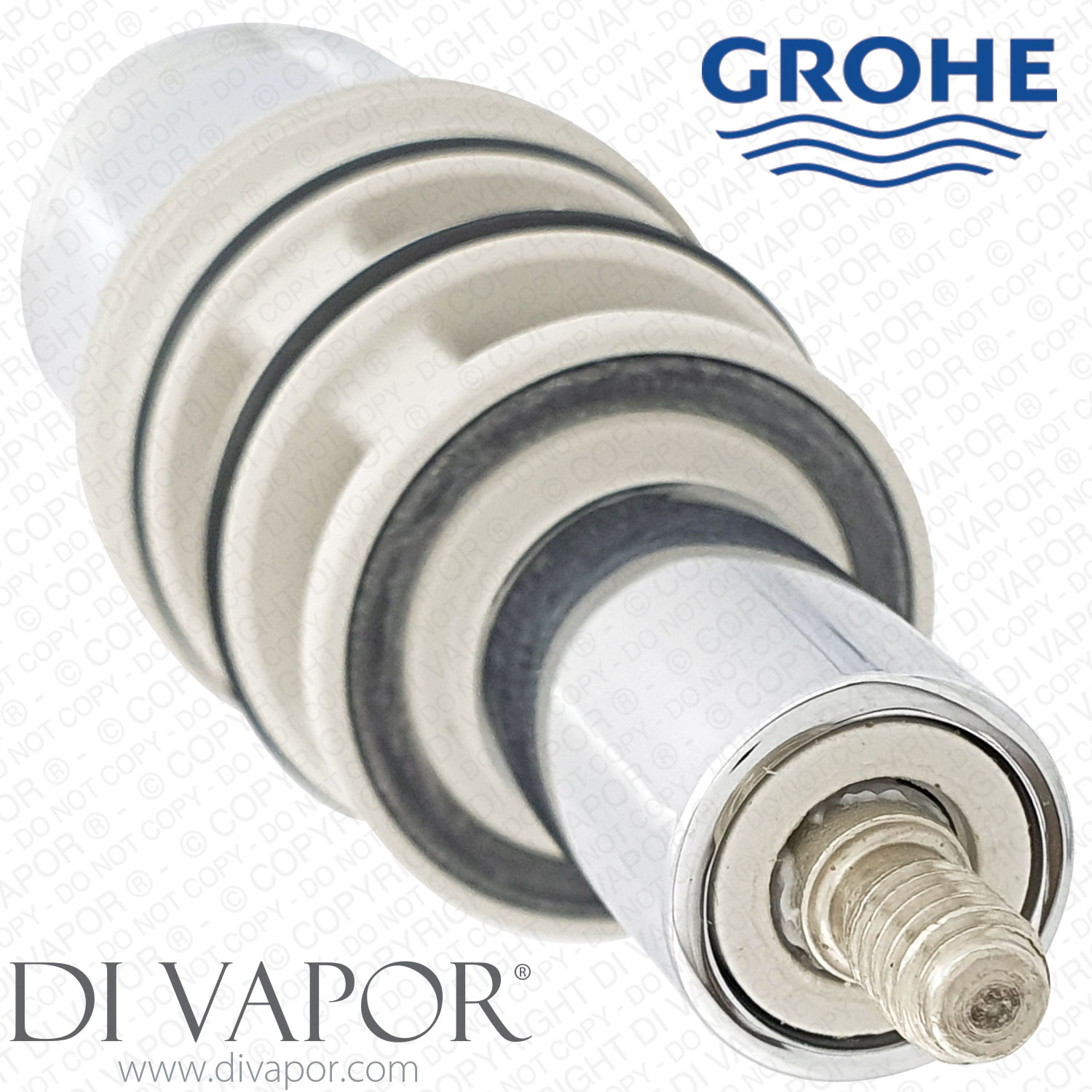

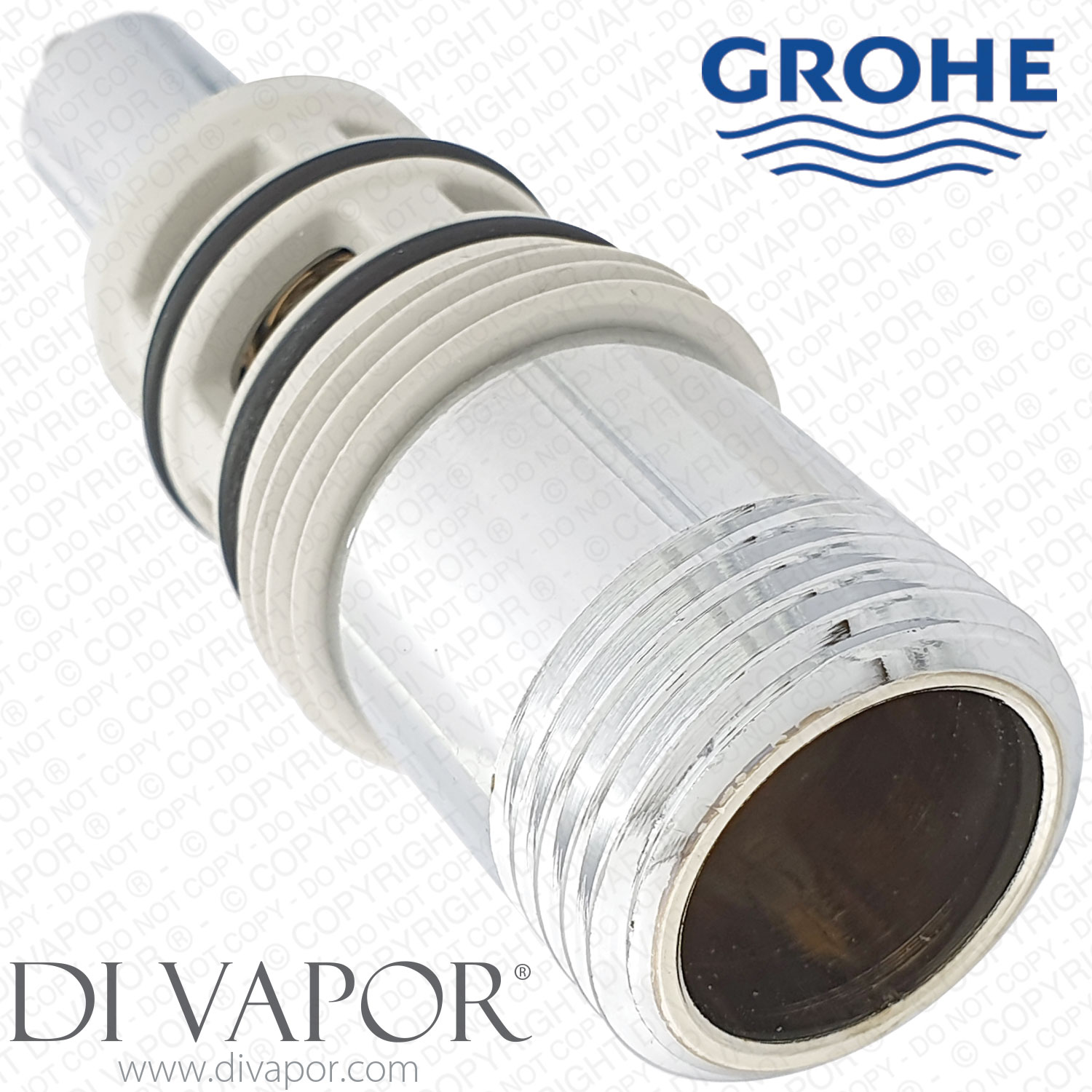

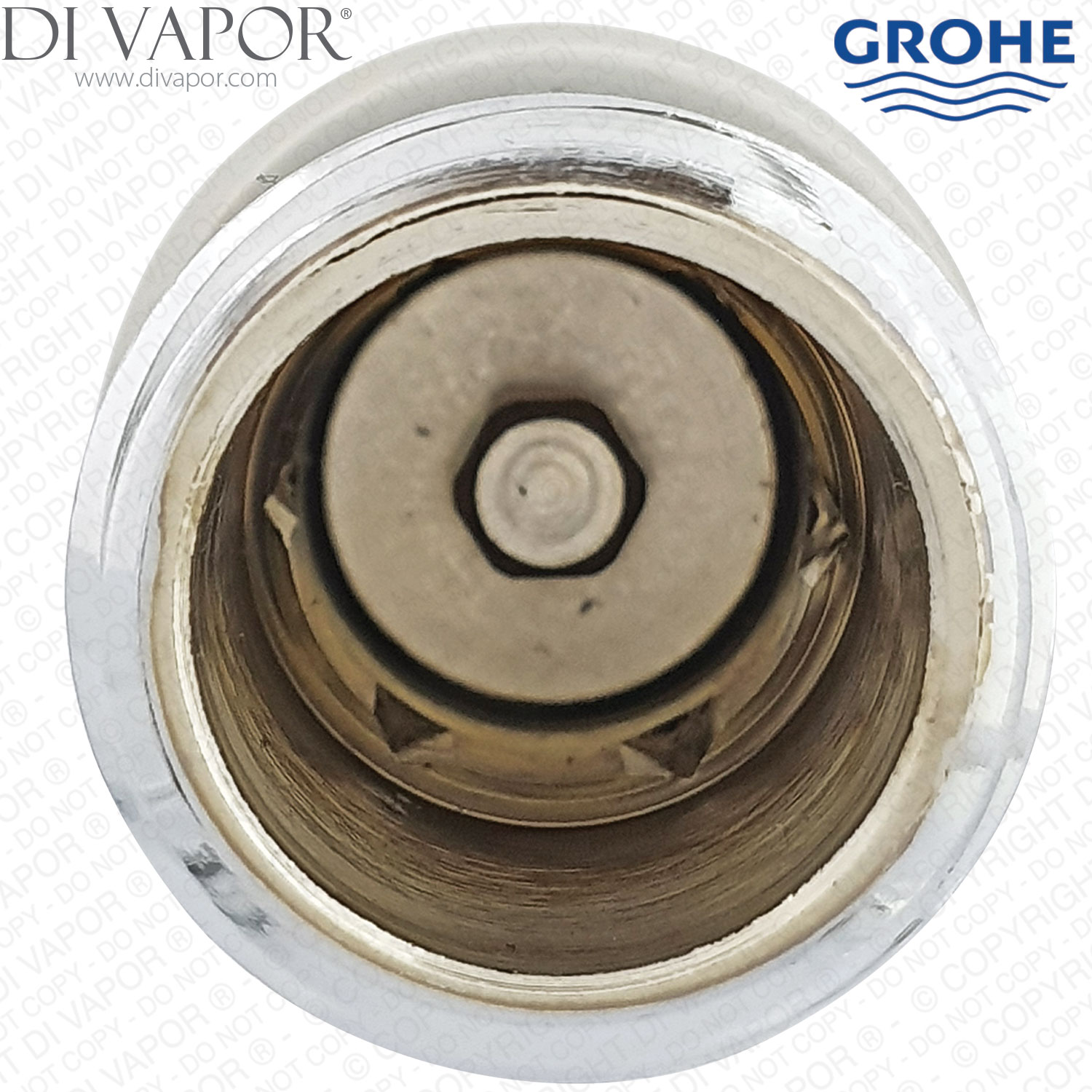

GROHE 65655000 Automatic Bath and Shower Diverter Cartridge Chrome
The GROHE 65655000 is a chrome automatic diverter cartridge used within selected single-lever bath mixers, thermostatic bath mixers, floor-mounted bath fillers and bath/shower systems. It directs mixed water between the bath outlet and shower outlet.
The mechanical diverter transfers flow between the two outlets. Signs of wear can include water continuing from both outlets, failure to change outlet, a stiff or unresponsive control, or failure of the automatic return action. Water dripping from the shower head or bath spout after the mixer is turned off can also be caused by the main ceramic cartridge, flow headpart or shut-off seals, so identify the faulty component before ordering.
Technical Details
- - Manufacturer code: 65655000
- - Part type: automatic bath and shower diverter cartridge
- - Finish: chrome
- - Function: directs mixed water between the bath outlet and shower outlet
- - Mechanism: mechanical automatic diverter
- - Service access shown for the diverter body: 12 mm hex
- - Actuator service tool shown in the fitting instructions: 5 mm or minimum 7 mm flat-blade screwdriver depending on the arrangement
Before You Order
Confirm the exact mixer model, generation and finish before ordering. Separate diverter codes are used for some coloured finishes, so a similar product family or external appearance is not enough to confirm the chrome 65655000. The 1/2-inch wording used on some mixer descriptions relates to the host mixer and does not establish the diverter cartridge thread size.
Installation Note
Isolate the water supplies before dismantling the mixer, note the original actuator arrangement and refit the diverter in the same orientation. The fitting instructions show two actuator arrangements. Lightly lubricate serviceable O-rings with suitable plumber's silicone grease where required.
Confirmed Models
- - GROHE 23119000 Allure Brilliant floor-mounted single-lever bath mixer
- - GROHE 23318000 Grandera floor-mounted bath/shower mixer
- - GROHE 23491001 Essence floor-mounted single-lever bath mixer
- - GROHE 23667000 Eurocube Joy floor-mounted bath mixer
- - GROHE 23667001 Eurocube Joy floor-mounted bath mixer
- - GROHE 23672000 Eurocube floor-mounted bath filler
- - GROHE 23672001 Eurocube floor-mounted bath mixer
- - GROHE 23792001 Lineare floor-mounted bath/shower mixer
- - GROHE 25450001 Costa L bath/shower mixer
- - GROHE 32135002 Atrio floor-mounted bath mixer
- - GROHE 32135002 GEN1 Atrio floor-mounted bath mixer
- - GROHE 33612002 Eurostyle Cosmopolitan bath/shower mixer
- - GROHE 23140000 Eurocube single-lever bath mixer
- - GROHE 33591003 Eurostyle single-lever bath/shower mixer
- - GROHE 23431000 Eurodisc Joy single-lever bath/shower mixer
- - GROHE 34567000 Grohtherm 800 thermostatic bath/shower mixer
- - GROHE 34598000 Precision Start thermostatic bath/shower mixer
- - GROHE 26224001 Tempesta Cosmopolitan System
- - GROHE 32865000 BauClassic single-lever bath mixer
- - GROHE 23061001 Euphoria Concetto System 180
- - GROHE 27473000 Euphoria System 180
- - GROHE 32754002 Allure floor-mounted bath mixer
- - GROHE 23119001 freestanding single-lever bath filler with hand shower
- - GROHE 2331800A freestanding single-lever bath filler with hand shower
- - GROHE 2349100A freestanding single-lever bath filler with hand shower
- - GROHE 26177000 thermostatic bath/shower system
- - GROHE 26177001 thermostatic bath/shower system
- - GROHE 26490000 thermostatic bath/shower system
- - GROHE 33591002 Eurostyle Cosmopolitan
- - GROHE 32286001 Wave
- - GROHE 34215002 Grohtherm 1000 Cosmopolitan M
- - GROHE 27473001 Euphoria System 260
- - GROHE 32754000 Allure
- - GROHE 34766000 Grohtherm 800 Cosmopolitan
- - GROHE 27907000 Power&Soul Cosmopolitan System 190
- - GROHE 32135001 Atrio
- - GROHE 26692001 Tempesta System 250 Cube
Related Spares You May Need
- - GROHE Premium Plumbers Silicone Grease 2g SYNTHESO LM 220 18007031

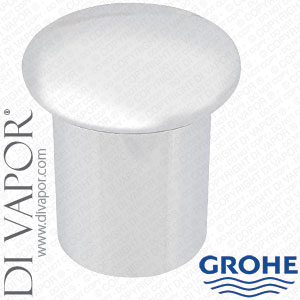

- - GROHE 65648000 Diverter Knob Chrome
Check the exact host mixer parts diagram before ordering the diverter knob, as actuator designs vary between models using the 65655000 diverter.
