VADO LIF-148B-3/4-C/P Life 2 Handle Thermostatic Shower Valve with Oval Backplate
Send a photo of your item and we'll help confirm it.
Summary
VADO LIF-148B-3/4-C/P Life 2 Handle Thermostatic Shower Valve with Oval Backplate
- Wall Mounted
- 0.2 bar LP
VADO LIF-148B-3/4-C/P is a Life 2 handle thermostatic shower valve with an oval backplate for wall mounted shower installations. It is listed as a 0.2 bar LP valve and is supplied as the complete valve assembly for this VADO Life model.
The two-handle layout separates temperature control from flow control. The thermostatic side regulates mixed water temperature, while the flow side opens and shuts off the shower water supply through the 3/4 inch on/off ceramic disc flow cartridge.
Technical Details
| Brand | VADO |
|---|---|
| Product code | LIF-148B-3/4-C/P |
| Product type | 2 handle thermostatic shower valve with oval backplate |
| Mounting | Wall mounted |
| Minimum pressure listing | 0.2 bar LP |
| Main thermostatic cartridge options | CEL-001B/B-WAX original brass screw-fit cartridge or CEL-RETROFIT/B polymer push-fit retrofit cartridge where confirmed by the removed cartridge |
| Main flow cartridge | CEL-002A/B-3/4 clockwise close 3/4 inch ceramic disc flow cartridge |
Before You Order
Check the existing valve code, backplate shape and removed cartridge before ordering service parts. VADO valves can use different thermostatic cartridges depending on production date, so the removed cartridge should be checked against the product photos and code before selecting CEL-001B/B-WAX or CEL-RETROFIT/B.
Common Faults
Temperature fluctuation, poor temperature control or poor flow can point to a worn thermostatic cartridge or limescale build-up. Water continuing to drip from the shower outlet when the valve is turned off can point to wear in the flow cartridge or debris on the ceramic disc seal.
Related Spares You May Need
- VADO CEL-001B/B-WAX Thermostatic Cartridge for Celsius Nuance Notion Elements Shower Valves
- VADO CEL-002A/B-3/4 On/Off 3/4 Inch Flow Cartridge Clockwise Close
- VADO Celsius CEL-148/FLOW-EXT Flow Extension ION Kit
- Vado CEL-148/TEMP-EXT Temperature Extension Kit for CEL-148 Thermostatic Shower Valves
- VADO LIF-148B-TRIM-C/P Life Trim Kit for LIF-148B-3/4-C/P
- VADO CEL-048B-CONC Celsius Concealed 1 Function Thermostatic Shower Valve
- Vado LIF-1/TEMP-C/P Life Temperature Control Handle
- Vado CEL-0024B-PLA Stop Ring
- VADO Celsius CEL-0023/B-C/P Temperature Shroud
- VADO Celsius CEL-0021/B-C/P Plate Securing Rings
- VADO Celsius CEL-0022/B-C/P Flow Shroud
- Vado LIF-1/FLOW-C/P Life Flow Control Handle
- Vado Life LIF-0010-C/P Cover Plate Faceplate Escutcheon 160mm x 240mm
- Vado CEL-RETROFIT/B Retro-Fit Thermostatic Cartridge
- VADO Celsius CEL-0024C-PLA Stop Ring
For help identifying the correct cartridge or trim part, compare the removed part with the product photos and contact Di Vapor with clear photos and measurements before ordering.
This is a replacement thermostatic cartridge for VADO CEL-001B/B-WAX. The cartridge is a screw in type installation. You will receive the exact same cartridge that's in the photos. We are the only company who still has stock of this cartridge, and there are not many left. ...
VADO CEL-002A/B-3/4 On/Off ceramic disc flow cartridge. The cartridge closes / stops water flow by turning the handle clockwise (8:20 broach 3/4" ceramic disc valve). This CEL-002A/B-3/4 cartridge will fit the following Vado shower valves: - Vado Celsius CEL-148C - Vado N...
VADO Celsius CEL-148/FLOW-EXT Flow Extension ION Kit Used in all 148C Valves, all 128C ValvesThis flow extension is used in the following Vado valves: - all 148C valves - all 128C valves - except for Notion ION valve use Notion NOT-148/FLOW-EXT...
Shower Valve Spares for VADO LIF-148B-TRIM-C/P Life Trim Kit for LIF-148B-3/4-C/P...

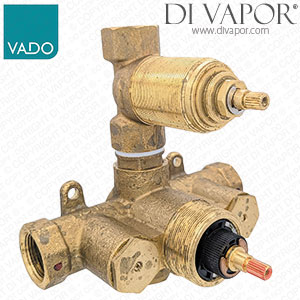

This does not include any chrome parts such as the handles, faceplate and shrouds, it only includes the brass valve and cartridges as per the photos. VADO CEL-048B-CONC Celsius Concealed 2 Handle Thermostatic Shower Valve - Brass valve assembly as per the photo. This is a o...
Vado LIF-1/TEMP-C/P Life Temperature Control Handle (LIF-1-TEMP-C/P)Vado LIF-1/TEMP-C/P Life Temperature Control Handle (LIF-1-TEMP-C/P) is a replacement temperature control handle for selected Vado Life concealed thermostatic shower valves. It is the external handle used to adju...
Total Height: 17mm. Internal Diameter: 22.5mm. External Diameter at widest point:31.2mm...
VADO Celsius CEL-0023/B-C/P Temperature Shroud Used In All 148C Valves, All 128C ValvesThis shroud is used in the following Vado valves: - all 148C valves - all 128C valves - Notion NOT suitable for 2 or 3 way valves...
Sold Individually. VADO Celsius CEL-0021/B-C/P Plate SecuRing Rings Used in all 148C Valves, all 128C ValvesThis ring is used in the following Vado valves: - all 148C valves - all 128C valves...
VADO Celsius CEL-0022/B-C/P Flow shroud Used in all 148C Valves, all 128C ValvesThis shroud is used in the following Vado valves: - all 148C valves - all 128C valves - Notion NOT suitable for 2 or 3 way valves External Thread Diameter: 45.92mm Internal Thread Diameter: 34.5mm...
Vado LIF-1/FLOW-C/P Life Flow Control HandleVado LIF-1/FLOW-C/P is a Life flow control handle for selected Vado Life concealed thermostatic shower valves. This handle is used on the flow side of the valve to operate water flow rather than temperature control.The part is suitable ...
Vado Life Cover Plate (Faceplate / Escutcheon) - 160mm x 240mm to Suit all Life Thermostatic Shower Valves...
Vado LIF-1/TEMP-D-C/P Life Temperature Control Handle for LIF-128D and LIF-148D Shower ValvesThe Vado LIF-1/TEMP-D-C/P is a Life temperature control handle used on the finished trim of selected VADO Life concealed thermostatic shower valves, including LIF-128D and LIF-148D valve ...
Vado LIF-1/FLOW-D-C/P Life Flow Control Handle to Suit LIF-128D & LIF-148D Thermostatic Valves in Chrome...
This is a Vado CEL-RETROFIT/B thermostatic cartridge. If your Vado shower is experiencing fluctuations in water temperature or poor water flow, there could be a problem with your thermostatic cartridge, especially in hard water areas with a lot of lime-scale. The original br...
VADO Celsius CEL-0024C-PLA Stop Ring Used in all 148C Valves, all 128C ValvesThis stop ring is used in the following Vado valves: - all 148C valves - all 128C valves - except Notion Height: 12.8mm Raised (stepped) Stopper Height: 16mm-17mm Internal Diameter: ~22.8mm Diamete...
