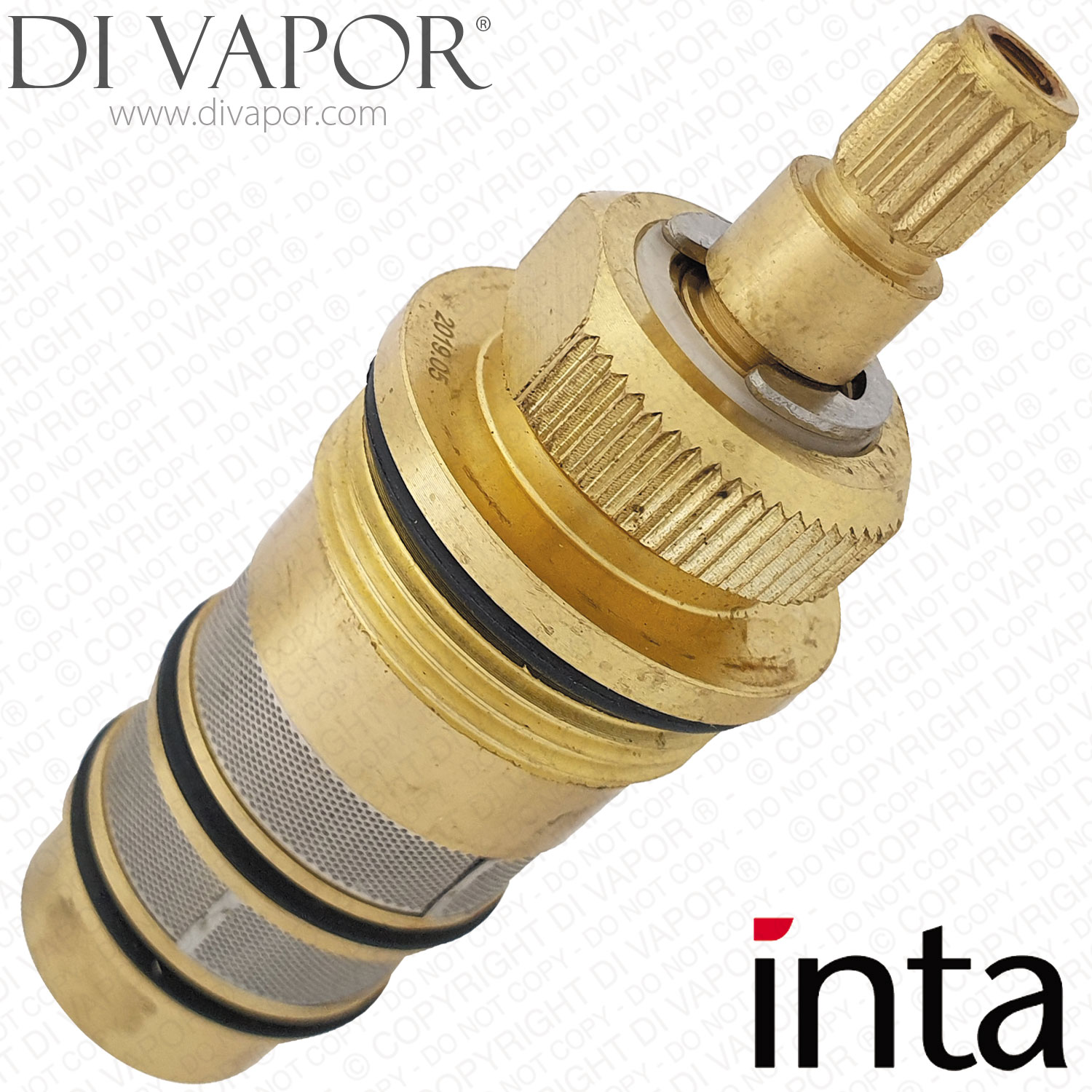

Inta PU100003XX Thermostatic Cartridge for Puro and Kiko Dual Outlet Shower Valves

SUMMARY

The Inta PU100003XX is a thermostatic cartridge for selected Inta dual outlet thermostatic shower valves. It is the temperature-control cartridge inside the shower valve and is used to regulate the mixed water temperature delivered to the outlets.

This cartridge is listed for Inta Puro and Kiko dual outlet shower valve applications. It is separate from the PU100004XX flow cartridge, which controls water flow rather than temperature.

Technical Details

- - Brand: Inta

- - Part Number: PU100003XX

- - Part type: thermostatic cartridge

- - Application: temperature-control cartridge for selected dual outlet thermostatic shower valves

- - Flow counterpart: Inta PU100004XX Flow Cartridge

- - A worn or scaled thermostatic cartridge can cause poor temperature control, unstable mixed water temperature or difficulty calibrating the shower to the required temperature.

- - If the shower continues to drip from the head or outlet when turned off, check the flow cartridge and valve seals before assuming the thermostatic cartridge is the cause.

Confirmed Compatible Models

- - Inta PU10032CP Puro Safe Touch Thermostatic Shower (Telescopic Riser)

- - Inta PU10036CP Puro Deluxe Thermostatic Shower (Adjustable Riser)

- - IN20016CP

- - Inta KK10032CP Kiko Dual Outlet Shower Valve

Before Ordering

Check the part number, cartridge position and shower valve model before ordering. This is the thermostatic temperature cartridge, not the flow cartridge or diverter cartridge. The stop ring should also be checked during servicing because it is associated with the PU100003XX temperature cartridge assembly.

Related Spares You May Need

- - Inta PU100004XX Flow Cartridge

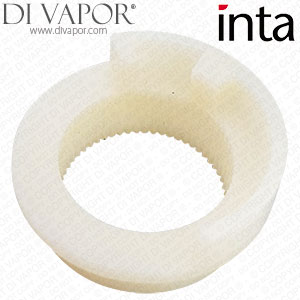

- - Stop Ring for Inta PU100003XX Thermostatic Cartridge

- - TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
