INTA VC02NF On/Off Flow Cartridge Replacement
SUMMARY
INTA VC02NF On/Off Flow Cartridge Replacement

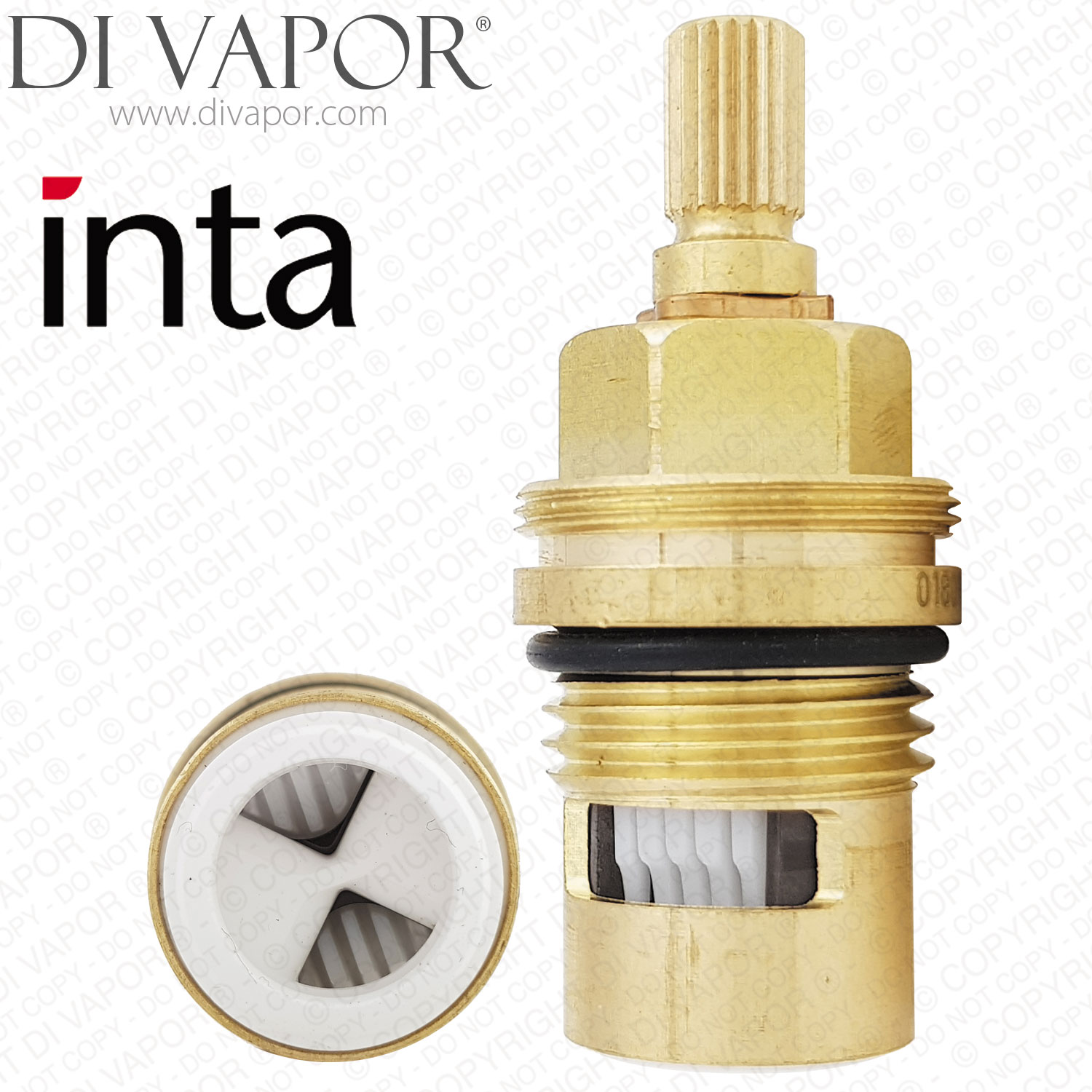

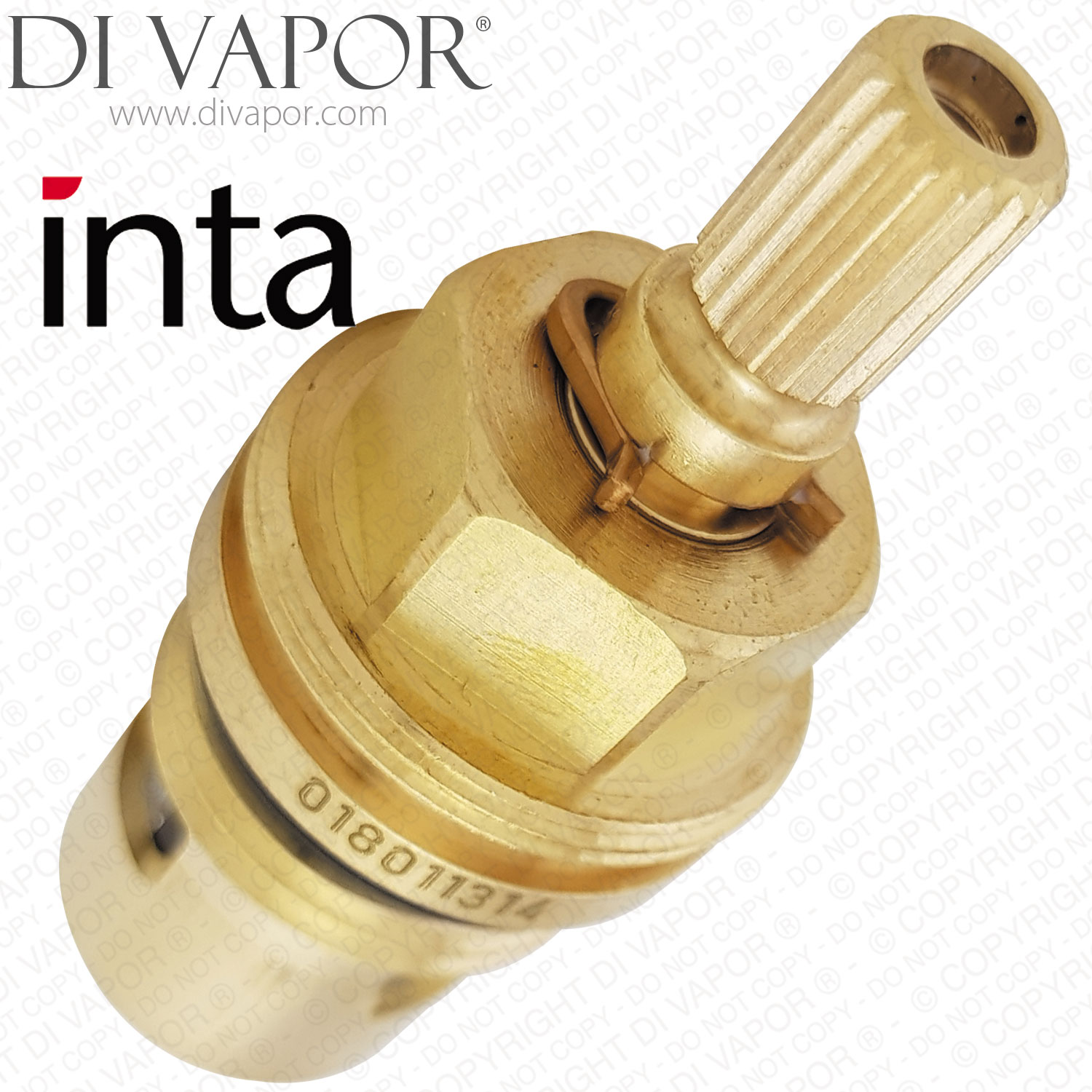

The INTA VC02NF is an on/off flow cartridge replacement for selected Inta Puro thermostatic shower valves. Di Vapor Part Number IN-VC02NF is used for the VC02NF cartridge code and is for the flow-control side of the valve rather than the thermostatic temperature-control side.
This cartridge controls water flow and shut-off through the shower valve. When a flow cartridge is worn, scaled or no longer sealing correctly, common symptoms can include stiff operation, poor shut-off or water dripping from the shower head or outlet when the shower is turned off.
Technical Details
- - Brand: Inta / Intatec
- - Di Vapor Part Number: IN-VC02NF
- - Cartridge code: VC02NF
- - Part type: on/off flow cartridge
- - Function: water flow and shut-off control
- - Temperature-control function: not included; check the thermostatic cartridge separately if the fault is unstable temperature control
- - Installation note: apply suitable silicone grease to the O-ring and bottom seal when fitting a new flow cartridge
Before Ordering
Check the removed cartridge marking, shower valve model and cartridge position before ordering. Inta Puro valves can use separate cartridges for flow control, outlet diversion and thermostatic temperature control, and current Puro spare pages show more than one flow-related cartridge reference. Do not order by valve appearance alone.
Common Symptoms
- - Symptom: water continues to drip from the shower head or outlet when the shower is turned off
- - Likely cause: worn or scaled flow cartridge, damaged seals or debris on the cartridge seating area
- - Solution: isolate the water supplies, compare the removed cartridge with VC02NF and inspect the O-ring, bottom seal and valve body before fitting the replacement
Related Spares You May Need
- - TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
- - Inta PU100003XX Thermostatic Cartridge for Puro and Kiko Dual Outlet Shower Valves
- - Stop Ring for Inta PU100003XX Thermostatic Cartridge
- - Inta PU100004XX Flow Cartridge
- - Inta CB0003 Flow Cartridge Diverter for CB10010CP / PU10032CP
- - INTA 30003CPX Metal Shower Hose Complete CP 1500mm
